Halsey Taylor HTHB-HAC8BLPV-WF | Wall-mounted Bi-Level Bottle Filling Station | Filtered, Refrigerated, HAC-style fountains, Platinum Vinyl color finish
Halsey Taylor HTHB-HAC8BLPV-WF | Wall-mounted Bi-Level Bottle Filling Station | Filtered, Refrigerated, HAC-style fountains, Platinum Vinyl color finish is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Halsey Taylor HTHB-HAC8BLPV-WF | Wall-mounted Bi-Level Bottle Filli...

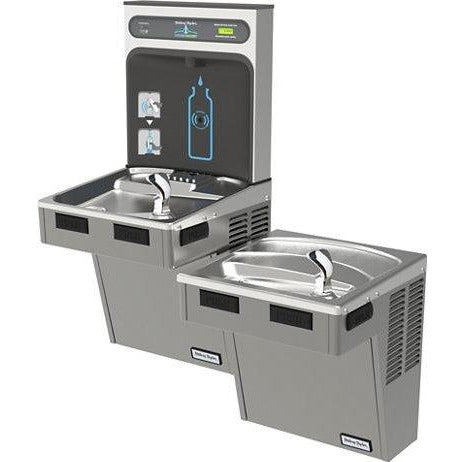

The Halsey Taylor HTHB-HAC8BLPV-WF is a cutting-edge HydroBoost® Bottle Filling Station & Bi-Level ADA Cooler that combines sustainability, hygiene, and accessibility in one sleek package. This filtered, refrigerated unit features a touchless sensor-activated bottle filler and mechanically-activated bubblers, making it an ideal solution for high-traffic indoor areas while promoting hydration and reducing plastic waste.
Key Specifications:
- Chilling Capacity: 8.0 gallons per hour of 50°F drinking water, based on 80°F inlet water and 90°F ambient temperature.
- Filtration System: Certified to NSF 42 and 53 for lead, particulate, chlorine, taste, and odor reduction with a 3,000-gallon capacity.
- Activation Methods: Electronic sensor for bottle filler, mechanical front and side pushbars for bubblers.

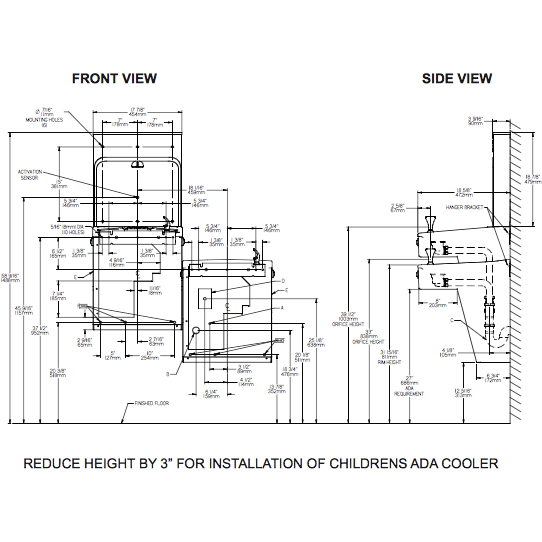

- Dimensions: 36-1/4" L x 18-5/8" W x 46-1/4" H, suitable for wall-mount installation in indoor spaces.
Features & Benefits:
- Bi-Level Design: ADA-compliant configuration ensures accessibility for users of all abilities, promoting inclusivity in hydration.
- Green Counter™: Displays the number of 20 oz. plastic water bottles saved from waste, encouraging environmental consciousness.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is necessary, ensuring consistently clean water.
- Antimicrobial Protection: Key components feature antimicrobial properties, promoting hygiene and reducing the spread of germs.
- Laminar Flow: Provides a clean fill with minimal splash, enhancing user experience and maintaining cleanliness.
What's Included:
- Water Cooler (8740082841-HTHB) Filter
- Bottle Filler (HTHB-HAC)
FAQ
Q: What is included in the Cooler Combo?
A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.
Q: Does the shipment include everything for the installation? Does plumber need anything else?
A: Does not include:
- Shut-off Valve (not furnished)
- 1-1/4” Trap (not furnished).
Q: Does this product come with a Mounting Frame?
A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame can be ordered separately. Please find further details on Spec Sheet and/or Installation Instructions.
Q: Does the Cooler Combo come with filter?
A: Yes, each Cooler Combo comes with one (1) 55898C Filter Replacement, which has a capacity of 3000 Gallons.
Detailed Features & Benefits
Advanced Filtration System: The Halsey Taylor HTHB-HAC8BLPV-WF features a high-performance filtration system certified to NSF 42 and 53 standards. This ensures the removal of contaminants such as lead, particulates, chlorine, and unpleasant tastes and odors. With a 3,000-gallon capacity, the filter provides long-lasting, clean, and great-tasting water. The visual filter monitor takes the guesswork out of maintenance, alerting users when it's time for a replacement, thus ensuring consistent water quality and optimal performance.
Dual Activation Methods: This innovative unit combines touchless and mechanical activation options to cater to various user preferences and ensure uninterrupted service. The bottle filling station features a sanitary sensor-activated mechanism, allowing for hands-free operation and reducing the risk of cross-contamination. The bi-level bubblers are equipped with mechanical front and side pushbars, ensuring that water is always available even in the event of power outages or sensor malfunctions. This dual-activation design makes the HTHB-HAC8BLPV-WF an ideal choice for high-traffic areas where reliability and hygiene are paramount.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
