Elkay LK4420BF1UDB | Outdoor Bottle Filling Station | Filterless, Non-refrigerated, Dog-bowl / Pet fountain
Elkay LK4420BF1UDB | Outdoor Bottle Filling Station | Filterless, Non-refrigerated, Dog-bowl / Pet fountain - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4420BF1UDB | Outdoor Bottle Filling Station | Filterless, N...
*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

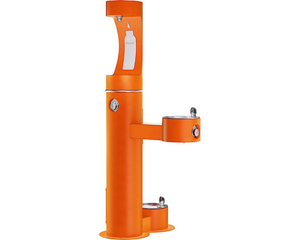

The LK4420BF1UDB is a freestanding unit rated for outdoor use and that includes a bottle filler, a drinking fountain, and a pet fountain with slow drainage for easy drinking. This dog water station is available in twelve different colors.
An industry-leading Outdoor Drinking Fountain, the Elkay LK4420BF1UDB Outdoor Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
- ADA compliant design
- Quick fill rate of 1 Gallon Per Minute
- Corrosion protection from E-Coat immersion process coat
- Vandal-resistant bubbler and pushbutton
- Popular Dog Bowl (pet fountain)
The LK4420BF1UDB is a heavy-duty, vandal-resistant outside dog water fountain that features a chrome-plated bubbler, push-button, and fountain basin and is made with tamper-resistant screws and corrosion-resistant base materials making it ideal for public spaces, and outdoor educational or recreational facilities.
The LK4420BF1UDB chrome-plated bubblers are protected by an integral hood guard to prevent contamination from other users, airborne deposits and tampering.
FAQ
Q: What colors are available for the Outdoor Bottle Filling Stations?
A: Outdoor Bottle Filling Stations come standard in Evergreen, which typically has a lead time of 10-15 business days. See other color options below, which have a lead time of ~ 20-30 business days.
Q: What makes the Outdoor Freeze Resistant Bottle Filler, Freeze Resistant?
A: The valve is designed to be installed 18” below the frost line. In addition, 60” of tubing is provided.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor EZH2O Bottle Filling Stations, Outdoor Bottle Fillers don’t come with a filtered option. However, it is quite common to create inline filtration by ordering and properly installing a separate WaterSentry Plus Filter Kit.
Contact us at support@bottlefillingstations.com or (855) 558-9600.
Q: Are refrigerated versions of Outdoor Bottle Filling Stations available?
A: Outdoor Bottle Fillers do not come with chillers because of the risk presented from outdoor elements, especially in the cold. However, if installed with proper shelter and temperature, a remote chiller can be hooked up to the Bottle Filler, which can especially be beneficial in warmer climates. Please contact us for further details.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes, Elkay Bottle Filling Stations are very durable. They are made with heavy-duty steel with a textured powder-coat finish and E-coat immersion for year-round protection with minimum maintenance.
- Elkay LK4420BF1UDB CAD symbols: FRONT - SIDE - TOP
- Elkay LK4420BF1UDB BIM file (RAF)
*MADE IN THE UNITED STATES.
