Elkay  |  SKU: LBWDM0BKBC

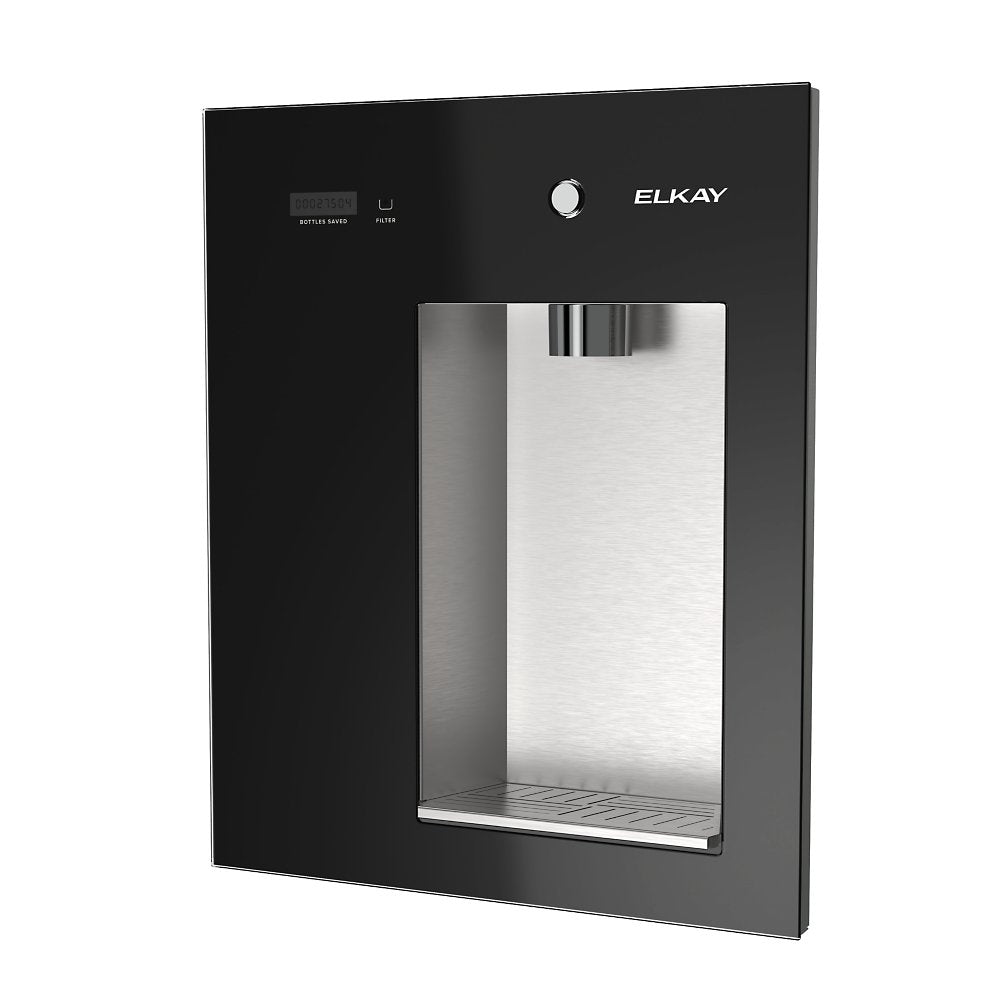

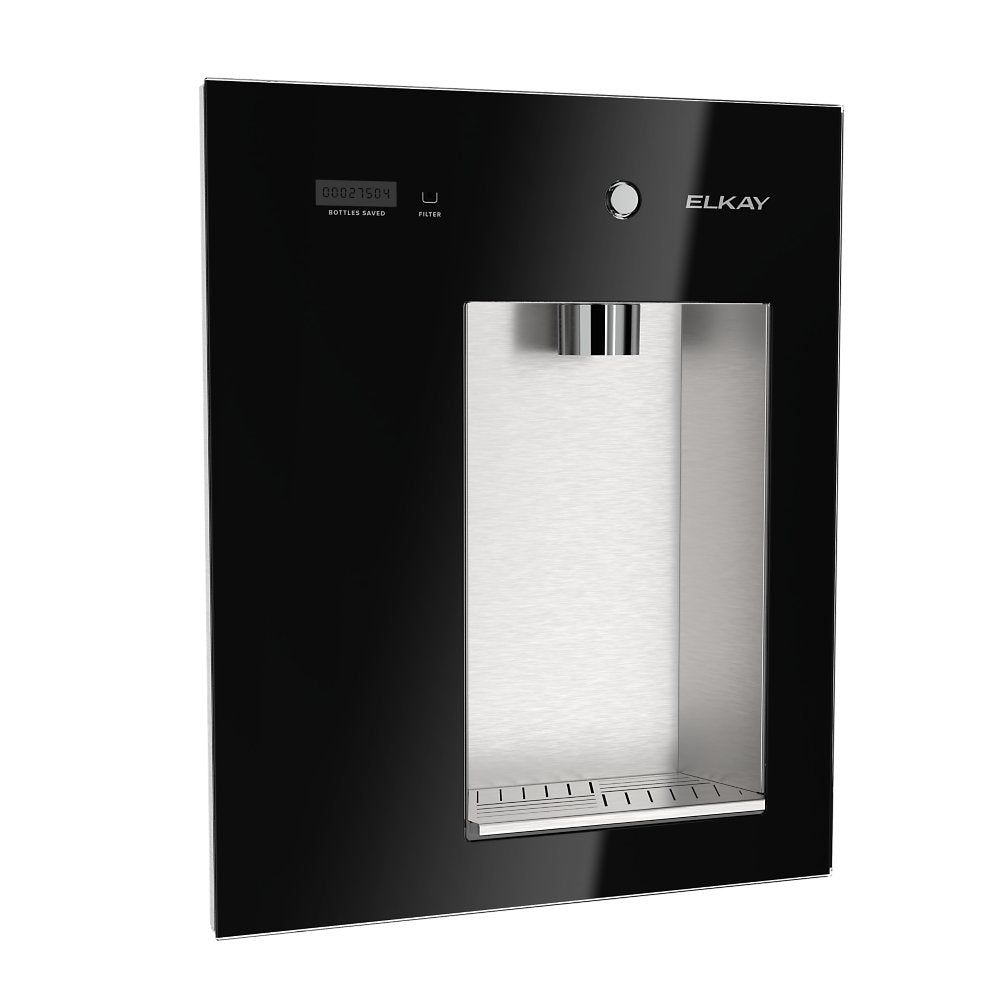

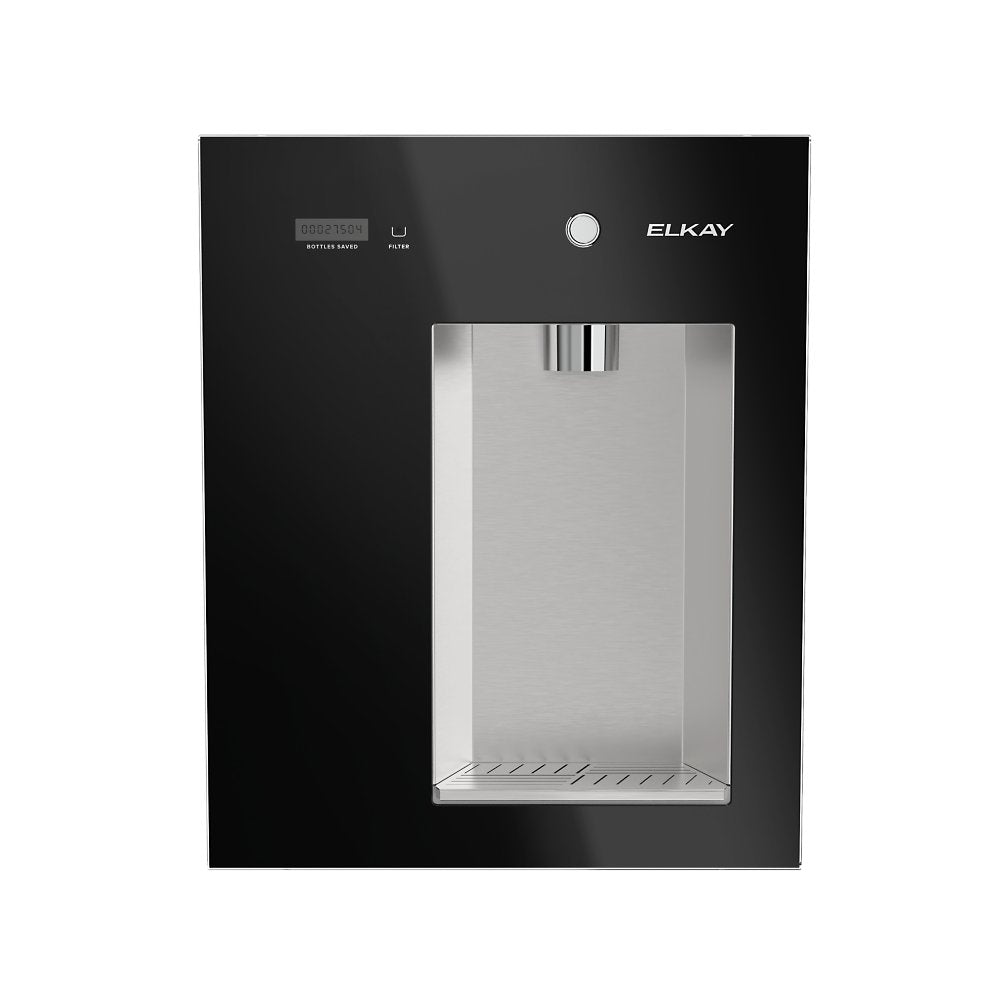

Elkay LBWDM0BKBC | Liv EZ, Filtered Water Dispenser for Home | Battery-Operated, Midnight Black

$ 1,269.00
Shipping calculated at checkout.

Product Care Information

Installation

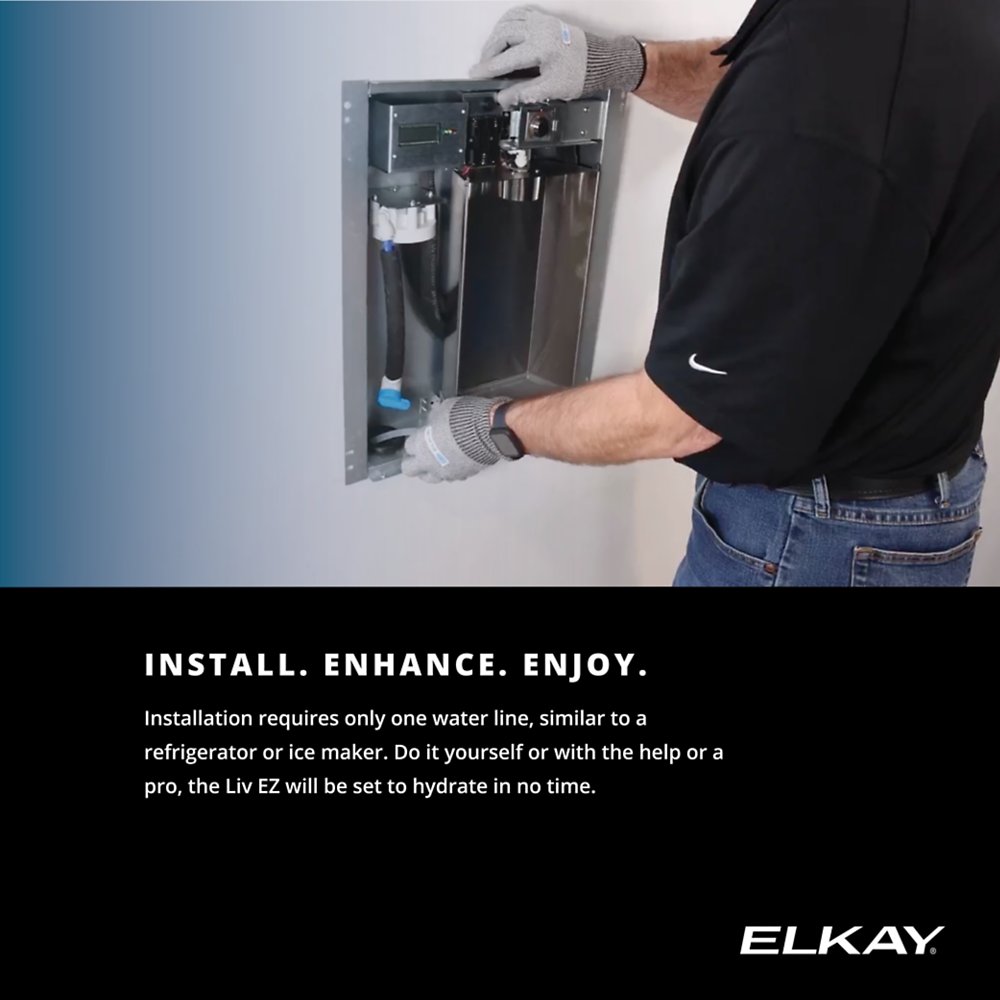

To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.

  • Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
  • Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
  • Route the 3/8" water line through the opening at the base of the dispenser.
  • Level the unit and secure it to wall studs using 4 screws (not included).
  • Install the 3 AA batteries in the battery compartment.
  • Insert the filter into the filter head and turn clockwise to lock in place.
  • Connect the water line to the shutoff valve at the filter's inlet.
  • Open the water supply and check for leaks.
  • Flush the system by dispensing at least one gallon of water before regular use.
  • Attach the glass front cover using the included Phillips head screws.



Maintenance

To keep your Elkay LIV EZ in optimal condition:

  • Replace the filter and batteries annually.
  • Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
  • Remove the front panel screws when replacing the filter.
  • Turn off the water supply before filter replacement.
  • Rotate old filter counterclockwise to remove it.
  • Install new filter by turning clockwise until locked.
  • Turn water supply back on after filter replacement.
  • Press the reset button above the battery compartment to reset the filter light.
  • Maintain water pressure between 40-105 psi (60 psi optimal).
  • Regularly check for leaks around connections.
  • Clean exterior with mild detergent and soft cloth as needed.



Refer to the product manual for detailed installation and maintenance information.

Part of the Liv EZ series, the Elkay LBWDM0BKBC is a Mechanical Built-in Filtered Water Dispenser for residential applications. With its user-friendly design, and battery-powered operation, access to clean drinking water at home has never been easier.

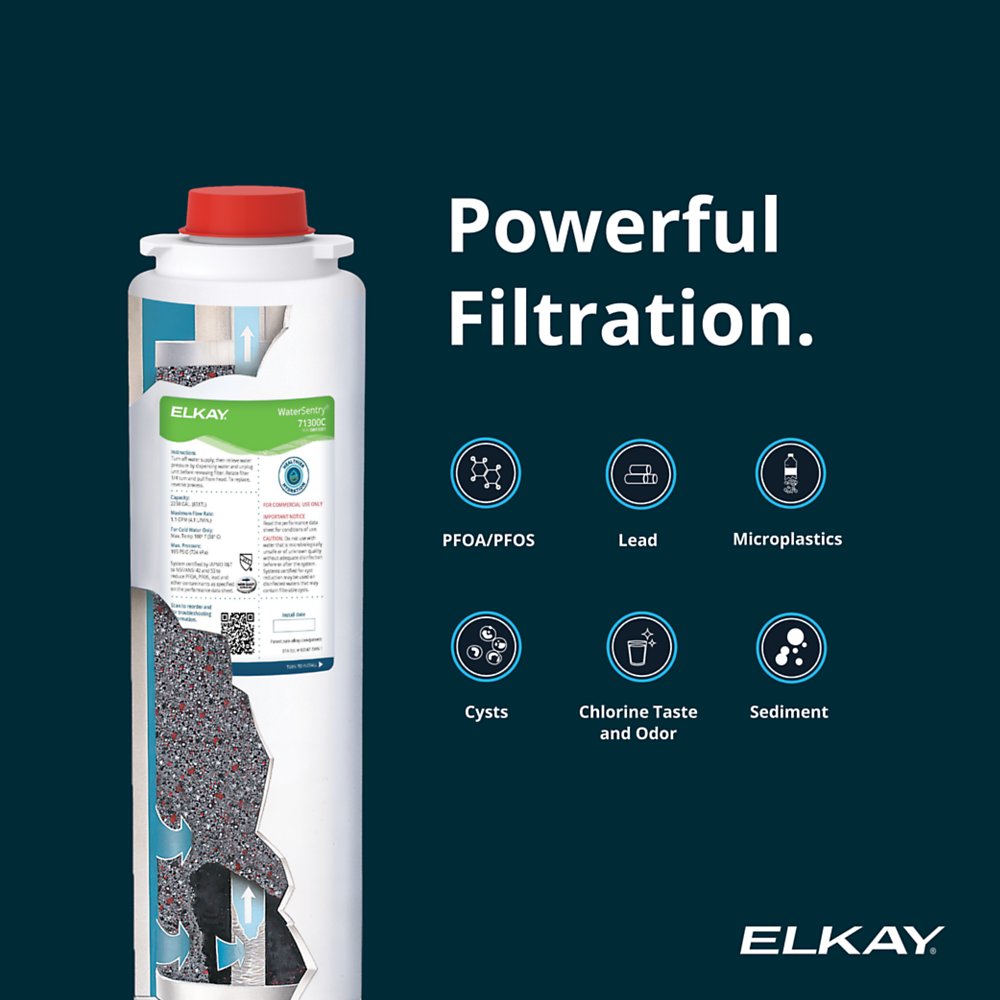

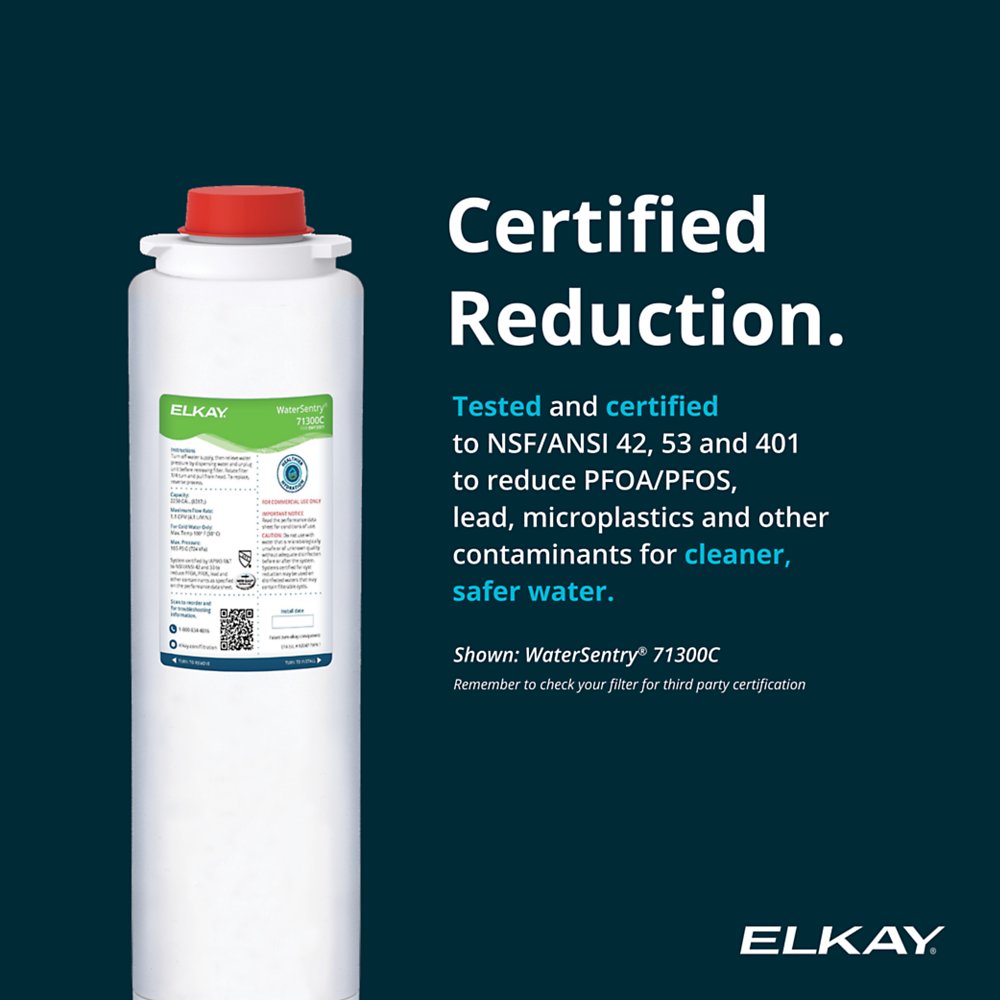

This unit deploys a PFAS filter, certified to reduce harmful "forever chemicals," lead, microplastics, and other contaminants.

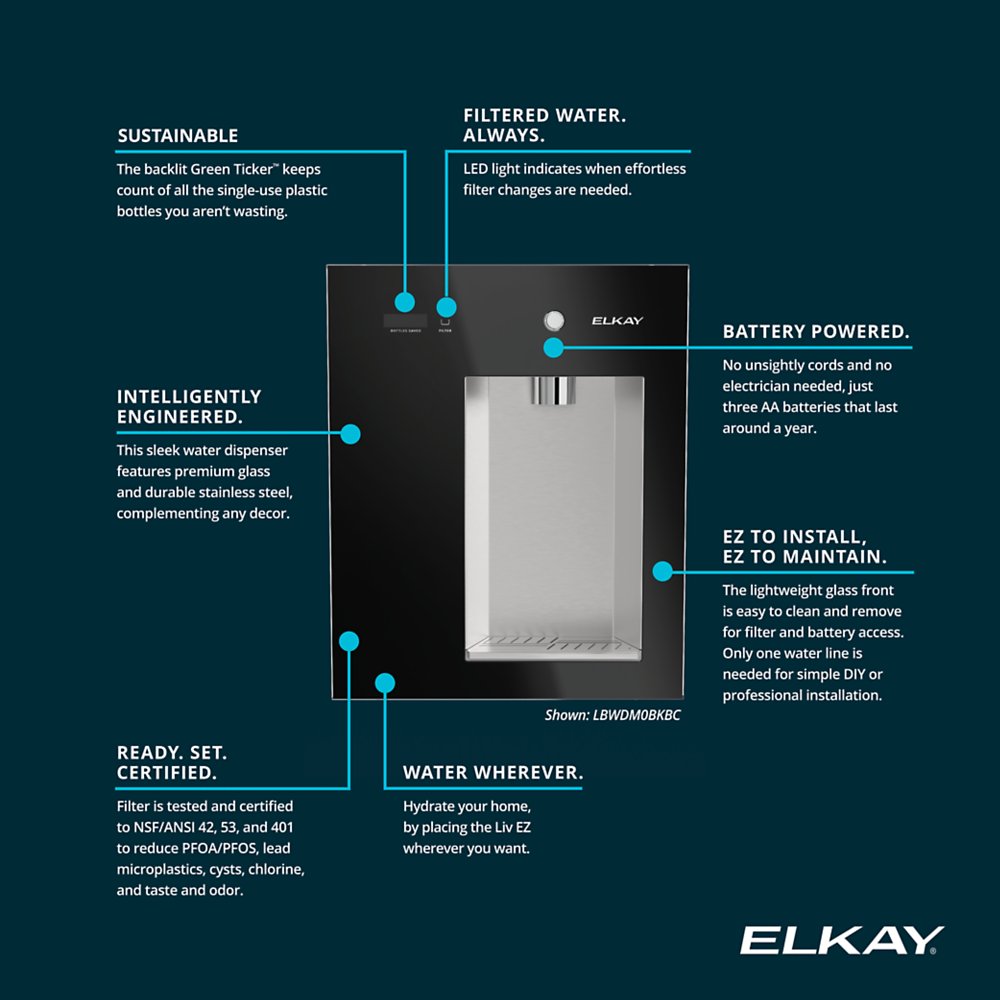

Key Specifications:

  • Battery Operation: Powered by 3 AA batteries that last over a year, eliminating the need for electrical connections.

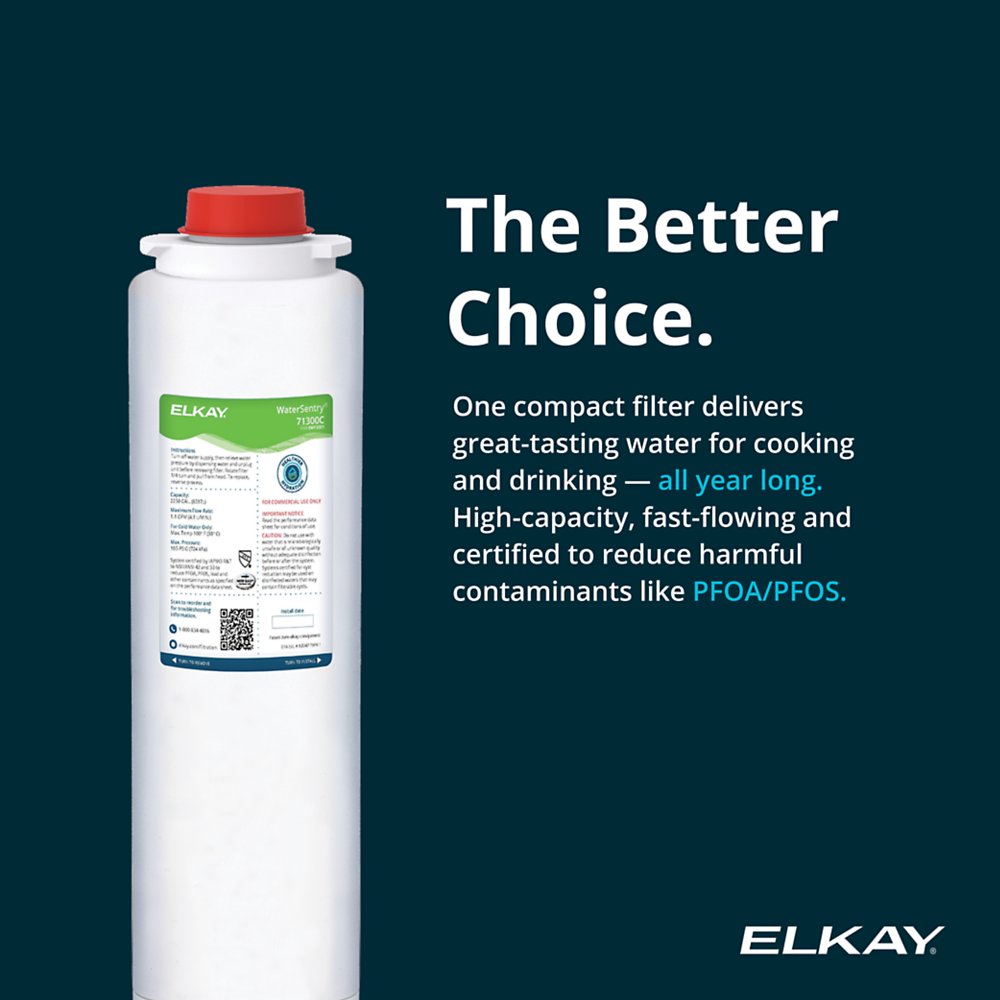

  • Premium Filtration: Includes a 2,250-gallon PFAS filter certified to NSF/ANSI standards 42, 53, 372, and 401.
  • Mechanical Activation: Durable push-button operation stands up to heavy use without requiring electricity.
  • Sleek Design: Midnight Black finish with premium materials including tempered glass and stainless steel that complement any décor.
  • Refrigeration: Chiller not included. For a remote chiller, select the ERS11Y add-on below add to cart.


Features & Benefits:

  • Convenient Hydration: High flow rate allows quick dispensing of filtered water for refreshing hydration at home or on the go.

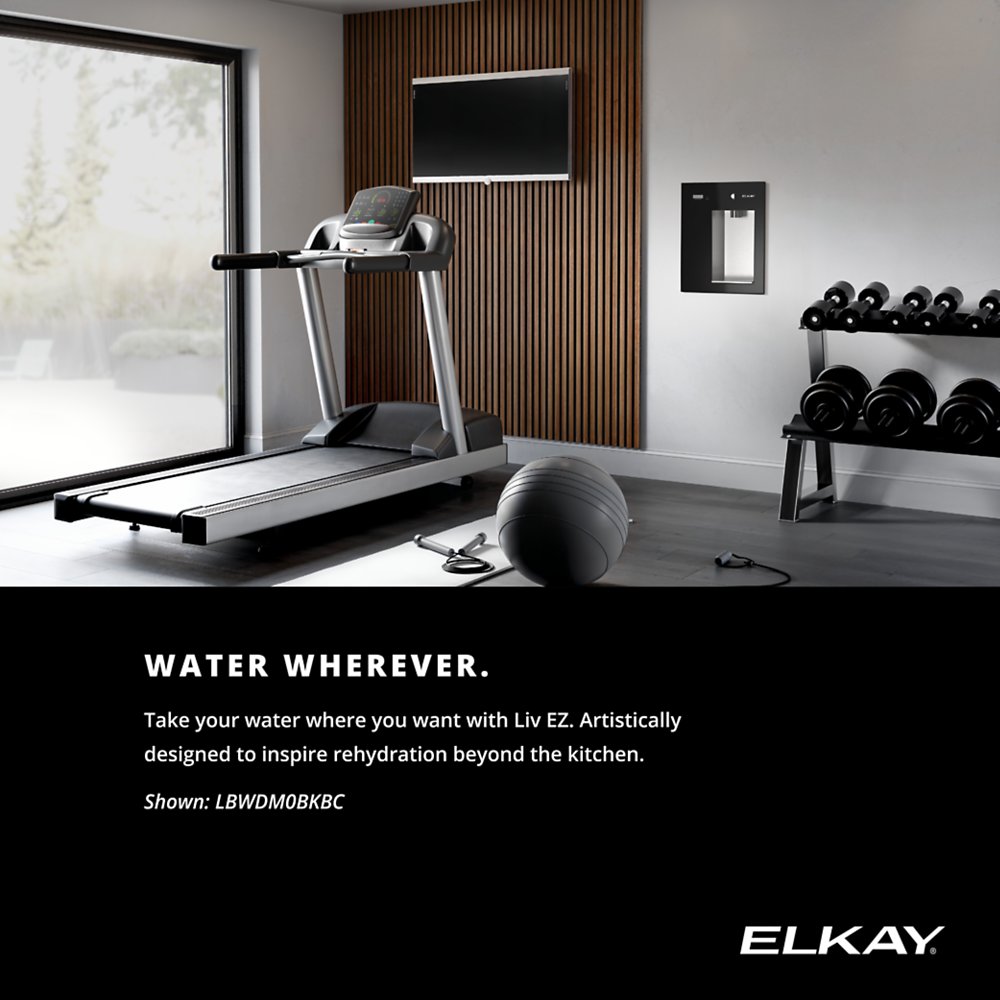

  • Versatile Installation: Perfect for mudrooms, home gyms, upstairs areas, and other locations beyond the kitchen.
  • Easy Installation: With no electricity required and only one incoming water line needed, installation is cost-efficient and straightforward.
  • Environmental Impact: Backlit LED Green Ticker™ counts the number of single-use plastic bottles saved, promoting sustainability.


FAQ


Q: How difficult is the installation process for the Elkay LBWDM0BKBC?

A: Installation is designed to be straightforward with only one incoming water line needed and no electrical connections required. Professional plumber assistance is recommended for optimal results.

Q: How often does the filter need to be replaced?

A: The included 2,250-gallon PFAS filter is rated to last up to one year under normal usage conditions. The unit features an LED indicator light that alerts you when it's time to change the filter.

Q: What contaminants does the filter remove from water?

A: The filter is tested and certified to NSF/ANSI standards 42, 53, 372, and 401 to reduce PFOA/PFOS (forever chemicals), lead, microplastics, cysts, Class I particulate, and chlorine taste and odor.


Detailed Features & Benefits


Advanced Filtration Technology: The Elkay LBWDM0BKBC features a high-performance filter that delivers cleaner, safer water by reducing harmful contaminants. This level of filtration exceeds what's typically found in refrigerator water dispensers, providing peace of mind for your family's hydration needs.

Convenient Battery Operation: Unlike traditional water dispensers that require electrical connections, the LBWDM0BKBC operates on three AA batteries that last over a year. This design eliminates unsightly cords and allows for flexible installation in locations where electrical outlets may not be readily available.

Sustainable Hydration Solution: The built-in Green Ticker™ counts the number of 20 oz. single-use plastic bottles saved, encouraging environmentally conscious behavior. The spacious 12-inch alcove accommodates various container sizes, making it easy to fill reusable bottles and reduce plastic waste.


NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
