Elkay EZWS-EDFP217K | In-wall Bi-Level Bottle Filling Station | Filterless, Non-refrigerated, Soft-sides fountains, Stainless Steel
Elkay EZWS-EDFP217K | In-wall Bi-Level Bottle Filling Station | Filterless, Non-refrigerated, Soft-sides fountains, Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZWS-EDFP217K | In-wall Bi-Level Bottle Filling Station | Fil...
Requires a minimum of 12" of wall depth for installation.

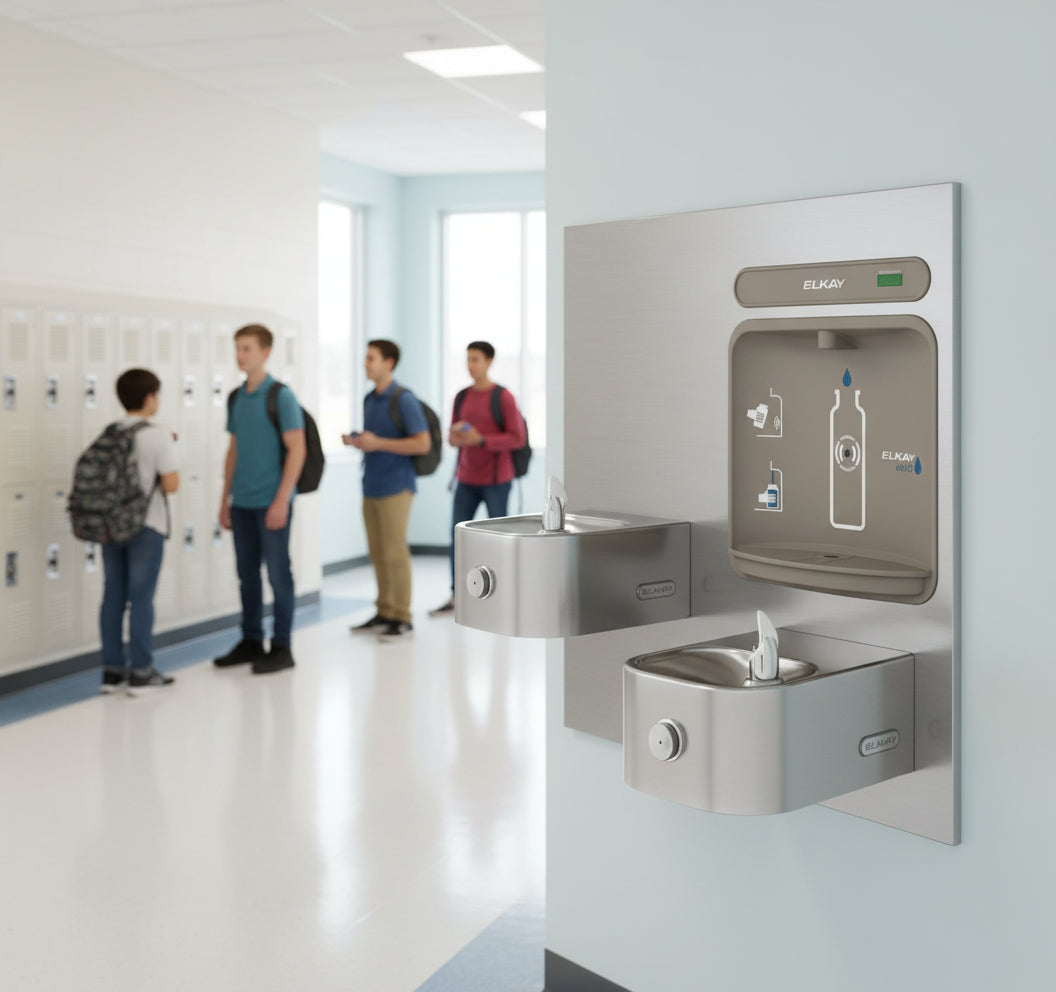

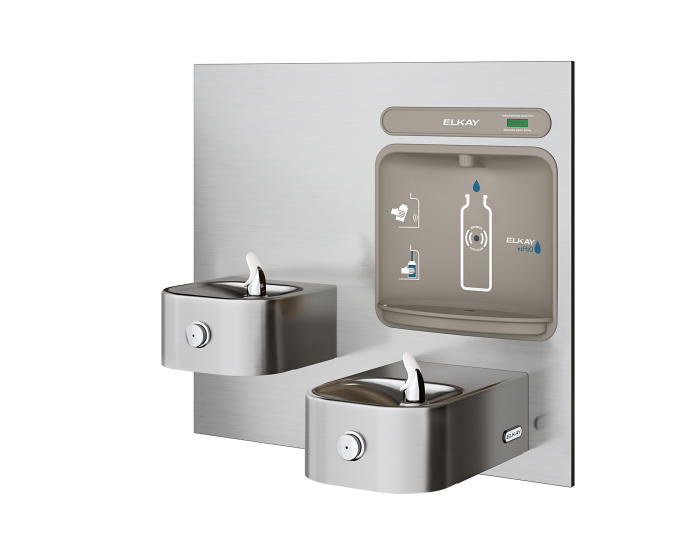

The Elkay EZWS-EDFP217K is an in-wall, non-filtered bottle filling station that includes a bottle filler and two 'Soft Sides®' drinking fountains. This model has a Stainless Steel color finish and is designed for indoor, high-traffic environments.
Key Specifications:
- Finish: Stainless Steel.
- Filtration: Non-filtered model. For the filtered Soft Sides® version, see LZWS-EDFP217K, which includes the WaterSentry® Plus 51300C filter.
- Refrigeration: Non-refrigerated (ambient water only).
- Dimensions: 38-1/2" L × 19-3/8" W × 34-5/8" H.
- Stations Served: 2 (one bottle filler + two fountains).
Features & Benefits:
- Hands-Free Bottle Fill: Sensor-activated with recessed spout and 20-second auto shut-off for hygienic use.

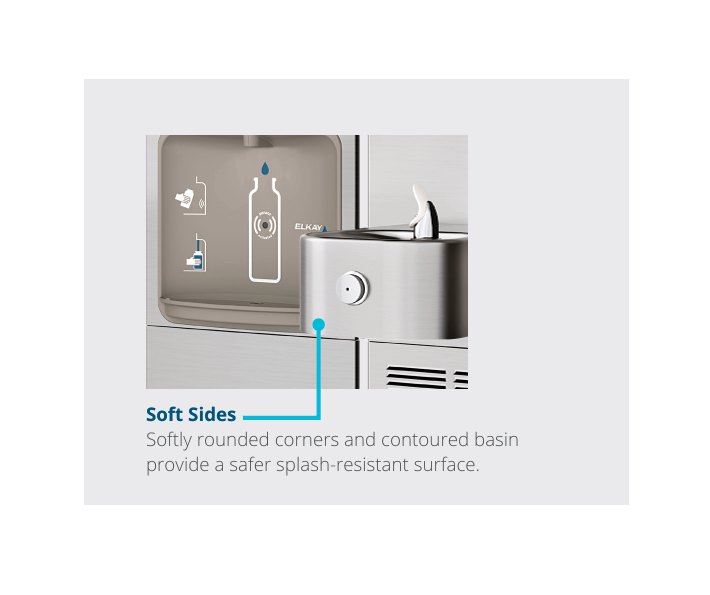

- Soft Sides® Design: Integral fountains with rounded edges for safety and comfort.
- Flexi-Guard® Safety Bubbler: Provides protection against injury and contamination.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste, promoting sustainability.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- Real Drain System: Eliminates standing water for improved hygiene.
- Durability: Stainless steel construction resists wear and tampering, ideal for schools, offices, and public spaces.
What's Included:
- EZWS-EDFP217K Bottle Filling Station + two Soft Sides® fountains
- Flexi-Guard® safety bubblers
- Mounting frame (MFWS200)
- Installation hardware and instructions
- Owner’s manual and warranty guide
FAQ
Q: How do I access the filter status and bottle counter button?
A: To access the program button, the lower panel of the unit must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.
Q: Is the EZWS-EDFP217K filtered?
A: No, this is a non-filtered model. For built-in filtration, see the LZWS-EDFP217K, which includes the WaterSentry® Plus 51300C filter.
Q: Is the EZWS-EDFP217K refrigerated?
A: No, this is a non-refrigerated model. It dispenses ambient water only.
Q: What are the installation requirements?
A: Requires a minimum of 12" wall depth, proper drainage, and electrical access (115V/60Hz). New installations must use a GFCI outlet. Trap and shut-off valve are not furnished.
Q: What warranty is included?
A: The EZWS-EDFP217K comes with a 1-year limited warranty on electrical components and water system (drinking water applications only).
Detailed Features & Benefits
Accessibility: ADA-compliant design ensures inclusive access when installed according to ADA & ICC A117.1 standards.
Sustainability: Green Ticker™ encourages reusable bottle use, reducing single-use plastic waste.
Maintenance: Simple design with accessible panels for service. Optional retrofit filtration kits available.
Warranty: 1-year limited warranty on electrical components and water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
