Elkay LMASMB | Surface Mount Bottle Filler | Filtered, Non-refrigerated, Battery Powered (3 AAs)
Elkay LMASMB | Surface Mount Bottle Filler | Filtered, Non-refrigerated, Battery Powered (3 AAs) is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LMASMB | Surface Mount Bottle Filler | Filtered, Non-refriger...

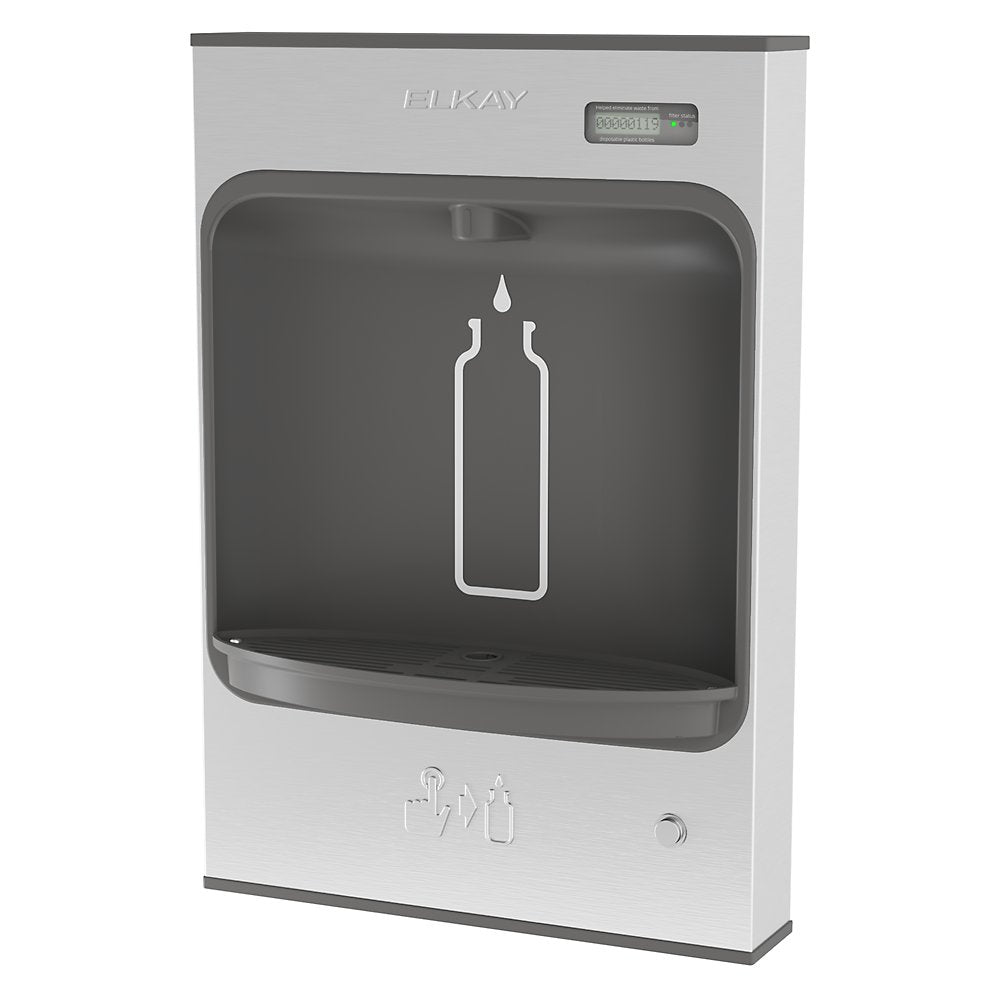

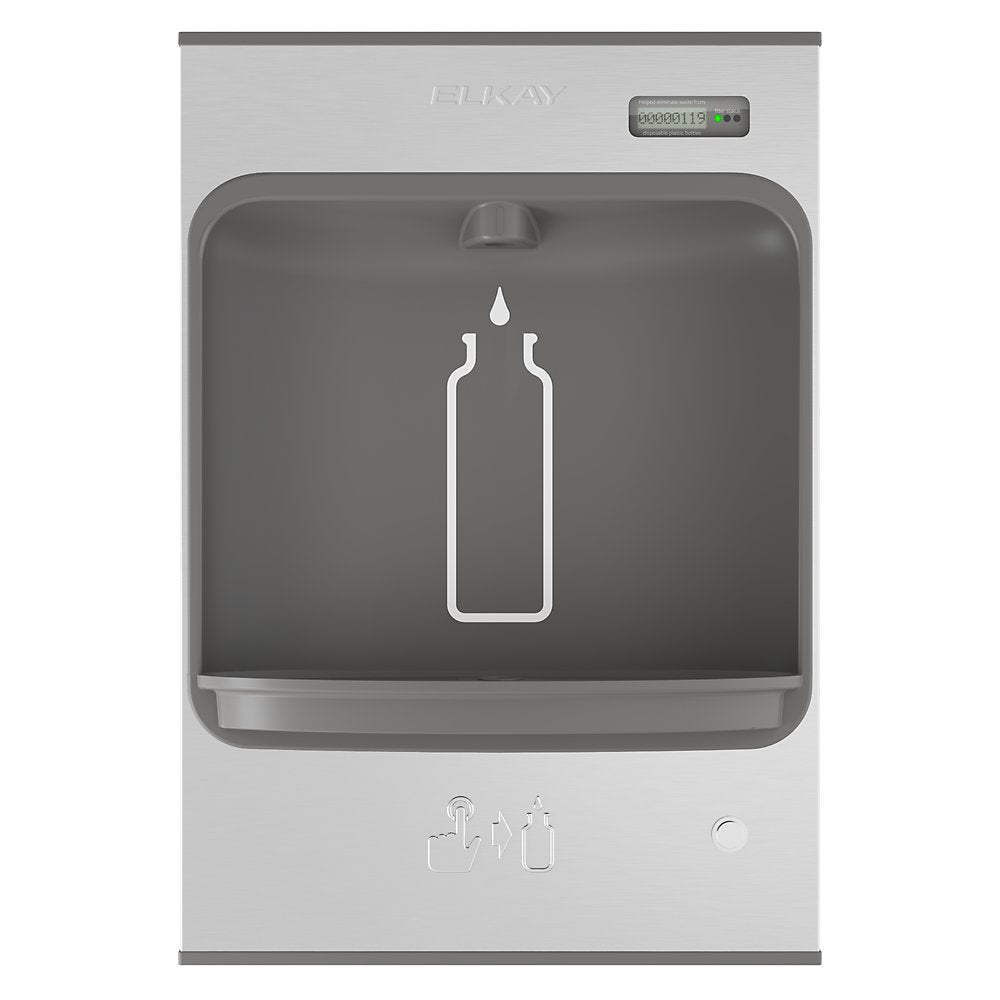

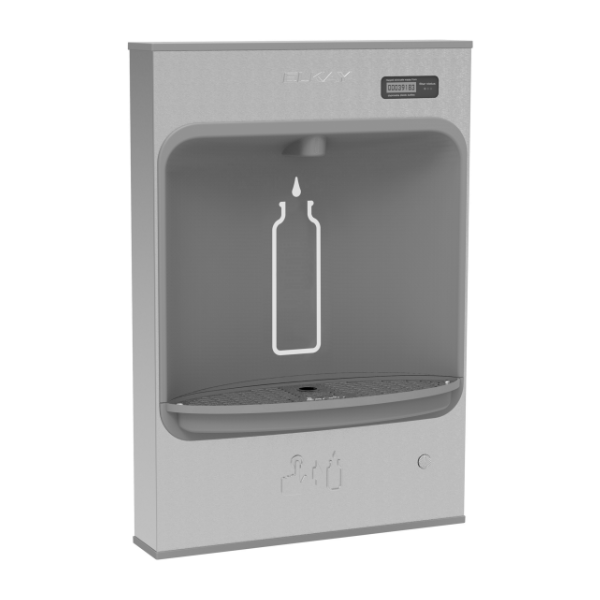

The Elkay LMASMB ezH2O® Mechanical Surface Mount Bottle Filling Station is a filtered, non-refrigerated, stainless steel unit designed for indoor use. Battery-powered and ADA-compliant, it provides sustainable hydration with advanced filtration, antimicrobial protection, and a compact wall-mount design ideal for schools, offices, and public facilities.
Key Specifications:
- Design: Surface mount, wall-mounted bottle filling station, serving 1 station.
- Finish: Stainless Steel.

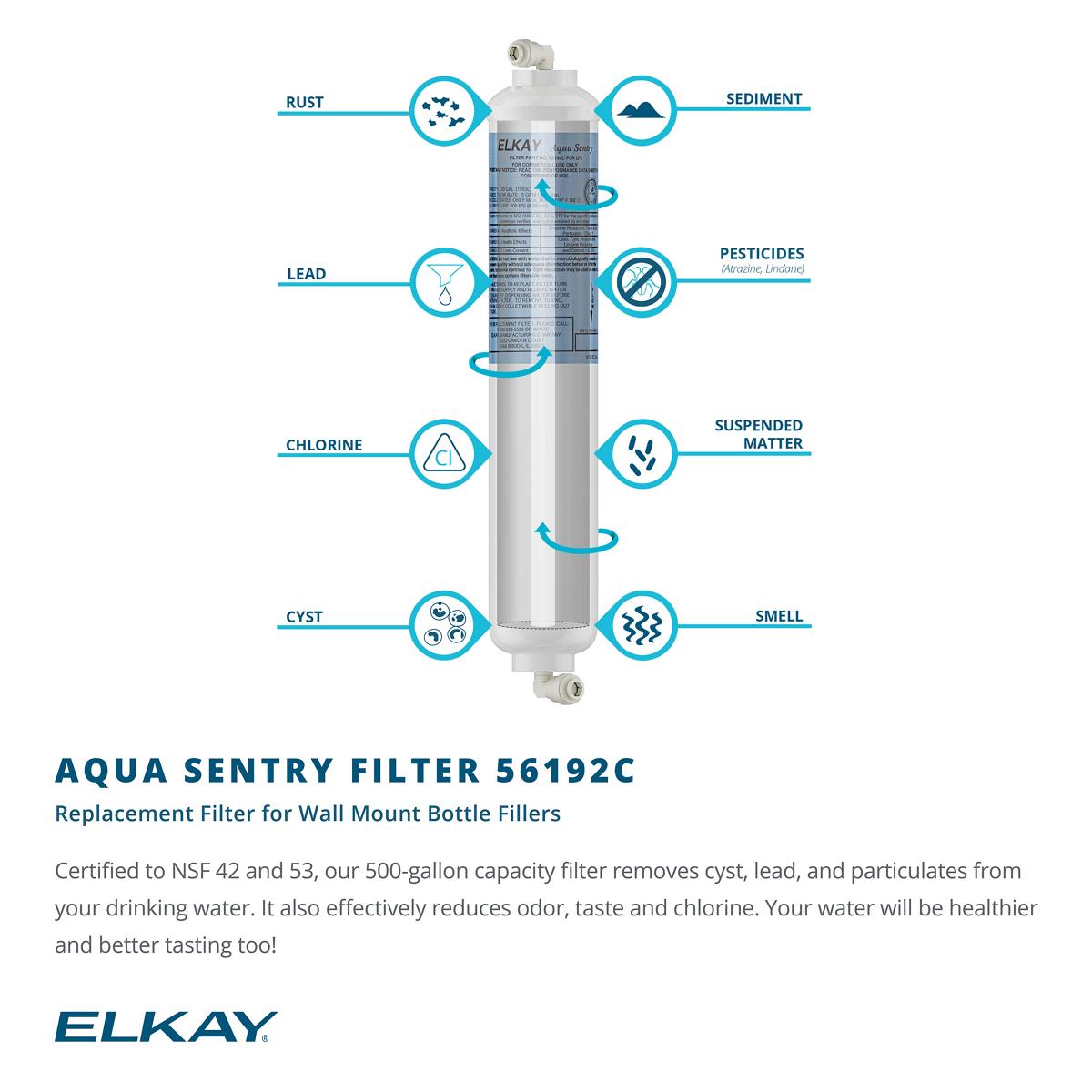

- Filtration: Includes the Elkay 56192C Aqua Sentry® replacement filter, NSF/ANSI 42, 53, 372, and 401 certified for lead, microplastics, particulates, cysts, and chlorine taste/odor. 3,000-gallon capacity or 1 year after installation.
- Chilling Capacity: Non-refrigerated (ambient water only). Can pair with a remote chiller.
- Activation: Mechanical bottle filler button.
- Power: Battery-powered (3 AA batteries included). No electrical connection required.
Features & Benefits:
- Filtered Water: Certified Aqua Sentry® 56192C filter reduces lead, microplastics, particulates, cysts, and chlorine taste/odor.
- Battery Powered: Operates with 3 AA batteries, no electrical wiring required.
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste, promoting sustainability.
- Laminar Flow: Provides clean fill with minimal splash.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- Real Drain System: Eliminates standing water for improved hygiene.
- Durability: Stainless Steel finish resists wear and tampering, ideal for high-traffic environments.
What's Included:
- LMASMB Surface Mount Bottle Filling Station
- Elkay 56192C Aqua Sentry® filter
- 3 AA batteries
- Mounting hardware
- Installation instructions
- Owner’s manual and warranty guide
FAQ
Q: Does the Surface Mount Bottle Filler come with a chiller?

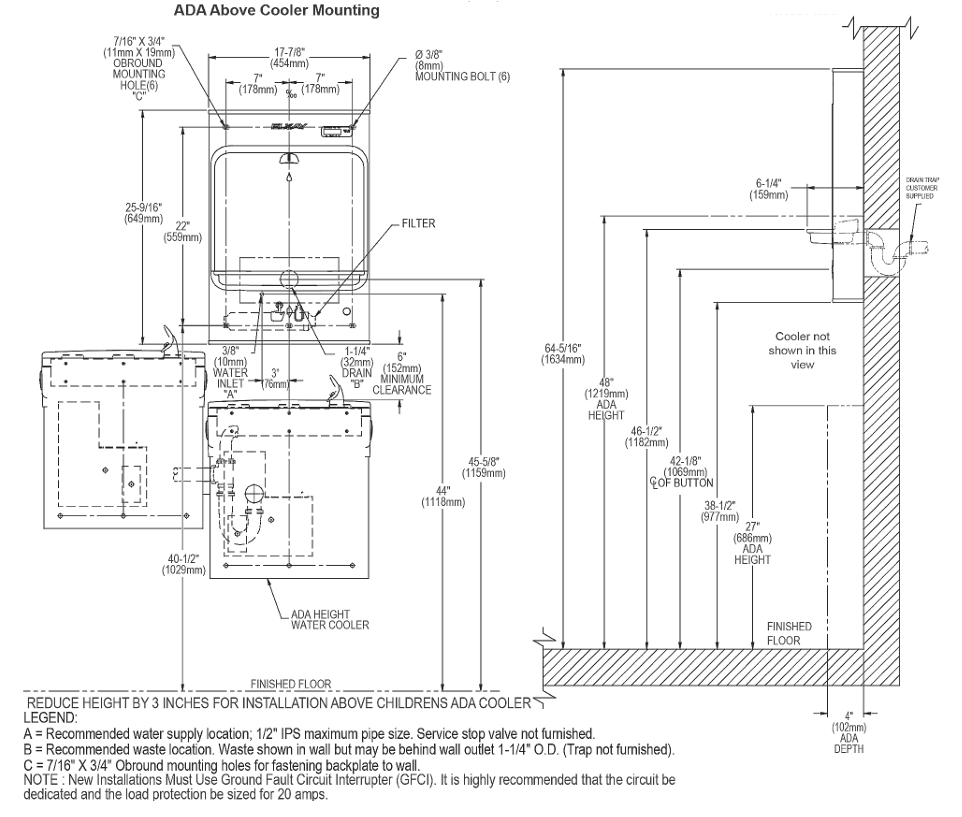

A: No. However, this system can utilize an existing or new remote chiller installed within 15 ft. Be sure to verify chiller’s GPH capacity.
Q: Does the Surface Mount Bottle Filling Station include drainage?
A: Yes, the Surface Mount comes with a drain system to eliminate standing water.
Q: Can someone without a bottle drink from the Surface Mount?
A: Unlike Water Bottle Filling Stations that contain a bubbler, like the LZS8WSLP, Surface Mount bottle fillers are only intended for users with reusable bottles, cups, or other personal liquid containers.
Q: What filter cartridge does the LMASMB use?
A: The LMASMB uses the Elkay 56192C Aqua Sentry® replacement filter, certified to NSF/ANSI 42, 53, 372, and 401 standards. It should be replaced every 3,000 gallons or approximately once per year, depending on usage.
Q: Can the LMASMB provide chilled water?
A: The LMASMB is a non-refrigerated unit. However, it can be paired with a compatible remote chiller such as the ECH8 or the ECH8GRN to deliver 8.0 GPH of chilled water. Be sure to verify the chiller’s GPH capacity to match your needs.
Detailed Features & Benefits
Cooling System: Non-refrigerated. Can be paired with a remote chiller (ECH8 or ECH8GRN) for chilled water delivery.
Accessibility: ADA-compliant design ensures inclusive access when installed according to ADA & ICC A117.1 standards.
Sustainability: Green Ticker™ encourages reusable bottle use, reducing single-use plastic waste.
Maintenance: Visual filter monitor and accessible panels simplify filter replacement and system service.
Warranty: 1-year limited warranty on water system (drinking water applications only).
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
