Wilkins ZW5000IL | Pressure-Tru® In-Line Fire Hose Valve, 2 1/2 Inches
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

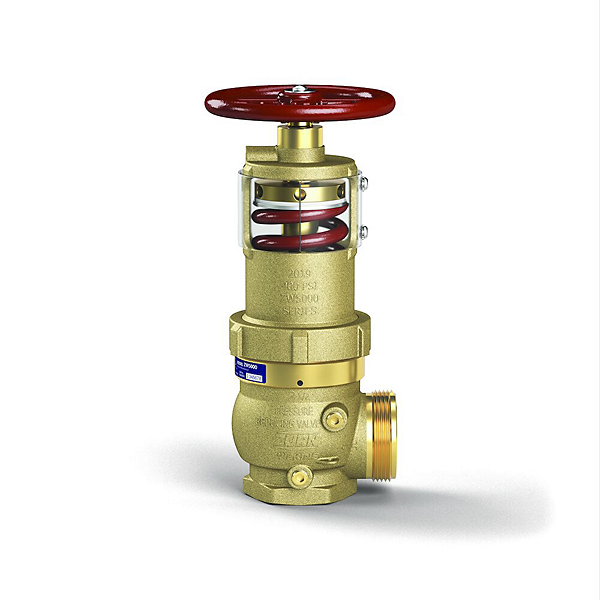

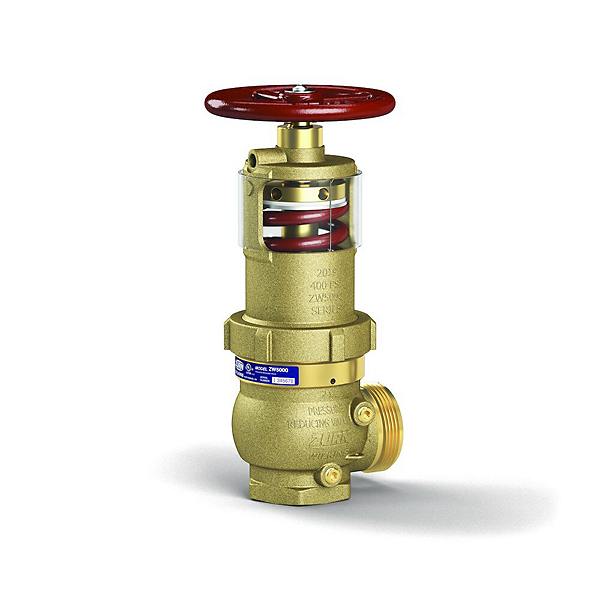

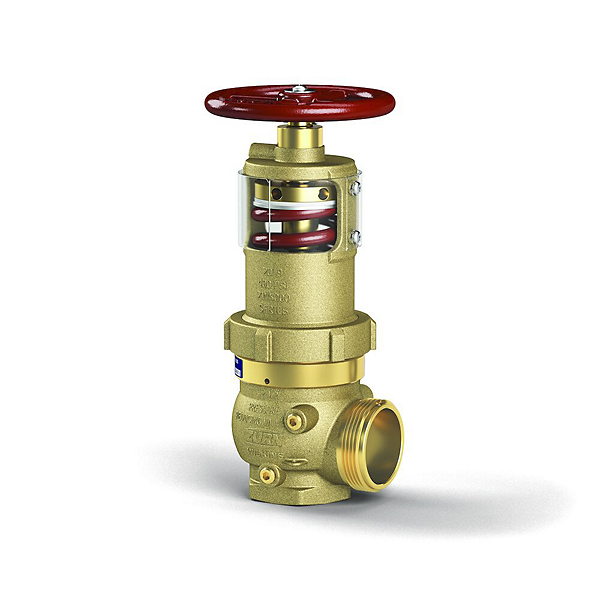

The Wilkins ZW5000IL is a field-adjustable pressure reducing hose valve designed for CLASS I and CLASS III standpipe systems with in-line globe body configuration.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 400 psi
- Notable Certifications: UL and C-UL Listed
- End Connections: FNPT inlet, male hose outlet
- Body Type: In-line globe pattern
Other Related Variants:
- ZW5000: Standard angle body version
- ZW5000CCCH: Cap and chain version with chrome finish
- ZW5000G: Grooved inlet version
Materials:
- Main valve body: Cast bronze ASTM B806
- Stem: Cast bronze ASTM B806
- Flange: Cast bronze ASTM B806
- Elastomers: Buna Nitrile (FDA approved)
- Elastomers: EPDM (FDA approved)
- Springs: Chrome silicon, ASTM A401 powder coated
Typical Installation:
CLASS I and CLASS III standpipe hose stations where pressure regulation is required under both flow and no-flow conditions, particularly in confined spaces where the straight in-line pattern is advantageous.
Standards Compliance:
UL Listed; C-UL Listed; ANSI B1.20.1; AWWA C606; NFPA1963
Features & Benefits:
- Field Adjustable: Easy adjustment with low torque for on-site pressure customization without factory return.
- Dual-Condition Pressure Regulation: Maintains consistent pressure under both flow and no-flow conditions for reliable fire protection.
- Compact In-Line Design: Straight pattern globe body fits confined spaces where angle valves cannot be accommodated.
- Durable Construction: Bronze body with stainless steel trim ensures long service life in demanding fire protection applications.
FAQ
Q: What is the difference between the Wilkins ZW5000IL and the standard ZW5000?
A: The ZW5000IL features an in-line (globe) body configuration ideal for confined spaces, while the standard ZW5000 has an angle body design.
Q: Can the Zurn ZW5000IL be adjusted in the field?
A: Yes, the Zurn ZW5000IL is fully field adjustable with low torque adjustment capability, allowing on-site pressure customization as needed.
Q: What type of fire protection systems is this valve suitable for?
A: The valve is UL and C-UL listed specifically for CLASS I and CLASS III standpipe hose stations in fire protection systems.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
