Wilkins 6-48OSY | Model 48 OS&Y Resilient Wedge Gate Valve, 6 I...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

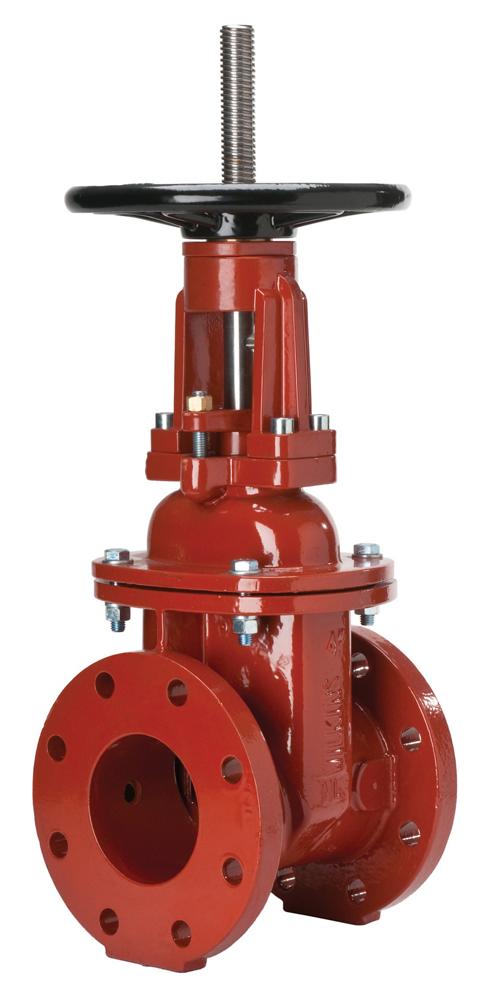

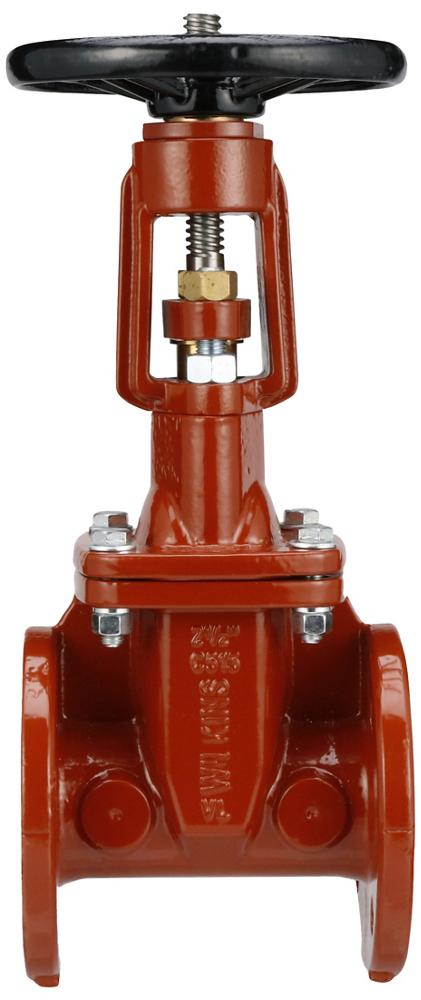

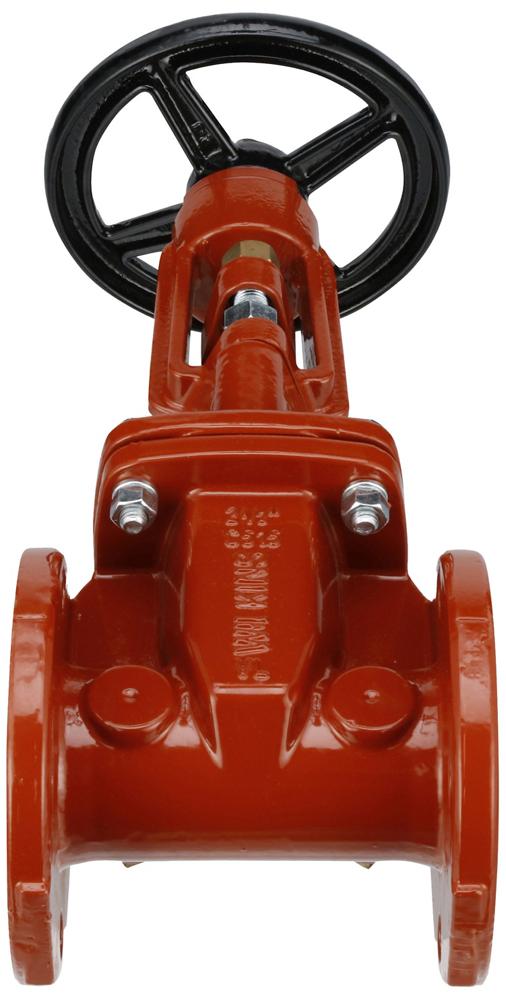

The Wilkins 6-48OSY Model 48 resilient wedge gate valve delivers reliable shutoff for potable water and fire protection lines.
Key Specifications:
| Size | 6 Inches |
| Pressure Rating | 250 PSI Maximum Working |
| Temperature Rating | 140°F Maximum Working |
| Notable Certifications | UL Listed, FM Approved, NSF/ANSI 372 |
| Connection Type | OS&Y Flanged End Connections |
Other Related Variants:
- 212-48OSY: 2 1/2 Inches version
- 3-48OSY: 3 Inches version
- 4-48OSY: 4 Inches version
- 8-48OSY: 8 Inches version
- 10-48OSY: 10 Inches version
- 12IN-48OSY: 12 Inches version
Materials:
- Main Body: Ductile Iron ASTM A536 65-45-12
- Handwheel: Ductile Iron ASTM A536 65-45-12
- Covers: Ductile Iron ASTM A536 65-45-12
- Wedge: Ductile Iron ASTM A536 65-45-12 W/EPDM
- Coatings: AWWA C550 Compliant Fusion-Bond Epoxy Finish
- Internals: Stainless Steel ASTM A276 UNS 41000/S42000; Brass ASTM B584 UNS C83600
- Fasteners: 300 Series Stainless Steel, Zinc Plated Steel Grade 8.8, Brass ASTM B584 UNS C83600
- Elastomers: EPDM (FDA Approved)
- Stem: 300 Series Stainless Steel
Typical Installation:
Designed for installation on potable water lines, irrigation systems, waterworks connections, and fire systems.
Standards Compliance:
AWWA Compliant C515; AWWA Compliant C550; UL Listed; C-UL Listed; FM Approved; Meets NSF/ANSI 372
Features & Benefits:
- Reliable Shutoff: The Zurn 6-48OSY resilient wedge design ensures tight, dependable sealing for water and fire lines.
- Corrosion Resistance: Ductile iron body with fusion-bond epoxy coating and stainless steel/brass internals extend service life.
- Lead-Free Compliance: Meets NSF/ANSI 372 requirements for safe use in potable water systems.
- Multi-Industry Certification: UL Listed, C-UL Listed, and FM Approved for broad application versatility.
FAQ
Q: What does the OSY designation mean on the Wilkins 6-48OSY?
A: OSY stands for OS&Y (Outside Screw and Yoke), a rising stem design with flanged end connections that allows visual confirmation of valve position.
Q: What is the maximum pressure rating for the Zurn 6-48OSY?
A: This valve is rated for a maximum working water pressure of 250 PSI, with a hydrostatic test pressure of 500 PSI.
Q: Is the Wilkins 6-48OSY suitable for fire protection systems?
A: Yes, it is UL Listed, C-UL Listed, and FM Approved, making it suitable for fire protection, potable water, and waterworks applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
