Wilkins 4-48OSYGXF | Model 48 OS&Y Resilient Wedge Gate Valve, ...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

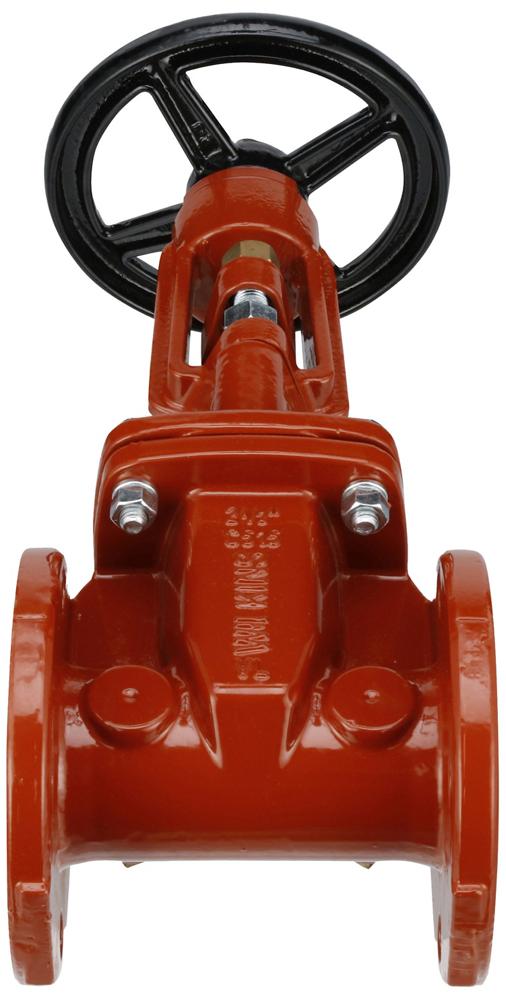

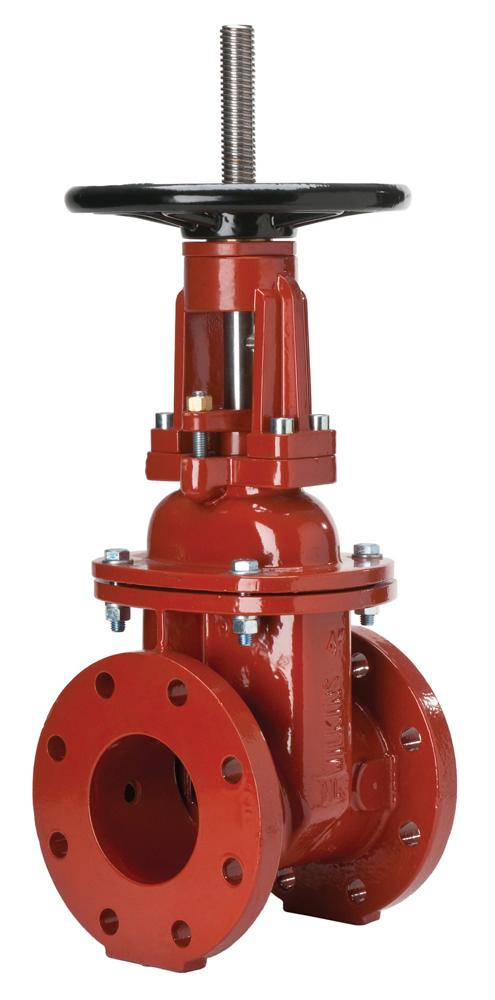

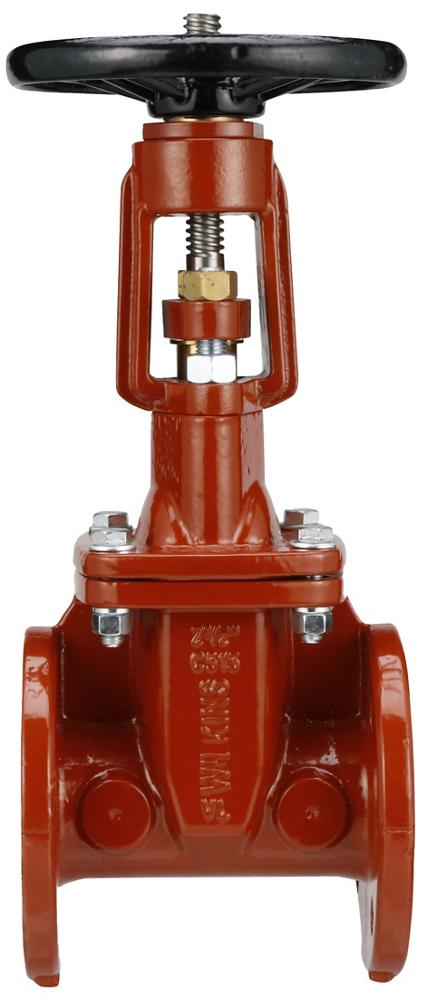

The Wilkins 4-48OSYGXF Series delivers dependable OS&Y resilient wedge gate valve shutoff for potable water and fire protection systems.
Key Specifications:
| Size | 4 Inches |
| Pressure Rating | 250 PSI Max Working |
| Temperature Rating | 140°F Max Working |
| Notable Certifications | UL Listed, FM Approved, NSF/ANSI 372 |
| Connection Type | OS&Y Grooved x Flanged |
Other Related Variants:
- 212-48OSYGXF: 2 1/2 Inches size configuration
- 3-48OSYGXF: 3 Inches size configuration
- 6-48OSYGXF: 6 Inches size configuration
- 8-48OSYGXF: 8 Inches size configuration
- 10-48OSYGXF: 10 Inches size configuration
- 12IN-48OSYGXF: 12 Inches size configuration
Materials:
- Main Body: Ductile Iron ASTM A536 65-45-12
- Handwheel: Ductile Iron ASTM A536 65-45-12
- Covers: Ductile Iron ASTM A536 65-45-12
- Wedge: Ductile Iron ASTM A536 65-45-12 with EPDM
- Coatings: AWWA C550 Compliant Fusion-Bond Epoxy Finish
- Internals: Stainless Steel ASTM A276 UNS 41000/S42000
- Internals: Brass ASTM B584 UNS C83600
- Fasteners: 300 Series Stainless Steel
- Fasteners: Zinc Plated Steel Grade 8.8
- Fasteners: Brass ASTM B584 UNS C83600
- Elastomers: EPDM (FDA Approved)
- Stem: 300 Series Stainless Steel
Typical Installation:
Designed for installation on potable water lines, irrigation systems, waterworks connections, and fire protection systems.
Standards Compliance:
AWWA C515; AWWA C550; UL Listed; C-UL Listed; FM Approved; NSF/ANSI 372; NSF/ANSI/CAN 61; ANSI/AWWA C606; ANSI/ASME B16.42 Class 150
Features & Benefits:
- Reliable Shutoff: Resilient wedge gate design of the Wilkins 4-48OSYGXF ensures tight, dependable sealing for water distribution lines.
- Corrosion Resistance: Ductile iron body with fusion-bond epoxy coating and stainless steel/brass internals resist corrosion for long service life.
- Flexible Installation: Grooved x flanged end connections allow compatibility with both grooved and flanged piping systems.
- Code Compliance: Lead-free construction meets NSF/ANSI 372, ensuring safe use in potable water applications.
FAQ
Q: What size is the Zurn 4-48OSYGXF valve?
A: This model is a 4 Inches OS&Y resilient wedge gate valve with grooved x flanged end connections.
Q: Is the Wilkins 4-48OSYGXF suitable for fire protection systems?
A: Yes, it is UL Listed, C-UL Listed, and FM Approved, making it suitable for fire protection, waterworks, and potable water applications.
Q: What is the maximum working pressure of this valve?
A: The Zurn 4-48OSYGXF has a maximum working water pressure of 250 PSI and a hydrostatic test pressure of 500 PSI.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
