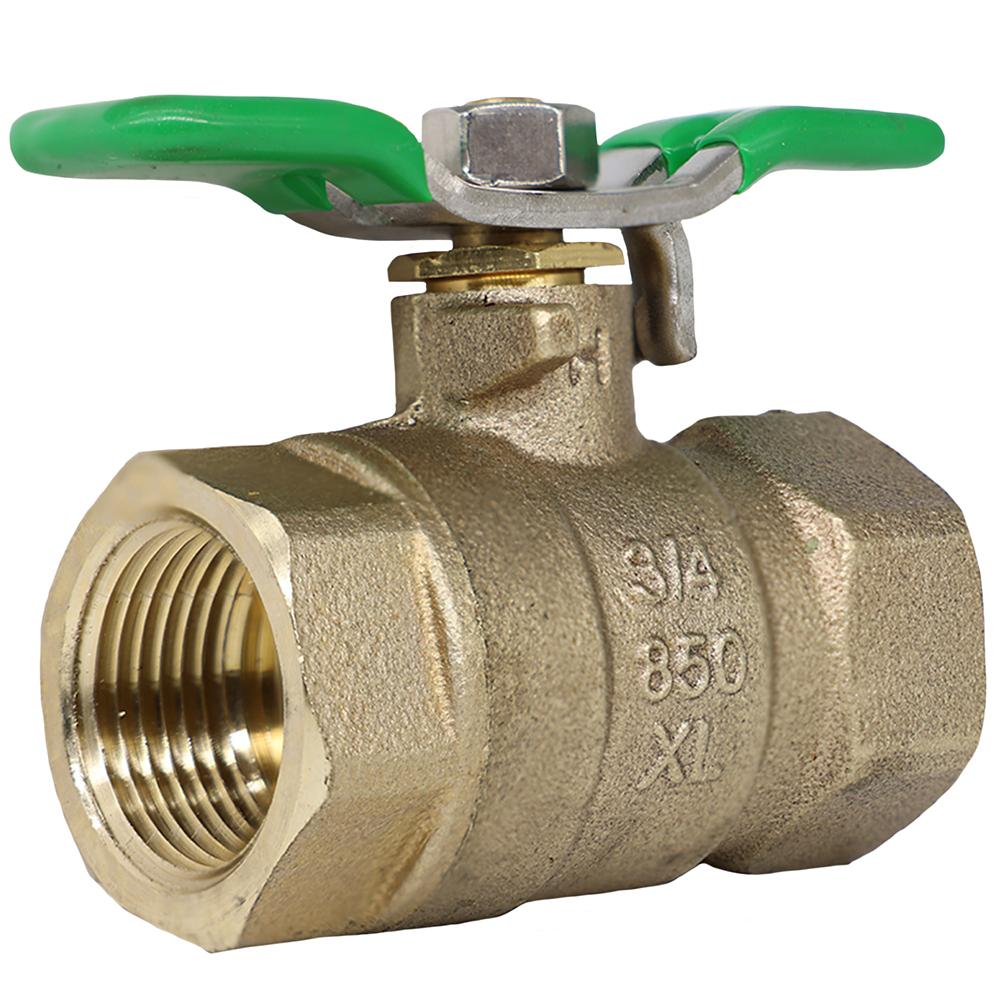

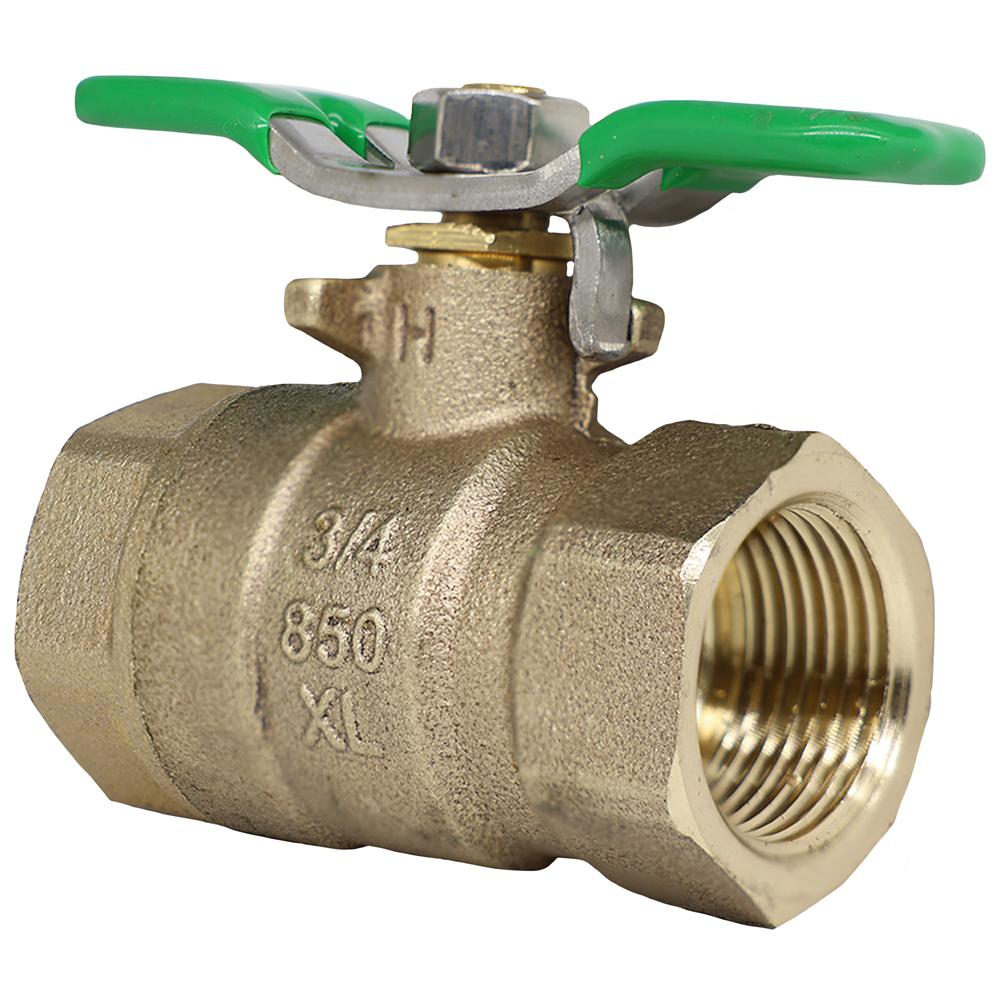

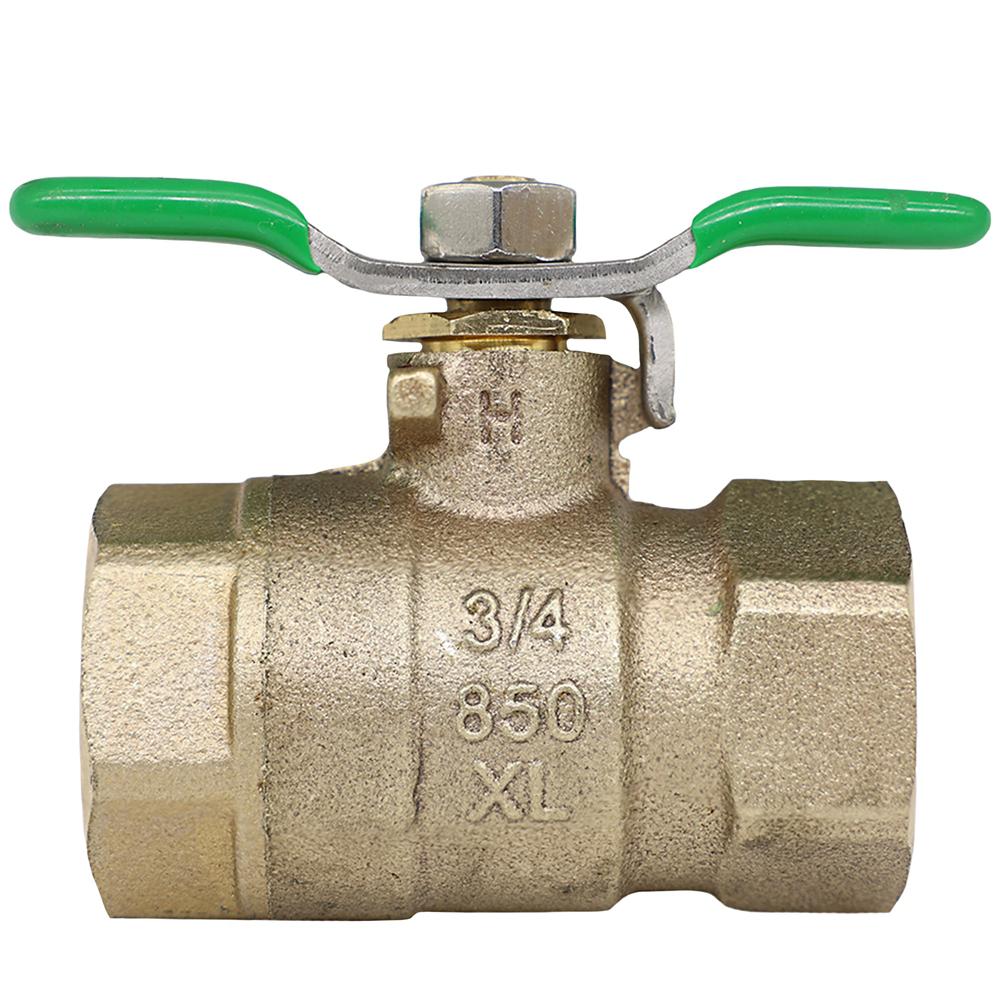

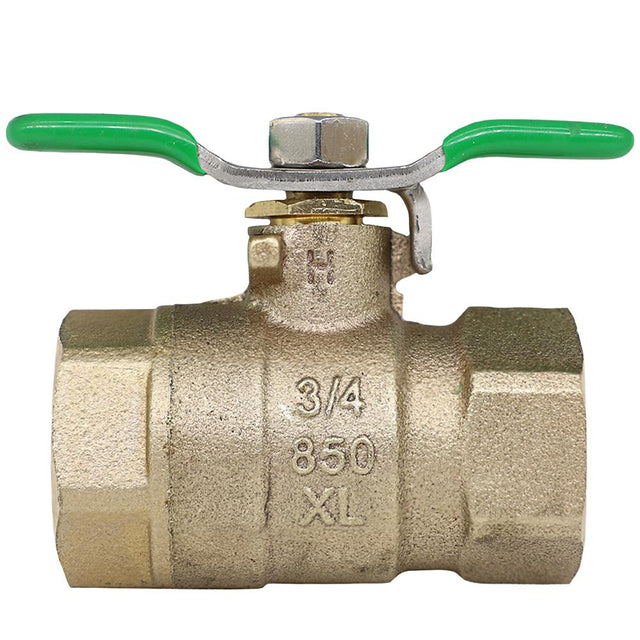

Wilkins 34-850XL | Full Port Bronze Ball Valve, 3/4 Inches
The Wilkins 34-850XL is a lead-free full port bronze ball valve engineered for precise throttling and balancing across residential, commercial, and industrial systems.
Key Specifications:
| Size | 3/4 Inches |
| Pressure Rating | 400 psi WOG |
| Temperature Rating | 33°F to 350°F @ 50 psi |
| Notable Certifications | NSF/ANSI 372 by IAPMO R&T |
| Connection Type | FNPT Threaded, ANSI B1.20.1 |
Other Related Variants:
- 1-850XL: 1 Inches version
- 2-850XL: 2 Inches version
- 12-850XL: 1/2 Inches version
- 112-850XL: 1 1/2 Inches version
- 114-850XL: 1 1/4 Inches version
Materials:
- Main valve body: Low lead Bronze ASTM B 584
- Ball: Chrome plated low lead brass
- Seats: TFE virgin teflon
- Stems: Brass ASTM B 16
- Stem packing: TFE virgin teflon
- Thrust washer: TFE virgin teflon
- Handle: Stainless steel
- Handle nut: Stainless steel
Typical Installation:
Recommended for residential, commercial, and industrial applications requiring lead-free valves, ideal for throttling and balancing installations of low pressure steam, air, water, and non-corrosive gas or oil.
Standards Compliance:
NSF/ANSI 372 Certified by IAPMO R&T; 0.25% Max Weighted Average Lead Content
Features & Benefits:
- Lead-Free Construction: Zurn 34-850XL meets strict lead-free standards for safe potable water applications.
- Full Port Design: Ensures minimal flow restriction for efficient throttling and balancing performance.
- Corrosion-Resistant Components: Chrome-plated brass ball and TFE Teflon seats provide long-lasting durability.
- Versatile Configurations: Available in single-union, tapped, or MNPT x FNPT options for flexible installation needs.
FAQ
Q: What size is the Wilkins 34-850XL valve?
A: The Wilkins 34-850XL comes in a 3/4 Inches size, with other sizes available from 3/8" to 2".
Q: Is the Zurn 34-850XL suitable for potable water systems?
A: Yes, the Zurn 34-850XL is lead-free and certified to NSF/ANSI 372 by IAPMO R&T for safe use in potable water applications.
Q: What connection type does this valve use?
A: This valve features FNPT threaded connections per ANSI B1.20.1, with optional MNPT x FNPT, tapped, or union configurations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
