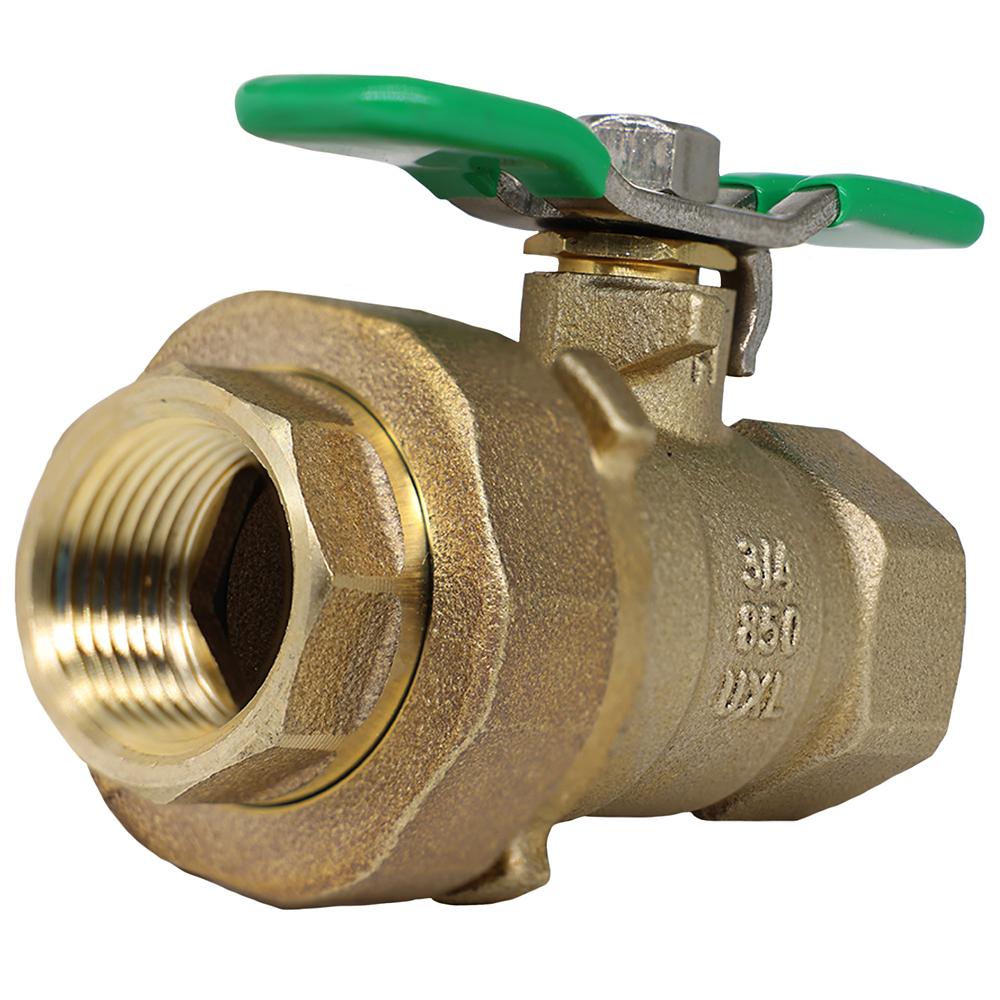

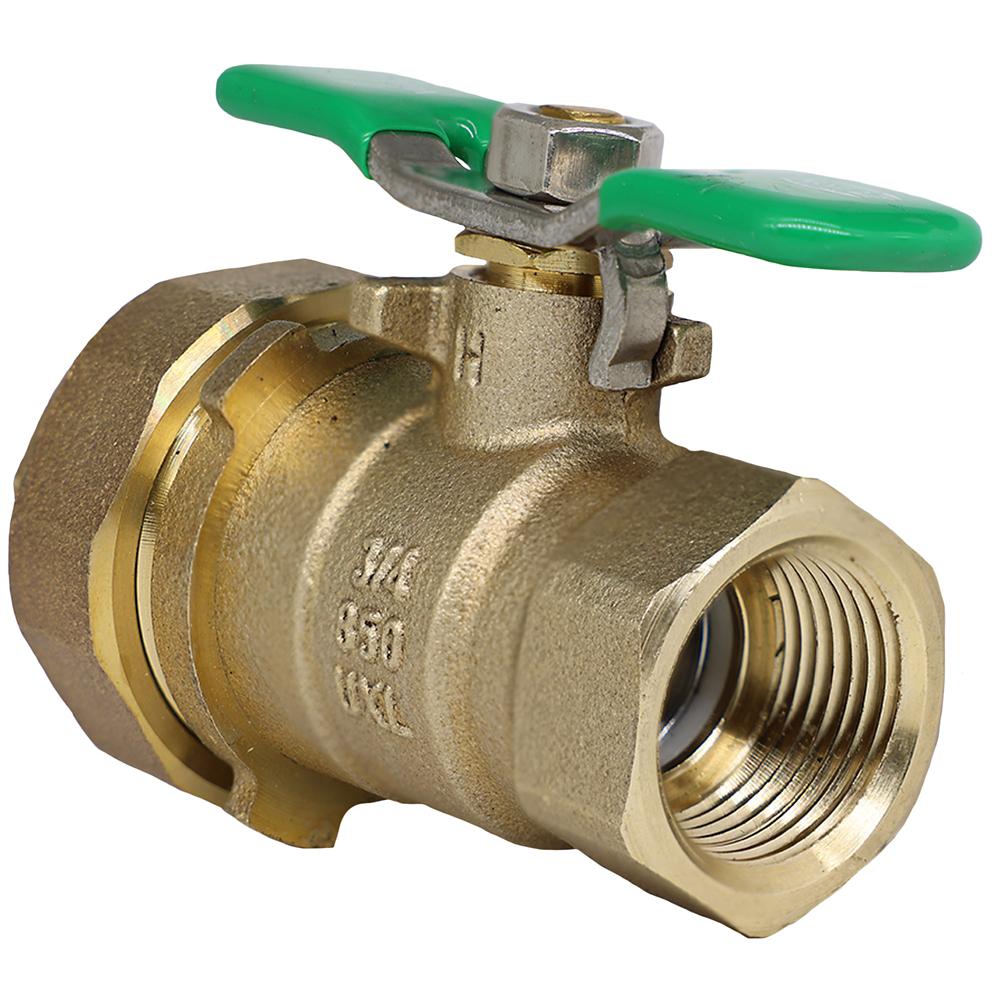

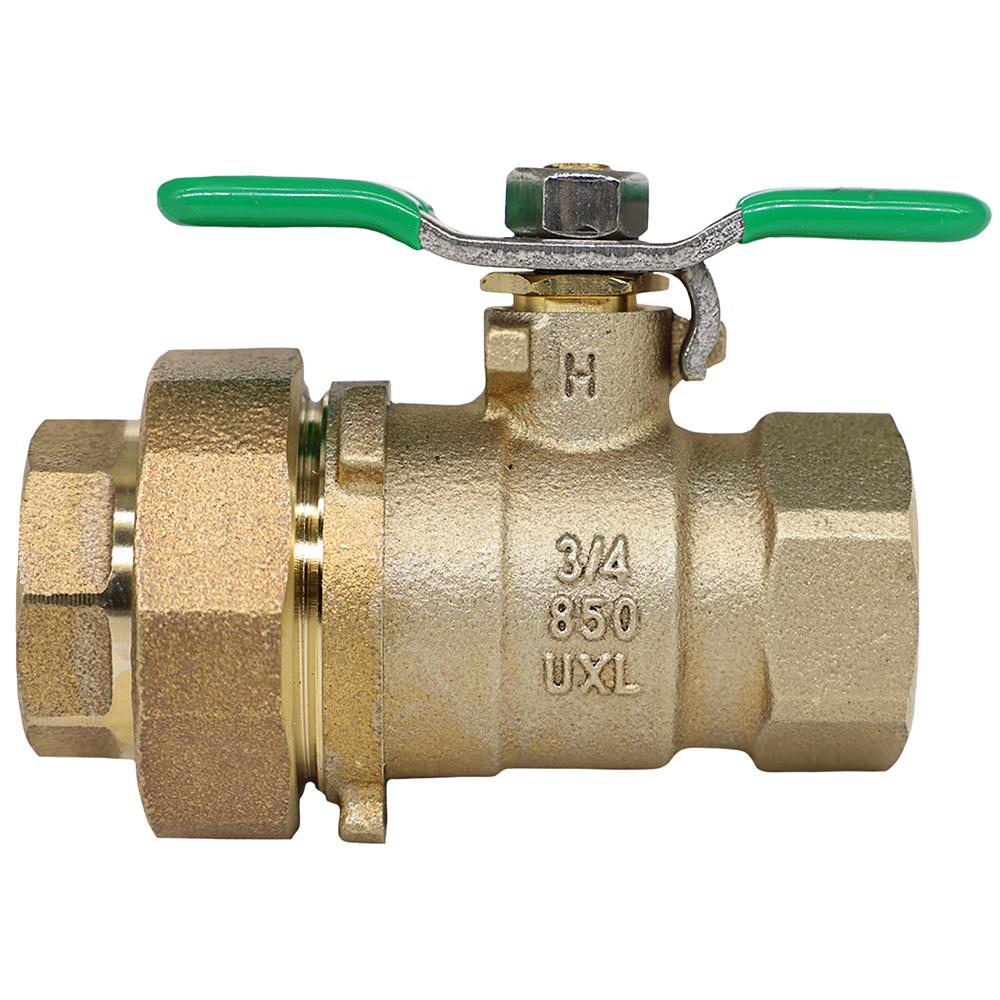

Wilkins 34-850UXL | Full Port Bronze Ball Valve, 3/4 Inches
The Wilkins 34-850UXL Full Port Bronze Ball Valve delivers reliable, lead-free throttling and balancing for critical fluid systems.
Key Specifications:
| Size | 3/4 Inches |
| Pressure Rating | 400 psi WOG |
| Temperature Rating | 33°F to 350°F @ 50 psi |
| Notable Certifications | NSF/ANSI 372 Lead-Free |
| Connection Type | FNPT x FNPT Single Union |
Other Related Variants:
- 1-850UXL: 1 Inches version
- 112-850UXL: 1 1/2 Inches version
- 2-850UXL: 2 Inches version
Materials:
- Main valve body: Low lead Bronze ASTM B 584
- Ball: Chrome plated low lead brass
- Seats: TFE virgin teflon
- Stems: Brass ASTM B 16
- Stem packing: TFE virgin teflon
- Thrust washer: TFE virgin teflon
- Handle: Stainless steel
- Handle nut: Stainless steel
Typical Installation:
The Zurn Wilkins 34-850UXL is suited for residential, commercial, and industrial applications, ideal for throttling and balancing installations involving low pressure steam, air, water, and non-corrosive gas or oil systems.
Standards Compliance:
NSF/ANSI 372 Certified by IAPMO R&T; ANSI B1.20.1 Threaded Connections
Features & Benefits:
- Lead-Free Construction: Meets NSF/ANSI 372 standards for safe potable water applications.
- Full-Port Design: Provides unrestricted flow for efficient throttling and balancing.
- Durable Materials: Chrome-plated brass ball and TFE Teflon seats ensure long-lasting corrosion resistance.
- Easy Installation: Single-union body simplifies maintenance and replacement without disturbing piping.
FAQ
Q: What sizes are available for the Wilkins 34-850UXL Series?
A: The Zurn 34-850UXL Series is available in sizes ranging from 3/8" to 2", including the 3/4" single-union configuration.
Q: Is the Wilkins 34-850UXL suitable for potable water systems?
A: Yes, it is lead-free and certified to NSF/ANSI 372 by IAPMO R&T, making it safe for potable water use.
Q: What is the maximum pressure and temperature rating for this valve?
A: The valve is rated for 400 psi WOG and can operate from 33°F to 350°F at 50 psi.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
