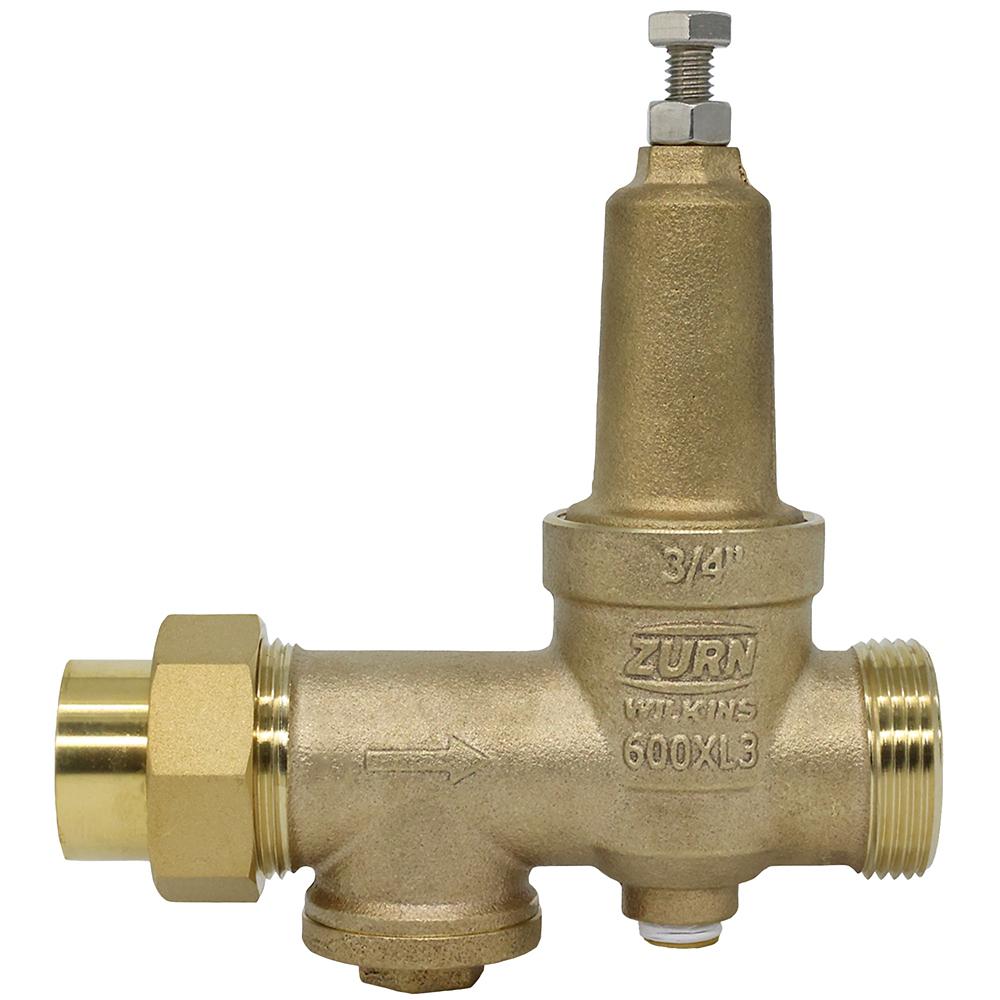

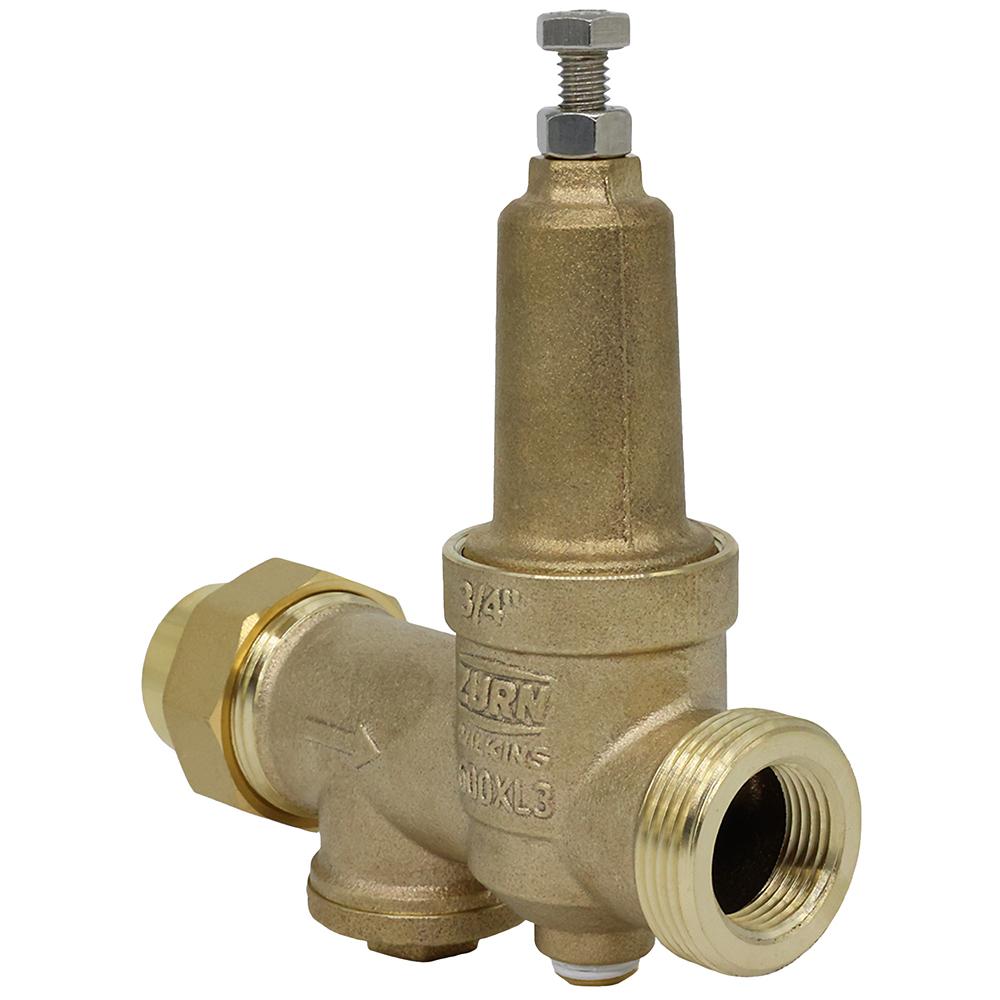

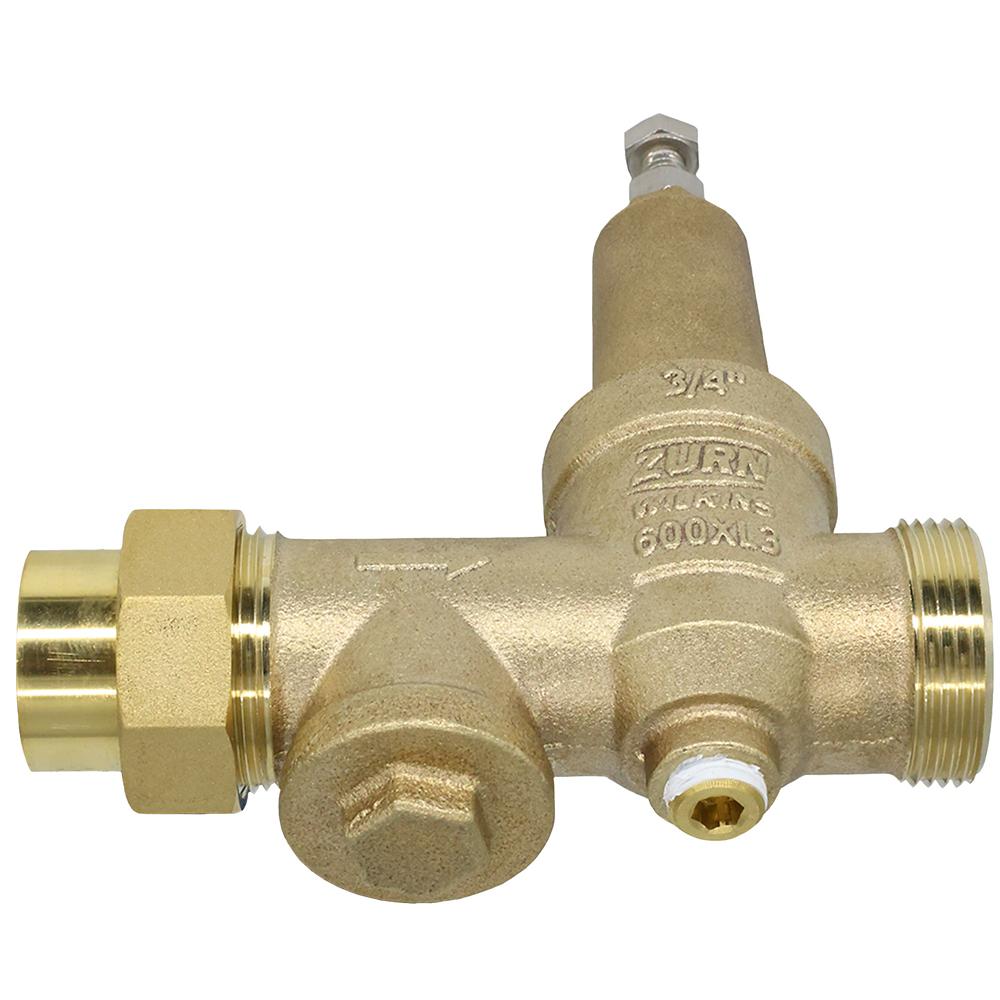

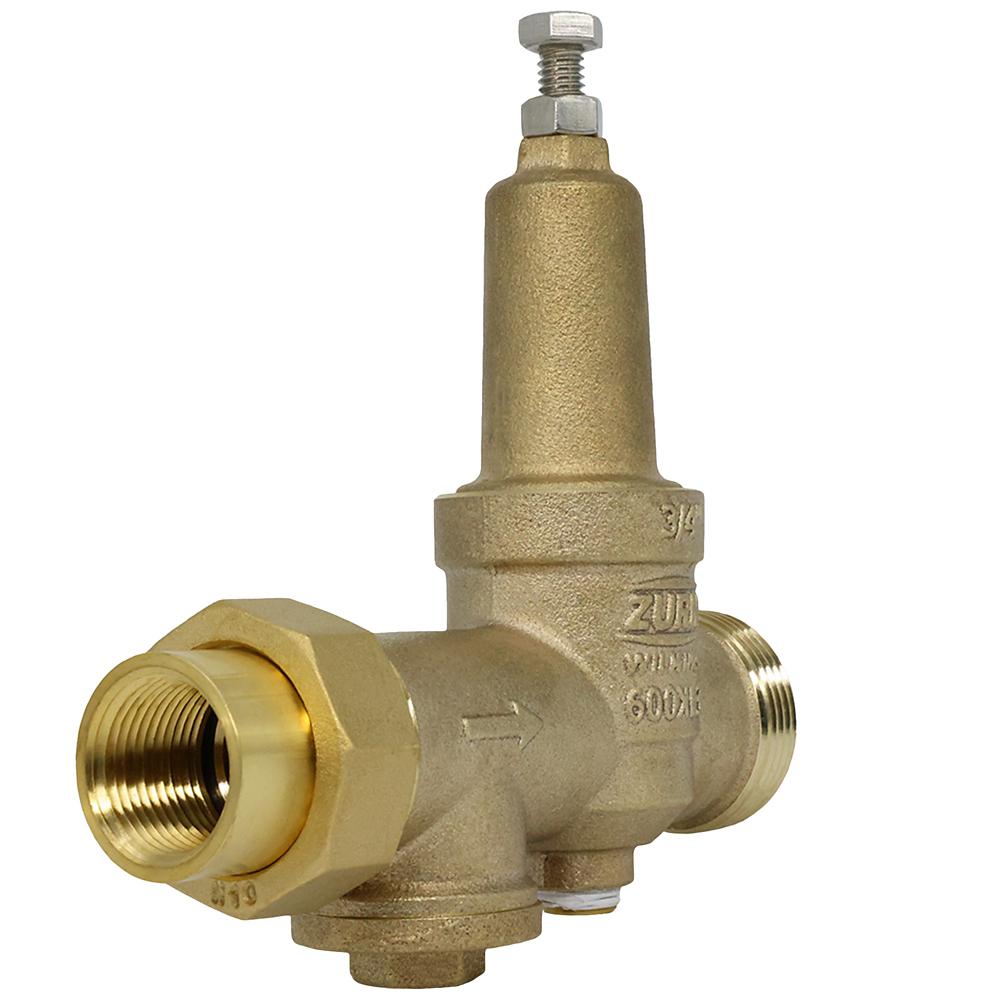

Wilkins 34-600XL3 | Pressure Reducing Valve with Integral Strainer
The Wilkins 34-600XL3 is a water pressure reducing valve with integral strainer designed for residential and commercial potable water systems, providing reliable pressure regulation and debris filtration in one compact unit.
Key Specifications:
- Size: 3/4 Inches
- Maximum Working Pressure: 400 psi
- Maximum Working Temperature: 140°F
- Notable Certifications: ASSE 1003, cUPC, CSA B356
- Connection Type: Single Union FNPT
Other Related Variants:
- 1 1/2-600XL3: 1 1/2 Inches version
- 1 1/4-600XL3: 1 1/4 Inches version
- 1-600XL3: 1 Inch version
- 2-600XL3: 2 Inches version
Materials:
- Main valve body: Low lead cast bronze ASTM B806
- Bell housing: Low lead cast bronze ASTM B806
- Fasteners: Stainless steel, 300 series
- Stem: Stainless steel, 300 series
- Plunger: Stainless steel, 300 series
- Elastomers: Buna Nitrile (FDA approved) and EPDM (FDA approved)
- Springs: Stainless steel, 300 series
- Cartridge: Noryl™
- Strainer screen: Stainless steel, 300 series
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the manufacturer's instructions and the latest edition of the Uniform Plumbing Code. The assembly shall be installed with sufficient side clearance for testing and maintenance. The Zurn 34-600XL3 may be installed in any position. Multiple installations in series are required when the desired pressure reduction is more than 3 to 1. Due to highly efficient flow performance, typical installations do not require a bypass valve for effective low flow capability. A pressure gauge must be used downstream to verify correct pressure setting.
Standards Compliance:
ASSE Listed 1003; cUPC Listed; CSA Certified B356; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372
Features & Benefits:
- Balanced Piston Design: Provides smooth and responsive reaction to changes in system flow demand while protecting from inlet pressure changes.
- Integral Venturi Technology: Delivers best-in-class flow performance for easier sizing and ideal water pressure at higher flow rates.
- Removable Cartridge System: Cost-effective repair kits and removable cartridge significantly reduce maintenance time and costs.
- Premium Corrosion Resistance: Stainless steel internals as standard provide enhanced corrosion resistance and lasting durability.
FAQ
Q: Can the Wilkins 34-600XL3 be installed in any orientation?
A: Yes, the Wilkins 34-600XL3 may be installed in any position, including horizontal, vertical, or angled orientations, as long as sufficient side clearance is provided for testing and maintenance.
Q: What pressure reduction range does this valve support?
A: The valve provides a reduced pressure range of 15 psi to 75 psi and comes factory preset at 50 psi. For pressure reductions greater than 3:1 ratio, multiple valves in series are required.
Q: How often does the integral strainer need cleaning?
A: Cleaning frequency depends on water quality and sediment levels. The integral strainer design makes this valve ideal for systems requiring frequent cleaning due to sediment and debris, with the removable cartridge enabling quick and easy maintenance.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
