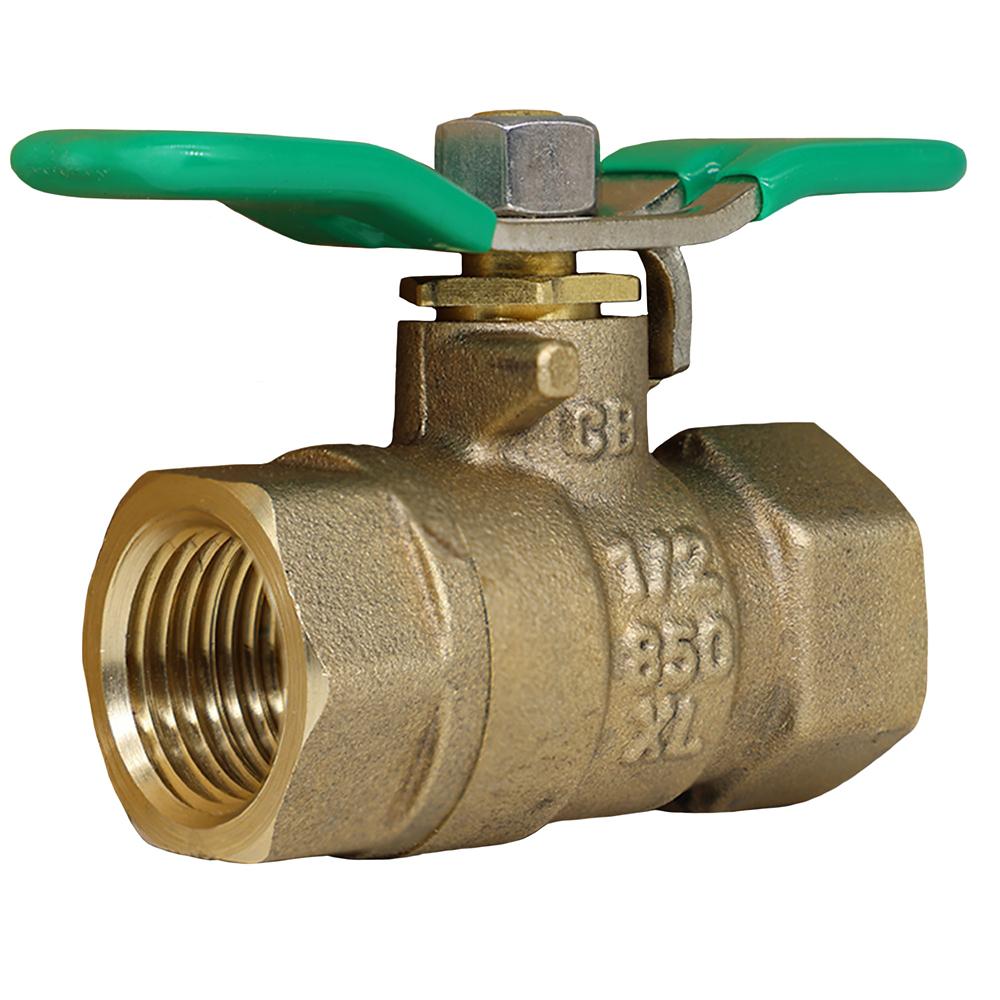

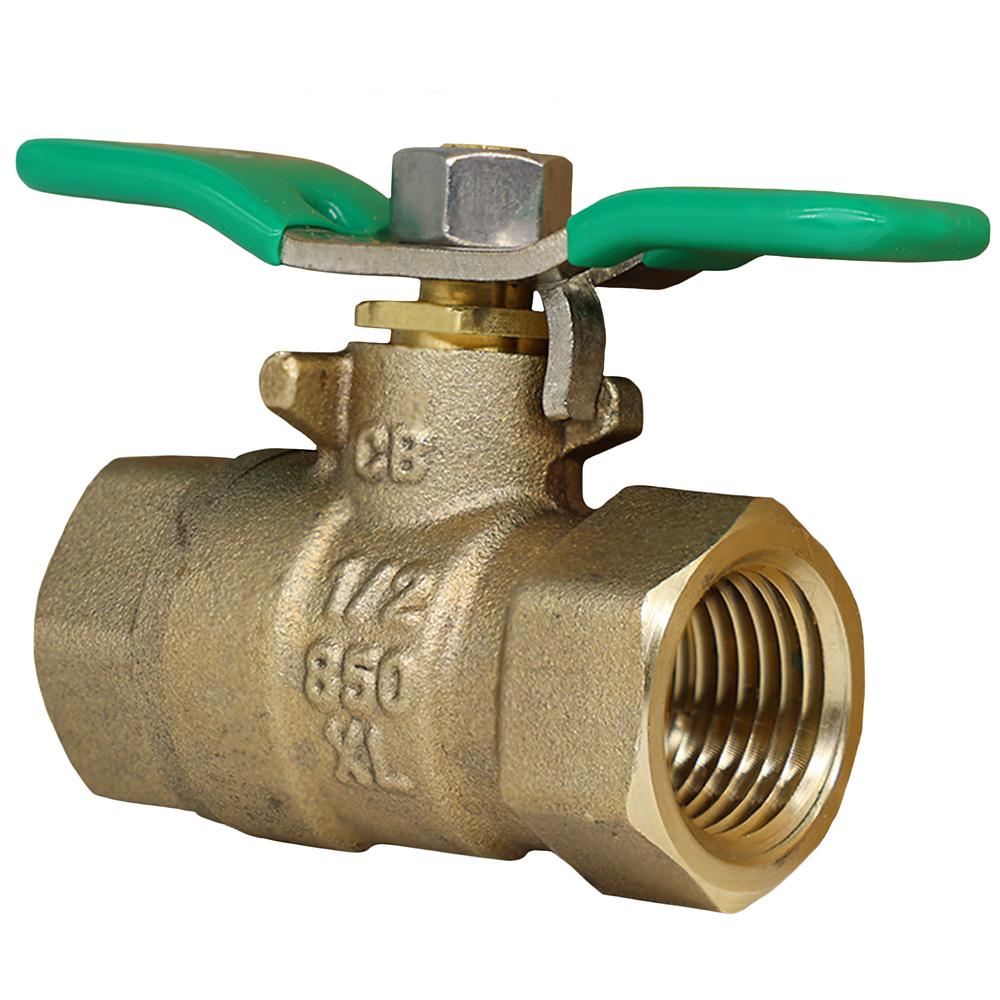

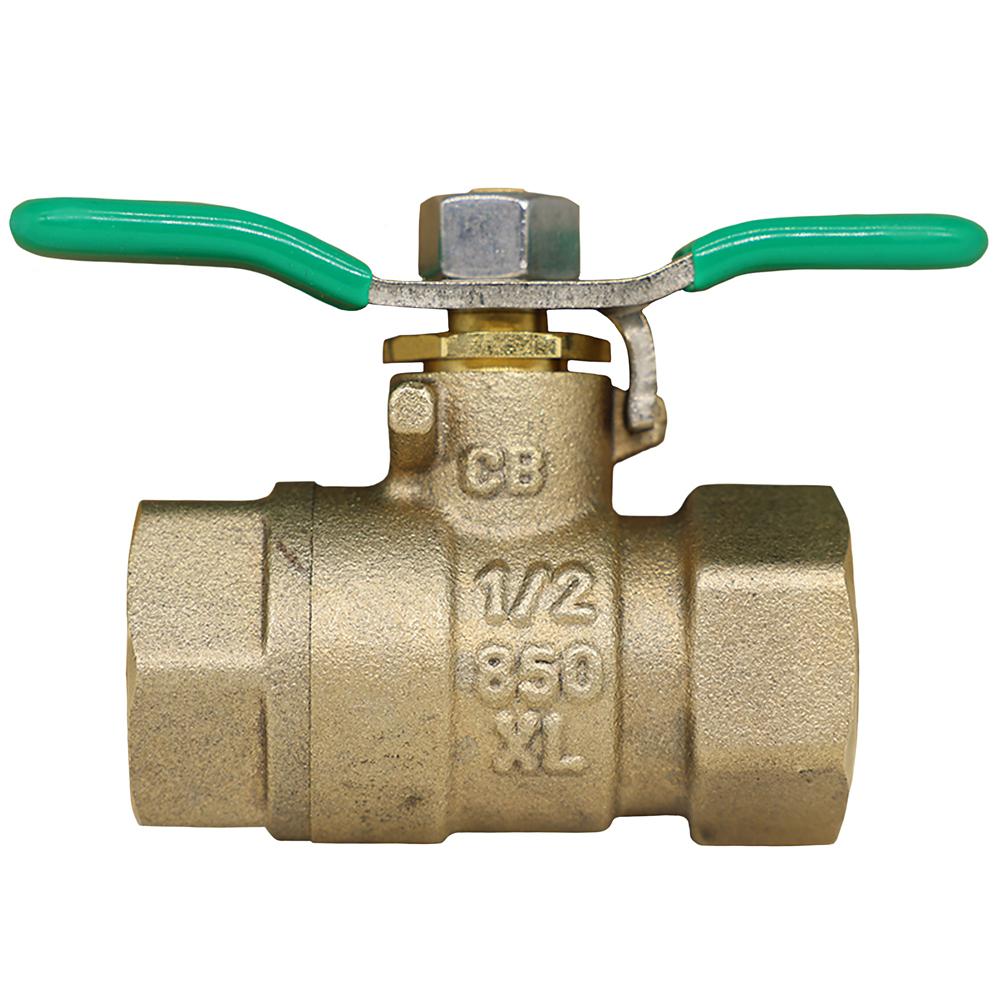

Wilkins 12-850XL | Full Port Bronze Ball Valve, 1/2 Inches
The Wilkins 12-850XL is a lead-free full port bronze ball valve designed for throttling and balancing steam, air, water, and non-corrosive gas or oil.
Key Specifications:
| Size | 1/2 Inches |
| Pressure Rating | 400 psi WOG |
| Temperature Rating | 33°F to 350°F @ 50 psi |
| Notable Certifications | NSF/ANSI 372 Certified |
| Connection Type | FNPT Threaded, ANSI B1.20.1 |
Other Related Variants:
- 1-850XL: 1 Inches size configuration
- 2-850XL: 2 Inches size configuration
- 34-850XL: 3/4 Inches size configuration
- 112-850XL: 1 1/2 Inches size configuration
- 114-850XL: 1 1/4 Inches size configuration
Materials:
- Main valve body: Low lead Bronze ASTM B 584
- Ball: Chrome plated low lead brass
- Seats: TFE virgin teflon
- Stems: Brass ASTM B 16
- Stem packing: TFE virgin teflon
- Thrust washer: TFE virgin teflon
- Handle: Stainless steel
- Handle nut: Stainless steel
Typical Installation:
Recommended for residential, commercial, and industrial applications where lead-free valves are required, ideal for throttling and balancing installations of low pressure steam, air, water, and non-corrosive gas or oil.
Standards Compliance:
Certified to NSF/ANSI 372 by IAPMO R&T; 0.25% Max. Weighted Average Lead Content
Features & Benefits:
- Lead-Free Construction: The Wilkins 12-850XL meets strict lead-free standards, ensuring safety for potable water applications.
- Durable Bronze Body: Low lead bronze construction provides long-lasting corrosion resistance in demanding environments.
- Versatile Configuration Options: Available in single-union, tapped, or MNPT x FNPT configurations to fit various installation needs.
- Full Port Design: Ensures minimal flow restriction for efficient throttling and balancing of steam, air, water, and gas.
FAQ
Q: Is the Zurn 12-850XL suitable for potable water systems?
A: Yes, the Zurn 12-850XL is lead-free and certified to NSF/ANSI 372, making it safe for potable water applications.
Q: What connection types are available for this valve?
A: The valve is available with FNPT x FNPT, MNPT x FNPT, tapped, or single-union body configurations depending on the suffix selected.
Q: What is the maximum pressure rating for this valve?
A: The valve has a pressure rating of 400 psi WOG.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
