Wilkins 112-850TUXL | Full Port Bronze Ball Valve, Tapped Union, 1 ...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

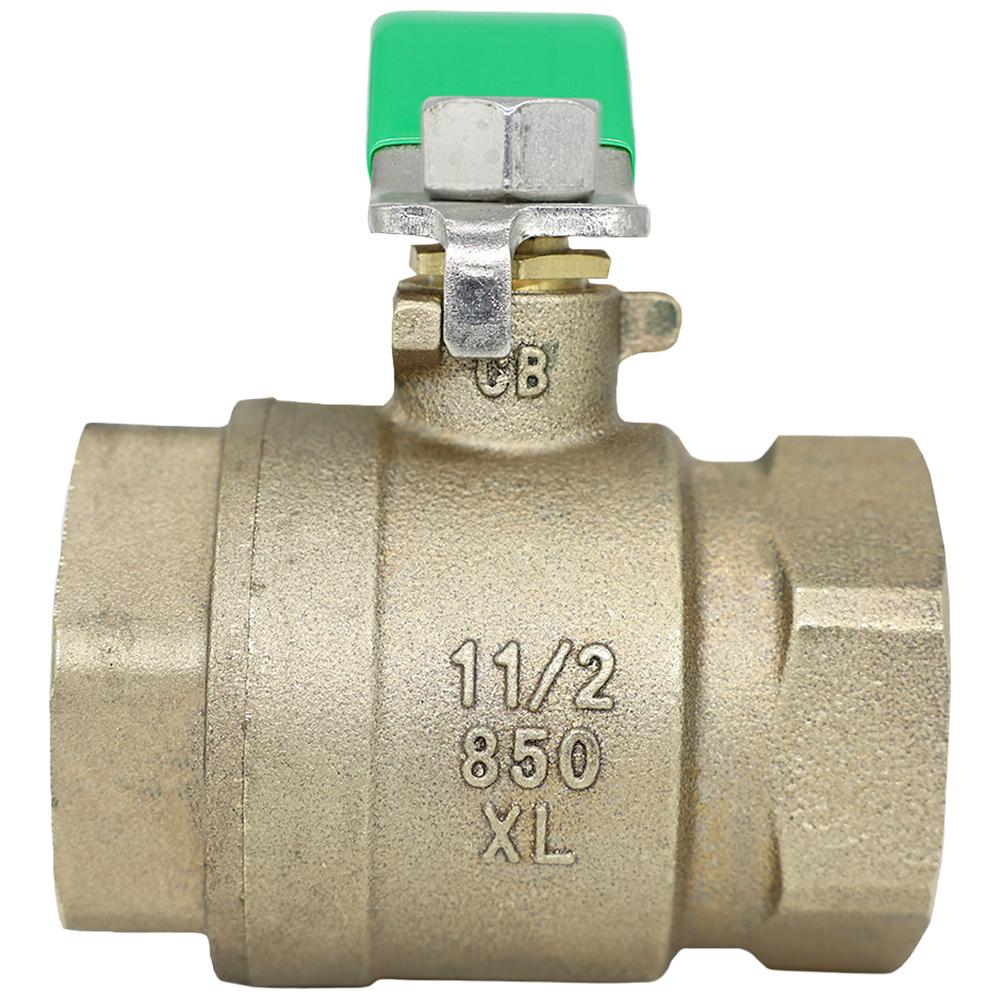

The Wilkins 112-850TUXL Full Port Bronze Ball Valve delivers lead-free, durable throttling and shut-off performance for water and gas systems.
Key Specifications:
| Size | 1 1/2 Inches |
| Pressure Rating | 400 psi WOG |
| Temperature Rating | 33°F to 350°F @ 50 psi |
| Notable Certifications | NSF/ANSI 372; IAPMO R&T |
| Connection Type | FNPT x FNPT, Tapped, Single Union |
Other Related Variants:
- 1-850TUXL: 1 Inches version
- 2-850TUXL: 2 Inches version
- 34-850TUXL: 3/4 Inches version
Materials:
- Main valve body: Low lead Bronze ASTM B584
- Ball: Chrome plated low lead brass
- Seats: TFE virgin teflon
- Stems: Brass ASTM B16
- Stem packing: TFE virgin teflon
- Thrust washer: TFE virgin teflon
- Handle: Stainless steel
- Handle nut: Stainless steel
Typical Installation:
Recommended for residential, commercial, and industrial applications requiring lead-free valves, ideal for throttling and balancing installations of low pressure steam, air, water, and non-corrosive gas or oil.
Standards Compliance:
Certified to NSF/ANSI 372 by IAPMO R&T; 0.25% Max Weighted Average Lead Content; FNPT Threaded Connections per ANSI B1.20.1
Features & Benefits:
- Lead-Free Compliance: The Wilkins 112-850TUXL meets NSF/ANSI 372 standards for safe potable water use.
- Full-Port Design: Ensures minimal flow restriction for consistent water, steam, air, or gas throughput.
- Corrosion Resistance: Chrome-plated brass ball and stainless steel handle provide long-term durability.
- Versatile Configuration: Tapped and single-union body options simplify installation and maintenance.
FAQ
Q: What is the pressure rating of the Zurn 112-850TUXL valve?
A: It is rated for 400 psi WOG, suitable for a wide range of industrial and commercial applications.
Q: Can the Wilkins 112-850TUXL be used for gas applications?
A: Yes, it is designed for throttling and balancing steam, air, water, and non-corrosive gas or oil.
Q: What certification does the Zurn 112-850TUXL hold?
A: It is certified to NSF/ANSI 372 by IAPMO R&T for lead-free compliance.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
