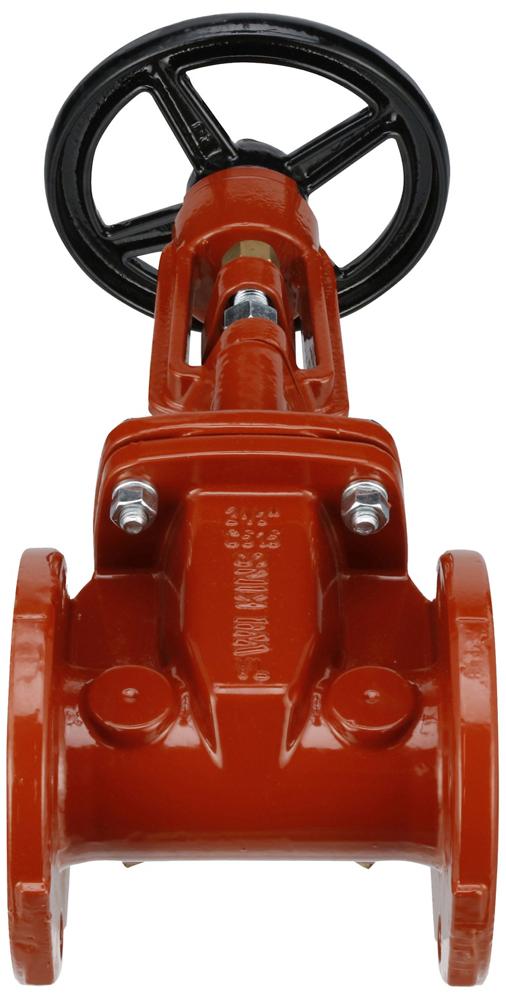

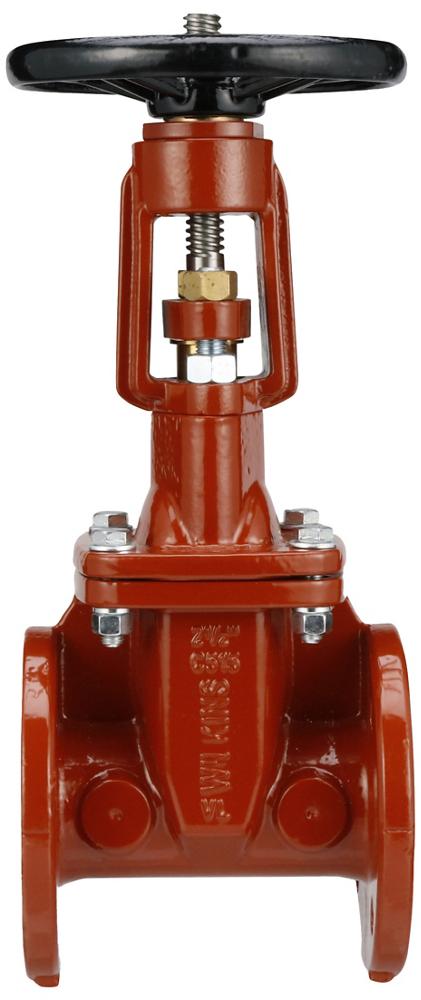

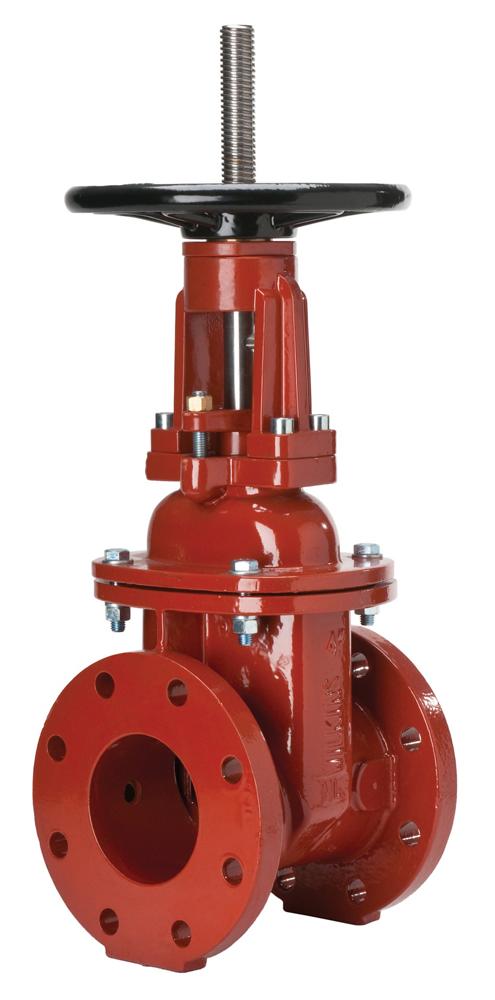

Wilkins 10-48OSY | Model 48 OS&Y Resilient Wedge Gate Valve, 10...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins 10-48OSY Series delivers reliable shutoff for potable water, irrigation, and fire protection systems.
Key Specifications:
| Size | 10 Inches |
| Pressure Rating | 250 PSI Max Working |
| Temperature Rating | 140°F Max Working |
| Notable Certifications | UL Listed, C-UL Listed, FM Approved |
| Connection Type | OS&Y Flanged End Connections |
Other Related Variants:
- 212-48OSY: 2 1/2 Inches version
- 3-48OSY: 3 Inches version
- 4-48OSY: 4 Inches version
- 6-48OSY: 6 Inches version
- 8-48OSY: 8 Inches version
- 12IN-48OSY: 12 Inches version
Materials:
- Main Body: Ductile Iron ASTM A536 65-45-12
- Handwheel: Ductile Iron ASTM A536 65-45-12
- Covers: Ductile Iron ASTM A536 65-45-12
- Wedge: Ductile Iron ASTM A536 65-45-12 with EPDM
- Coatings: AWWA C550 Compliant Fusion-Bond Epoxy Finish
- Internals: Stainless Steel ASTM A276 UNS 41000/S42000
- Internals: Brass ASTM B584 UNS C83600
- Fasteners: 300 Series Stainless Steel
- Fasteners: Zinc Plated Steel Grade 8.8
- Fasteners: Brass ASTM B584 UNS C83600
- Elastomers: EPDM (FDA Approved)
- Stem: 300 Series Stainless Steel
Typical Installation:
Designed for installation on potable water lines, irrigation systems, waterworks connections, and fire systems.
Standards Compliance:
AWWA Compliant C515; AWWA Compliant C550; UL Listed; C-UL Listed; FM Approved; Meets NSF/ANSI 372
Features & Benefits:
- Reliable Shutoff: Resilient wedge gate valve design ensures dependable sealing for the Zurn 10-48OSY across water systems.
- Corrosion Resistance: Ductile iron body with fusion-bond epoxy coating and stainless steel/brass internals provides long-lasting durability.
- Lead-Free Compliance: Meets NSF/ANSI 372 for safe use in potable water applications.
- Wide Certification Coverage: UL Listed, C-UL Listed, and FM Approved for versatile fire protection and waterworks use.
FAQ
Q: What is the maximum working pressure of the Wilkins 10-48OSY valve?
A: The Wilkins 10-48OSY has a maximum working water pressure of 250 PSI and a hydrostatic test pressure of 500 PSI.
Q: Is the Zurn 10-48OSY suitable for fire protection systems?
A: Yes, the Zurn 10-48OSY is UL Listed, C-UL Listed, and FM Approved, making it suitable for fire protection systems as well as potable water and irrigation applications.
Q: What type of end connections does this valve use?
A: This model features OS&Y flanged end connections meeting ANSI/ASME B16.42 Class 150.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
