Wilkins 1-850XL | Full Port Bronze Ball Valve, 1 Inches

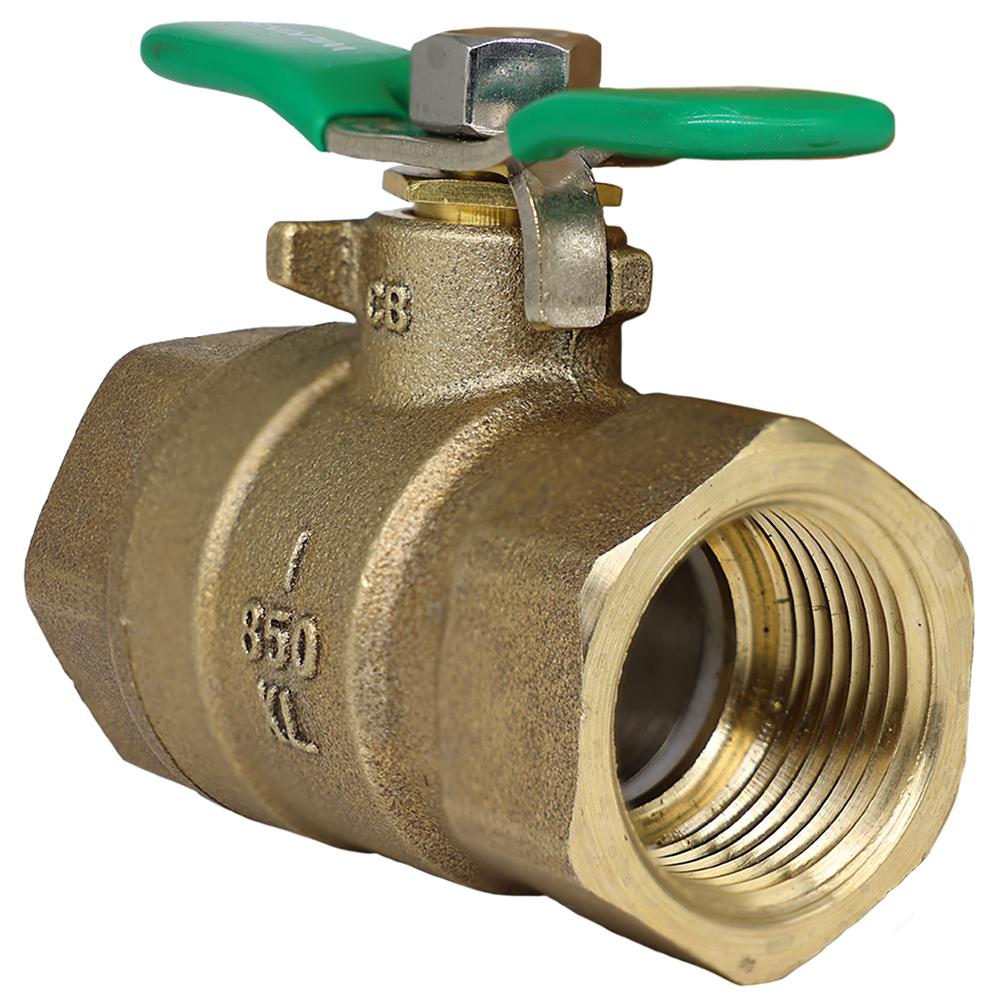

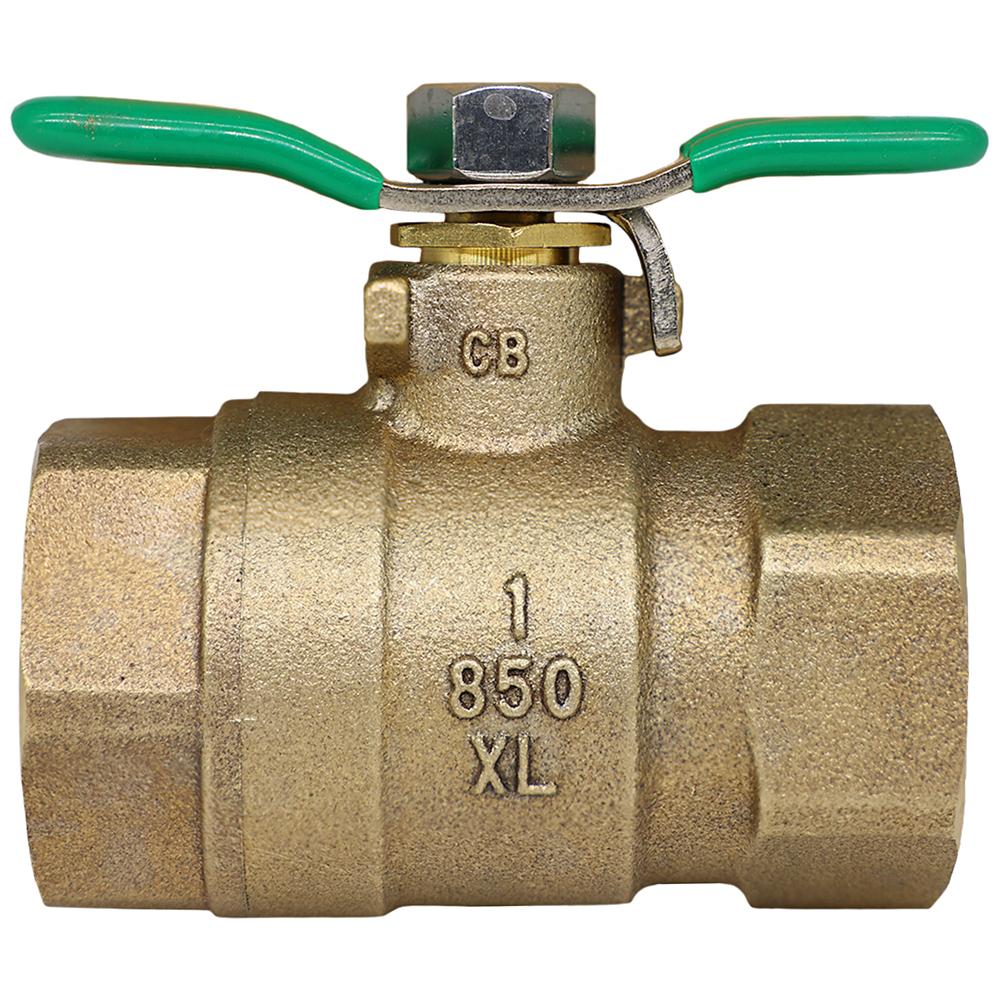

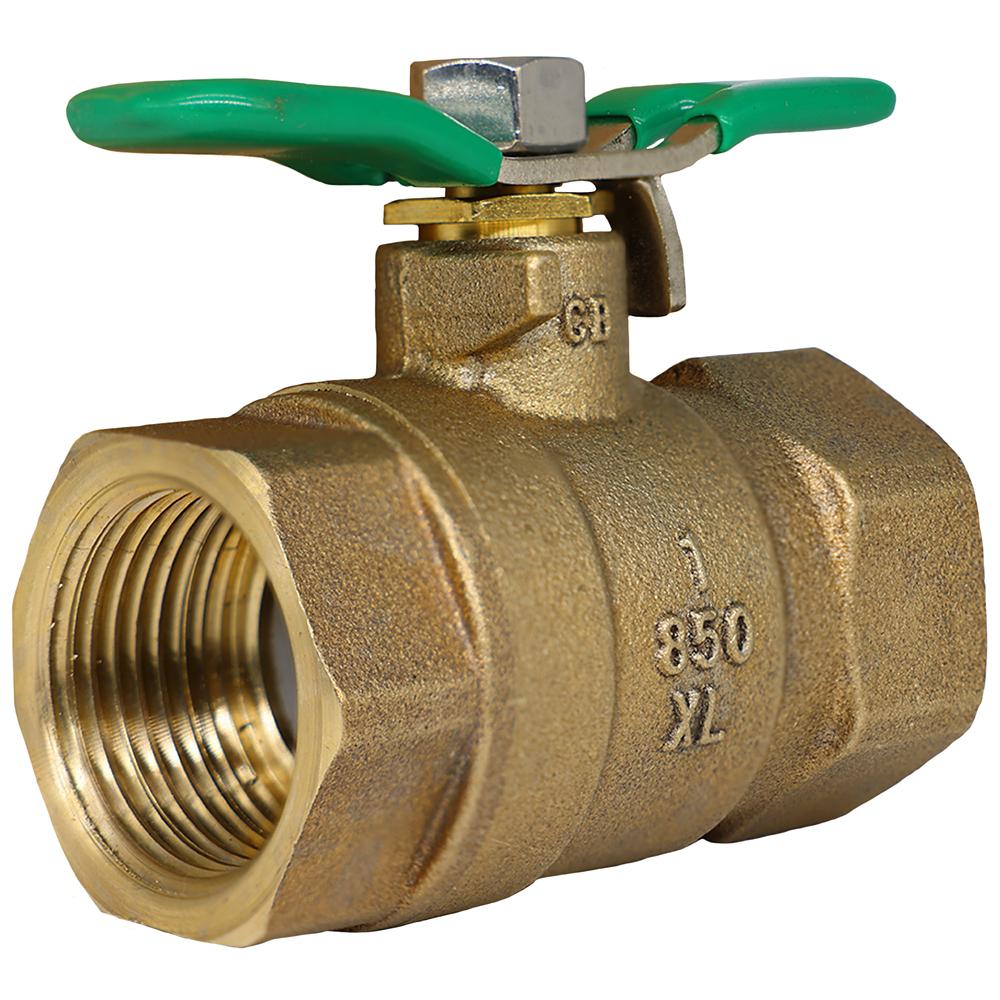

The Wilkins 1-850XL Full Port Bronze Ball Valve is designed for precise throttling and balancing of steam, air, water, and non-corrosive gas or oil.
Key Specifications:
| Size | 1 Inches |
| Pressure Rating | 400 psi WOG |
| Temperature Rating | 33°F to 350°F @ 50 psi |
| Notable Certifications | NSF/ANSI 372 Certified |
| Connection Type | FNPT Threaded Connections |
Other Related Variants:
- 2-850XL: 2 Inches version
- 12-850XL: 1/2 Inches version
- 34-850XL: 3/4 Inches version
- 112-850XL: 1 1/2 Inches version
- 114-850XL: 1 1/4 Inches version
Materials:
- Main valve body: Low lead Bronze ASTM B 584
- Ball: Chrome plated low lead brass
- Seats: TFE virgin teflon
- Stems: Brass ASTM B 16
- Stem packing: TFE virgin teflon
- Thrust washer: TFE virgin teflon
- Handle: Stainless steel
- Handle nut: Stainless steel
Typical Installation:
The Zurn 1-850XL is recommended for residential, commercial, and industrial applications where Lead-Free valves are required, ideal for throttling and balancing installations of low pressure steam, air, water, and non-corrosive gas or oil.
Standards Compliance:
Certified to NSF/ANSI 372 by IAPMO R&T; 0.25% Max Weighted Average Lead Content
Features & Benefits:
- Full Port Design: Provides unrestricted flow for efficient throttling and balancing of steam, air, water, and gas systems.
- Lead-Free Construction: Meets NSF/ANSI 372 standards for safe use in potable water applications.
- Corrosion-Resistant Components: Chrome-plated low-lead brass ball and TFE Teflon seats ensure long-lasting durability.
- Versatile Configuration Options: Available in single-union, tapped, or MNPT x FNPT connections for flexible installation.
FAQ
Q: What is the pressure rating of the Wilkins 1-850XL valve?
A: The Wilkins 1-850XL is rated for 400 psi WOG (Water, Oil, Gas).
Q: Is the Wilkins 1-850XL suitable for potable water systems?
A: Yes, it is Lead-Free and certified to NSF/ANSI 372 by IAPMO R&T, making it safe for potable water applications.
Q: What connection types are available for the Wilkins 1-850XL?
A: It features FNPT threaded connections per ANSI B1.20.1, with optional single-union, tapped, or MNPT x FNPT configurations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
