Elkay Bi-Level In-Wall Water Fountain | EDFPB117C Filterless

  • $ 1,691.90
  • Save $ 1,046


One of the most popular models, the Elkay EDFPB117C Water Fountain makes drinking water more practical, safe, and appealing than ever before.

  • ADA compliant design
  • Made in America

VIEW SPEC SHEET HERE: Elkay EDFPB117C

FILTERED?

No

COOLER CABINET FINISH

Stainless Steel

POWER

No Electricity Required

BUBBLER OPTION

FlexiGuard Safety

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

Non-Refrigerated

Elkay EDFPB117C

INSTALLATION LOCATION

Indoor/Outdoor

NUMBER OF STATIONS

Two Stations

DIMENSIONS

L: 38-1/2"

W: 19"

H: 21-15/16"

SHIPPING WEIGHT

52 lbs

Elkay EDFPB117C

PRODUCT COMPLIANCE

●     ADA Compliant

●     NSF 61

●     NSF 372 (lead free)

●     CAN/CSA 22.2 120

●     Buy American Act

●     ASME A112.19.3/CSA B45.4



WARRANTY

Refrigeration System (IF APPLICABLE)

Elkay EDFPB117C refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay EDFPB117C warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

INSTALLATION NOTES

  • Elkay EDFPB117C requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

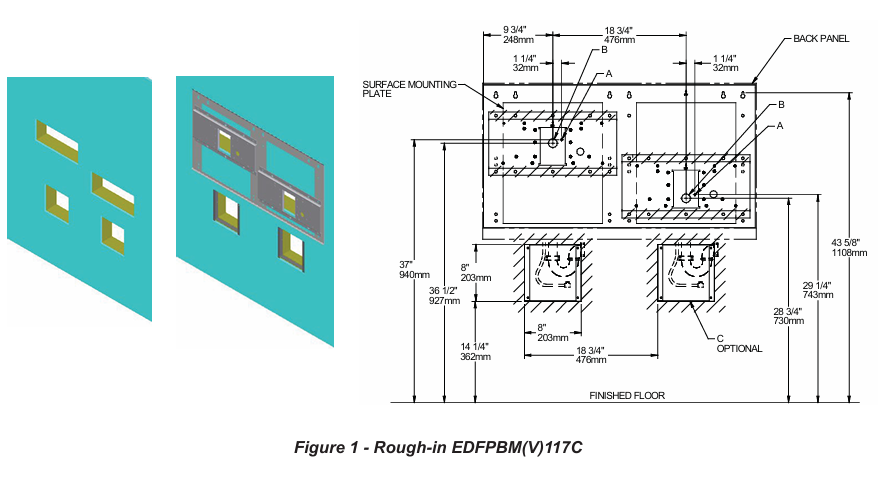

  • View detailed Elkay EDFPB117C INSTALLATION INSTRUCTIONS.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: How long does it take to install this retrofit?

A: It varies, but the typical Bottle Filling Station retrofit install takes 1-2 hours.

Q: Does the retrofit come with a chiller?

A: No. The retrofit will utilize the compressor from your existing fountain (if applicable).

Q: How do I know if this is the most appropriate retrofit for my setup?

A: Please send the serial # of your existing fountain to support@bottlefillingstations.com. If you’re unable locate, please email us a picture of your existing fountain.



*ASSEMBLED IN THE UNITED STATES.

Experience the benefits of the very popular Elkay EDFPB117C Water Fountain. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
