Elkay LVRC8WSK | Wall-mount Bottle Filling Station | Filtered, Refr...

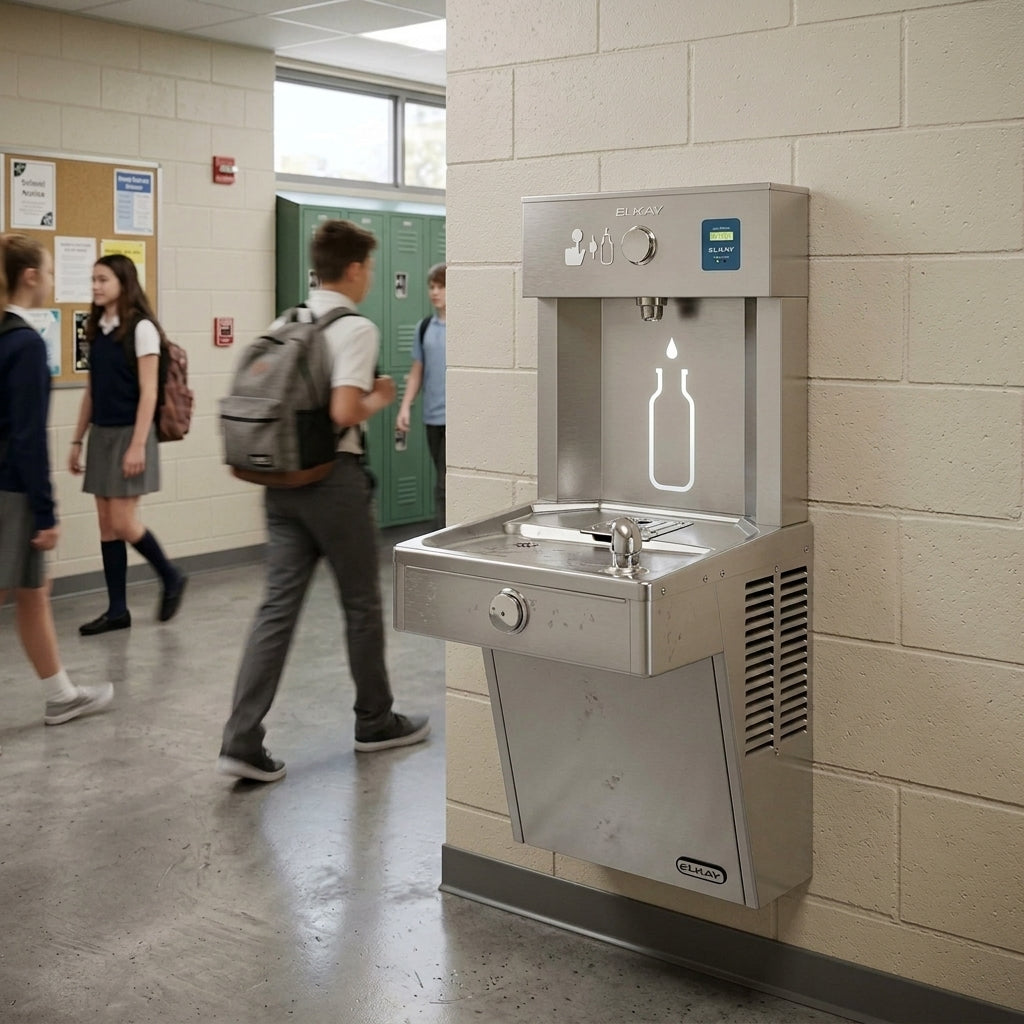

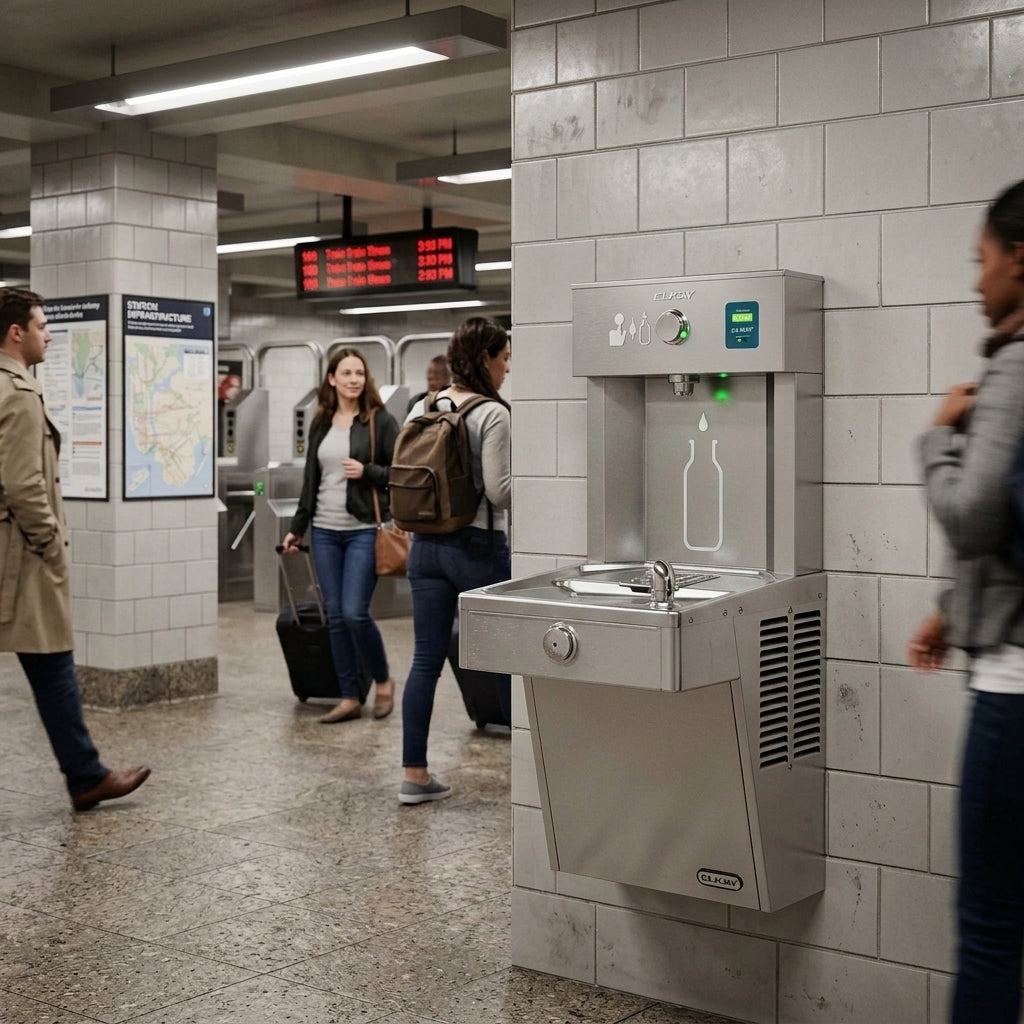

The Elkay LVRC8WSK is a vandal‑resistant, filtered bottle filling station with single ADA cooler, engineered for both indoor and outdoor use. Built in stainless steel with rugged components, it delivers chilled, filtered water while standing up to heavy use and harsh environments. With mechanical activation backup, the LVRC8WSK ensures reliable hydration even during service disruptions.
Key Specifications:
- Design: Single vandal‑resistant cooler with integrated EZH2O® bottle filling station
- Finish: Stainless Steel
- Filtration: Standard 51300C WaterSentry® Plus Filter, NSF certified for lead, microplastics, chlorine taste and odor reduction (3,000‑gallon capacity)
- Refrigeration: 8.0 GPH chilling capacity at 50°F drinking water (based on 80°F inlet, 90°F ambient)
- Stations Served: 1 station (single cooler + bottle filler)
Features & Benefits:
- Vandal‑Resistant Design: Reinforced bubbler and components for durability in public spaces
- Mechanical Backup: Continues to dispense water even during electrical service interruptions
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- Green Ticker™: Displays the number of plastic bottles saved from waste
- Laminar Flow & Real Drain: Provides clean, splash‑free filling and eliminates standing water
What's Included:
- LVRC8WSK Bottle Filling Station & Single Cooler
- WaterSentry® Plus 51300C Filter
- Vandal‑Resistant Bubbler
- Installation and operation manual
- Warranty documentation
FAQ
Q: Can the LVRC8WSK Be Installed Outdoors?
A: Yes. The LVRC8WSK is designed for indoor and outdoor use. In non‑temperature‑controlled environments, the unit must be winterized or protected from extreme heat to prevent damage.
Q: What Filter Does the LVRC8WSK Use?
A: It comes standard with the 51300C WaterSentry® Plus Filter, certified to NSF/ANSI 42, 53, 372, and 401 for lead, microplastics, chlorine taste and odor reduction. Capacity is 3,000 gallons or 1 year after installation. Optional 51600C high‑capacity filter upgrade also available.
Q: What Accessories Are Available for the LVRC8WSK?
A: Compatible accessories include the 98324C Cane Apron (Stainless), SSBFUP Universal back panel kit, and MLP100 for in-wall mounting frame carrier.
Q: How Does the LVRC8WSK Handle Power Interruptions?
A: The unit features mechanical activation, allowing it to continue dispensing water even if electrical service is disrupted.
Q: What Is the Warranty Coverage for the LVRC8WSK?
A: The refrigeration system is covered for 5 years, while electrical components and the water system are covered for 12 months from installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

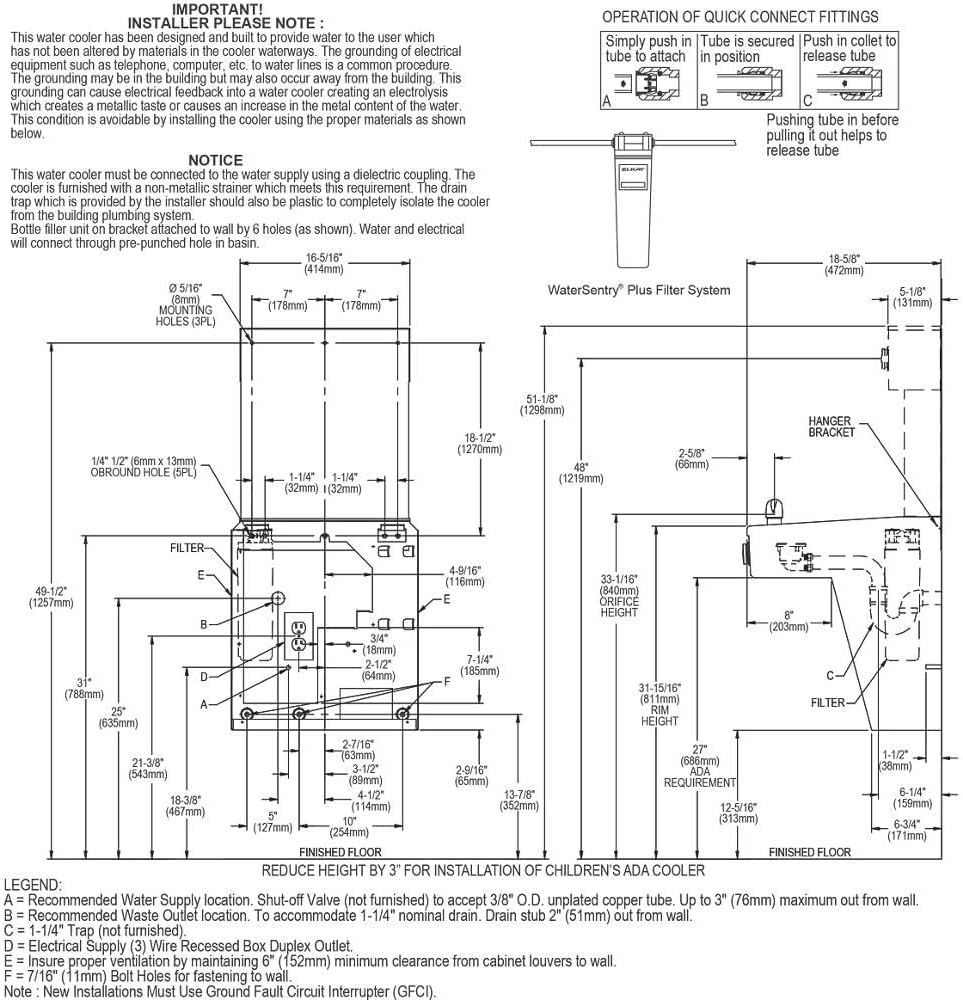

- Install the wall mounting plate securely to the wall at the rough‑in dimensions; ensure adequate support structure or use a fixture carrier if required.
- Mount the Elkay LVRC8WSK cooler onto the wall bracket and secure with fasteners; connect drain and water inlet per rough‑in diagram.
- Do not connect power at this stage; leave electrical supply off until water connections are complete.
- Remove the LVRC bottle filler from carton; feed the power cord and waterline through the hole on top of the cooler basin.
- Place the bottle filler onto the basin mounting bracket and gasket; tighten the two side screws provided. Install the top cover with supplied screws; do not overtighten.
- Install insulation on the waterline and connect the 3/8" waterline from the bottle filler to the tee inside the cooler.
- For filtered models, install the WaterSentry® Plus filter cartridge by inserting into the filter head and rotating clockwise until secure.
- Turn on water supply and inspect all connections for leaks; correct any leaks before proceeding.
- Restore electrical power; plug in cooler and bottle filler. Verify green LED filter status and LCD bottle counter display.
- Test dispensing by pressing the bottle filler button; purge air from the line until flow is steady.
- Reinstall lower panel on cooler; unit is now ready for use.
- For detailed steps, refer to the Elkay LVRC8WSK installation manual or contact a licensed plumber/electrician.
- Replace WaterSentry® Plus filter cartridge when LED indicator shows red or after rated capacity (3,000–6,000 gallons depending on model).
- Reset filter monitor via program button after replacement; verify green LED illumination.
- Clean exterior surfaces with mild soap and water; avoid abrasive cleaners that may damage finish.
- Inspect bubbler stream height and adjust regulator screw as needed; recommended stream height is approximately 1" (25 mm).
- Check drain connections and drip tray regularly; clean to prevent clogs.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified Elkay service representative.
