Wilkins 34-975XL | 3/4" Reduced Pressure Principle Assembly

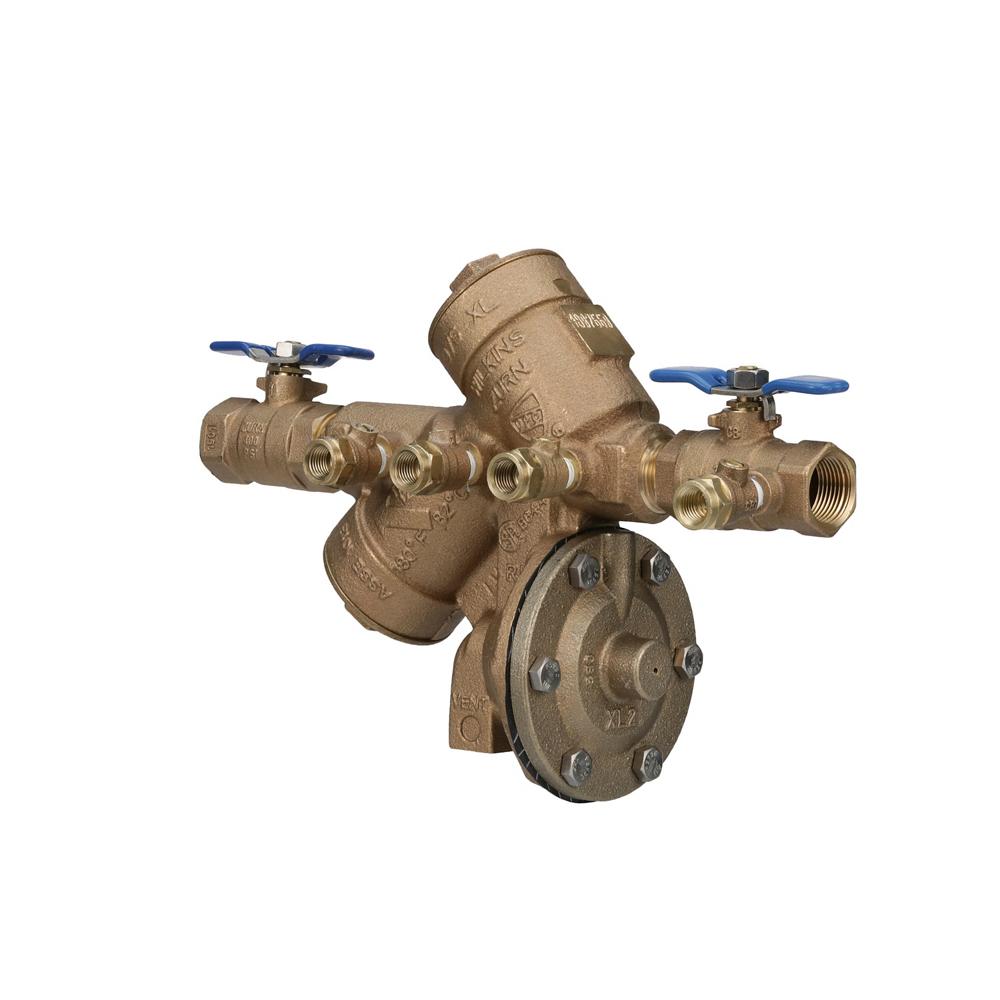

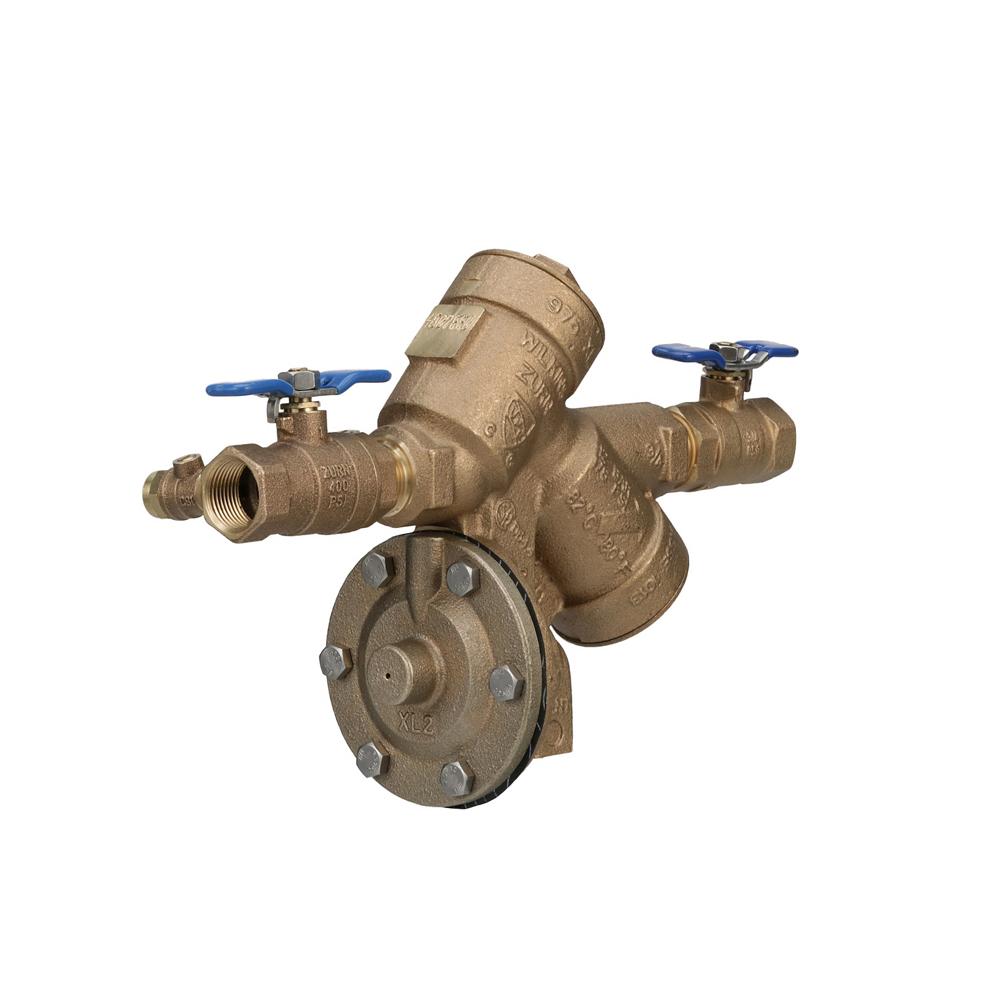

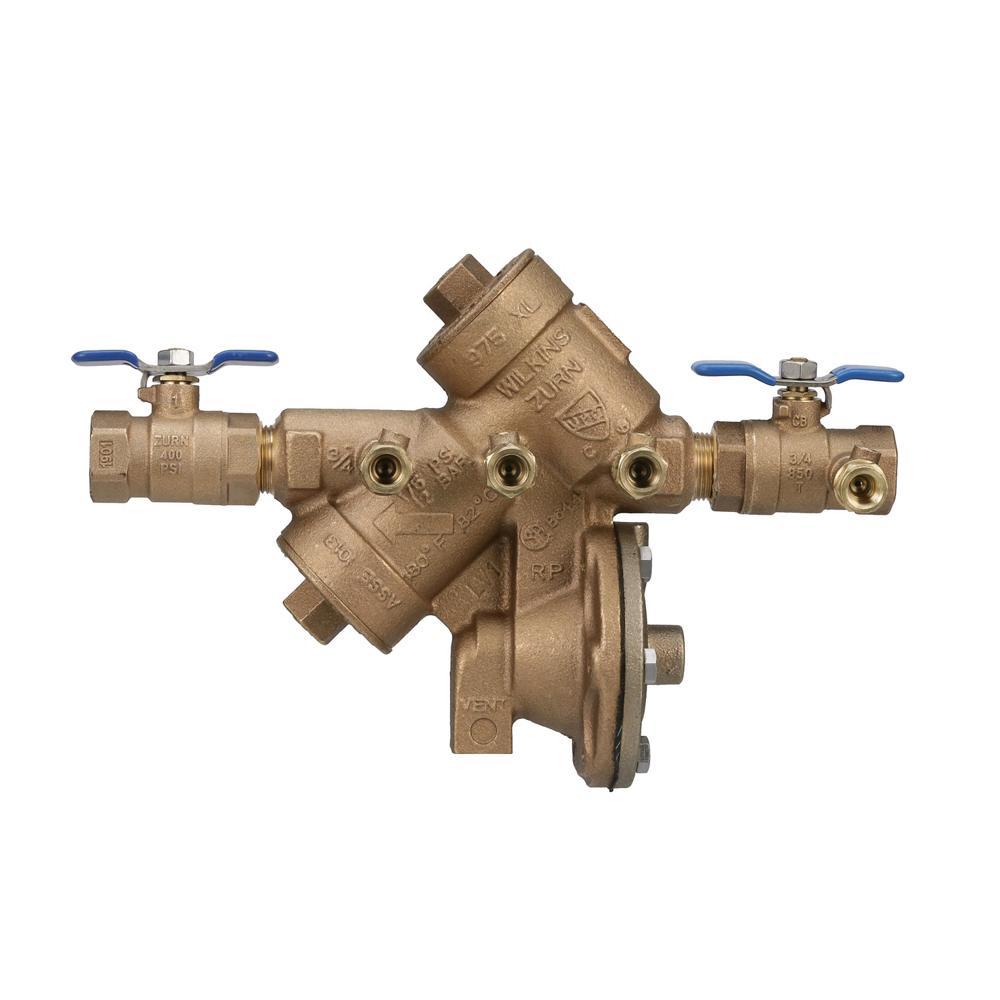

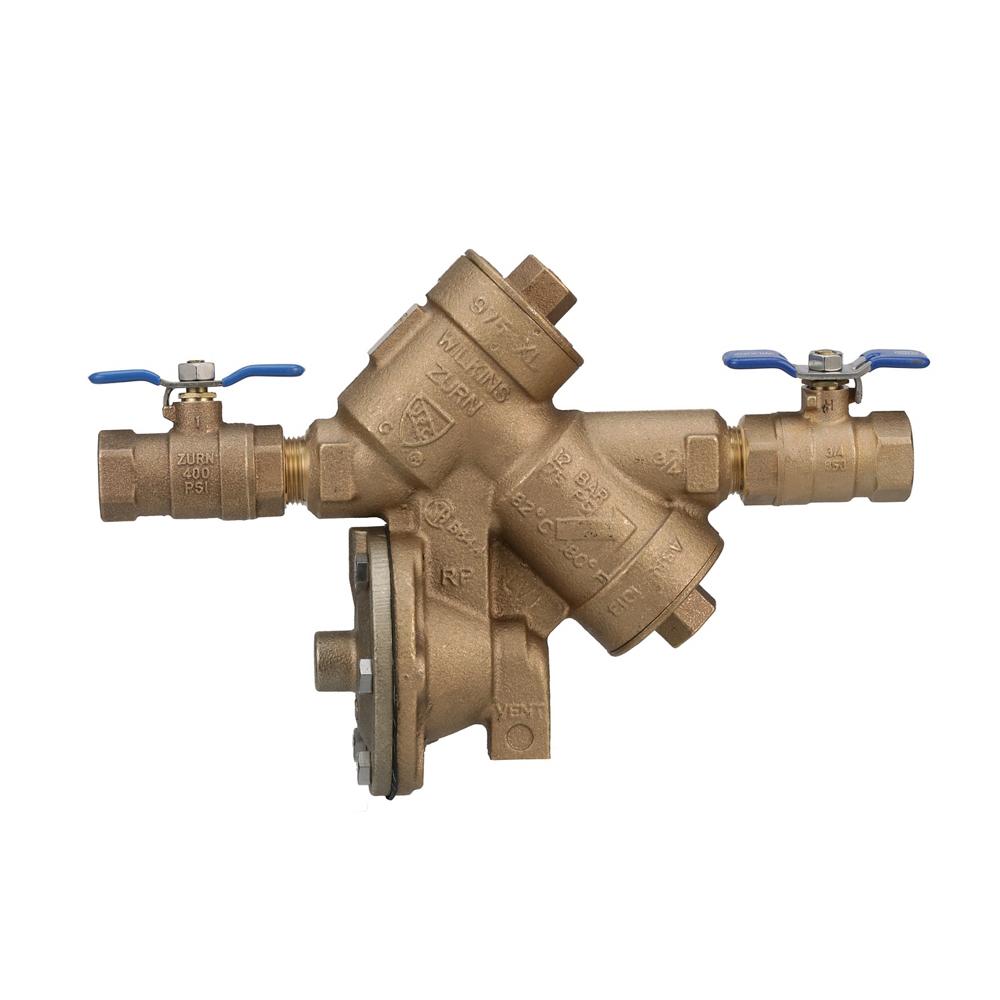

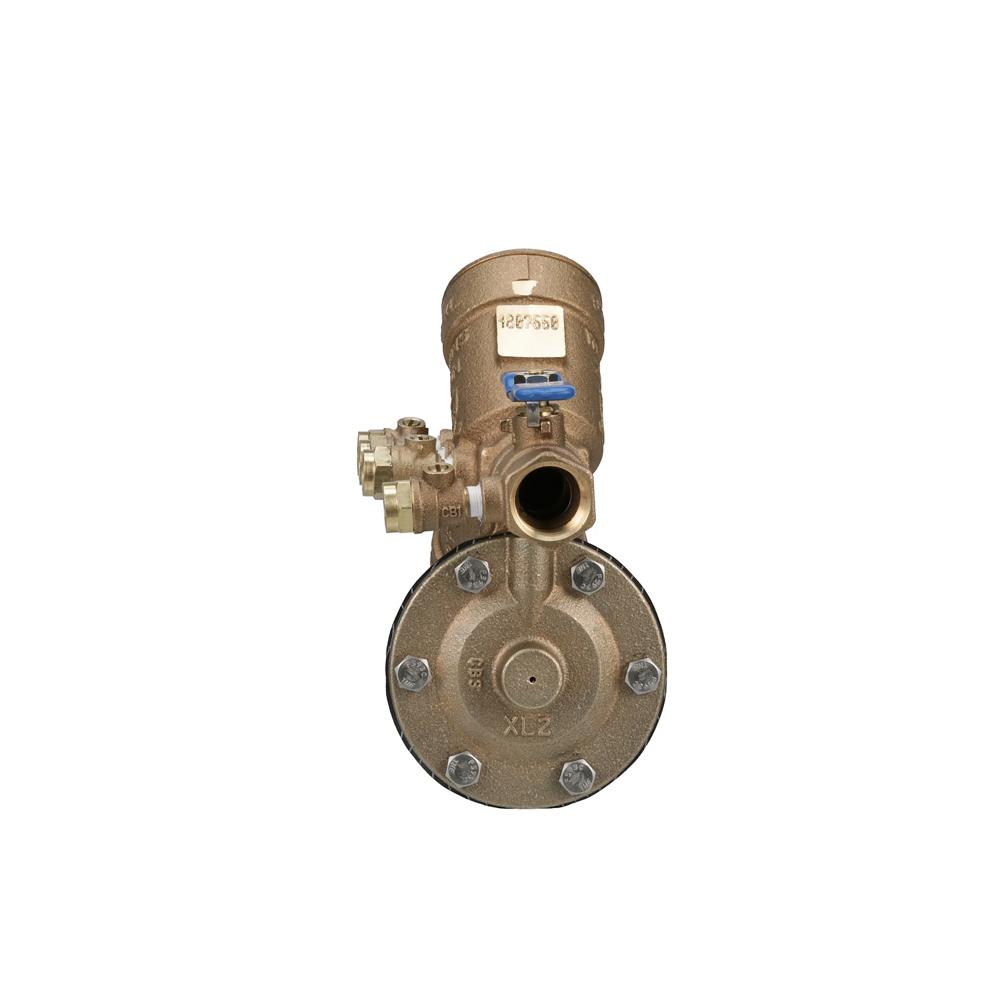

The Wilkins 34-975XL is a 3/4-inch reduced pressure principle backflow assembly designed to protect potable water supplies from backsiphonage and backpressure in high-hazard applications.
Key Specifications:
- Size: 3/4 Inches
- Maximum Working Pressure: 175 PSI
- Maximum Working Temperature: 180°F
- Notable Certifications: ASSE 1013, cUPC, UL
- End Connections: Threaded ANSI B1.20.1
Other Related Variants:
- 1-975XL: 1 Inch model size
- 114-975XL: 1 1/4 Inches model size
- 112-975XL: 1 1/2 Inches model size
- 2-975XL: 2 Inches model size
Materials:
- Cast Bronze body per ASTM B584
- Cast Bronze access covers per ASTM B584
- Stainless Steel 300 Series fasteners
- Stainless Steel 300 Series springs
- Silicone elastomers
- Buna Nitrile elastomers
- Noryl™ internal polymers
Typical Installation:
Local codes shall govern installation requirements. To be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code. Unless otherwise specified, the assembly shall be mounted at a minimum of 12 inches and a maximum of 30 inches above adequate drains with sufficient side clearance for testing and maintenance. The installation shall be made so that no part of the unit can be submerged.
Standards Compliance:
ASSE Listed 1013; cUPC Listed; UL Classified; C-UL Classified; CSA Certified B64.4; AWWA compliant C511; Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California; NYC MEA 425-89-M VOL 3
Features & Benefits:
- High Hazard Protection: Protects potable water from both backsiphonage and backpressure in non-potable applications.
- Durable Construction: Cast bronze body with stainless steel fasteners and springs ensures long-lasting performance and corrosion resistance.
- Easy Maintenance Access: First and second checks are accessible for maintenance without removing the relief valve or entire device from the line.
- Complete Installation Package: Supplied standard with full-port QT ball valves for immediate installation convenience.
FAQ
Q: What is the required installation height for the Wilkins 34-975XL?
A: The Zurn 34-975XL must be mounted at a minimum of 12 inches and a maximum of 30 inches above adequate drains with sufficient side clearance for testing and maintenance.
Q: Does the Zurn 34-975XL require an air gap adapter for indoor installations?
A: Yes, if the assembly is installed indoors, the installation must be supplied with an air gap adapter to ensure proper drainage and prevent submersion.
Q: Can the check valves be serviced without removing the entire Wilkins 34-975XL assembly?
A: Yes, the first and second checks are accessible for maintenance without removing the relief valve or the entire device from the line, making service quick and convenient.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
