Wilkins ZW5004CAP | 2-1/2 in Pressure Reducing Floor Control Valve,...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

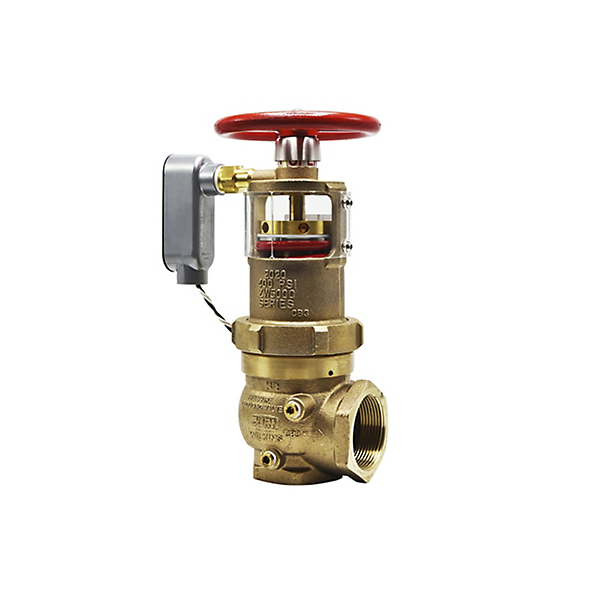

The Wilkins ZW5004CAP is a capped bonnet pressure reducing floor control valve designed for automatic sprinkler and standpipe systems, providing reliable pressure regulation under flow and no-flow conditions.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 400 psi
- Connection Type: FNPT x FNPT
- Notable Certifications: UL and C-UL Listed
- Body Configuration: Angle body design
Other Related Variants:
- ZW5004ILG: In-line (globe type) valve with grooved inlet
Materials:
- Main valve body: Cast bronze ASTM B806
- Stem: Cast bronze ASTM B806
- Flange: Cast bronze ASTM B806
- Elastomers: Buna Nitrile or EPDM
- Springs: Chrome silicon, ASTM A401 powder coated
Typical Installation:
The Zurn ZW5004CAP is suitable for use as a floor control valve, indicating valve, and check valve in automatic sprinkler systems, as well as a standpipe valve for CLASS I and CLASS III systems. Ideal for indoor and outdoor applications where field adjustable pressure regulation is required.
Standards Compliance:
UL Listed; C-UL Listed
Features & Benefits:
- Capped Bonnet Design: No handwheel assembly or supervisory switch for simplified installation and tamper resistance.
- Field Adjustable: Can be factory set and adjusted or set in the field as needed for maximum flexibility.
- Dual Pressure Monitoring: Tapped and plugged inlet and outlet connections for pressure gauge installation on both sides.
- Cast Bronze Construction: Durable ASTM B806 cast bronze body, stem, and flange ensure long-lasting performance.
FAQ
Q: What is the difference between the ZW5004CAP and the standard ZW5004?
A: The Wilkins ZW5004CAP features a capped bonnet with no handwheel assembly and no supervisory switch, making it ideal for applications where adjustments are less frequent and tamper resistance is desired.
Q: Can this valve be used in both indoor and outdoor applications?
A: Yes, the Zurn ZW5004CAP is suitable for both indoor and outdoor use in automatic sprinkler systems and standpipe systems.
Q: What connection types are available for this valve?
A: The ZW5004CAP comes standard with FNPT (Female National Pipe Thread) connections conforming to ANSI B1.20.1. Other variants offer grooved connections conforming to AWWA C606.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
