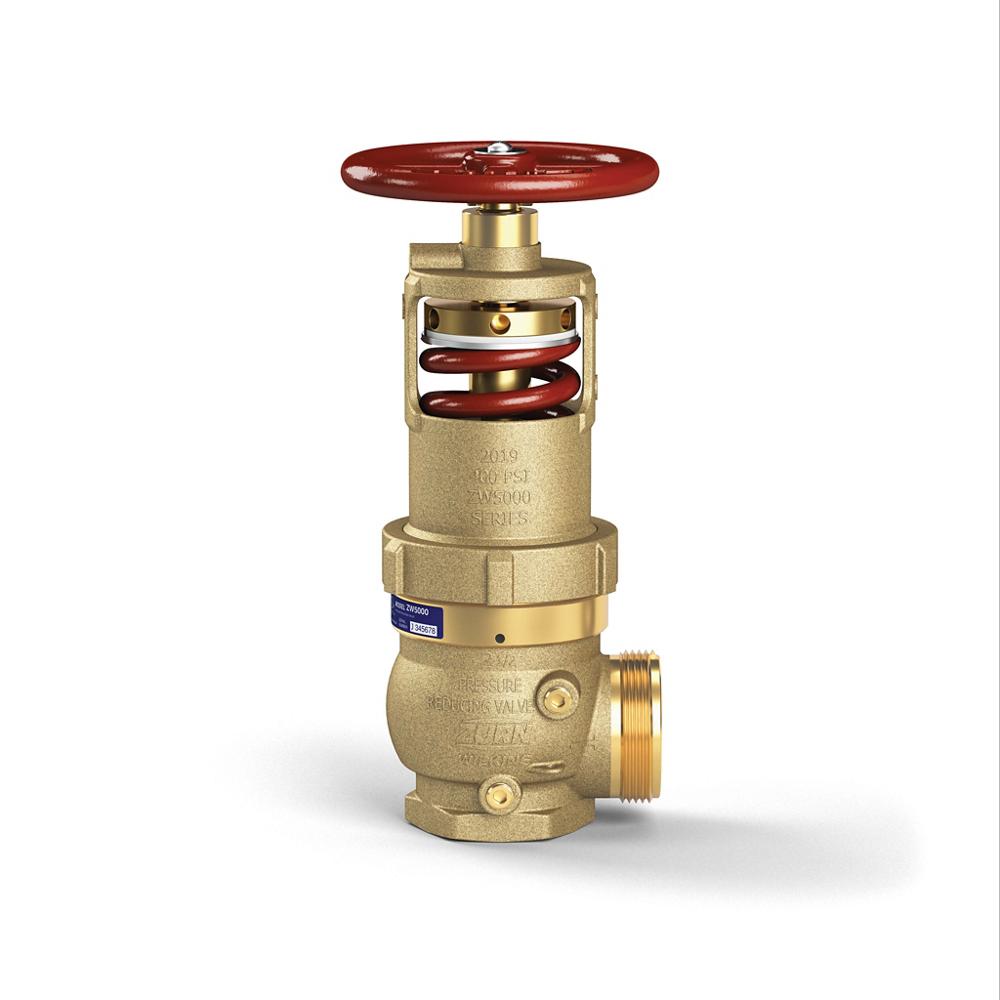

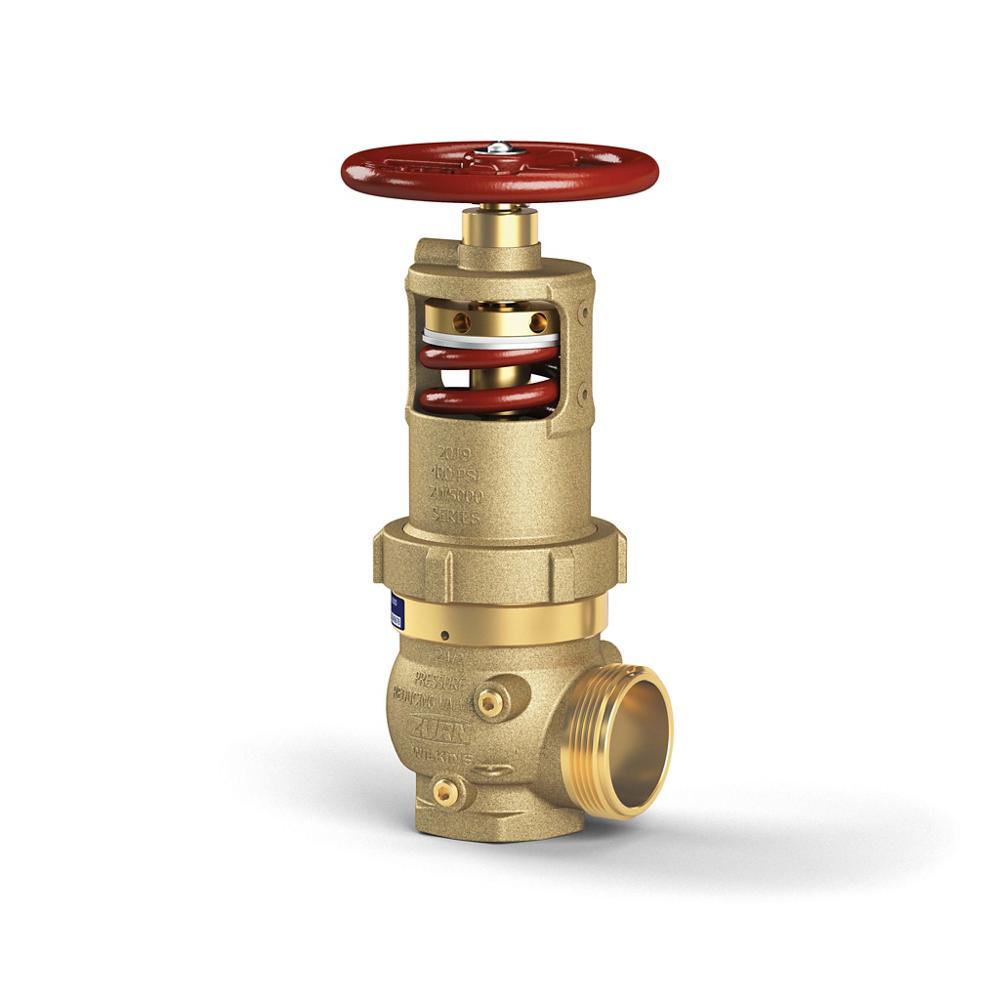

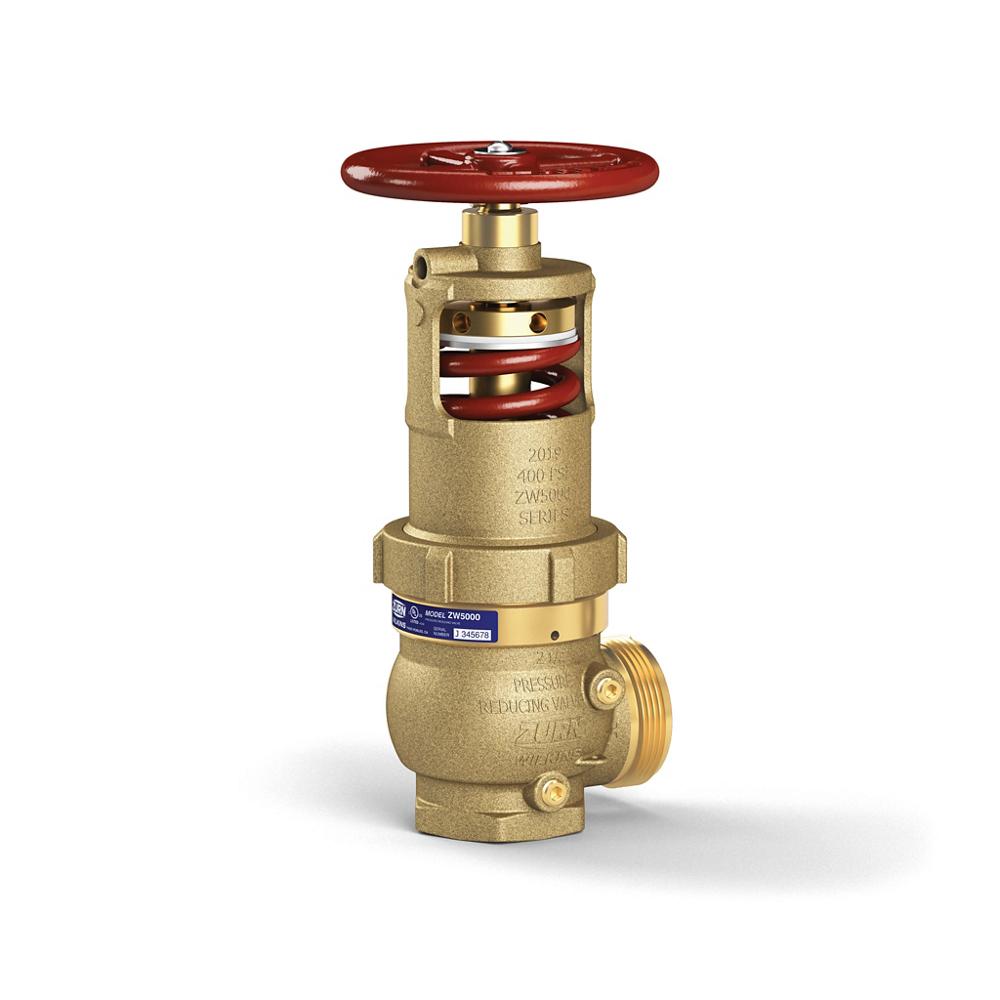

Wilkins ZW5000 | Pressure-Tru® Fire Hose Valve, 2 1/2 Inches
The Wilkins ZW5000 is a field-adjustable pressure reducing valve designed for CLASS I and CLASS III standpipe hose stations, regulating pressure under both flow and no-flow conditions with exceptional reliability.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 400 psi
- Notable Certifications: UL Listed; C-UL Listed
- End Connections: FNPT inlet; Male hose outlet
- Body Configuration: Angle type body
Other Related Variants:
- ZW5000CCCH: Cap and chain with chrome finish
- ZW5000G: Grooved inlet version
- ZW5000IL: In-line globe body version
- ZW5000F: Female NPT inlet and outlet angle valve
- ZW5000SF: San Francisco hose thread (3 Inches)
Materials:
- Main valve body: Cast bronze ASTM B806
- Stem: Cast bronze ASTM B806
- Flange: Cast bronze ASTM B806
- Elastomers: Buna Nitrile (FDA approved)
- Elastomers: EPDM (FDA approved)
- Springs: Chrome silicon ASTM A401, powder coated
Typical Installation:
The Zurn ZW5000 is typically installed at individual hose stations in CLASS I and CLASS III standpipe systems where pressure regulation is required under both flow and no-flow conditions for fire protection applications.
Standards Compliance:
UL Listed; C-UL Listed; ANSI B1.20.1; AWWA C606; NFPA 1963
Features & Benefits:
- Field Adjustable Design: Allows easy pressure adjustments on-site without factory return, reducing downtime and installation costs.
- Dual Pressure Regulation: Maintains consistent outlet pressure under both flow and no-flow conditions for reliable fire protection performance.
- Durable Bronze Construction: Cast bronze ASTM B806 body, stem, and flange ensure long-lasting performance in demanding fire protection applications.
- Tamper-Proof Features: Includes tamper-proof shield and gauge taps for secure operation and easy pressure monitoring in critical applications.
FAQ
Q: Can the Wilkins ZW5000 be adjusted in the field after installation?
A: Yes, the Zurn ZW5000 is designed for easy field adjustment with low torque requirements, allowing on-site pressure modifications without removal.
Q: What is the maximum inlet pressure rating for this valve?
A: The valve is rated for a maximum inlet pressure of 400 psi.
Q: Is this valve suitable for both CLASS I and CLASS III standpipe systems?
A: Yes, the valve is UL and C-UL listed specifically for use in both CLASS I and CLASS III standpipe hose stations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
