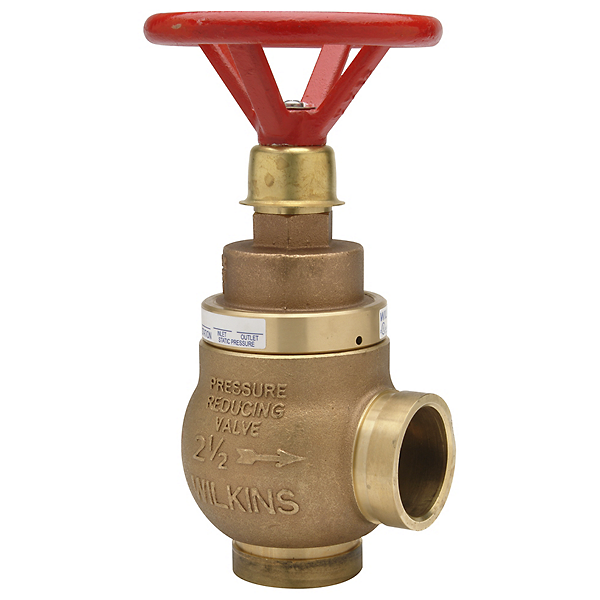

Wilkins ZW4004ILGSS-T | Pressure-Tru Fire Control PRV, 2 1/2 Inches
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins ZW4004ILGSS-T is a UL Listed automatic fire control pressure reducing valve designed for sprinkler and standpipe systems, regulating pressure under both flow and no-flow conditions.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 400 psi
- Notable Certifications: UL Listed, C-UL Listed, NYC MEA 325-06-E
- End Connections: Grooved AWWA C606
- Factory Set Pressure Profile: Type T (225 psi max inlet)
Other Related Variants:
- ZW4004ILGSS-R: Pressure setting R (290 psi max inlet)
- ZW4004ILGSS-S: Pressure setting S (250 psi max inlet)
- ZW4004ILGSS-U: Pressure setting U (200 psi max inlet)
Materials:
- Castings/internals: Cast bronze ASTM B 584
- Elastomers: Buna Nitrile (FDA approved)
- Elastomers: EPDM (FDA approved)
Typical Installation:
The Zurn ZW4004ILGSS-T is listed as a floor control valve, an indicating valve, and a check valve in automatic sprinkler systems as well as a standpipe valve for CLASS I and CLASS III systems.
Standards Compliance:
UL Listed; C-UL Listed; NYC MEA 325-06-E; City of Los Angeles Approved; California State Fire Marshal Listed (SS option)
Features & Benefits:
- Integrated Supervisory Switch: Integral listed supervisory switch (3 A @ 125 VAC) with tamper resistant cover provides valve position monitoring for enhanced system safety.
- Consistent Pressure Regulation: Non-field adjustable, factory-set design regulates pressure under both flow and no-flow conditions for reliable fire protection system performance.
- Convenient Installation Features: In-line globe configuration with grooved connections and tapped & plugged gauge ports simplifies installation and maintenance procedures.
- Comprehensive Certifications: UL & C-UL Listed with NYC MEA 325-06-E approval and California State Fire Marshal listing ensures code compliance nationwide.
FAQ
Q: What is the difference between pressure profile T and other available settings?
A: Pressure profile T has a maximum inlet pressure rating of 225 psi, while other profiles like R (290 psi), S (250 psi), and U (200 psi) offer different maximum inlet pressure ratings to accommodate various system requirements.
Q: Can the pressure setting be adjusted in the field?
A: No, the Wilkins ZW4004ILGSS-T is non-field adjustable and comes factory set to ensure consistent, reliable pressure regulation according to the specified profile.
Q: What is the purpose of the supervisory switch on this valve?
A: The integral supervisory switch monitors valve position and alerts building monitoring systems if the valve is tampered with or moved from its proper operating position, enhancing fire protection system reliability.
