Wilkins TP1100A-4C-175C | T&P Relief Valve, 4" Probe Size,...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

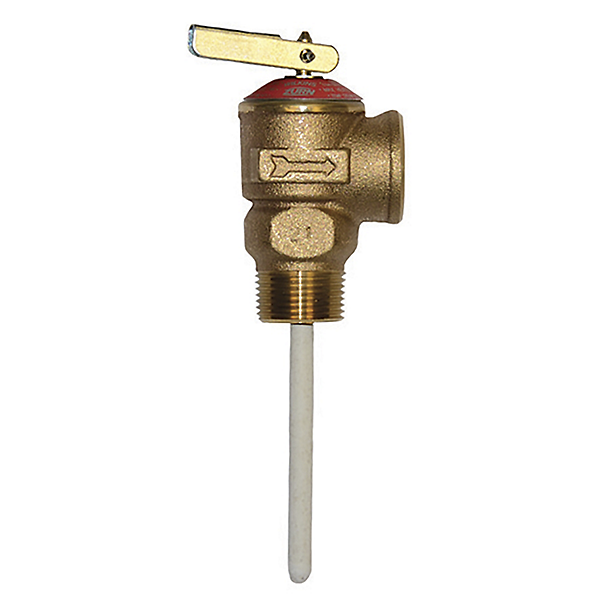

The Wilkins TP1100A-4C-175C is a temperature and pressure relief valve designed to protect water heating storage vessels against over-temperature and excessive pressure conditions.
Key Specifications:
- Probe Size: 4 Inches
- Pressure Relief Setting: 175 PSI
- Temperature Relief Rating: 210°F Maximum
- Notable Certifications: ASME Section IV, CSA Certified
- End Connections: 3/4 MNPT x 3/4 FNPT
Other Related Variants:
- TP1100A-4C-150C: 150 PSI pressure setting
- TP1100A-4C-75C: 75 PSI pressure setting
Materials:
- Main valve body: Cast Brass or Bronze, ASTM B 584
- Internals: Stainless Steel, 300 Series
- Internals: Brass, ASTM B 36 and B 16
- Internals: EP, Silicone
- Springs: Stainless Steel, ASTM A 313
- Probes: Epoxy coated copper tube, FDA approved
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the relief valve shall be installed in accordance with manufacturer's instructions and the latest edition of the Uniform Plumbing Code. Typically installed on water heating storage vessels with drain lines terminating outside.
Standards Compliance:
CSA Compliance to ANSI Z21.22/CSA 4.4; Certified to ASME Section IV by National Board
Features & Benefits:
- Dual Protection: Provides both over-temperature and excessive pressure protection for water heating vessels in non-steam applications.
- Reliable Construction: Built with cast brass or bronze body and corrosion-resistant stainless steel internals for long-lasting durability.
- High Relief Capacity: Rated for 95,000 BTU/hr discharge capacity at 175 PSI pressure setting.
- Code Compliant Design: ASME Section IV certified and CSA compliant ensuring safe and reliable operation.
FAQ
Q: What is the probe length of the Zurn TP1100A-4C-175C model?
A: The Zurn TP1100A-4C-175C features a 4 inch shank length probe for proper temperature sensing in water heating vessels.
Q: Can this valve be used for steam service applications?
A: No, this valve is designed for installation on water heating storage vessels only and is not suitable for steam service.
Q: What is the maximum temperature rating for this relief valve?
A: The valve has a maximum temperature relief rating of 210°F for safe operation in water heating applications.
