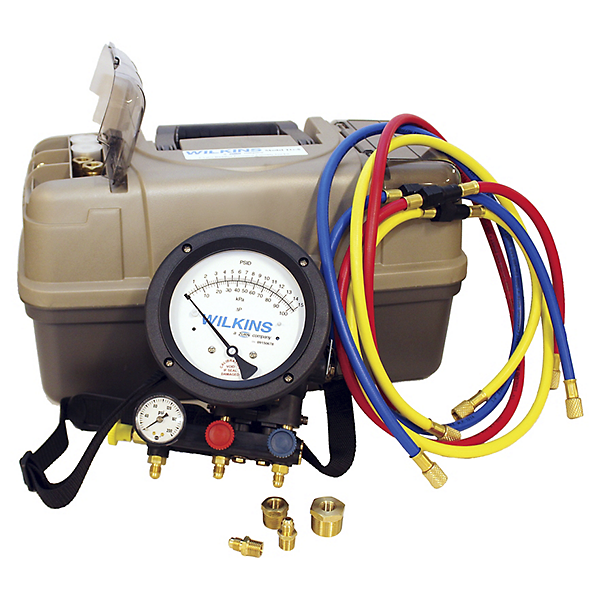

Wilkins TG-5 | 5-Valve Backflow Prevention Assembly Test Kit
The Zurn Wilkins TG-5 is a 5-valve differential pressure test kit engineered for testing backflow prevention assemblies. It performs all recognized testing procedures for Reduced Pressure Principle Assemblies, Double Check Valve Assemblies, and Pressure Vacuum Breakers, ensuring compliance with ASSE, AWWA, and FCCCHR standards.
Key Specifications:
- Maximum Working Pressure: 200 psi
- Temperature Range: 35°F to 150°F
- Gauge Dial: 4½" diameter, 0–15 PSI scale
- Accuracy: ±0.2 PSI differential (descending)
- Warranty: 5 years against defects in materials and manufacturing
Features & Benefits:
- Comprehensive Testing: Performs all known backflow assembly testing procedures
- Durable Construction: Thermoplastic gauge body, brass fittings, stainless steel internals, and Buna nitrile hoses
- High Accuracy: ±0.2 PSI differential accuracy ensures reliable test results
- Portable Design: Supplied with a rugged molded plastic carrying case
- Certified Calibration: Gauges tested to standards traceable to the National Bureau of Standards

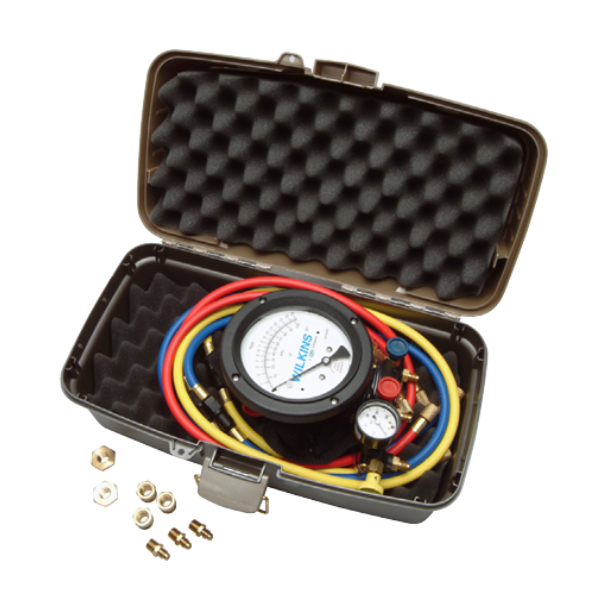

What's Included:
- 5-valve differential pressure gauge assembly
- 4½" gauge dial (0–15 PSI scale)
- 200 PSI line pressure gauge

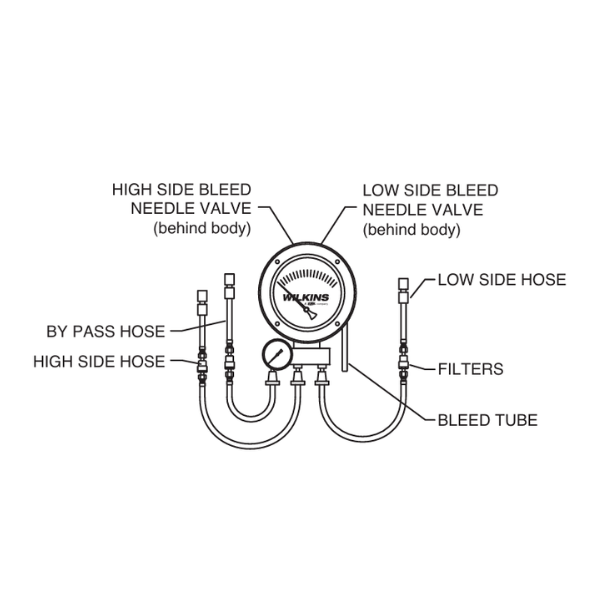

- Three 5' color-coded hoses and one 4' bleed tube
- Porous brass filters and molded plastic carrying case
- Calibration certificate and laminated instruction sheet
FAQ
Q: What types of backflow assemblies can the TG-5 test?
A: It can test Reduced Pressure Principle Assemblies, Double Check Valve Assemblies, and Pressure Vacuum Breakers.
Q: How often should the TG-5 be calibrated?
A: Gauges should be rechecked for calibration annually to maintain accuracy.
Q: What is the accuracy of the TG-5?
A: The TG-5 provides ±0.2 PSI differential accuracy (descending).
Q: Does the kit include hoses and fittings?
A: Yes. It includes three 5' color-coded hoses, one 4' bleed tube, SAE flare fittings, and cleanable brass filters.
Q: Is the TG-5 portable?
A: Yes. It comes with a durable molded plastic carrying case with external fitting compartments for easy transport.
NOTICE: Always follow local codes and testing requirements when using backflow test kits. Annual calibration is required to maintain accuracy and compliance.
