Wilkins AG-4 | Air Gap Adaptor Fitting for Backflow Preventers

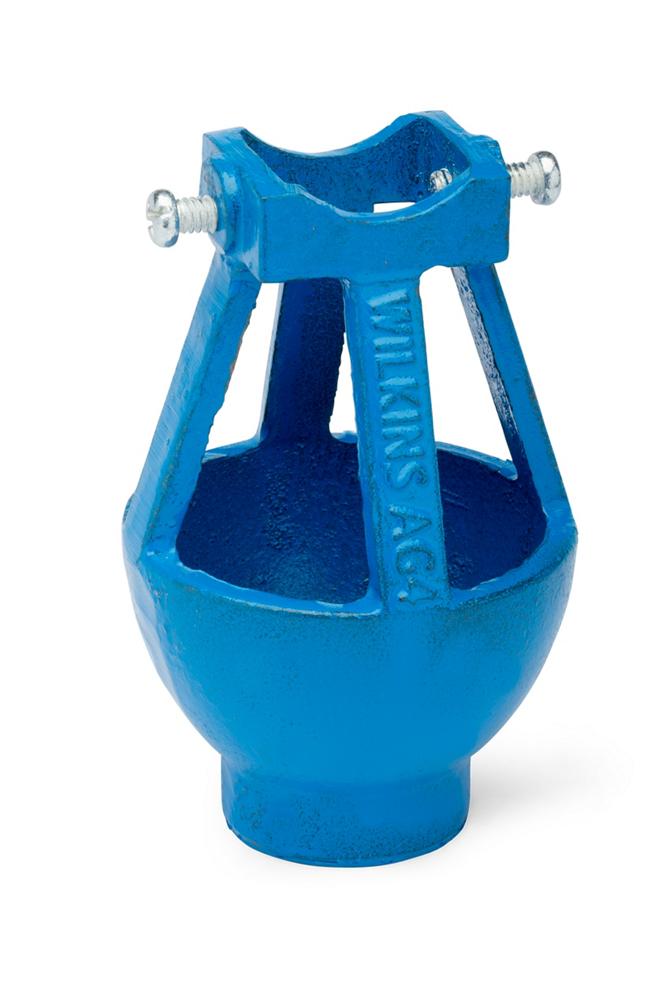

The Wilkins AG-4 is an air gap adaptor fitting designed for use with Reduced Pressure Principle Backflow Preventers on horizontal or vertical installations.
Key Specifications:
- Size: Fits 3/4 to 1 1/2 Inches
- Outlet Connection: 1 Inches NPT
- Notable Certifications: ANSI/ASME A112.1.2 compliant
- Compatible Series: 975XL, 975XL2, 975XL3
- Weight: Approximately 2 lbs
Other Related Variants:
- AG-10: 8 to 10 Inches for 475V series
- AG-11: 1/2 to 1 Inches for 375, 375XL series
- AG-12: 1 1/4 to 2 Inches for 375, 375XL series
- AG-13: 4 to 6 Inches for 475ST, 475STV series
- AG-14: 8 to 10 Inches for 475ST, 475STV series
- AG-5: 1 1/4 to 2 Inches for 975XL, 975XL2, 975XL3 series
- AG-6: 2 1/2 to 6 Inches for 375, 475, 475V series
- AG-7: 8 to 10 Inches for 375, 475 series
- AG-8: 1/4 to 1 Inches for 975XL, 975XL2, 975XL3 series
- AG-9: 4 to 6 Inches for 475V series
Materials:
- Body: Cast grey iron, epoxy painted
- Elbow: Cast grey iron, epoxy painted
- Bolts: Steel, zinc plated
Typical Installation:
Local codes shall govern installation requirements. To be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code.
Standards Compliance:
ANSI/ASME A112.1.2
Features & Benefits:
- Versatile Installation: Designed for both horizontal and vertical installations with ZURN WILKINS Reduced Pressure Principle Backflow Preventers.
- Durable Construction: Features epoxy painted cast grey iron body and elbow with zinc plated steel bolts for long-lasting performance.
- Easy Drain Line Integration: Necessary when installing a drain line and can be mounted directly to the body, accepting any standard piping material.
- Code Compliant: Meets ANSI/ASME A112.1.2 standards for air gap fittings, ensuring regulatory compliance.
FAQ
Q: What backflow preventer models is the Zurn AG-4 compatible with?
A: The Wilkins AG-4 fits 3/4 to 1 Inches 975XL/975XL2 models and 1 1/4 to 1 1/2 Inches 975XL3 models of Reduced Pressure Principle Backflow Preventers.
Q: Can the Zurn AG-4 be used for both indoor and outdoor installations?
A: Yes, the AG-4 is designed for both horizontal and vertical installations and can be used indoors. However, local codes should be consulted for specific installation requirements.
Q: What type of drain line material can be connected to the AG-4?
A: The AG-4 features a 1 Inches NPT outlet that accepts any standard piping material for drain line connections.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
