Wilkins AG-13 | Air Gap Adaptor Fitting for Backflow Preventers

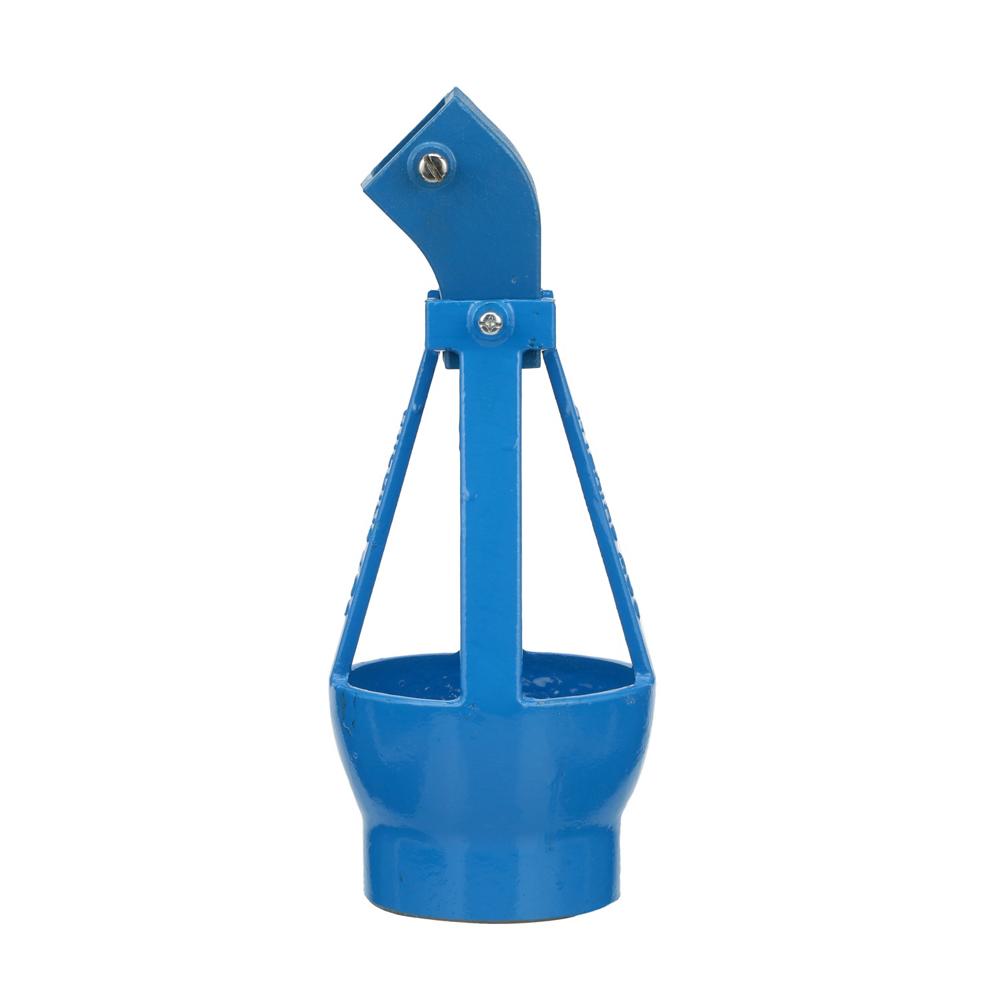

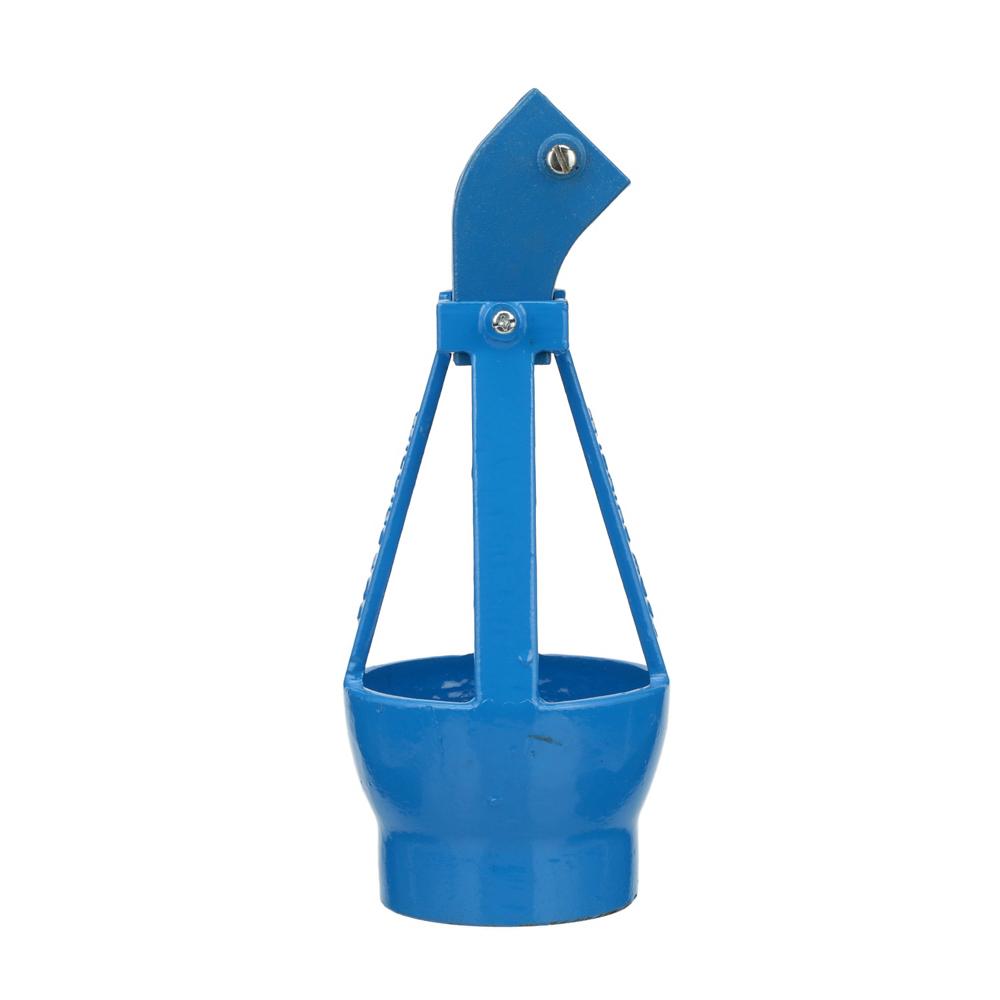

The Wilkins AG-13 is an air gap adaptor fitting designed for use with Reduced Pressure Principle Backflow Preventers on horizontal or vertical installations.
Key Specifications:
- Fits Sizes: 4 Inches to 6 Inches
- Notable Certifications: ANSI/ASME A 112.1.2
- Connection Type: 3 Inches NPT outlet
- Dimension A: Approximately 5 3/8 Inches
- Dimension B: Approximately 14 1/2 Inches
Other Related Variants:
- AG-4: 3/4 Inches to 1 Inches size
- AG-5: 1 1/4 Inches to 2 Inches size
- AG-6: 2 1/2 Inches to 6 Inches size
- AG-7: 8 Inches to 10 Inches size
- AG-8: 1/4 Inches to 1/2 Inches size
- AG-9: 4 Inches to 6 Inches size
- AG-10: 8 Inches to 10 Inches size
- AG-11: 1/2 Inches to 1 Inches size
- AG-12: 1 1/4 Inches to 2 Inches size
- AG-14: 8 Inches to 10 Inches size
Materials:
- Body: Cast grey iron, epoxy painted
- Elbow: Cast grey iron, epoxy painted
- Bolts: Steel, zinc plated
Typical Installation:
Local codes shall govern installation requirements. To be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code.
Standards Compliance:
ANSI/ASME A 112.1.2
Features & Benefits:
- Versatile Installation: Compatible with both horizontal and vertical installations for flexible application in various settings.
- Durable Construction: Made with epoxy painted cast grey iron body and elbow with zinc plated steel bolts for long-lasting performance.
- ST Series Compatibility: Specifically designed for use with 475ST and 475STV series Reduced Pressure Principle Backflow Preventers.
- Drain Line Integration: Allows mounting of drain line directly to the body, accommodating any standard piping material for convenient installation.
FAQ
Q: What backflow preventer models is the Zurn AG-13 compatible with?
A: The Zurn AG-13 is designed specifically for 4 Inches to 6 Inches 475ST and 475STV series Reduced Pressure Principle Backflow Preventers.
Q: What is the outlet pipe size for the AG-13?
A: The AG-13 features a 3 Inches NPT outlet connection for drain line installation.
Q: Can the AG-13 be installed both horizontally and vertically?
A: Yes, the AG-13 air gap adaptor fitting is designed for use with backflow preventers on both horizontal and vertical installations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
