Wilkins AG-10 | Air Gap Adaptor Fitting for Backflow Preventers
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

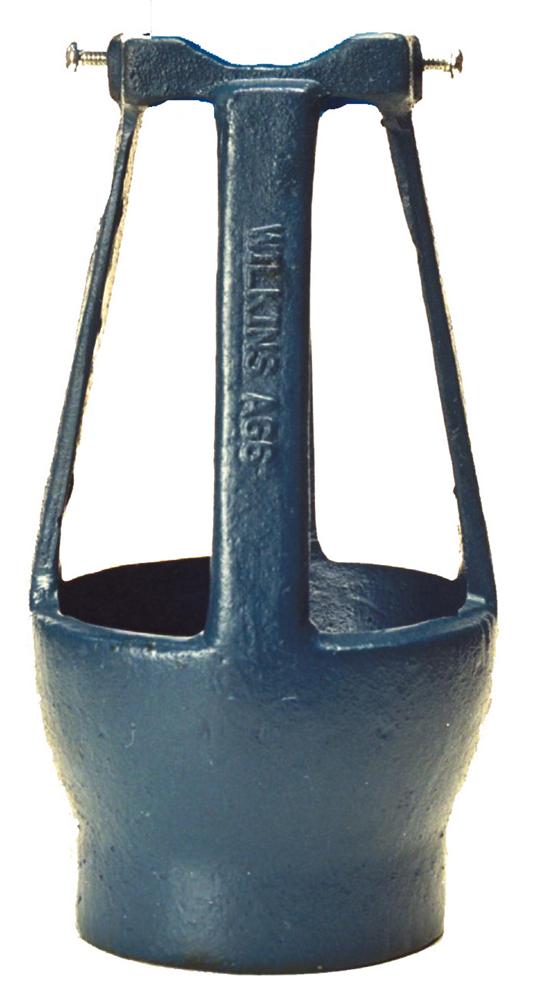

The Wilkins AG-10 is an air gap adaptor fitting designed for use with reduced pressure principle backflow preventers, enabling proper drainage and air gap protection in both horizontal and vertical installations.
Key Specifications:
- Compatible Sizes: 8 to 10 Inches
- Outlet Connection: 4 Inches NPT
- Notable Certifications: ANSI/ASME A112.1.2 compliant
- Dimension A: Approximately 7 Inches
- Dimension B: Approximately 16 1/2 Inches
Other Related Variants:
- AG-11: 1/2 to 1 Inch version with 2 Inches IPS Slip outlet
- AG-12: 1 1/4 to 2 Inches version with 3 Inches IPS Slip outlet
- AG-13: 4 to 6 Inches version for 475ST/475STV series
- AG-14: 8 to 10 Inches version for 475ST/475STV series
- AG-4: 3/4 to 1 1/2 Inches version
- AG-5: 1 1/4 to 2 Inches version
- AG-6: 2 1/2 to 6 Inches version
- AG-7: 8 to 10 Inches version for 375/475 series
- AG-8: 1/4 to 1 Inches version
- AG-9: 4 to 6 Inches version for 475V series
Materials:
- Body: Cast grey iron, epoxy painted
- Elbow: Cast grey iron, epoxy painted
- Bolts: Steel, zinc plated
Typical Installation:
Local codes shall govern installation requirements. To be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code.
Standards Compliance:
ANSI/ASME A112.1.2
Features & Benefits:
- Versatile Installation: Designed for both horizontal and vertical mounting configurations with Zurn Wilkins reduced pressure backflow preventers.
- Durable Construction: Cast grey iron body with epoxy coating provides long-lasting corrosion resistance and structural integrity.
- Flexible Drainage Options: Compatible with any standard piping material for drain line installation, offering installation flexibility.
- Standards Compliant: Meets ANSI/ASME A112.1.2 requirements for air gap fittings, ensuring code compliance and proper backflow protection.
FAQ
Q: Which backflow preventer models is the Zurn AG-10 compatible with?
A: The AG-10 is designed specifically for use with 8 to 10 Inches Zurn Wilkins 475V series reduced pressure principle backflow preventers.
Q: Can the AG-10 be installed in both horizontal and vertical orientations?
A: Yes, the AG-10 air gap adaptor fitting is designed for installation in both horizontal and vertical configurations.
Q: What type of drain piping can be used with this fitting?
A: The AG-10 accepts any standard piping material for the drain line connection via its 4 Inches NPT outlet.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
