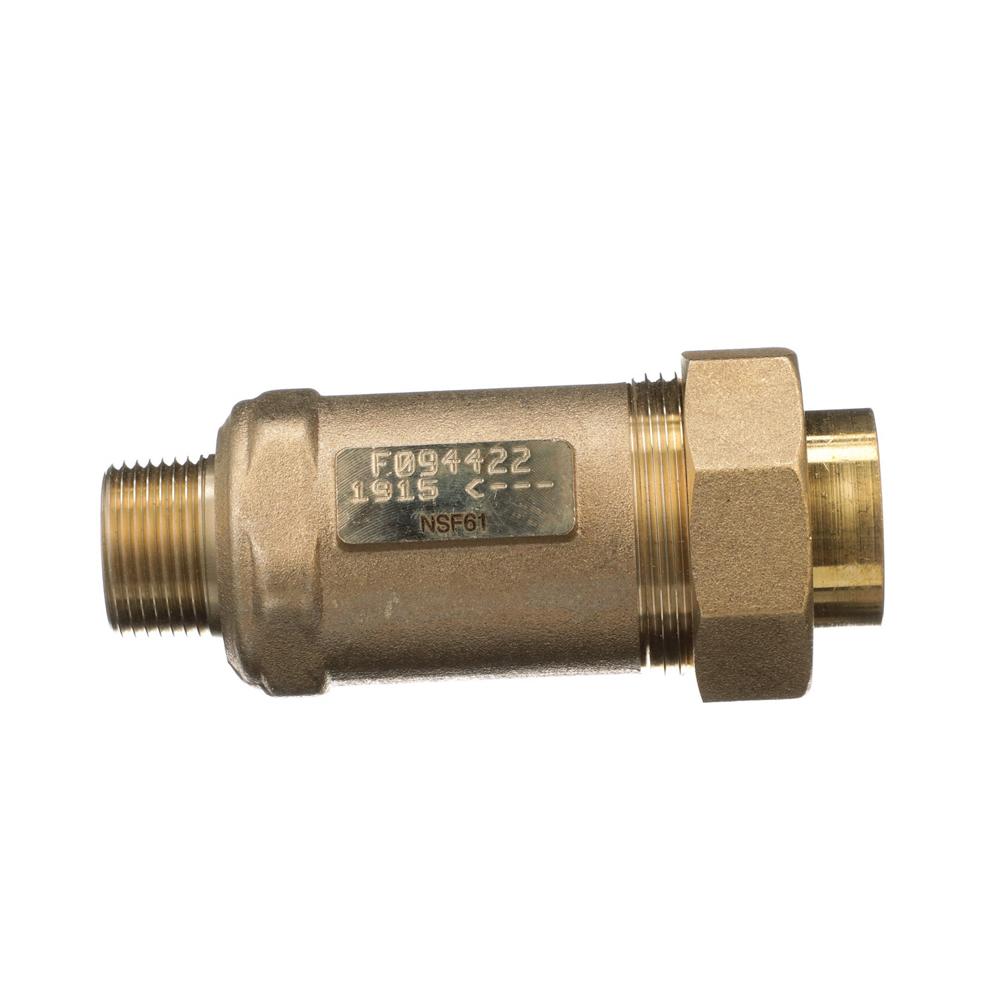

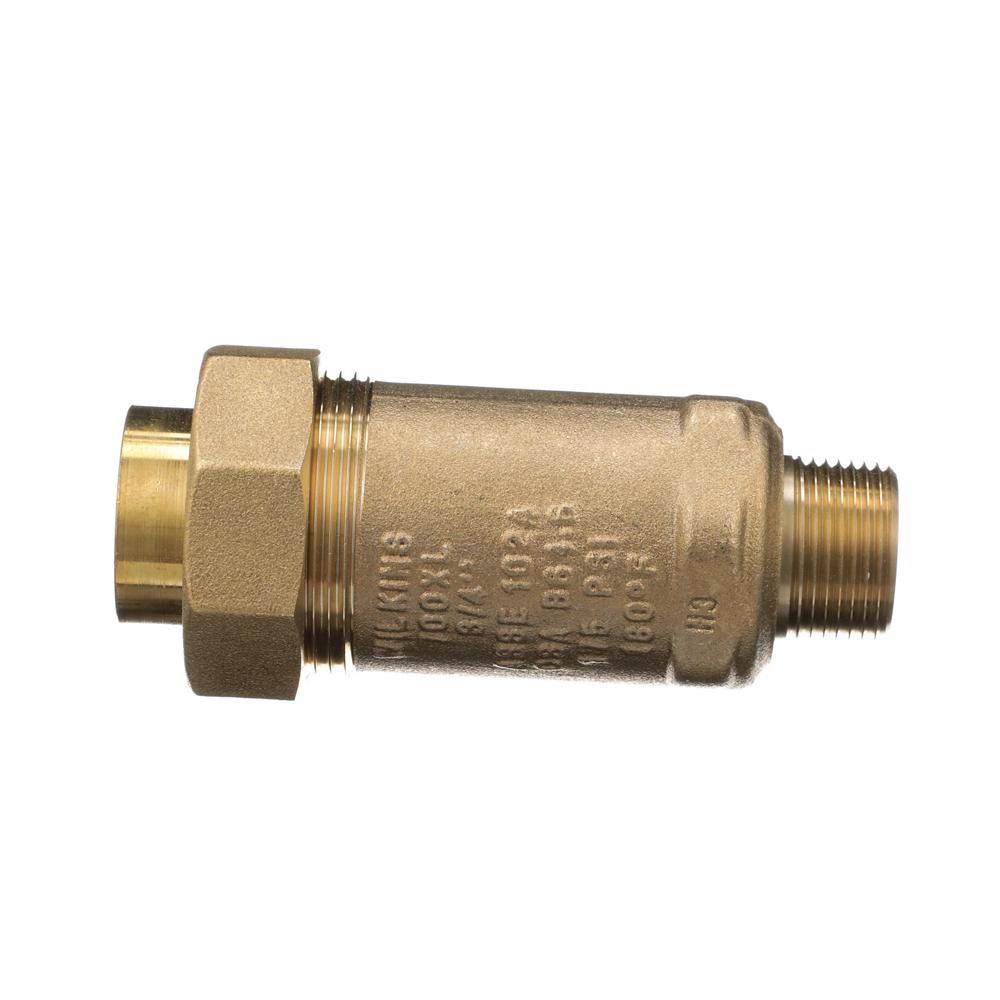

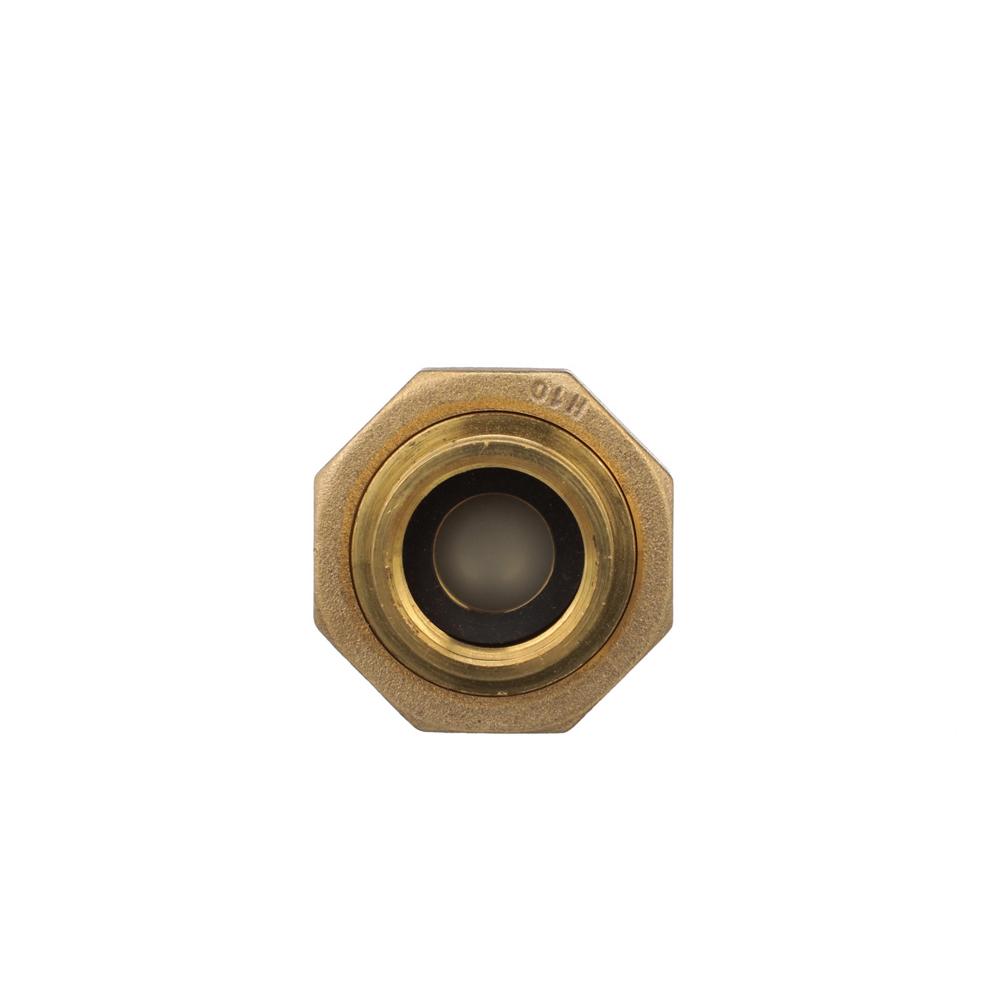

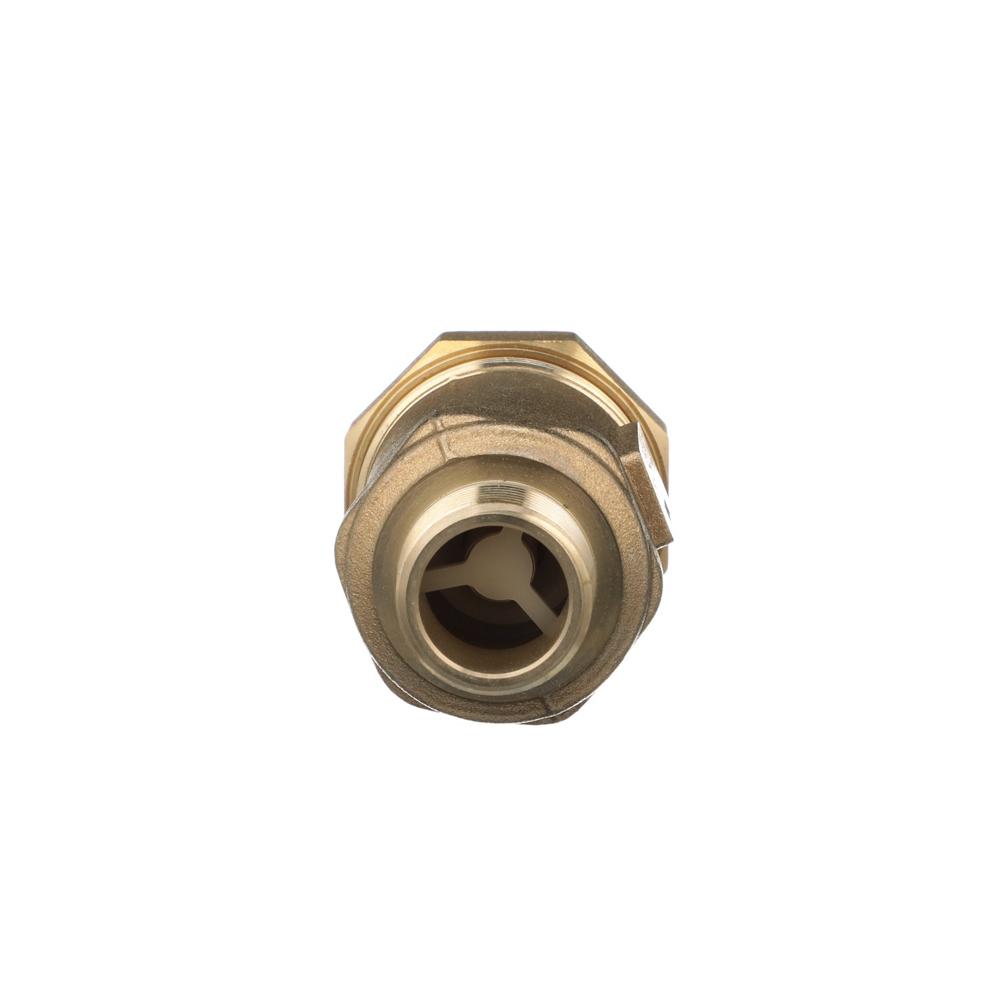

Wilkins 34UFMX34M-700XL | Dual Check Valve, Backflow Preventer
The Wilkins 34UFMX34M-700XL is a lead-free dual check valve designed for potable water line protection against backsiphonage and backpressure of polluted water.
Key Specifications:
- Size: 3/4 Inches
- Maximum Working Pressure: 175 PSI
- Maximum Working Temperature: 180°F
- Notable Certifications: ASSE 1024, CSA, NSF/ANSI/CAN 61
- Connection Type: 3/4" FMTC inlet x 3/4" MNPT outlet
Other Related Variants:
- 114UFMX1UF-700XL: 1 1/4 Inches FMTC inlet x 1 Inches FNPT union outlet
- 12UFX12F-700XL: 1/2 Inches version
- 14UFX14F-700XL: 1/4 Inches version
- 1MX1UF-700XL: 1 Inches MNPT union inlet x 1 Inches FNPT outlet
- 1UFMX1F-700XL: 1 Inches FMTC inlet x 1 Inches FNPT outlet
- 1UFMX1M-700XL: 1 Inches FMTC inlet x 1 Inches MNPT outlet
- 1UFMX1MM-700XL: 1 Inches FMTC inlet x 1 Inches MMTC outlet
- 1UFMX1UF-700XL: 1 Inches FMTC inlet x 1 Inches FNPT union outlet
- 1UFMX34F-700XL: 1 Inches FMTC inlet x 3/4 Inches FNPT outlet
- 1UFMX34M-700XL: 1 Inches FMTC inlet x 3/4 Inches MNPT outlet
- 1UFMX34UF-700XL: 1 Inches FMTC inlet x 3/4 Inches FNPT union outlet
- 1UFX1F-700XL: 1 Inches FNPT inlet x 1 Inches FNPT outlet
- 34MX34UF-700XL: 3/4 Inches MNPT union inlet x 3/4 Inches FNPT union outlet
- 34UFMX34F-700XL: 3/4 Inches FMTC inlet x 3/4 Inches FNPT outlet
- 34UFMX34MM-700XL: 3/4 Inches FMTC inlet x 3/4 Inches MMTC outlet
- 34UFX1MM-700XL: 3/4 Inches FNPT inlet x 1 Inches MMTC outlet
- 34UFX34F-700XL: 3/4 Inches FNPT inlet x 3/4 Inches FNPT outlet
- 38UFX38F-700XL: 3/8 Inches version
Materials:
- Low Lead Cast Bronze ASTM B 584
- Buna Nitrile Elastomers (FDA approved)
- Noryl Polymers (1/4"-1/2")
- Delrin Polymers (3/4"-1")
- Stainless Steel Springs, 300 Series
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the installation shall be in accordance with the manufacturer's instructions and the latest edition of the Uniform Plumbing Code. The installation shall be made so that no part of the unit can be submerged.
Standards Compliance:
ASSE Listed 1024; CSA Certified; NSF/ANSI/CAN 61
Features & Benefits:
- Backflow Protection: Protects potable water supply against both backsiphonage and backpressure contamination where potential health hazards do not exist.
- Lead-Free Construction: Zurn 34UFMX34M-700XL meets 0.25% maximum weighted average lead content requirements, ideal for use where lead-free valves are mandated.
- Durable Materials: Low lead bronze body with FDA-approved Buna Nitrile seals and stainless steel springs ensure long-lasting performance.
- Reversible Configuration: All configurations are reversible, providing flexible installation options for various plumbing applications.
FAQ
Q: Can the Zurn 34UFMX34M-700XL be installed in any orientation?
A: The valve must be installed so that no part of the unit can be submerged. Installation shall comply with local plumbing codes and the manufacturer's instructions.
Q: What size meter thread connection do I need for a 5/8" water meter?
A: For a 5/8" or 5/8" x 3/4" water meter, you should order the connection one size larger—a 3/4" meter thread connection, which is the FMTC configuration in the 34UFMX34M-700XL.
Q: Is this valve suitable for commercial applications?
A: Yes, the 34UFMX34M-700XL is ASSE 1024 listed and CSA certified, making it suitable for both residential and commercial potable water line installations per plumbing codes.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
