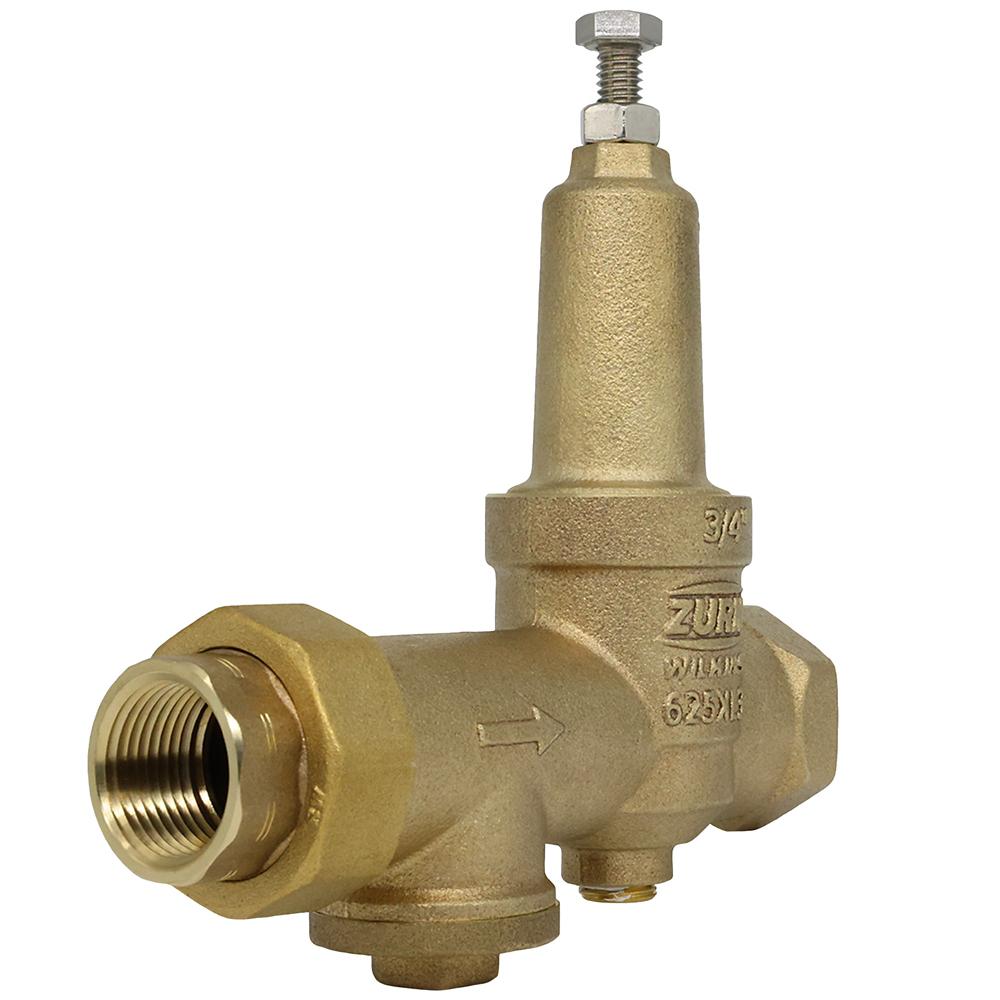

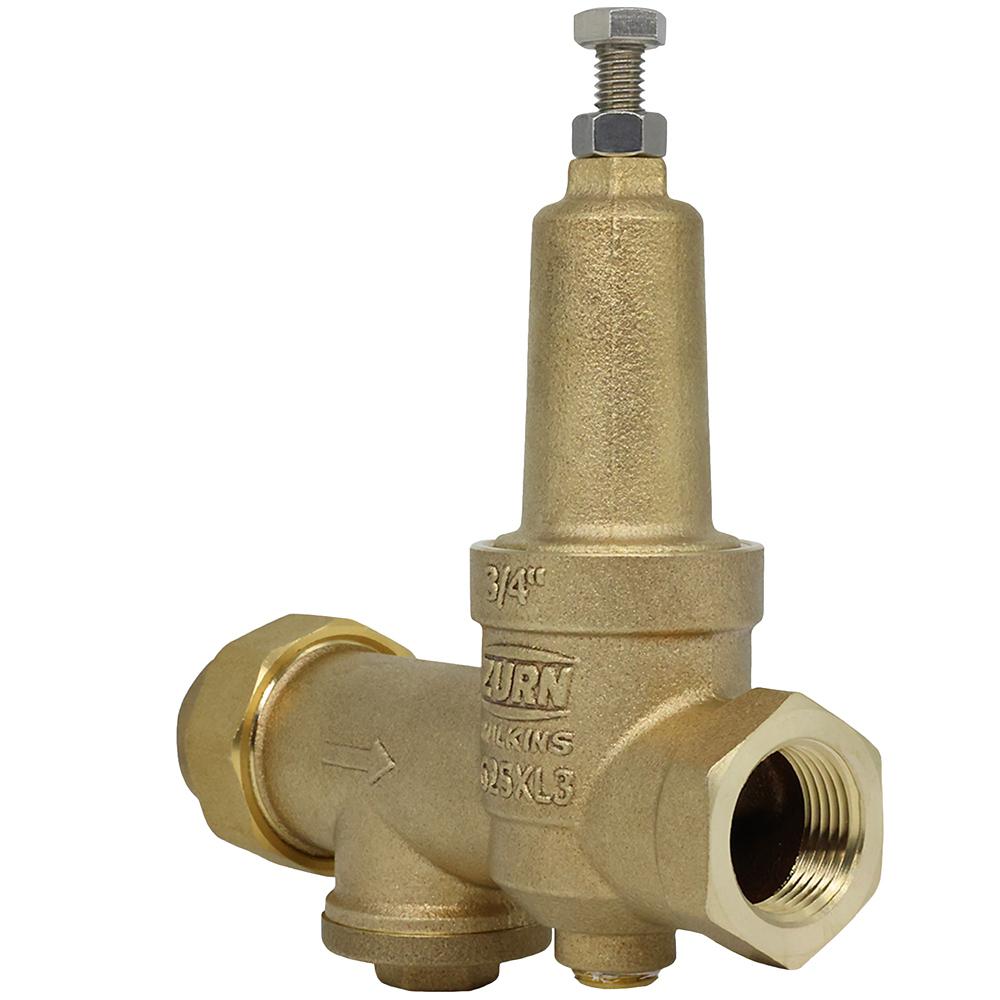

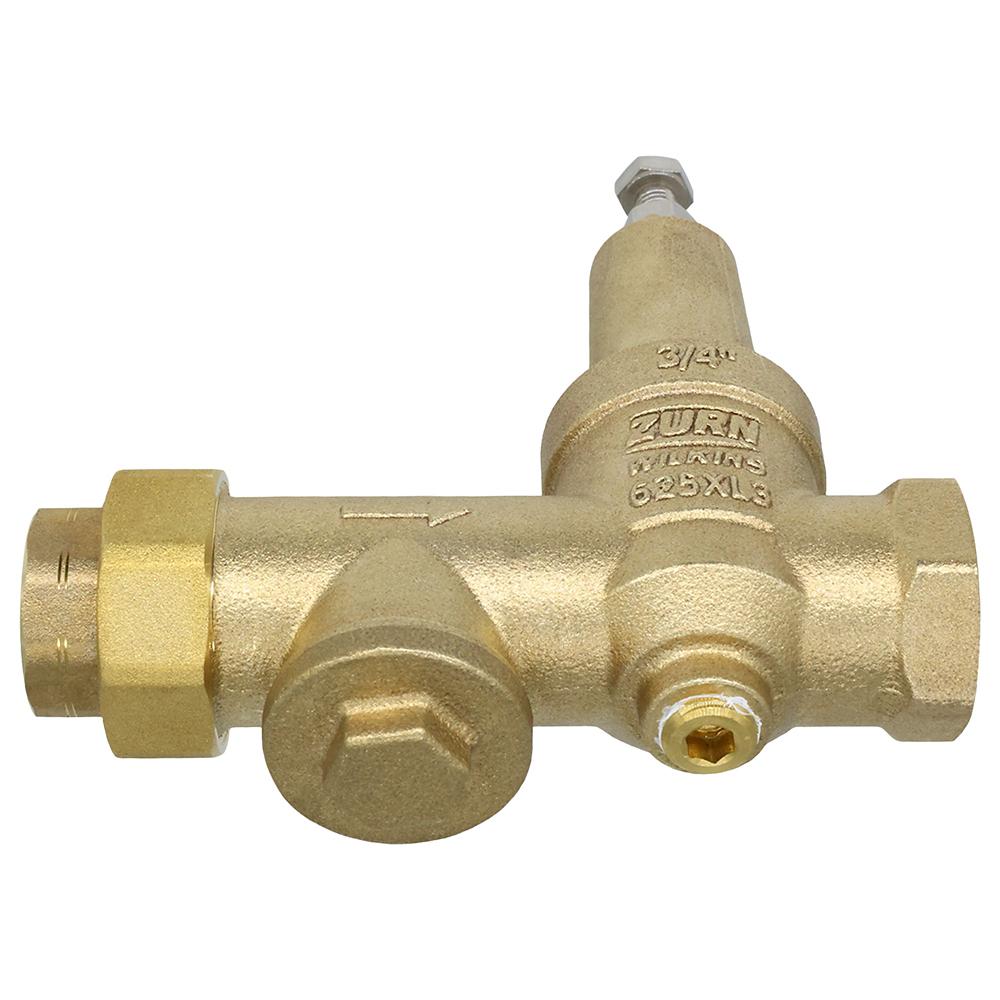

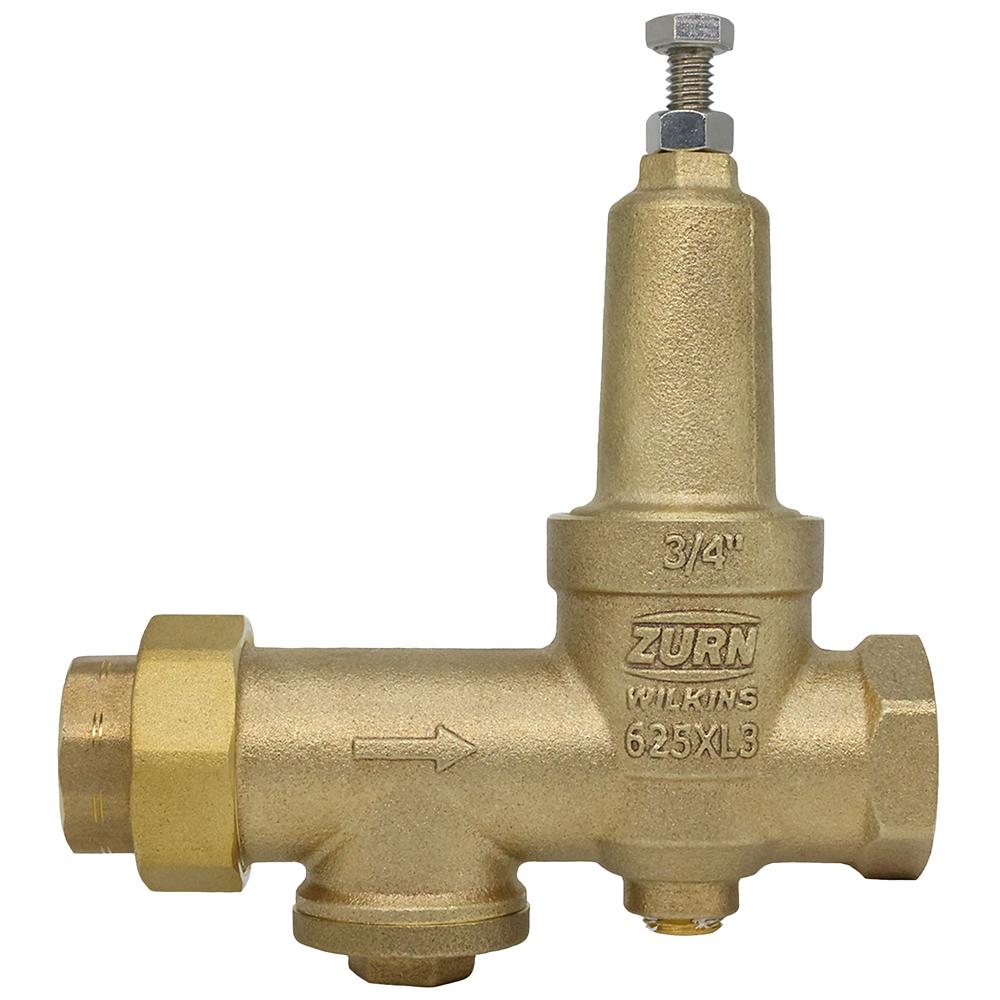

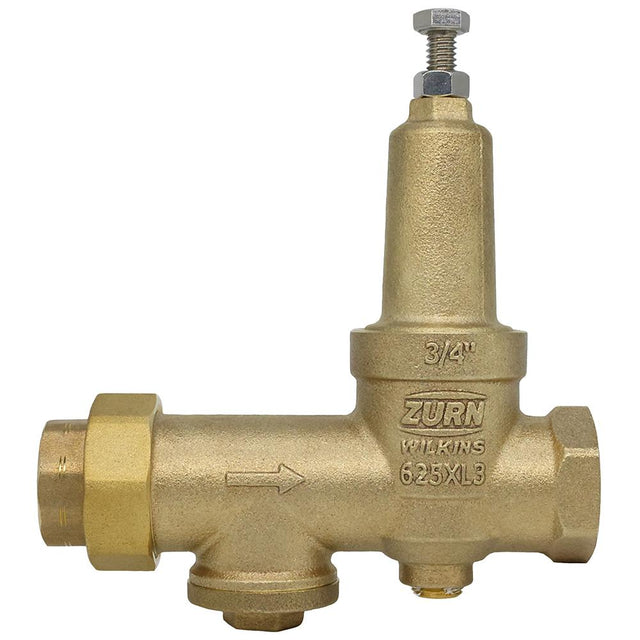

Wilkins 34-625XL3 | Pressure Reducing Valve with Integral Strainer
The Wilkins 34-625XL3 is a competitor replacement length pressure reducing valve with an integral strainer designed for potable water systems in residential and commercial applications, providing reliable pressure control and superior flow performance.
Key Specifications:
- Size: 3/4 Inches
- Maximum Working Water Pressure: 400 psi
- Maximum Working Water Temperature: 140°F
- Notable Certifications: ASSE 1003, cUPC, CSA B356
- End Connections: Single Union FNPT
Other Related Variants:
- 1-625XL3: 1 Inch model size
- 1 1/4-625XL3: 1 1/4 Inch model size
- 1 1/2-625XL3: 1 1/2 Inch model size
- 2-625XL3: 2 Inch model size
Materials:
- Low Lead Cast Bronze ASTM B806 (Body & Bell Housing)
- 300 Series Stainless Steel (Fasteners, Stem, Plunger, Springs)
- Buna Nitrile FDA Approved (Elastomers)
- EPDM FDA Approved (Elastomers)
- Noryl™ (Cartridge)
Typical Installation:
Local codes shall govern installation requirements. The assembly shall be mounted in accordance with the manufacturer's instructions and the latest edition of the Uniform Plumbing Code. The assembly shall be installed with sufficient side clearance for testing and maintenance. The Zurn 34-625XL3 may be installed in any position. Multiple installations in series are required when the desired pressure reduction is more than 3 to 1 (i.e. 150 psi inlet reduced to 50 psi outlet). A pressure gauge must be used downstream to verify correct pressure setting.
Standards Compliance:
ASSE Listed 1003; cUPC Listed; CSA Certified B356; NSF/ANSI/CAN 61 & 372
Features & Benefits:
- Best-in-Class Flow Performance: Patented integral venturi enables superior flow performance and easier sizing, providing ideal water pressure at higher flow rates.
- Enhanced Durability: Premium 300 series stainless steel internals provide enhanced corrosion resistance and lasting durability in demanding water systems.
- Easy Maintenance: Removable cartridge design and cost-effective repair kits significantly reduce maintenance time and costs without removing body from line.
- Balanced Piston Design: Reacts smoothly to system flow demand changes while providing protection from inlet pressure fluctuations in both flow and no-flow conditions.
FAQ
Q: Can the Zurn 34-625XL3 be installed in any orientation?
A: Yes, the valve may be installed in any position with sufficient side clearance for testing and maintenance.
Q: What backflow preventers pair with this pressure reducing valve?
A: The valve pairs with Model 950XL3 Double Check and Model 975XL3 Reduced Pressure Principle backflow preventers.
Q: When should multiple valves be installed in series?
A: Multiple installations in series are required when the desired pressure reduction is more than 3 to 1 ratio (e.g., 150 psi inlet reduced to 50 psi outlet).
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
