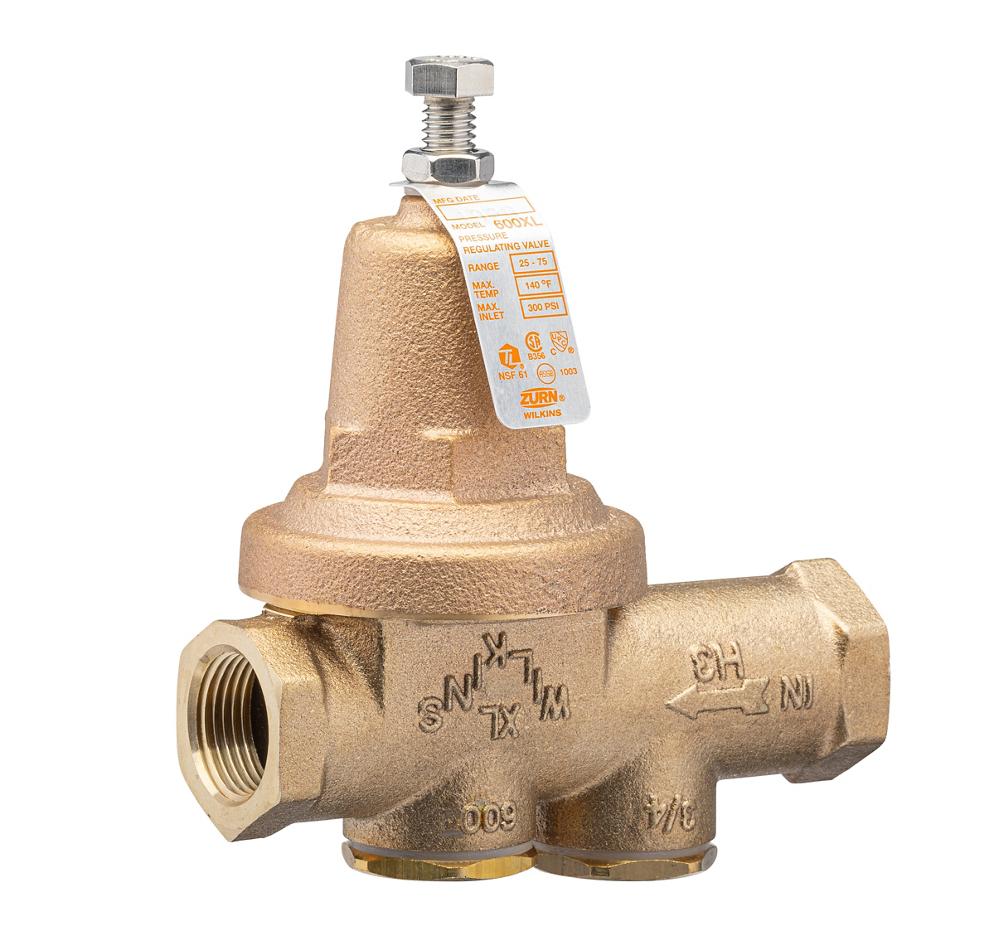

Wilkins 34-600XLLUCHSC | 3/4" Water Pressure Reducing Valve
The Wilkins 34-600XLLUCHSC is a water pressure reducing valve designed for potable water systems, featuring chrome plated stem and sealed cage construction for enhanced durability and reliability.
Key Specifications:
- Size: 3/4 Inches
- Maximum Working Water Pressure: 300 psi
- Maximum Working Water Temperature: 180°F
- Notable Certifications: ASSE 1003, CSA B356, NSF/ANSI/CAN 61 & 372
- Connection Type: Female FNPT threaded
Other Related Variants:
- 34-600XLLU: Standard configuration without chrome plating and sealed cage options
Materials:
- Body: Low Lead Cast Bronze
- Bell Housing: Glass Reinforced Nylon
- Stem and Plunger: Chrome Plated
- Internal Components: Stainless Steel
- Elastomers: Buna Nitrile and EPDM
Typical Installation:
The valve may be installed in any position on threaded piping systems. Local codes shall govern installation requirements. If installed in a pit, vault or inside application, the sealed cage option is recommended. Multiple installations are recommended for wide demand variations or where the desired pressure reduction is more than 4 to 1. A pressure gauge must be used downstream to verify correct pressure setting during adjustment.
Standards Compliance:
ASSE 1003; CSA B356; NSF/ANSI/CAN 61 & 372; IAPMO Listed
Features & Benefits:
- Sealed Cage Design: Improves reliability and durability in demanding applications including pit and vault installations.
- Chrome Plated Components: Chrome plated stem and plunger with stainless steel trim provide enhanced corrosion resistance and longevity.
- Balanced Piston Design: Enables smooth and responsive reaction to changes in system flow demand while providing protection from inlet pressure changes.
- Less Union Configuration: Designed for easy retrofit installations allowing use of existing union assemblies for convenient servicing.
FAQ
Q: What is the factory preset pressure setting for the Zurn 34-600XLLUCHSC?
A: The valve is factory preset at 50 psi with an adjustable spring range of 25 psi to 75 psi.
Q: Can the Wilkins 34-600XLLUCHSC be installed in any orientation?
A: Yes, this valve may be installed in any position on threaded piping systems.
Q: What does the "LU" option indicate in the model number?
A: The "LU" designation indicates a less union configuration, which allows the valve to be installed using existing union nuts and tailpieces for replacement applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
