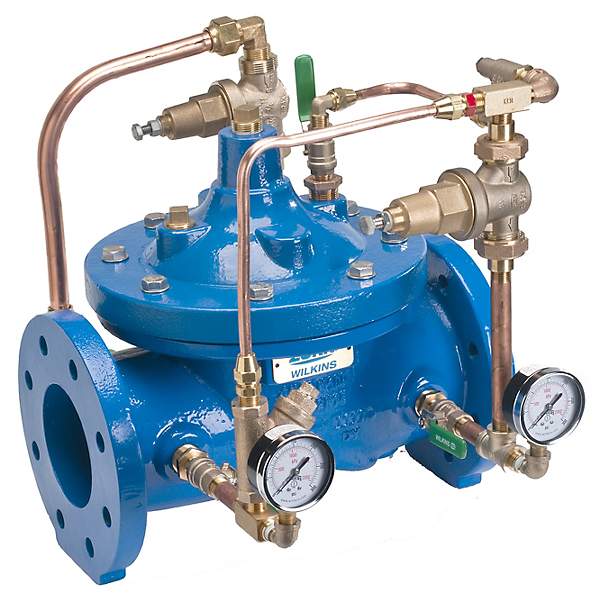

Wilkins 2-ZW209BP | Pilot Operated PRV with Low Flow By-Pass, 2 Inches
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins 2-ZW209BP is a pilot-operated pressure reducing valve with integrated low-flow bypass, designed to maintain stable outlet pressure while handling flows from 1-10 GPM during off-peak demand periods.
Key Specifications:
- Size: 2 Inches
- Pressure Rating: ANSI Class 150, 250 psi max
- Temperature Rating: 33°F to 140°F
- Notable Certifications: NSF/ANSI/CAN 61; ANSI/AWWA C530
- Connection Type: Flanged ANSI Class 150
Other Related Variants:
- 112-ZW209BP: 1 1/2 Inches valve size
- 212-ZW209BP: 2 1/2 Inches valve size
- 3-ZW209BP: 3 Inches valve size
- 4-ZW209BP: 4 Inches valve size
Materials:
- Main Valve Body: Ductile Iron ASTM A536
- Main Valve Bonnet: Ductile Iron ASTM A536
- Disc Guide: Stainless Steel
- Seat: Stainless Steel
- Disc: Buna-N Rubber
- Diaphragm: Nylon Reinforced Buna-N
- Stem: Stainless Steel
- Spring: Stainless Steel
- Copper Tubing and Brass Fittings
- Blue Epoxy Coating (FDA Approved)
Typical Installation:
The Zurn 2-ZW209BP is commonly used in buildings where 1-15 GPM low flows are common during off-peak usage. Applications include commercial buildings, residential high-rise systems, and any installation requiring reduction of high inlet pressures to safe and stable outlet pressure with low-flow bypass capability.
Standards Compliance:
ANSI/AWWA C530; NSF/ANSI/CAN 61 (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)
Features & Benefits:
- Integrated Low-Flow Bypass: Handles flows up to 10 GPM during off-peak demand without requiring main valve operation, extending valve life.
- Complete Control System: Includes wye strainer, isolation valves, inlet/outlet pressure gauges, and pilot assembly for simplified installation and maintenance.
- Durable Construction: Blue epoxy-coated ductile iron body with stainless steel trim provides corrosion protection and long service life.
- Adjustable Pressure Control: Pilot adjustable range of 15-120 psi allows precise downstream pressure regulation for various applications.
FAQ
Q: What is the minimum inlet pressure required for the Wilkins 2-ZW209BP?
A: The minimum inlet pressure is 10 psi higher than the set point or the additional body friction loss at intended flow, whichever is higher.
Q: Does the Zurn 2-ZW209BP eliminate the need for additional low-flow bypass valves?
A: Not in all cases. While the integrated bypass handles 1-10 GPM, an additional bypass valve may be needed to bridge the gap between the bypass maximum flow and the main valve minimum continuous flow (15 GPM for 2 inch size).
Q: What is the recommended installation orientation for this valve?
A: The recommended installation orientation is horizontal with the valve cover up for proper operation and maintenance access.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
