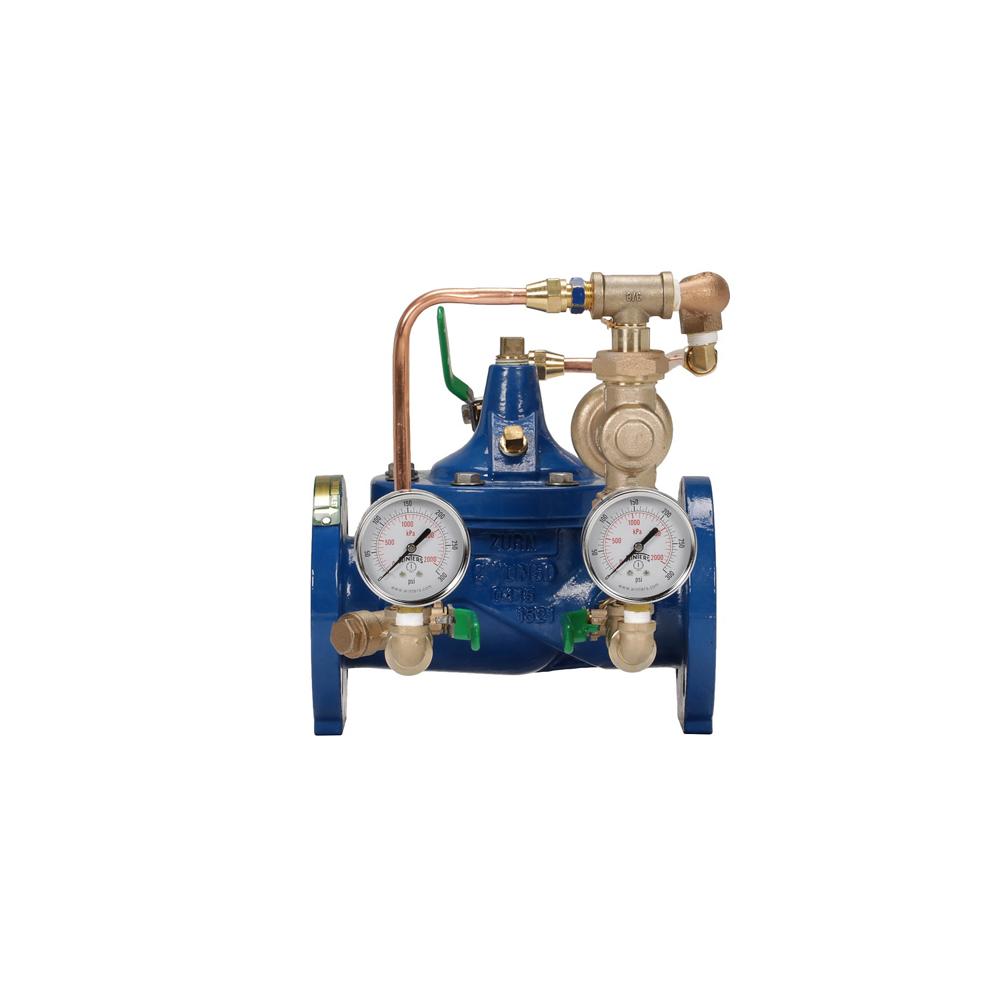

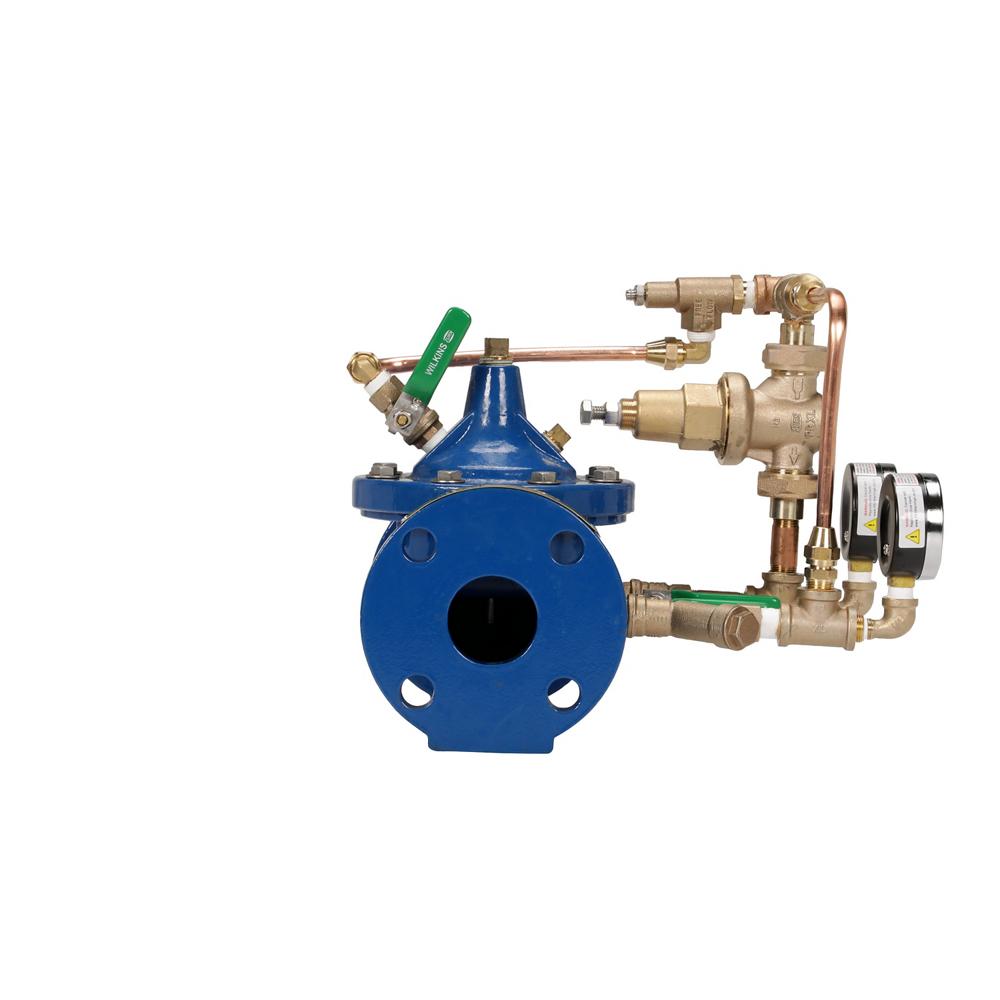

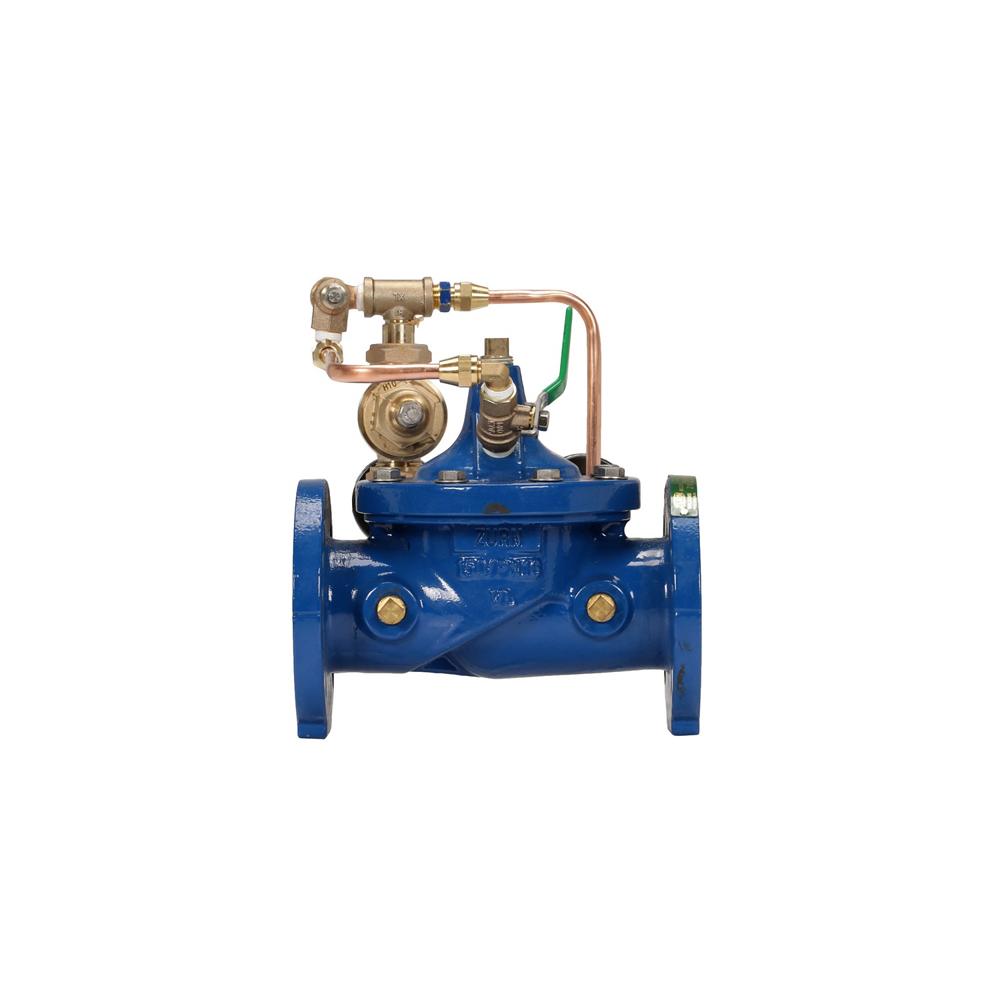

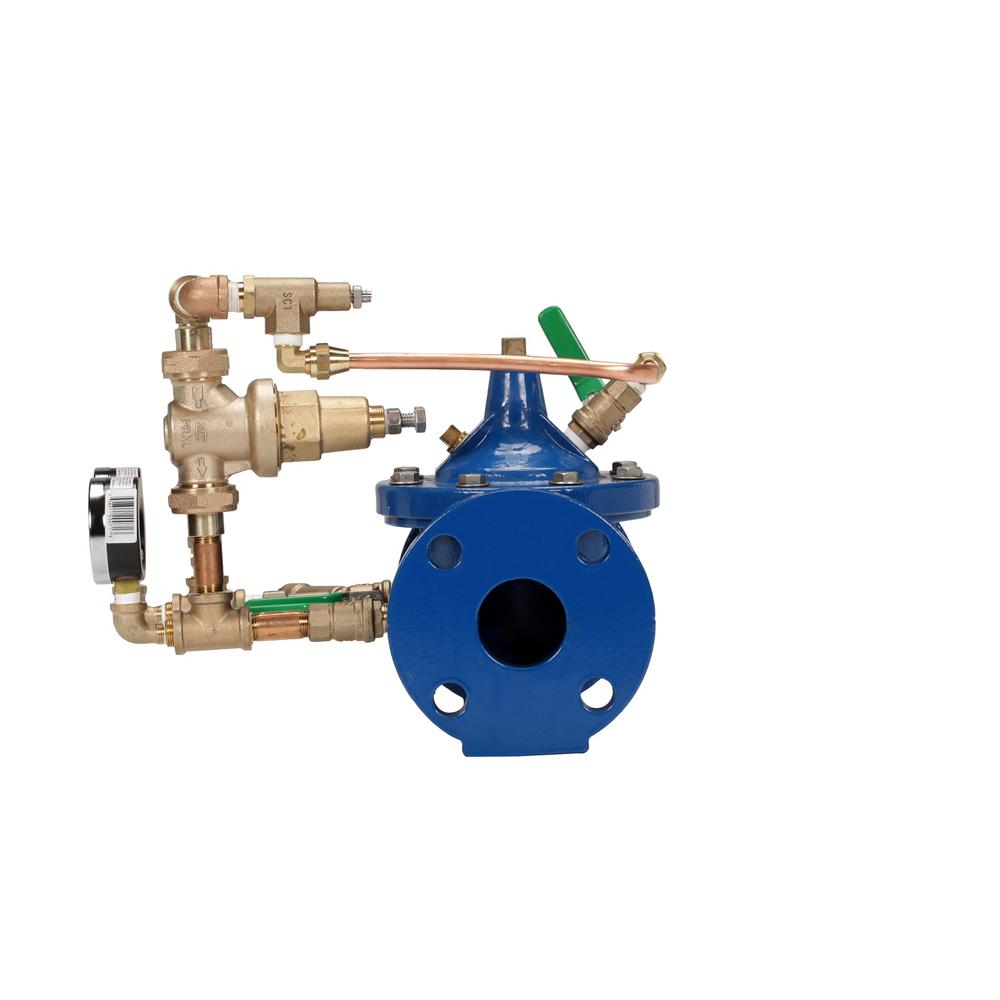

Wilkins 2-ZW209 | Pilot Operated Pressure Reducing Valve
The Wilkins 2-ZW209 is a pilot operated pressure reducing valve designed to reduce high inlet pressures to safe and stable outlet pressure in commercial and industrial water systems.
Key Specifications:
- Size: 2 Inches
- Pilot Adjustable Range: 15–120 psi
- Temperature Rating: 33°F to 140°F
- Notable Certifications: NSF/ANSI/CAN 61; ANSI/AWWA C530
- End Connections: ANSI Class 150 Flanged
Other Related Variants:
- 212-ZW209: 2 1/2 Inches version
- 3-ZW209: 3 Inches model size
- 4-ZW209: 4 Inches model size
- 6-ZW209: 6 Inches model size
- 8-ZW209: 8 Inches model size
Materials:
- Ductile Iron Body (ASTM A536)
- Ductile Iron Bonnet (ASTM A536)
- Stainless Steel Disc Guide
- Stainless Steel Seat
- Stainless Steel Stem
- Stainless Steel Spring
- Buna-N Rubber Disc
- Nylon Reinforced Buna-N Diaphragm
- Fusion Epoxy Coating (FDA Approved)
- Copper Tubing
- Brass Fittings
Typical Installation:
The Zurn 2-ZW209 is recommended for horizontal installation with the valve cover up. Inlet and outlet shut-off valves should be installed for isolation during maintenance. The valve includes standard inlet and outlet pressure gauges, isolation valves, and a wye type strainer for optimal performance and easy serviceability.
Standards Compliance:
ANSI/AWWA C530; NSF/ANSI/CAN 61 (0.25% Maximum Weighted Average Lead Content)
Features & Benefits:
- Stable Pressure Regulation: Pilot assembly reacts to downstream pressure changes ensuring constant outlet pressure independent of flow rate.
- Corrosion Protection: FDA-approved fusion epoxy coating on all internal and external ferrous surfaces for extended service life.
- Easy Maintenance: Includes standard isolation valves and inlet/outlet pressure gauges for quick servicing and monitoring.
- Versatile Configuration: Available with multiple options including angle body, grooved connections, threaded connections, and various pressure ranges.
FAQ
Q: What is the minimum inlet pressure required for the Wilkins 2-ZW209?
A: The minimum inlet pressure is 10 psi higher than the set point or the additional body friction loss at intended flow, whichever is higher.
Q: Can the Zurn 2-ZW209 be installed vertically?
A: The recommended installation orientation is horizontal with the valve cover up. Vertical installation may cause difficulty in properly bleeding air and performing maintenance.
Q: What is the pilot spring adjustment range?
A: The standard pilot is field adjustable from 15 psi to 120 psi. Optional low pressure (5-25 psi) and high pressure (30-300 psi) pilots are available.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
