Wilkins 2-600XLHR | Water Pressure Reducing Valve with Bypass Check...

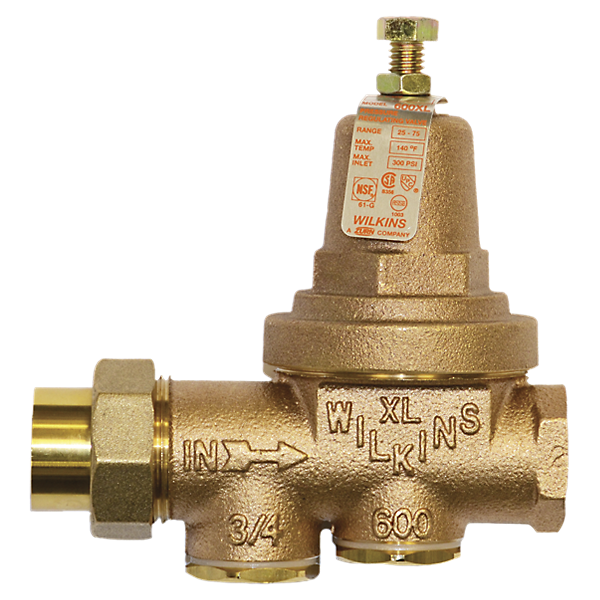

NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins 2-600XLHR is a water pressure reducing valve with integral by-pass check valve and strainer, designed for residential and commercial potable water systems requiring reliable pressure control and thermal expansion protection.
Key Specifications:
- Size: 2 Inches
- Maximum Working Water Pressure: 300 psi
- Maximum Working Water Temperature: 140°F
- Notable Certifications: ASSE 1003, IAPMO, CSA, NSF 61
- Connection Type: Single Union, FNPT
Other Related Variants:
- 1/2-600XLHR: 1/2 Inches version
- 3/4-600XLHR: 3/4 Inches version
- 1-600XLHR: 1 Inches version
- 1 1/4-600XLHR: 1 1/4 Inches version
- 1 1/2-600XLHR: 1 1/2 Inches version
Materials:
- Main valve body: Low Lead Cast Bronze ASTM B 584
- Access covers: Low Lead Cast Bronze ASTM B 584 / Low Lead Brass
- Fasteners: Stainless Steel, 300 Series
- Stem & plunger: Low Lead Cast Bronze ASTM B 584 / Low Lead Brass
- Elastomers: Buna Nitrile (FDA Approved) / EPDM (FDA Approved)
- Cap gaskets: Natural Vulcanized Fibre / Acetal (Delrin™)
- Strainer screen: Stainless Steel, 300 Series
- Seat: Stainless Steel, 300 Series
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the latest edition of the Uniform Plumbing Code. The Model 600XL may be installed in any position. If installed in a pit, vault or inside application, specify the "SC" sealed cage option. Multiple installations are recommended for wide demand variations or where the desired pressure reduction is more than 4 to 1 (i.e.: 200 psi inlet reduced to 50 psi outlet). Anytime a reducing valve is adjusted, a pressure gauge must be used downstream to verify correct pressure setting. Do not bottom adjustment bolt on bell housing.
Standards Compliance:
ASSE Listed 1003; IAPMO Listed; CSA Certified; City of Los Angeles Approved; NSF/ANSI/CAN 61
Features & Benefits:
- High-Range Pressure Control: The Zurn 2-600XLHR features HR option with 75 psi to 125 psi spring range, factory set at 85 psi for demanding applications requiring elevated outlet pressure.
- Thermal Expansion Protection: Integral by-pass check valve prevents buildup of excessive system pressure caused by thermal expansion, protecting water heaters and plumbing fixtures.
- Integrated Debris Filtration: Built-in 20 mesh strainer screen with easy-access cover allows frequent cleaning to maintain optimal performance in systems with sediment and debris.
- Balanced Piston Design: Smooth and responsive pressure regulation reacts efficiently to system flow demand changes while providing protection from inlet pressure fluctuations.
FAQ
Q: Can the Wilkins 2-600XLHR be installed in any orientation?
A: Yes, the Model 600XL may be installed in any position. For pit, vault, or inside installations, specify the "SC" sealed cage option for additional protection.
Q: What pressure reduction ratio is recommended for this valve?
A: Multiple installations are recommended for wide demand variations or where the desired pressure reduction exceeds a 4:1 ratio (e.g., 200 psi inlet reduced to 50 psi outlet).
Q: How do I adjust the outlet pressure on the Zurn 2-600XLHR?
A: Always use a downstream pressure gauge to verify correct pressure setting when adjusting the valve. Turn the adjustment bolt on the bell housing to achieve desired pressure. CAUTION: Do not bottom the adjustment bolt on bell housing.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
