Wilkins 12-ZW1070XL | Thermostatic Mixing Valve, Point-of-Use Scald...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

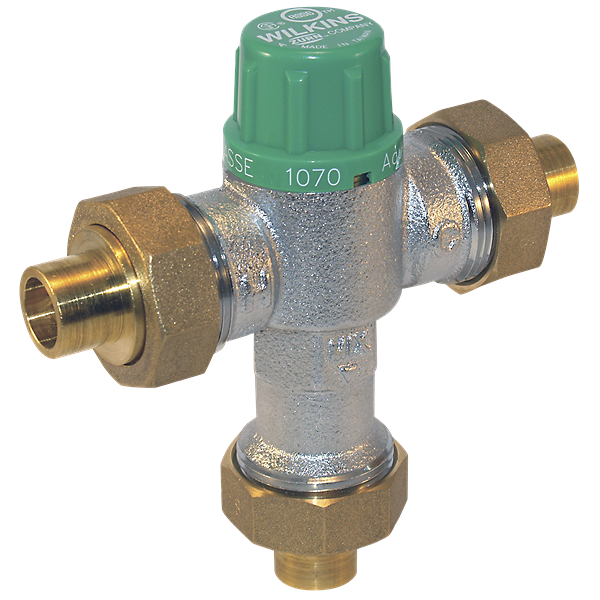

The Wilkins 12-ZW1070XL Aqua-Gard® Thermostatic Mixing Valve provides point-of-use scald protection with rapid response for residential and commercial applications.
Key Specifications:
- Size: 1/2 Inches
- Maximum Working Pressure: 125 psi
- Outlet Temperature Range: 95-115°F max
- Notable Certifications: ASSE 1070, cUPC, CSA B125.70
- Connection Type: 1/2" FNPT
Other Related Variants:
- 12-ZW1070XLC: 1/2" CU Sweat version
- 12-ZW1070XLCPVC: 1/2" CPVC version
- 12-ZW1070XLPEX: 1/2" Barb version
- 12-ZW1070XLPEXF1960: 1/2" Barb version
- 12-ZW1070XLPF: 1/2" with Z-Bite push fit connections
- 1-ZW1070XLC: 1 Inch CU Sweat size
- 34-ZW1070XL: 3/4 Inch FNPT size
- 34-ZW1070XLC: 3/4 Inch CU Sweat size
- 38-ZW1070XLCOMP: 3/8 Inch Compression size
Materials:
- Body: Low Lead Cast Bronze, ASTM B 584 with Chrome Plating ASTM B 456 Service Condition #2
- Internal brass: Low Lead Brass, ASTM B 927, UNS C27450
- Piston: Polysulfone
- Guide Tube: Noryl GFN2
- Spring & Screen: 300 Series Stainless Steel
- Seals: Viton
- Checks: Noryl GFN2
Typical Installation:
The Wilkins 12-ZW1070XL is designed for point-of-use installation at plumbing fixtures and appliances including fixtures, sinks, lavatories, bathtubs, and sensor faucets for final control of water temperature. The device is designed to be installed at a single outlet and may be used to supply individual outlets when there is sufficient supply pressure.
Standards Compliance:
ASSE Listed 1070; cUPC Listed; CSA Certified B125.70; NSF/ANSI/CAN 61-9 Q≤1
Features & Benefits:
- Lead-Free Compliance: Meets NSF/ANSI/CAN 61-9 Q≤1 with 0.25% max weighted average lead content for safe water delivery.
- Rapid Scald Protection: Extremely rapid response rate provides immediate temperature adjustment to prevent scalding at point of use.
- High Flow Capacity: Delivers up to 10 GPM flow rate at 45 psi pressure loss with minimum flow rate of 0.25 GPM.
- Versatile Installation Options: Multiple end configurations including FNPT, sweat, CPVC, compression, and barb connections for residential and commercial applications.
FAQ
Q: What is the maximum pressure differential between hot and cold inlets for the Zurn 12-ZW1070XL?
A: The maximum pressure differential is 15 psi between hot and cold inlets for proper operation.
Q: Does the Zurn 12-ZW1070XL require field adjustment?
A: Yes, the temperature must be field set with an accuracy of +/- 3°F within the outlet temperature range of 95-115°F.
Q: What are the recommended shutoff valves for installation?
A: It is suggested to use ball valves on both the hot and cold inlet supplies for optimal control and maintenance access.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
