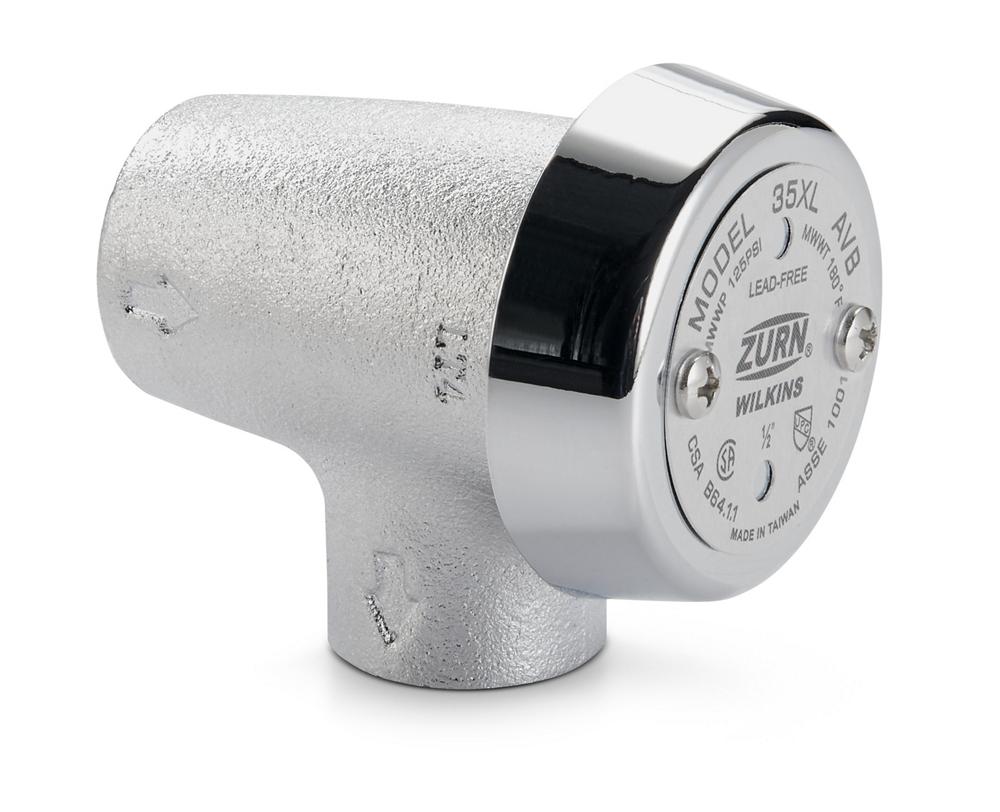

Wilkins 12-35XLCH | Atmospheric Vacuum Breaker, 1/2 Inches
The Wilkins 12-35XLCH is an atmospheric vacuum breaker designed to protect potable water lines against backsiphonage contamination where potential health hazards exist.
Key Specifications:
- Size: 1/2 Inches
- Maximum Working Water Pressure: 125 PSI
- Maximum Working Water Temperature: 180°F
- Notable Certifications: ASSE 1001, CSA, IAPMO
- Finish: Rough Chrome Plate
Other Related Variants:
- 34-35XL: 3/4 Inches model
- 1-35XL: 1 Inches model
- 14-35XLVCH: 1/4 Inches vertical inlet/outlet with rough chrome
Materials:
- Lead-Free Cast Brass Body
- Silicone Elastomers (FDA approved)
- Buna Nitrile Elastomers (FDA approved)
- ULTEM™ Polymers (NSF Listed)
Typical Installation:
To be installed in accordance with the manufacturer's instructions and the latest edition of the Uniform Plumbing Code. The assembly shall be mounted at a minimum of 6 inches above the highest point of discharge with sufficient side clearance for maintenance. Because the Zurn 12-35XLCH is not to be used under continuous pressure, never place a shut-off or check valve downstream of the device. The installation shall be made so that no part of the unit can be submerged and shall not be in a concealed or inaccessible location, or where the venting of water from the device, during normal functioning, may be deemed objectionable.
Standards Compliance:
ASSE Listed 1001; CSA Certified; IAPMO Listed; NSF/ANSI 372 Certified by IAPMO R&T (0.25% max. weighted average lead content)
Features & Benefits:
- Lead-Free Construction: Certified to NSF/ANSI 372 with 0.25% maximum weighted average lead content, ideal for potable water applications.
- Backflow Protection: Protects potable water supply against backsiphonage of contaminated water where potential health hazards exist.
- Easy Maintenance: Accessible for maintenance without removing the device from the service line.
- Durable Materials: Features FDA-approved silicone and Buna Nitrile elastomers with NSF Listed ULTEM™ polymers for long-lasting performance.
FAQ
Q: What is the minimum installation height required for the Zurn 12-35XLCH?
A: The atmospheric vacuum breaker must be installed at a minimum of 6 inches above the highest point of discharge with sufficient side clearance for maintenance.
Q: Can a shut-off valve be installed downstream of this vacuum breaker?
A: No, because this assembly is not designed for use under continuous pressure, never place a shut-off or check valve downstream of the device.
Q: What are the maximum pressure and temperature ratings for this unit?
A: The maximum working water pressure is 125 PSI and the maximum working water temperature is 180°F.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
