Wilkins 114UFX114F-700XLFP | 1 1/4" High Capacity Dual Check V...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

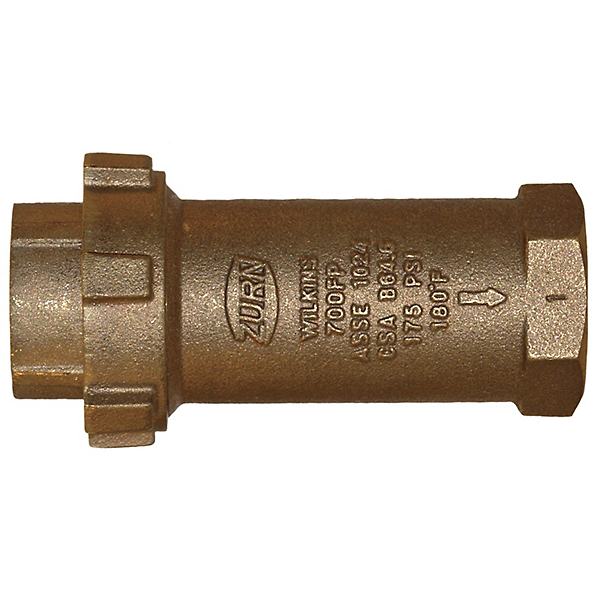

The Wilkins 114UFX114F-700XLFP is a high capacity dual check valve designed for potable water line protection against backsiphonage and backpressure where no potential health hazard exists.
Key Specifications:
- Size: 1 1/4 Inches
- Maximum Working Pressure: 175 psi
- Maximum Working Temperature: 180°F
- Notable Certifications: UL, ASSE 1024, NSF/ANSI 372
- Connection Type: FNPT Union x FNPT
Other Related Variants:
- 112UFCX112F-700XLFP: 1 1/2 Inches copper sweat inlet version
- 112UFX112F-700XLFP: 1 1/2 Inches threaded version
- 114UFMX1F-700XLFP: 1 1/4 Inches meter connection inlet
- 1UFX1F-700XLFP: 1 Inches threaded version
Materials:
- Low Lead Cast Bronze ASTM B806 body
- Delrin® check assemblies
- Buna Nitrile elastomers (FDA approved)
- Silicone elastomers (FDA approved)
- EPDM elastomers (FDA approved)
- 300 Series Stainless Steel springs
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the installation shall be in accordance with the manufacturer's instructions and the latest edition of the Uniform Plumbing Code. The installation shall be made so that no part of the unit can be submerged.
Standards Compliance:
UL Classified; ASSE Listed 1024; CSA Certified B64.6; Certified to NSF/ANSI 372 by IAPMO R&T
Features & Benefits:
- Lead-Free Compliance: Certified to NSF/ANSI 372 with 0.25% maximum weighted average lead content for safe potable water applications.
- Dual Check Protection: Provides reliable backflow prevention against both backsiphonage and backpressure for non-health hazard applications.
- High Capacity Design: Engineered for efficient flow rates with minimal pressure loss across all Zurn 114UFX114F-700XLFP configurations.
- Durable Construction: Low lead cast bronze body with corrosion-resistant stainless steel springs ensures long-lasting performance and reliability.
FAQ
Q: Can the Wilkins 114UFX114F-700XLFP be installed in any orientation?
A: Yes, the valve can be installed vertically or horizontally, but it must not be submerged and should follow local code requirements.
Q: What is the maximum operating pressure for this dual check valve?
A: The maximum working pressure is 175 psi with a maximum temperature rating of 180°F.
Q: Is this valve suitable for applications with potential health hazards?
A: No, the Wilkins 114UFX114F-700XLFP provides protection only where a potential health hazard does not exist. For health hazard scenarios, a different backflow prevention device is required.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
