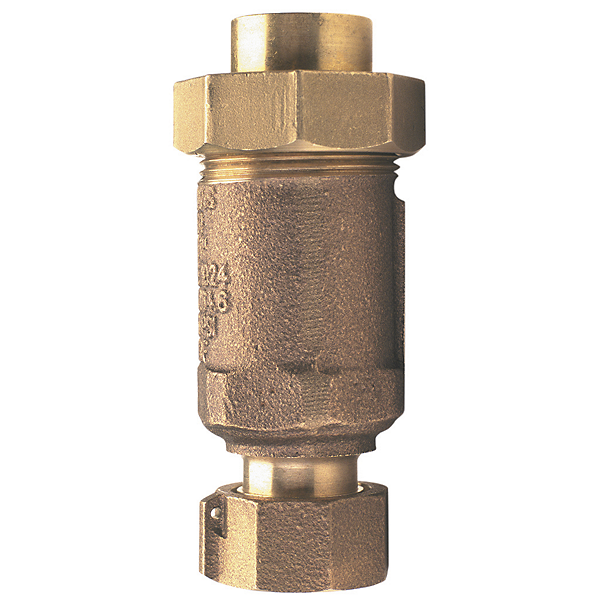

Wilkins 114UFMX1UF-700XL | Dual Check Valve, Backflow Preventer
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins 114UFMX1UF-700XL is a lead-free dual check valve designed for potable water protection against backsiphonage and backpressure in non-health hazard applications.
Key Specifications:
- Connection Size: 1 1/4 Inches FMTC inlet x 1 Inch FNPT outlet
- Maximum Working Pressure: 175 PSI
- Maximum Working Temperature: 180°F
- Notable Certifications: ASSE 1024, CSA, NSF/ANSI/CAN 61
- End Connections: Female meter thread inlet, female NPT outlet union
Other Related Variants:
- 12UFX12F-700XL: 1/2 Inches version
- 14UFX14F-700XL: 1/4 Inches version
- 38UFX38F-700XL: 3/8 Inches version
- 34UFX34F-700XL: 3/4 Inches version
- 1UFX1F-700XL: 1 Inches version
- 1MX1UF-700XL: 1 Inches male inlet variant
- 1UFMX1F-700XL: 1 Inches meter inlet x female outlet
- 1UFMX1M-700XL: 1 Inches meter inlet x male outlet
- 1UFMX1MM-700XL: 1 Inches meter inlet x male meter outlet
- 1UFMX1UF-700XL: 1 Inches meter inlet x female union outlet
- 1UFMX34F-700XL: 1 Inches meter inlet x 3/4 Inches female outlet
- 1UFMX34M-700XL: 1 Inches meter inlet x 3/4 Inches male outlet
- 1UFMX34UF-700XL: 1 Inches meter inlet x 3/4 Inches female union outlet
- 34MX34UF-700XL: 3/4 Inches male inlet variant
- 34UFMX34F-700XL: 3/4 Inches meter inlet x female outlet
- 34UFMX34M-700XL: 3/4 Inches meter inlet x male outlet
- 34UFMX34MM-700XL: 3/4 Inches meter inlet x male meter outlet
- 34UFX1MM-700XL: 3/4 Inches inlet x 1 Inches male meter outlet
Materials:
- Low lead cast bronze body conforming to ASTM B 584
- Buna Nitrile elastomers (FDA approved)
- Noryl polymers (1/4"-1/2" sizes)
- Delrin polymers (3/4"-1" sizes)
- Stainless steel springs, 300 Series
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the installation shall be in accordance with the manufacturer's instructions and the latest edition of the Uniform Plumbing Code. The installation shall be made so that no part of the unit can be submerged. The Zurn 114UFMX1UF-700XL is typically installed downstream of the water meter in both indoor installations and meter setter configurations.
Standards Compliance:
ASSE Listed 1024; CSA Certified; NSF/ANSI/CAN 61
Features & Benefits:
- Lead-Free Compliance: Meets 0.25% maximum weighted average lead content requirements for safe potable water applications.
- Dual Check Protection: Provides reliable protection against both backsiphonage and backpressure of polluted water into potable water supply.
- Reversible Configuration: All configurations are reversible for flexible installation options and ease of maintenance.
- Durable Construction: Low lead cast bronze body with corrosion-resistant stainless steel springs ensures long-lasting performance.
FAQ
Q: Can the Wilkins 114UFMX1UF-700XL be installed in any orientation?
A: Yes, all configurations of the Model 700XL are reversible and can be installed to accommodate various installation requirements, provided no part of the unit can be submerged.
Q: What size water meter is the 114UFMX1UF-700XL designed for?
A: The 114UFMX1UF-700XL features a 1-1/4" female meter thread connection inlet and is designed for installation downstream of 3/4" or 5/8" x 3/4" water meters, with a 1" female NPT outlet.
Q: What is the maximum pressure and temperature rating for this valve?
A: The Zurn 114UFMX1UF-700XL has a maximum working pressure of 175 PSI and a maximum working temperature of 180°F, suitable for most residential and commercial potable water applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
