Wilkins 114-NR3XLP | 1 1/4 Inches Pressure Reducing Valve with Stra...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

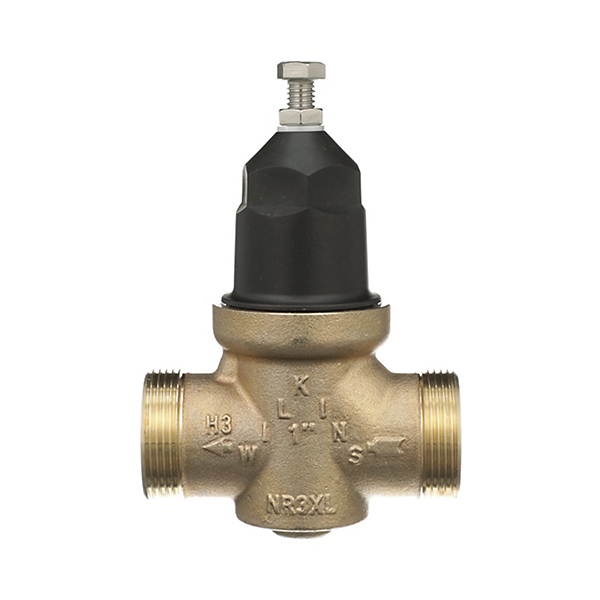

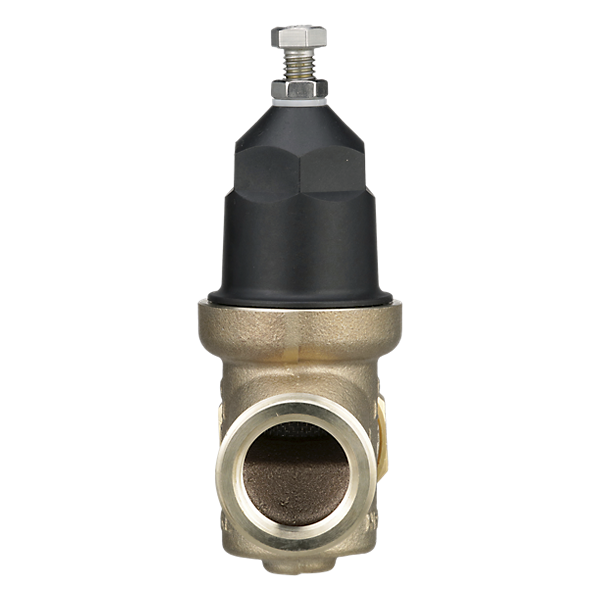

The Wilkins 114-NR3XLP is a lead-free pressure reducing valve with integral by-pass check valve and strainer, designed to protect potable water systems.
Key Specifications:
- Size: 1 1/4 Inches
- Maximum Working Water Pressure: 400 psi
- Maximum Working Water Temperature: 140°F
- Notable Certifications: ASSE 1003, IAPMO, CSA
- Connection Type: FNPT Union Connections
Other Related Variants:
- 1-NR3XLP: 1 Inch model size
- 2-NR3XLP: 2 Inches model size
- 34-NR3XLP: 3/4 Inch model size
Materials:
- Main Valve Body: Lead-Free Cast Bronze ASTM B584
- Bell Housing: UV Resistant Polymer Composite
- Internals: Stainless Steel, 300 Series
- Stem: Lead-Free Brass
- Elastomers: EPDM (FDA approved)
- Elastomers: Buna Nitrile (FDA approved)
- Cartridge: Delrin
- Springs: 302 Stainless Steel
- Strainer Screen: 300 Series Stainless Steel
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the latest edition of the Uniform Plumbing Code. The Model NR3XL may be installed in any position. The assembly shall be installed with sufficient side clearance for testing and maintenance. Multiple installations are recommended for wide demand variations or where the desired pressure reduction is more than 4 to 1 (ie: 200 psi inlet reduced to 50 psi outlet).
Standards Compliance:
ASSE Listed 1003; IAPMO Listed; CSA Certified; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372 (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)
Features & Benefits:
- Integrated Strainer Protection: The Zurn 114-NR3XLP features an integral strainer that removes sediment and debris, making it ideal for residential and commercial water systems requiring frequent cleaning.
- Thermal Expansion Protection: Direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion, protecting plumbing fixtures and appliances.
- Lead-Free Compliance: Certified to NSF/ANSI/CAN 61 and 372 with 0.25% maximum weighted average lead content, ensuring safe potable water applications.
- Easy Maintenance Access: The Zurn 114-NR3XLP assembly is accessible for maintenance without removing the device from the line, simplifying service and reducing downtime.
FAQ
Q: Can the Wilkins 114-NR3XLP be installed in any orientation?
A: Yes, the Model NR3XL may be installed in any position. The assembly should be installed with sufficient side clearance for testing and maintenance.
Q: What is the factory preset outlet pressure for this valve?
A: The valve comes factory preset to 50 psi. The reduced pressure range for the 1 1/4 inch model is 15 to 75 psi and can be field adjusted as needed.
Q: When should multiple pressure reducing valves be installed?
A: Multiple installations are recommended for wide demand variations or where the desired pressure reduction is more than 4 to 1 (for example: 200 psi inlet reduced to 50 psi outlet).
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
