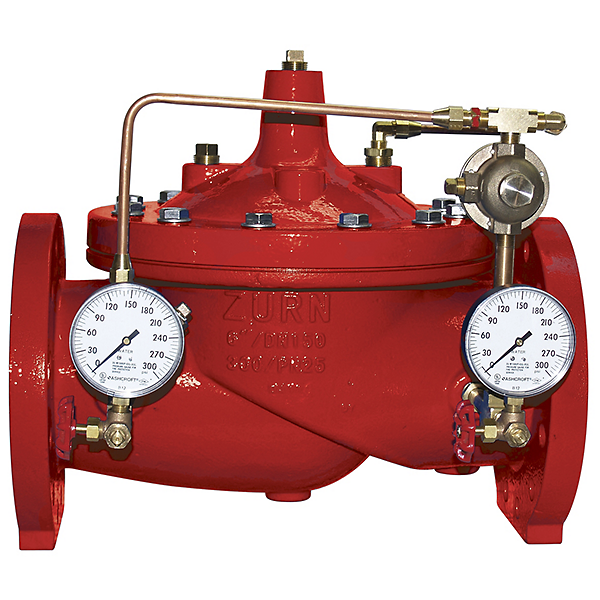

Wilkins 10-ZW209FPG | 10" Fire Protection PRV, Grooved Ends
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins 10-ZW209FPG is a pilot operated pressure reducing valve designed for fire suppression systems to reduce high inlet pressures to safe, stable outlet pressure.
Key Specifications:
- Valve Size: 10 Inches
- Maximum Inlet Pressure Rating: 300 psi grooved
- Temperature Rating: 33°F to 140°F
- Notable Certifications: UL and C-UL Listed
- End Connections: Grooved (AWWA C606)
Other Related Variants:
- 8-ZW209FPG: 8 Inch valve size
- 6-ZW209FPG: 6 Inch valve size
- 4-ZW209FPG: 4 Inch valve size
- 3-ZW209FPG: 3 Inch valve size
- 212-ZW209FPG: 2 1/2 Inch valve size
- 2-ZW209FPG: 2 Inch valve size
Materials:
- Main Valve Body: Ductile Iron ASTM A536
- Main Valve Cover: Ductile Iron ASTM A536
- Disc Guide: Stainless Steel
- Seat: Stainless Steel
- Disc: Buna-N Rubber
- Diaphragm: Nylon Reinforced Buna-N
- Stem: Stainless Steel
- Spring: Stainless Steel
Typical Installation:
The upstream and downstream pressure gauges are required by Underwriters Laboratories (UL). A relief valve of not less than 1/2 inch in size MUST be installed on the downstream side of the pressure control valve. Adequate drainage for the relief valve discharge must be provided. The valve is to be installed in accordance with NFPA 13 or NFPA 14 standards and maintained per NFPA 25.
Standards Compliance:
ANSI/AWWA C530; AWWA C606; UL and C-UL Listed; NFPA 13; NFPA 14; NFPA 25
Features & Benefits:
- Pilot Operated Control: Maintains constant downstream pressure regardless of flow rate or varying inlet pressures through modulating pilot assembly.
- Corrosion Protection: Red epoxy coating on all internal and external surfaces provides FDA approved corrosion resistance for long-term durability.
- Installation Ready: Includes wye strainer, inlet and outlet UL/FM pressure gauges with 3-way isolation valves for quick installation and easy adjustment.
- Wide Adjustment Range: Field adjustable pilot spring range from 50-165 psi residual pressure with 175 psi maximum static pressure capability.
FAQ
Q: What is the adjustable pressure range for the Zurn 10-ZW209FPG?
A: The pilot control is field adjustable from 50 psi to 165 psi residual pressure (155 psi maximum for 10 inch size) with a maximum static pressure of 175 psi.
Q: What flow rates can this valve handle?
A: The Zurn 10-ZW209FPG has a minimum flow rate of 35 GPM and a maximum flow rate of 6000 GPM. A minimum flow of 600 GPM is required to initially set the valve.
Q: What installation orientation is recommended for this valve?
A: The recommended installation orientation is horizontal with the valve cover up. For 6 inch and larger valves, horizontal installation with cover up is required due to difficulty bleeding air and performing maintenance in vertical orientations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
