Wilkins 1-NR3XLP | Pressure Reducing Valve, Integral By-Pass & ...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

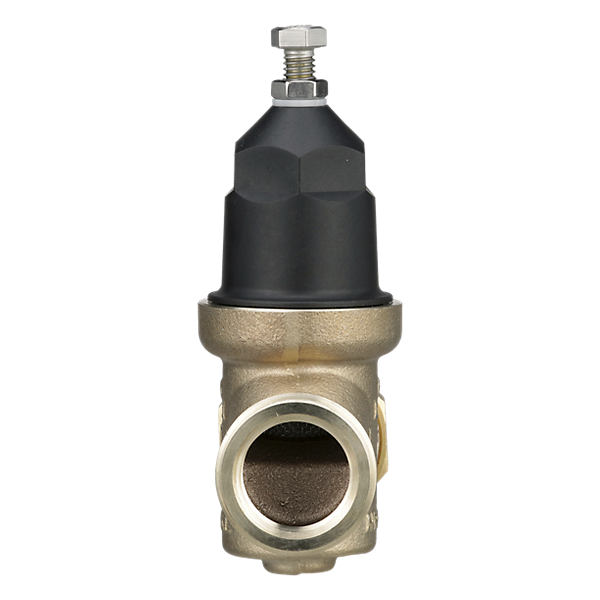

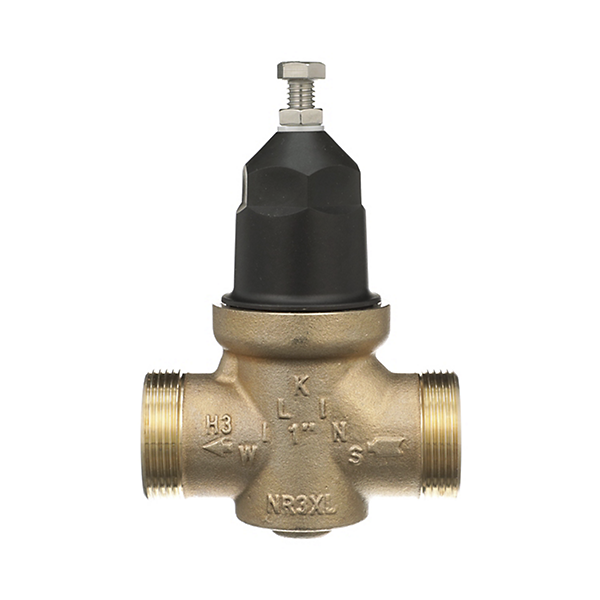

The Wilkins 1-NR3XLP is a lead-free water pressure reducing valve with integral by-pass check valve and strainer, designed for residential and commercial potable water systems.
Key Specifications:
- Size: 1 Inches
- Maximum Working Water Pressure: 400 psi
- Maximum Working Water Temperature: 140°F
- Notable Certifications: ASSE 1003, IAPMO, CSA
- Connection Type: FNPT union connections
Other Related Variants:
- 1 1/4-NR3XLP: 1 1/4 Inches model size
- 2-NR3XLP: 2 Inches model size
- 3/4-NR3XLP: 3/4 Inches model size
Materials:
- Main valve body: Lead-Free Cast Bronze ASTM B 584
- Bell housing: UV resistant threaded corrosion-resistant polymer composite
- Internals: Stainless Steel 300 Series
- Stem: Lead-Free Brass
- Elastomers: EPDM (FDA approved)
- Elastomers: Buna Nitrile (FDA approved)
- Cartridge: Delrin
- Springs: 302 Stainless Steel
- Strainer screen: 300 Series Stainless Steel
Typical Installation:
The Zurn 1-NR3XLP may be installed in any position on potable water lines for residential and commercial water systems. The assembly shall be installed with sufficient side clearance for testing and maintenance. Multiple installations are recommended for wide demand variations or where the desired pressure reduction is more than 4 to 1 (ie: 200 psi inlet reduced to 50 psi outlet). Local codes shall govern installation requirements.
Standards Compliance:
ASSE Listed 1003; IAPMO Listed; CSA Certified; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372
Features & Benefits:
- Integral Strainer Design: Built-in strainer removes sediment and debris, making the Zurn 1-NR3XLP most suitable for systems requiring frequent cleaning without additional components.
- Thermal Expansion Protection: Direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion, protecting your plumbing system.
- Balance Piston Technology: Smooth and responsive reaction to changes in system flow demand while providing protection from inlet pressure changes.
- Easy Maintenance Access: Assembly accessible for maintenance without removing the device from the line; sealed cage washer and stainless steel adjustment components improve corrosion resistance for all applications including below-ground pit installation.
FAQ
Q: Can the Wilkins 1-NR3XLP be installed in any position?
A: Yes, the valve may be installed in any position. However, sufficient side clearance must be provided for testing and maintenance access.
Q: What is the factory preset pressure for this valve?
A: The valve comes factory preset at 50 psi and can be adjusted to a reduced pressure range of 15 to 75 psi for the 1 inch size.
Q: Does this valve require additional strainer installation?
A: No, the integral strainer is built into the valve body, eliminating the need for a separate strainer and making it ideal for residential and commercial water systems that require frequent cleaning of sediment and debris.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
