Elkay LK4420BF1UFRK | Freestanding Bottle Filling Station | Filterless, Non-refrigerated, Freeze-resistant
Elkay LK4420BF1UFRK | Freestanding Bottle Filling Station | Filterless, Non-refrigerated, Freeze-resistant - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).

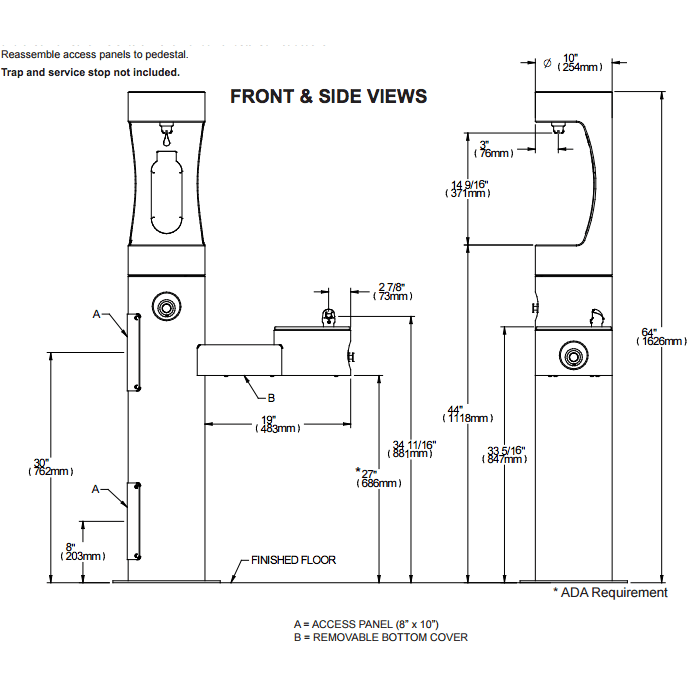

- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4420BF1UFRK | Freestanding Bottle Filling Station | Filterl...

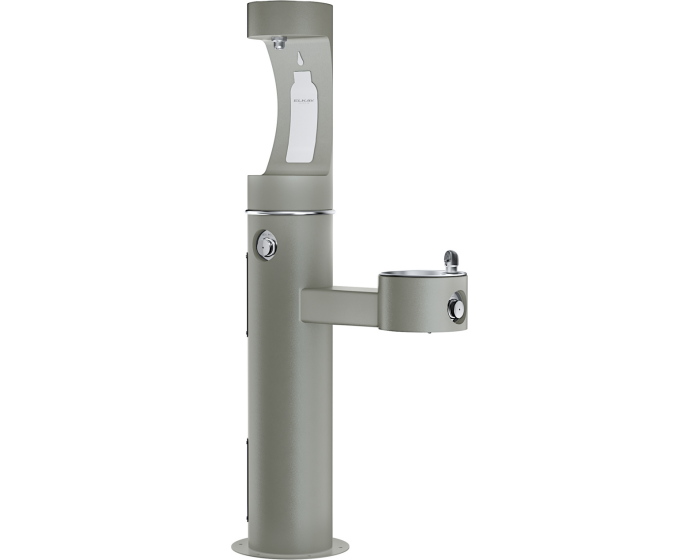

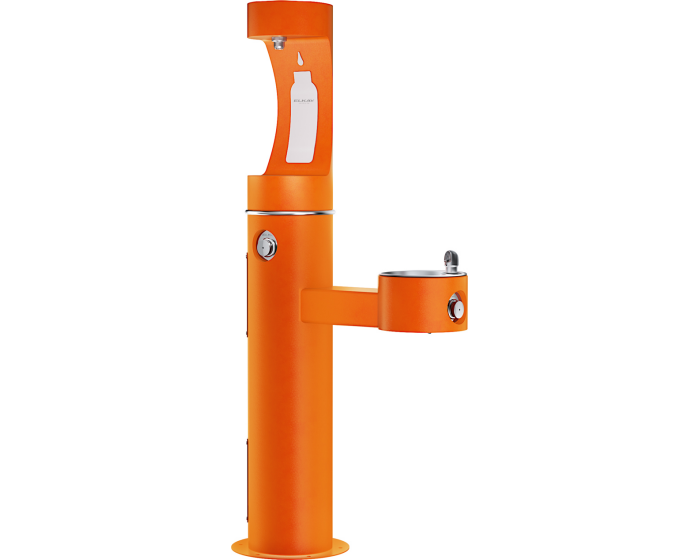

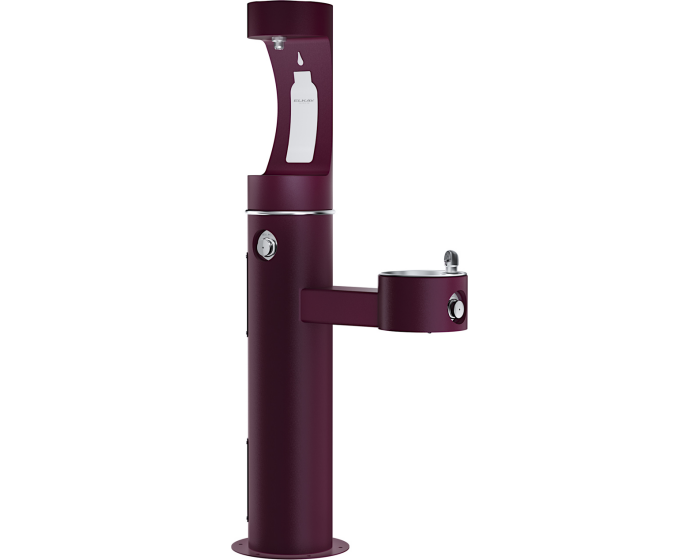

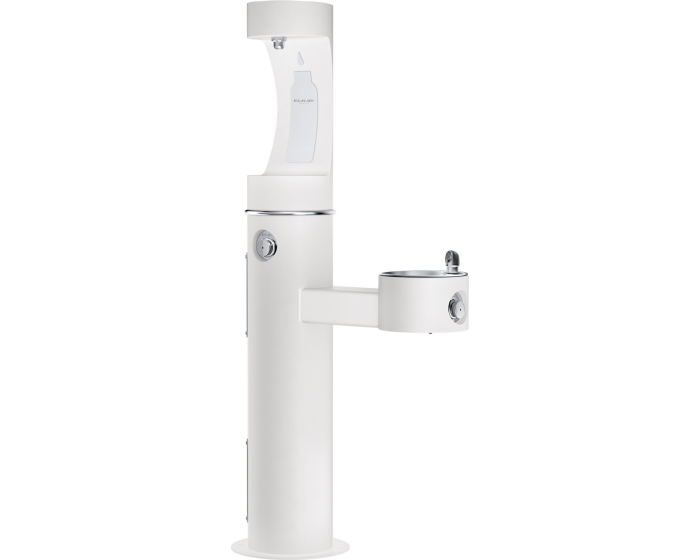

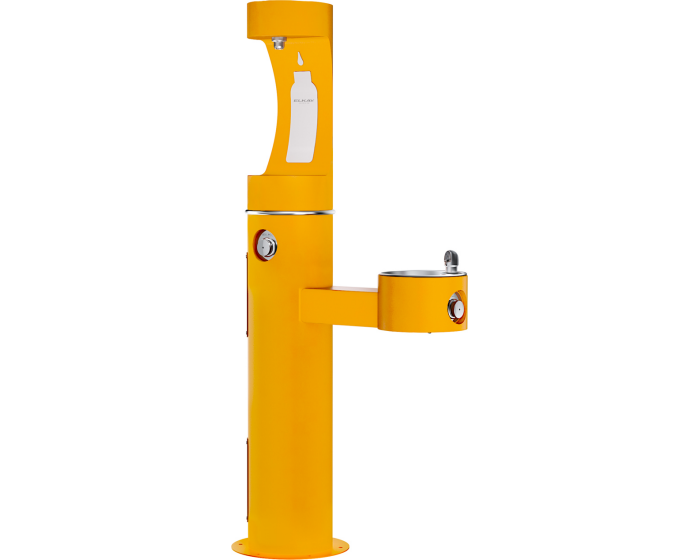

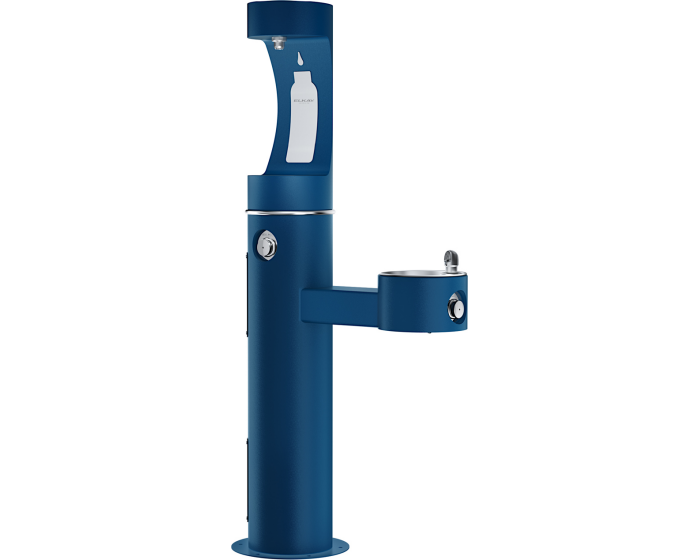

*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

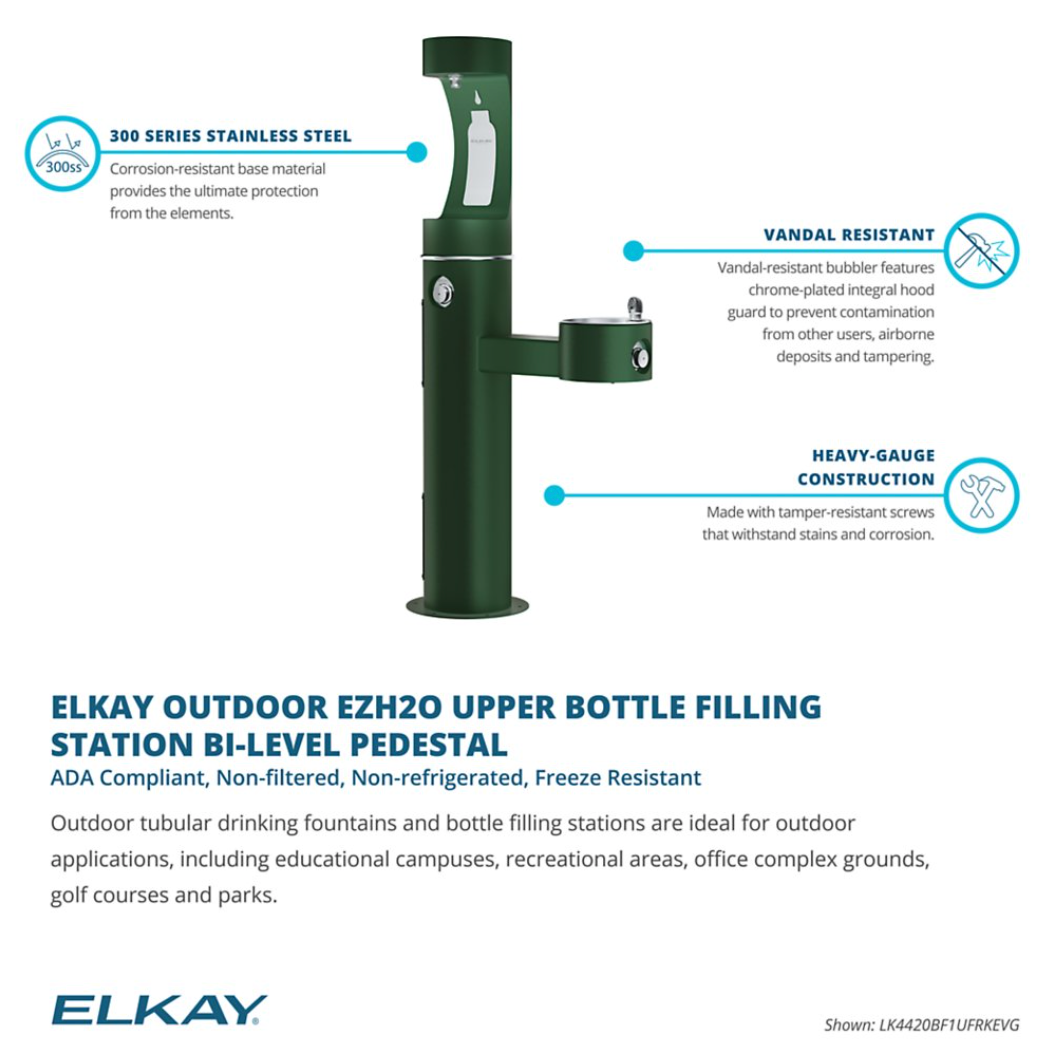

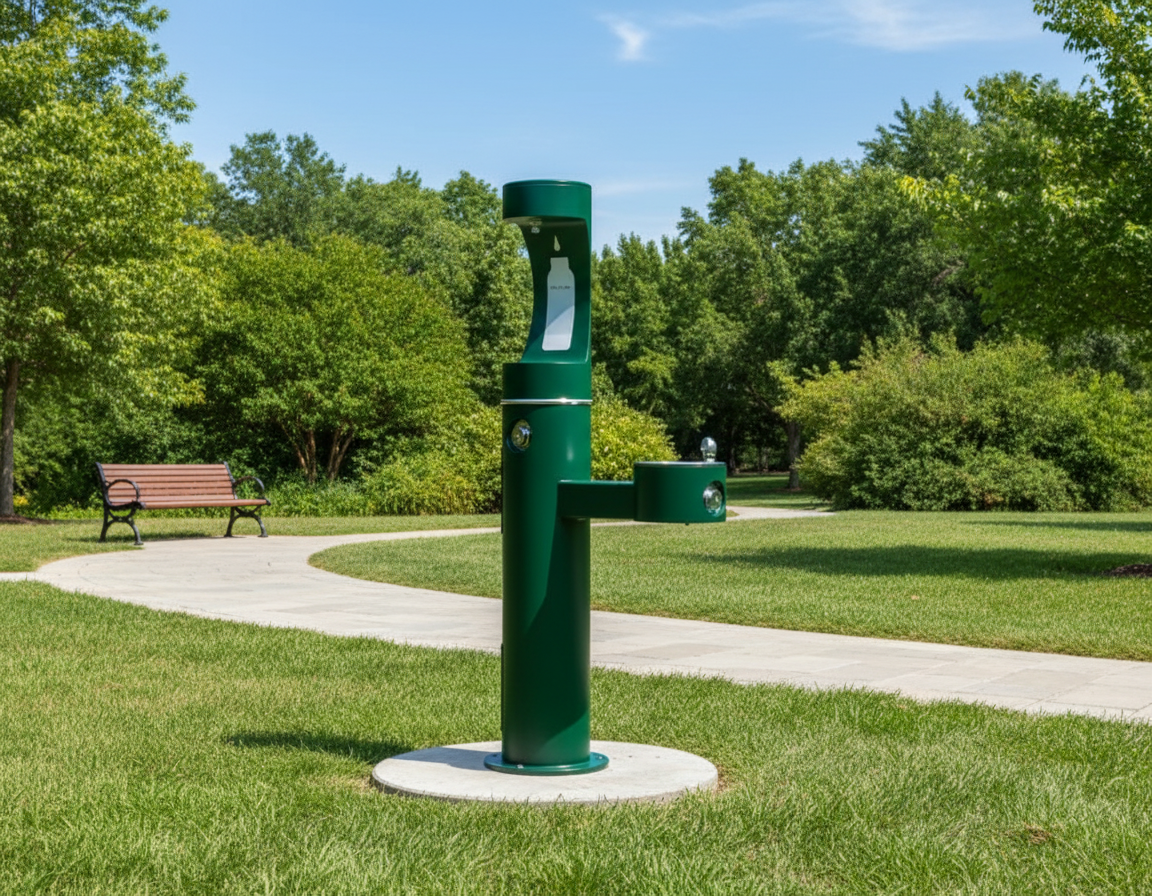

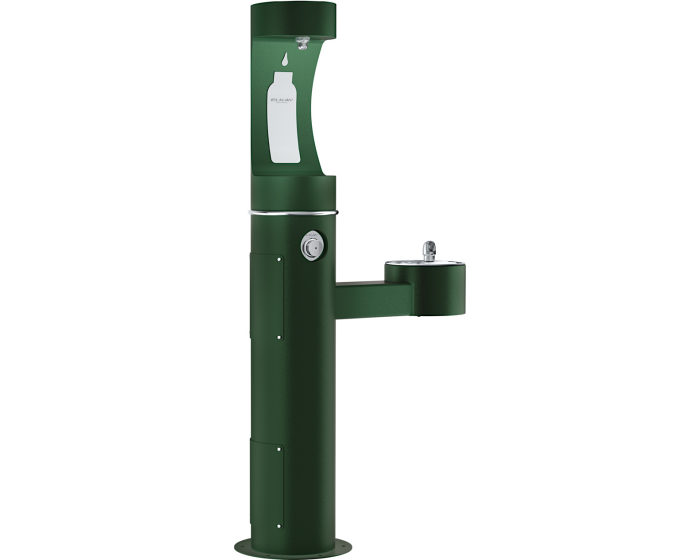

The Elkay LK4420BF1UFRK is an innovative Outdoor ezH2O® Upper Bottle Filling Station Bi-Level Pedestal designed for non-filtered, non-refrigerated, freeze-resistant applications. This versatile unit combines a traditional drinking fountain with a convenient bottle filling station, making it an ideal solution for outdoor hydration needs in parks, campuses, and other public spaces.
Key Specifications:
- Design: Bi-level pedestal with upper bottle filling station and lower drinking fountain.
- Installation: Outdoor, floor mount/freestanding.
- Filtration: Non-filtered model for areas with high-quality water supply. Inline filtration can be added separately.
- Temperature Control: Non-refrigerated, suitable for temperate climates.
- Freeze Protection: Equipped with a freeze-resistant valve system for year-round operation.
Features & Benefits:
- Bottle Filling Station: Encourages reusable bottle use, reducing plastic waste.
- Vandal-Resistant Design: Built with durable materials to withstand outdoor conditions and potential misuse.
- Freeze-Resistant Valve System: Valve installs 18” below frost line with 60” of tubing to prevent freezing and contamination.
- Laminar Flow: Provides a clean, splash-free fill for user convenience.
What's Included:
- Outdoor Bottle Filler
- Freeze-Resistant Valve Assembly
FAQ
Q: What colors are available for the Outdoor Bottle Filling Stations?
A: Outdoor Bottle Filling Stations come standard in Evergreen, with a lead time of 15–20 business days. Other colors (Black, Blue, Gray, and custom options) typically have a lead time of 20–30 business days.
Q: What makes the Outdoor Freeze Resistant Bottle Filler freeze resistant?
A: The valve is designed to be installed 18” below the frost line. In addition, 60” of tubing is provided to protect against freezing and ensure safe operation.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor EZH2O Bottle Filling Stations, Outdoor Bottle Fillers do not come with a filtered option. However, inline filtration can be added by ordering and properly installing a separate WaterSentry® Plus Filter Kit. This requires a custom order.
Contact us at support@bottlefillingstations.com for details.
Detailed Features & Benefits
Outdoor Durability: Constructed with heavy-duty materials and vandal-resistant components, the LK4420BF1UFRK is built to withstand harsh outdoor environments and public use.
Freeze-Resistant System: The valve installs 18” below the frost line with 60” of tubing, protecting against freezing and ensuring safe operation year-round.
Hygienic Design: Laminar flow provides a clean, splash-free fill, while the separate drain system prevents groundwater contamination and keeps fresh water isolated.
Sustainability: Encourages reusable bottle use, reducing single-use plastic waste and supporting eco-friendly hydration initiatives in public spaces.
Accessibility: Bi-level pedestal design makes hydration convenient for all users, meeting ADA requirements for inclusive access.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
