Elkay LK4420BF1U | Freestanding Bottle Filling Station | Filterless, Non-refrigerated
Elkay LK4420BF1U | Freestanding Bottle Filling Station | Filterless, Non-refrigerated - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4420BF1U | Freestanding Bottle Filling Station | Filterless...
*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

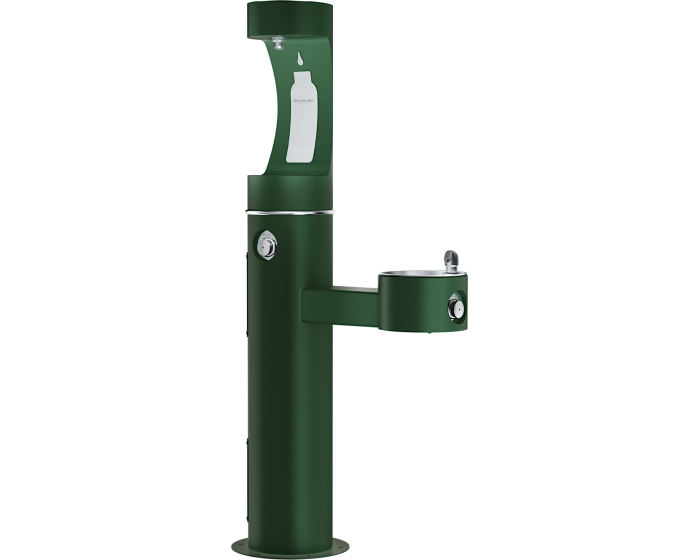

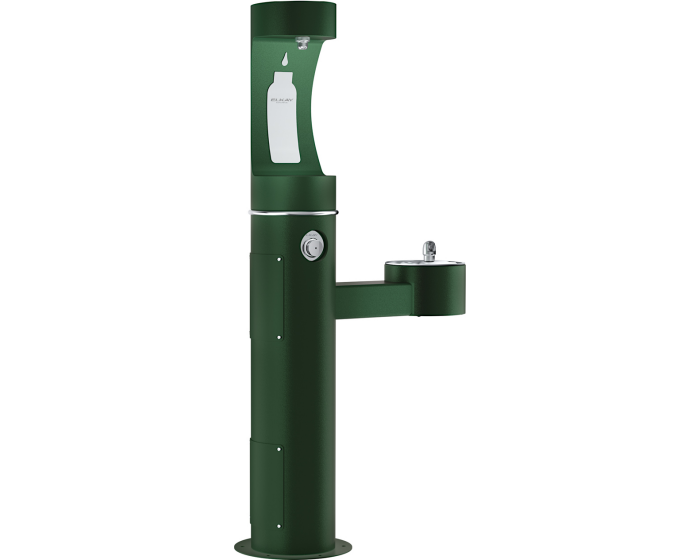

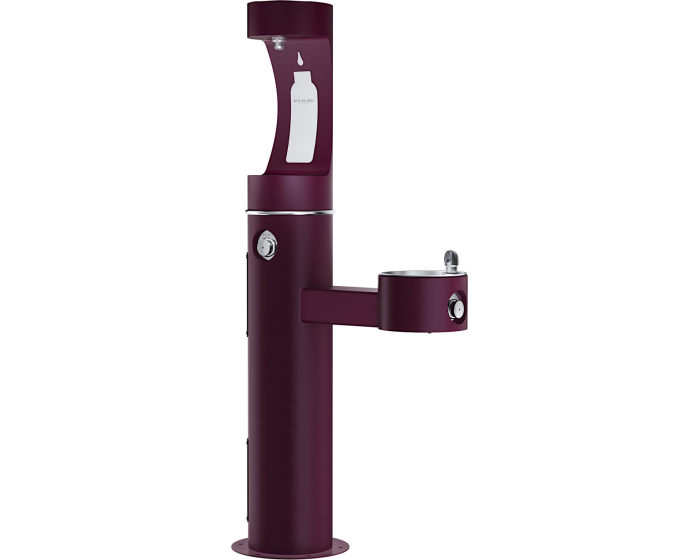

The Elkay LK4420BF1U is a top-tier outdoor ezH2O® Upper Bottle Filling Station with a bi-level pedestal design, combining durability, functionality, and accessibility in one impressive package. This freestanding unit is engineered for outdoor use, featuring a bottle filler and a drinking fountain, making it an ideal solution for public spaces, educational institutions, and recreational facilities where reliable, clean drinking water is essential.
Key Specifications:
- Fill Rate: Impressive 1 gallon per minute for quick and efficient hydration.
- Construction: Heavy-duty, vandal-resistant design with 300 Series Stainless Steel for maximum durability.
- Activation: User-friendly mechanical button for easy operation.
- Dimensions: 14" L x 31" W x 64" H, perfect for various outdoor settings.

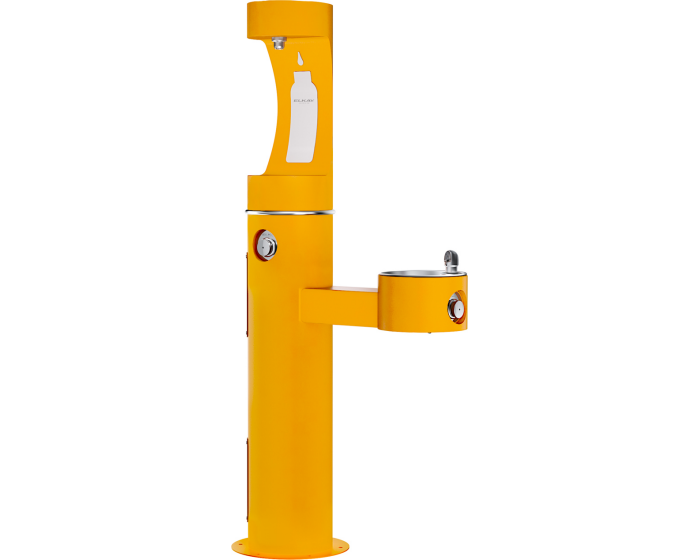

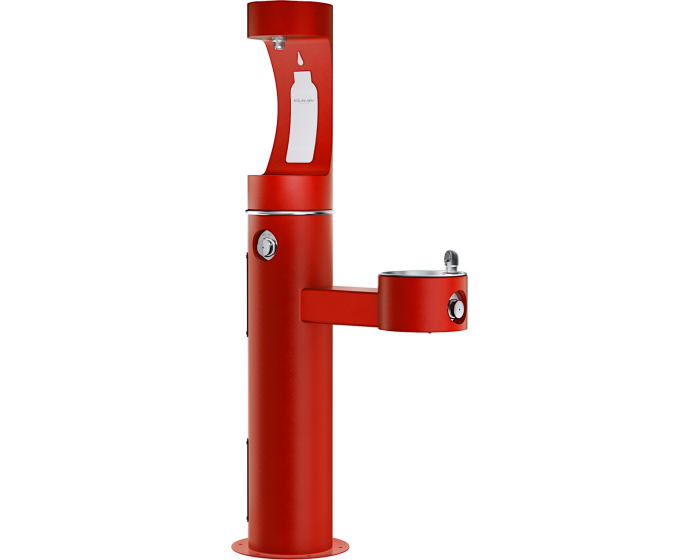

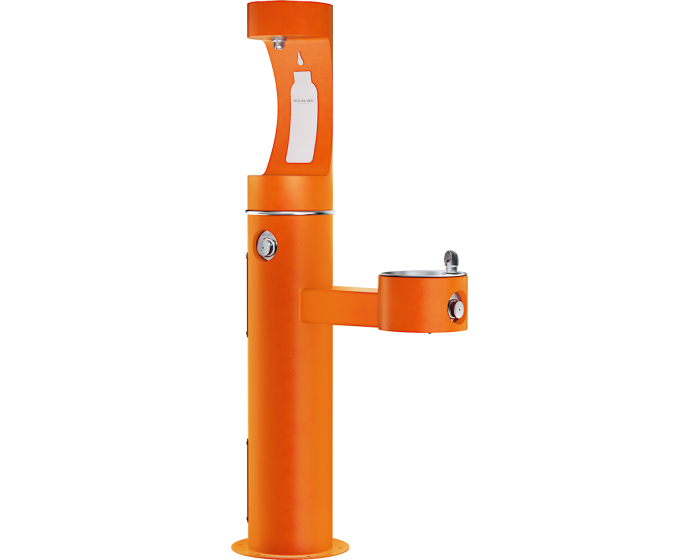

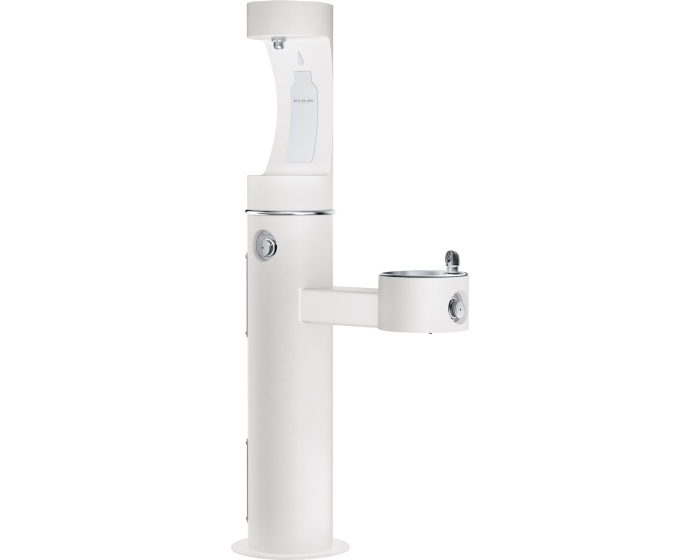

- Color Options: Available in 12 vibrant colors to match any environment.

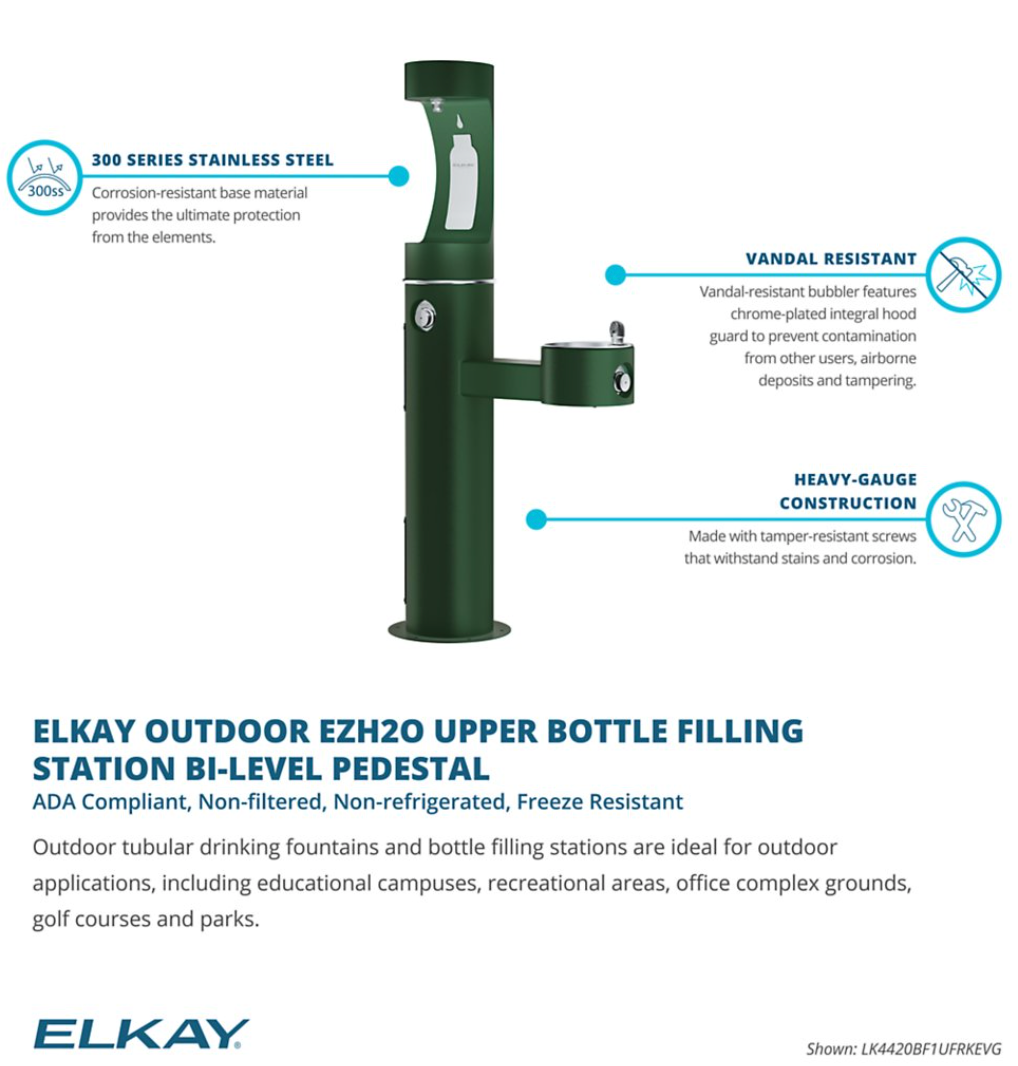

Features & Benefits:
- ADA Compliant: Ensures accessibility for all users, promoting inclusivity in public spaces.
- Vandal-Resistant Components: Chrome-plated bubbler, push-button, and fountain basin withstand heavy use and potential tampering.
- Laminar Flow: Provides a clean, splash-free fill for a superior user experience.
- Corrosion Protection: E-Coat immersion process ensures long-lasting performance in outdoor environments.
- Integral Hood Guard: Protects the bubbler from contamination, ensuring cleaner, safer drinking water.
What's Included:
- Elkay LK4420BF1U Outdoor Bottle Filler and Drinking Fountain unit
FAQ
Q: What colors are available for the Outdoor Bottle Filling Stations?
A: Outdoor Bottle Filling Stations come standard in Evergreen, which typically has a lead time of 10-15 business days. See other color options below, which have a lead time of ~ 20-30 business days.
Q: What makes the Outdoor Freeze Resistant Bottle Filler, Freeze Resistant?
A: The valve is designed to be installed 18” below the frost line. In addition, 60” of tubing is provided.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor EZH2O Bottle Filling Stations, Outdoor Bottle Fillers don’t come with a filtered option. However, it is quite common to create inline filtration by ordering and properly installing a separate WaterSentry Plus Filter Kit. If this is desired, we will need to create a custom order.
Contact us at support@bottlefillingstations.com or (855) 558-9600.
Q: Are refrigerated versions of Outdoor Bottle Filling Stations available?
A: Outdoor Bottle Fillers do not come with chillers because of the risk presented from outdoor elements, especially in the cold. However, if installed with proper shelter and temperature, a remote chiller can be hooked up to the Bottle Filler, which can especially be beneficial in warmer climates. Please contact us for further details.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes, Elkay Bottle Filling Stations are very durable. They are made with heavy-duty steel with a textured powder-coat finish and E-coat immersion for year-round protection with minimum maintenance.
Detailed Features & Benefits
Versatile Bi-Level Design: The LK4420BF1U's bi-level design is a game-changer for public hydration. The upper bottle filling station caters to those with reusable water bottles, promoting sustainability and reducing plastic waste. Meanwhile, the lower drinking fountain ensures that everyone, including children and individuals with disabilities, can easily access fresh drinking water. This thoughtful design not only meets ADA requirements but also demonstrates Elkay's commitment to inclusive and user-friendly products that serve diverse communities.
Durability Meets Aesthetics: With its heavy-duty, vandal-resistant construction, the LK4420BF1U is built to withstand the rigors of high-traffic outdoor areas. The use of 300 Series Stainless Steel and tamper-resistant screws ensures longevity and minimal maintenance. But durability doesn't mean sacrificing style – with 12 color options available, this unit can be customized to complement any outdoor setting, from parks and campuses to sports facilities. The ability to match or accent existing color schemes allows for seamless integration into various architectural designs, making it a favorite among facility managers and designers alike.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
