Elkay LK4420 | Outdoor Drinking Fountain, Double-station, Freestanding
Elkay LK4420 | Outdoor Drinking Fountain, Double-station, Freestanding - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4420 | Outdoor Drinking Fountain, Double-station, Freestanding
*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units.

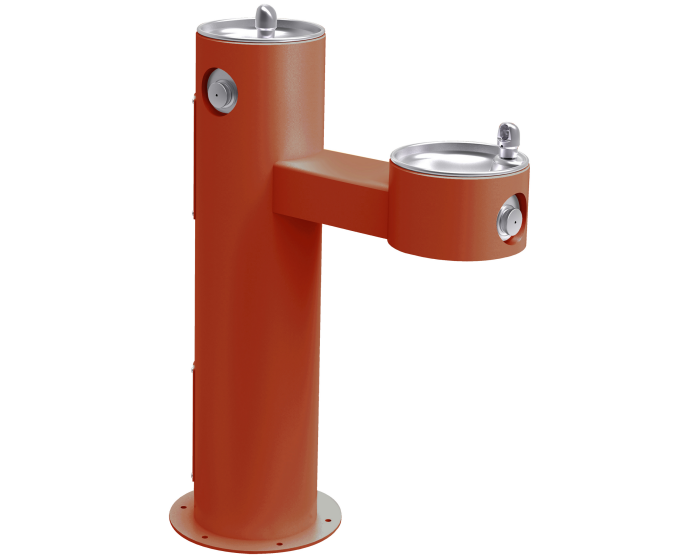

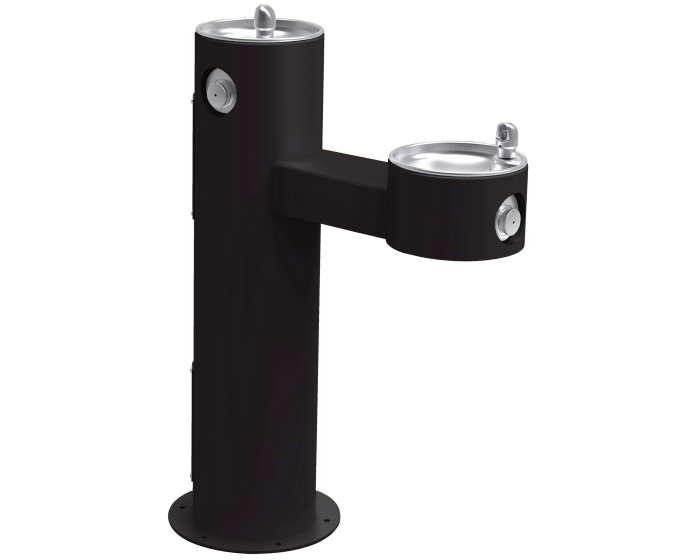

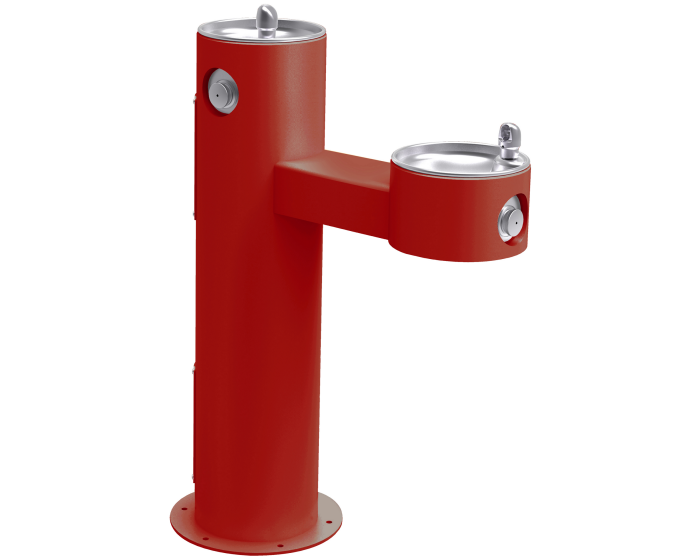

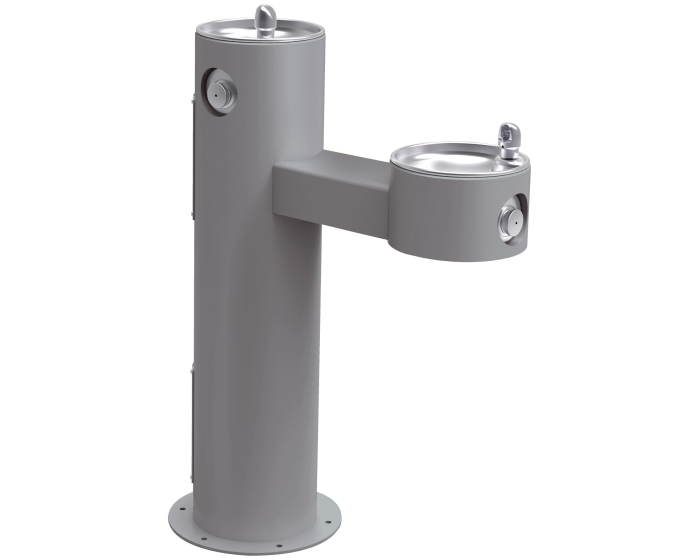

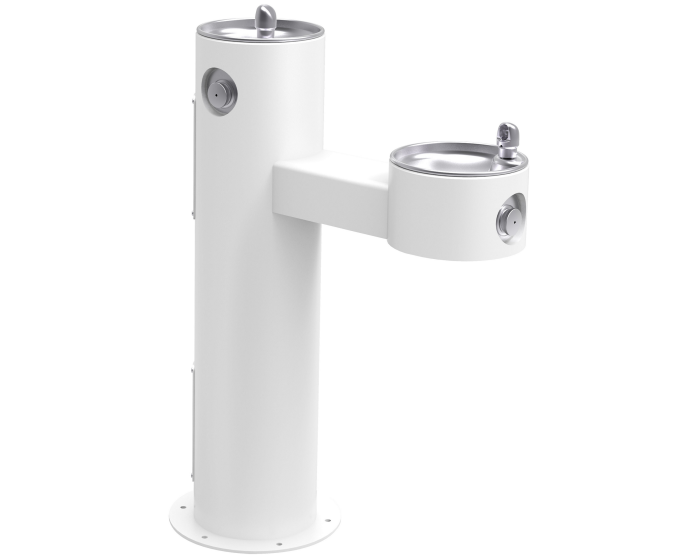

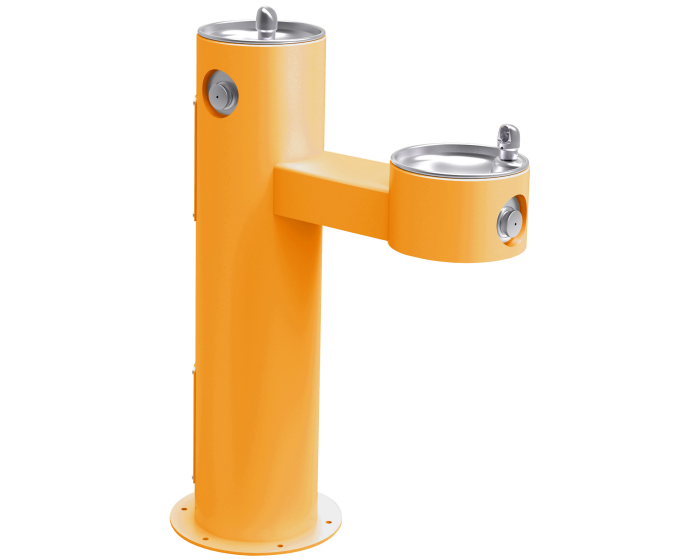

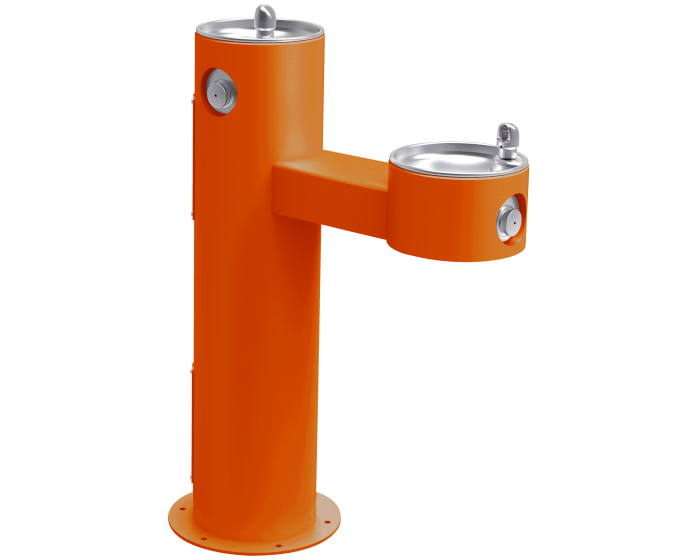

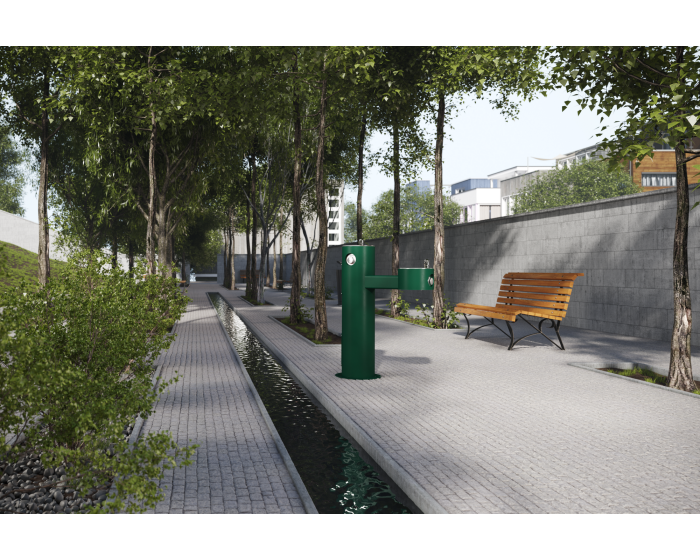

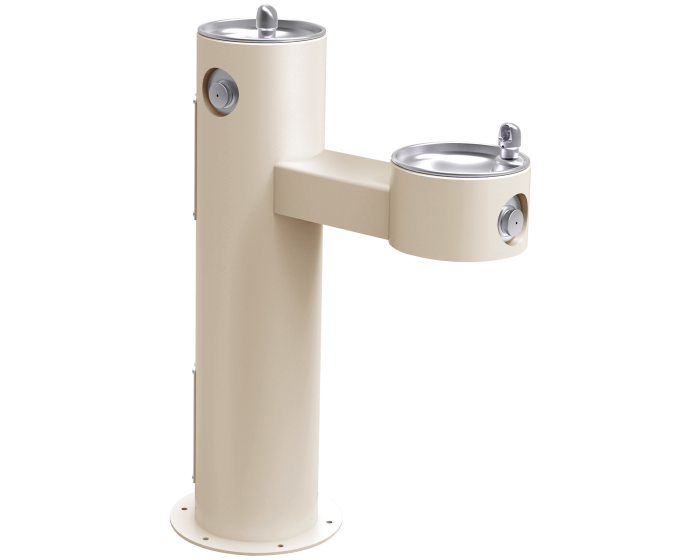

The Elkay LK4420 is a robust Outdoor Bi-Level Pedestal Fountain designed for non-filtered, non-refrigerated water dispensing in outdoor environments. This heavy-duty, vandal-resistant unit features durable 300 Series Stainless Steel construction, laminar flow technology, and dual-station access—ideal for parks, campuses, and other high-traffic outdoor areas.
Key Specifications:
- Construction: Heavy-duty vandal resistant, 300 Series Stainless Steel for long-lasting performance
- Dimensions: 14" x 31" x 40-5/16" (L x W x H), suitable for various outdoor spaces
- Activation: Mechanical button for reliable operation without electrical requirements
- # of Fountains: 2 stations, ideal for high-traffic areas
- Weight: Approximately 107 lbs., ensuring stability and durability
Features & Benefits:
- All-Weather Performance: Built to withstand outdoor conditions for year-round hydration access
- Laminar Flow Technology: Provides clean fill with minimal splash
- Accessibility: ADA & ICC A117.1 compliant for inclusive use
- Low Maintenance: No electrical components, reducing upkeep and operational costs
- Versatile Installation: Floor Mount/Freestanding design for flexible placement
What's Included:
- LK4420 Outdoor Bi-Level Pedestal Fountain Unit
- Vandal-Resistant Bubbler (pre-installed)
- Push Button Activation Assembly
- Access Panel (8" x 10")
- Removable Bottom Cover
- Drain Adapter Kit (Adapter, Gasket, Nut, Washer)
- Drain Elbow Kit (Elbow, Gasket, Nut, Washer)
- Tailpipe and Drain Tubes
- Poly Tubing (cut to length)
- Inline Strainer
- Mounting Instructions & Owner’s Manual
*Fasteners, service stop valve, and waste trap not included. Must be supplied by installer per local code.
FAQ
Q: What colors are available for the outdoor drinking fountain?
A: Outdoor drinking fountains come standard in Evergreen, with a lead time of 10–15 business days. Other color options (Black, Blue, Gray) are available with a lead time of approximately 20–30 business days.
Q: Are filtered versions of outdoor drinking fountains available?
A: Unlike indoor EZH2O Bottle Filling Stations, outdoor drinking fountains do not include built-in filtration. Contact us at support@bottlefillingstations.com for guidance on how to include in-line filtration.
Q: Are refrigerated versions of the Elkay LK4420 available?
A: With proper housing and installation, it is possible to provide refrigerated water for the Elkay LK4420 via a remote chiller. Contact us at support@bottlefillingstations.com for guidance.
Q: Are outdoor drinking fountains durable?
A: Yes. Elkay outdoor fountains are constructed with heavy-duty steel, a textured powder-coat finish, and E-coat immersion for year-round protection and minimal maintenance.

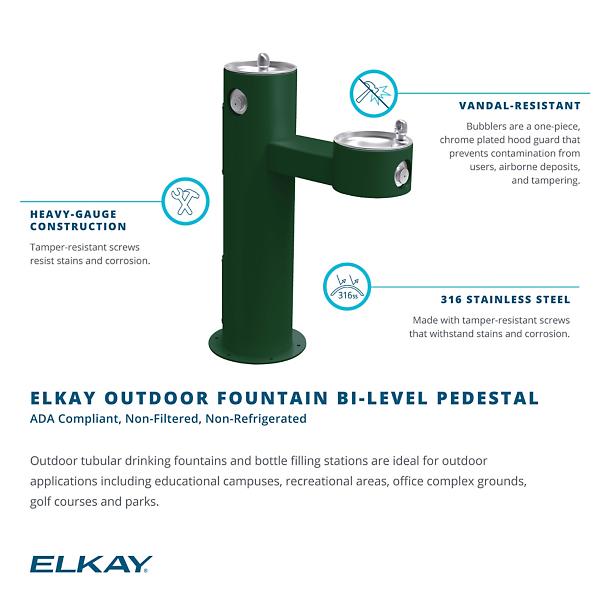

Detailed Features & Benefits
Durable and Vandal-Resistant Design: The LK4420 is built like a fortress—crafted from 300 Series Stainless Steel with a vandal-resistant bubbler. It’s engineered to endure harsh weather and high-traffic environments, minimizing maintenance and maximizing longevity.
Bi-Level Design for Universal Access: With two drinking stations at different heights, the LK4420 ensures inclusive hydration for all users—children, wheelchair users, and adults alike. This ADA-compliant layout improves accessibility and traffic flow in busy outdoor spaces.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
