Elkay LK4420BF1U | Freestanding Bottle Filling Station | Filterless, Non-refrigerated
Elkay LK4420BF1U | Freestanding Bottle Filling Station | Filterless, Non-refrigerated - Evergreen is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4420BF1U | Freestanding Bottle Filling Station | Filterless...

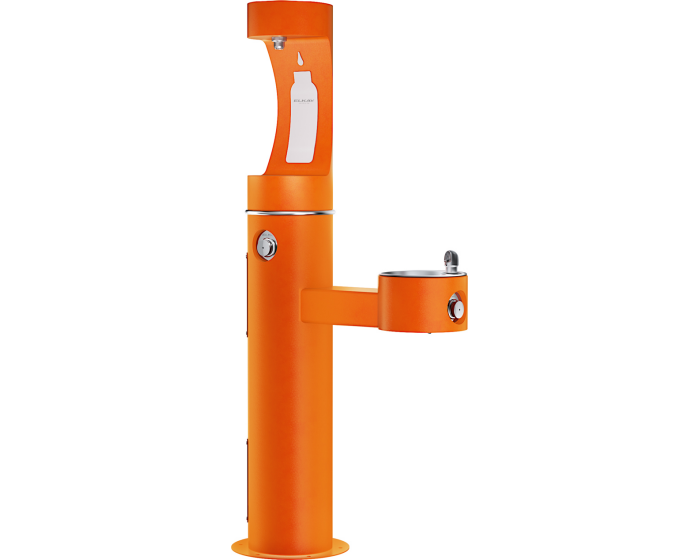

*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

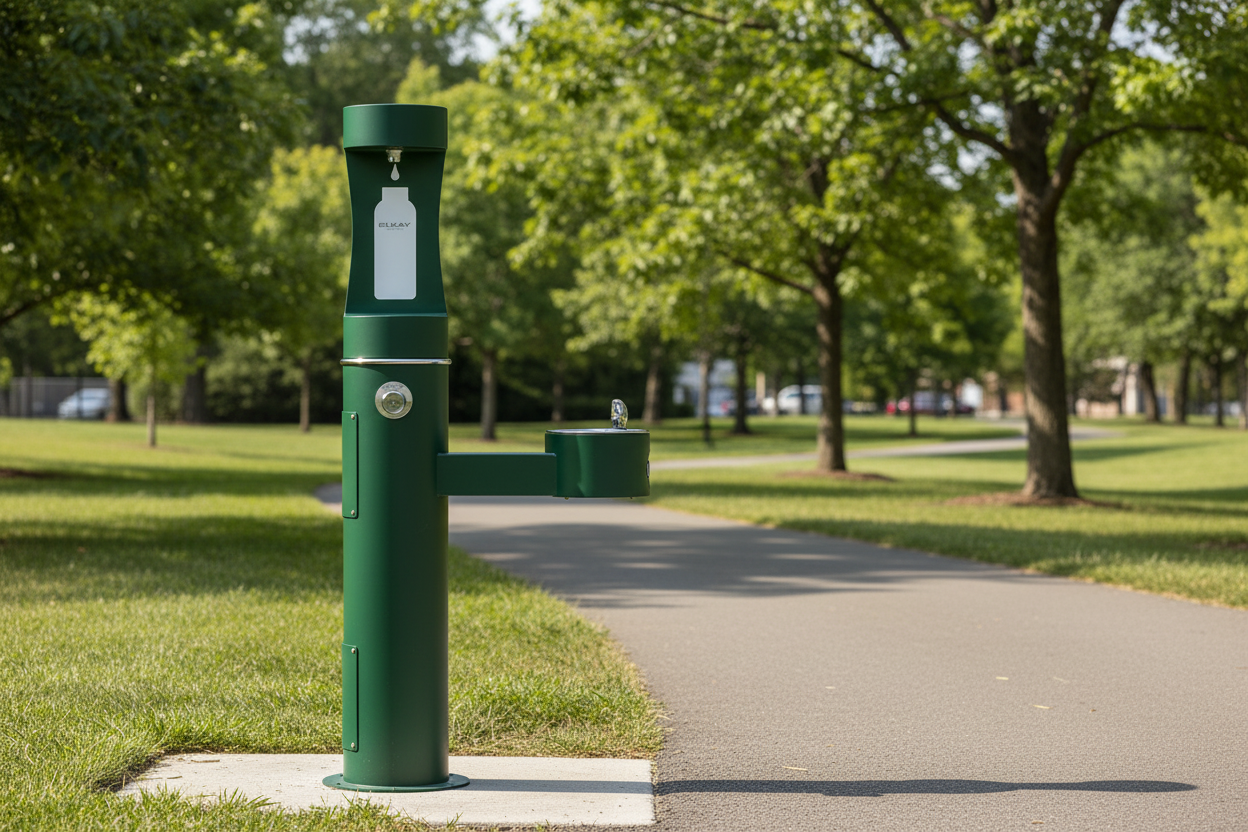

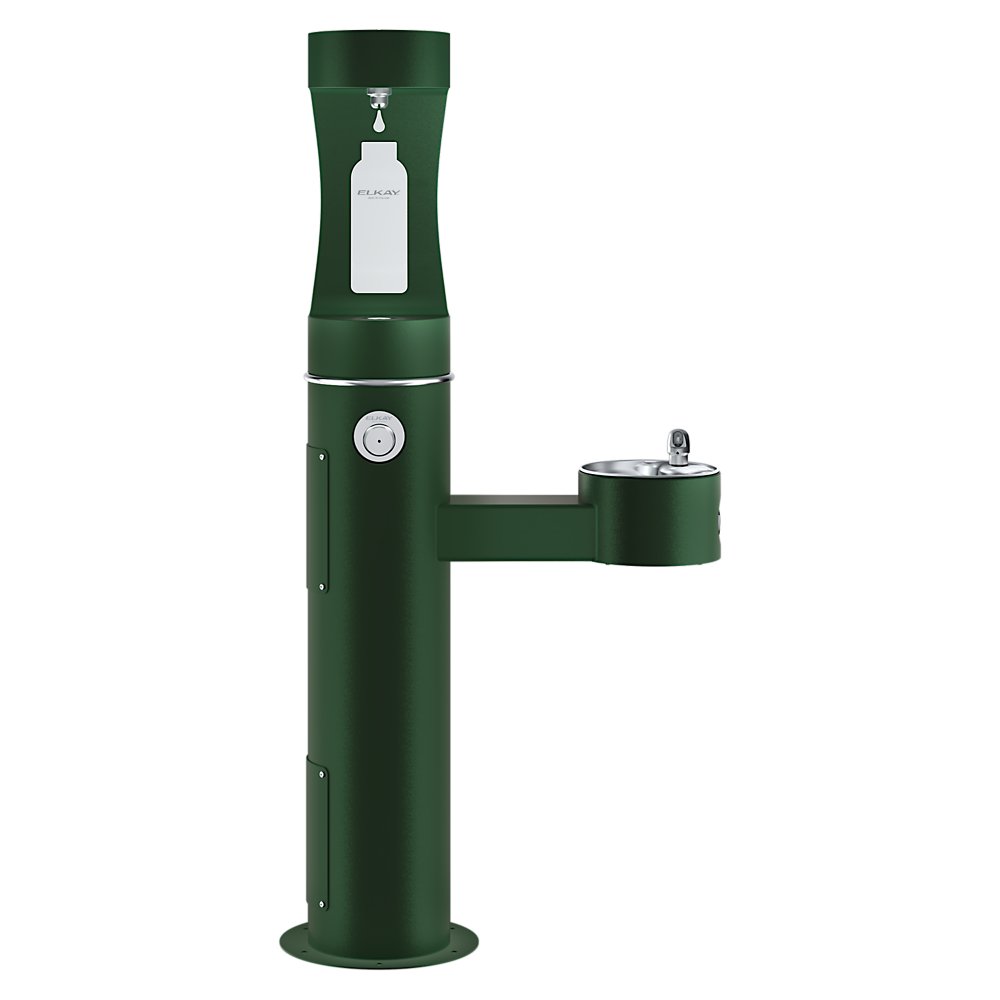

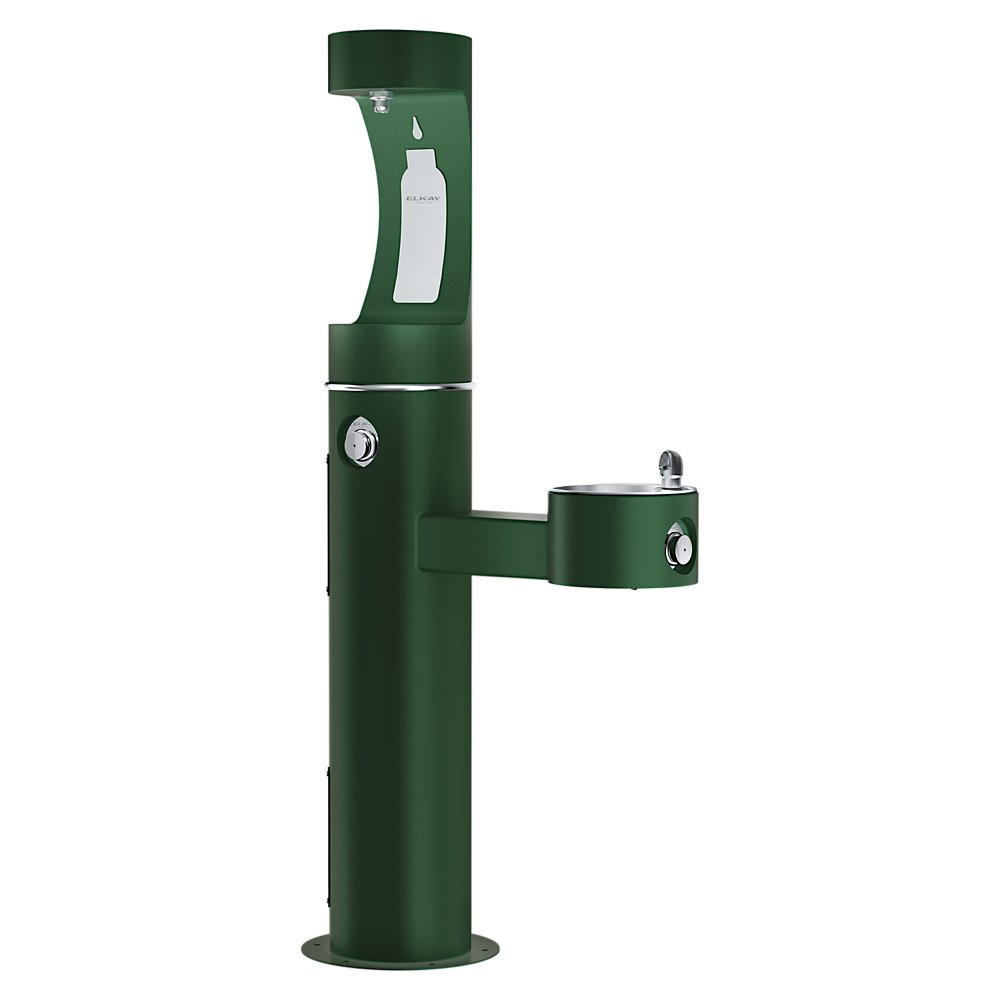

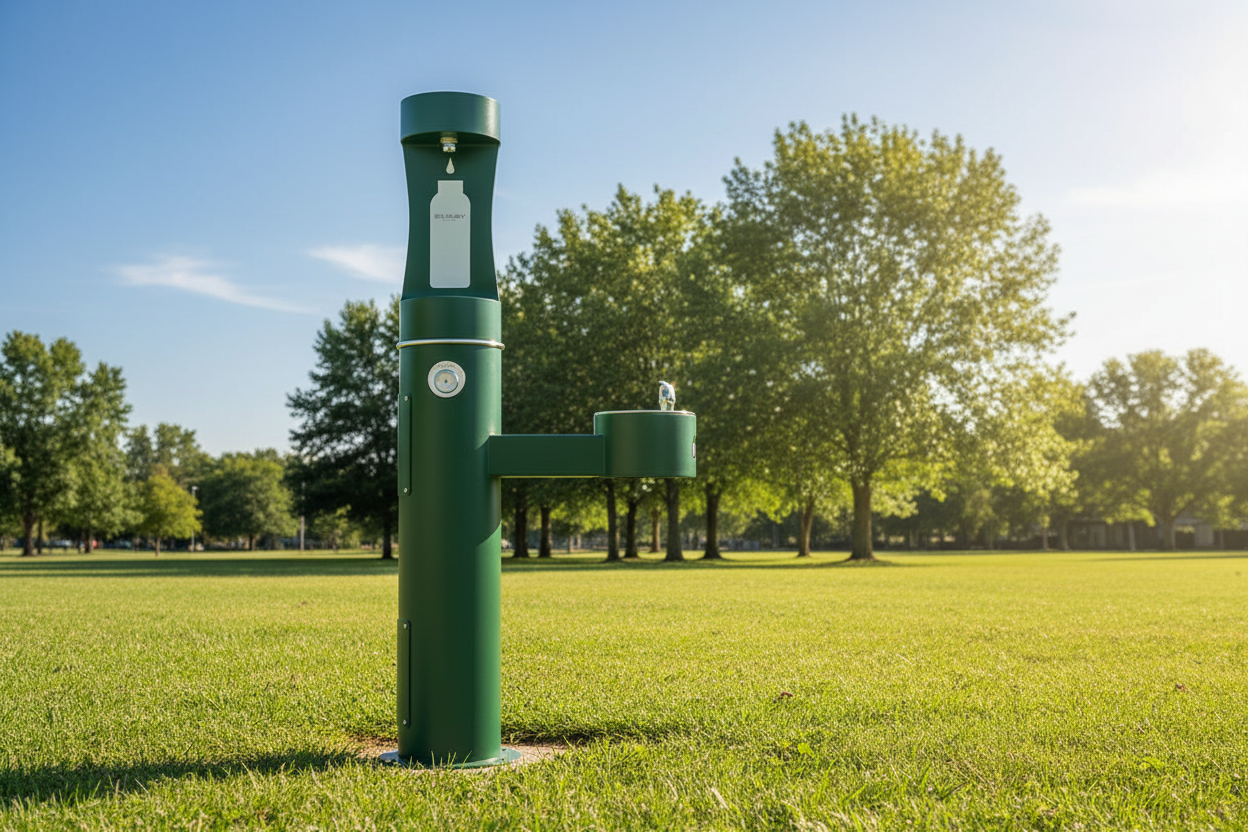

The Elkay LK4420BF1U is a top-tier outdoor ezH2O® Upper Bottle Filling Station with a bi-level pedestal design, combining durability, functionality, and accessibility in one impressive package. This freestanding unit is engineered for outdoor use, featuring a bottle filler and a drinking fountain, making it an ideal solution for public spaces, educational institutions, and recreational facilities where reliable, clean drinking water is essential.
Key Specifications:
- Fill Rate: 1 gallon per minute for quick and efficient hydration.
- Construction: Heavy-duty, vandal-resistant design with 300 Series Stainless Steel for maximum durability.
- Activation: Mechanical button for easy operation.
- Dimensions: 14" L × 31" W × 64" H.

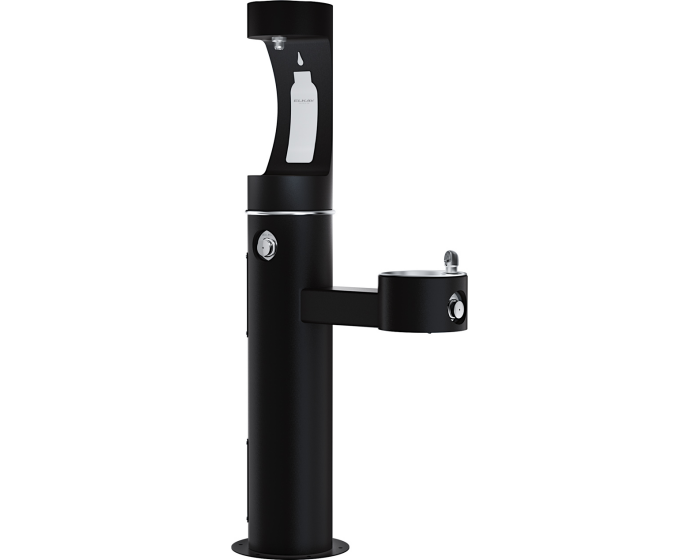

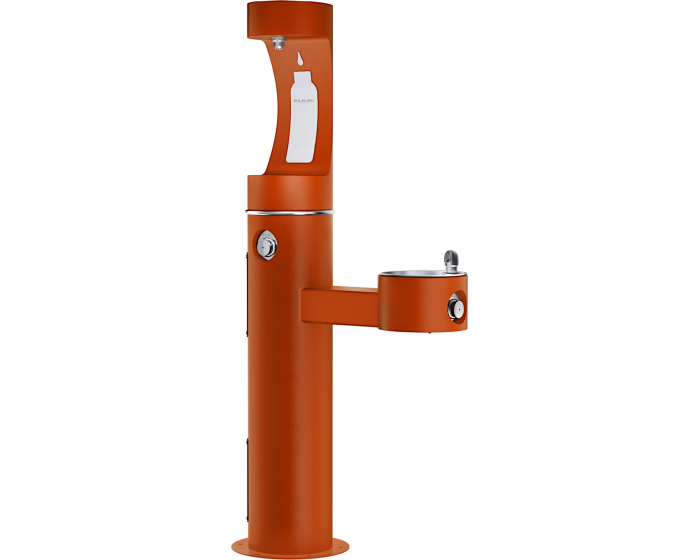

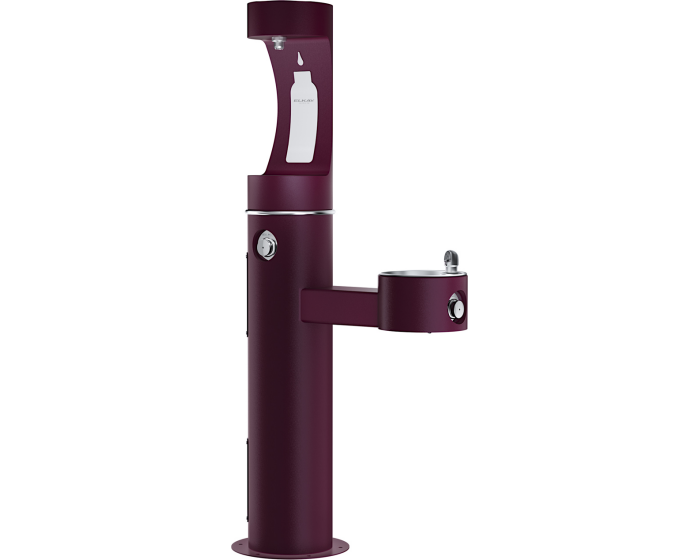

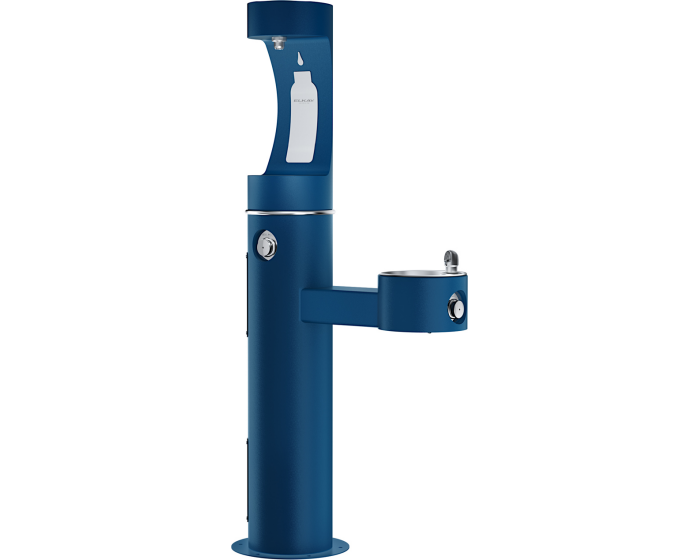

- Color Options: Evergreen (EVG), Black (BK), Blue (BLU), Gray (GRY). Other colors available with MOQ 10.
- Stations Served: 2.
- Installation Location: Outdoor, floor mount/freestanding.
Ideal Applications:
- Public parks and recreational facilities
- School campuses and universities
- Sports complexes and stadiums
- Municipal buildings and community centers
- Outdoor corporate or healthcare campuses

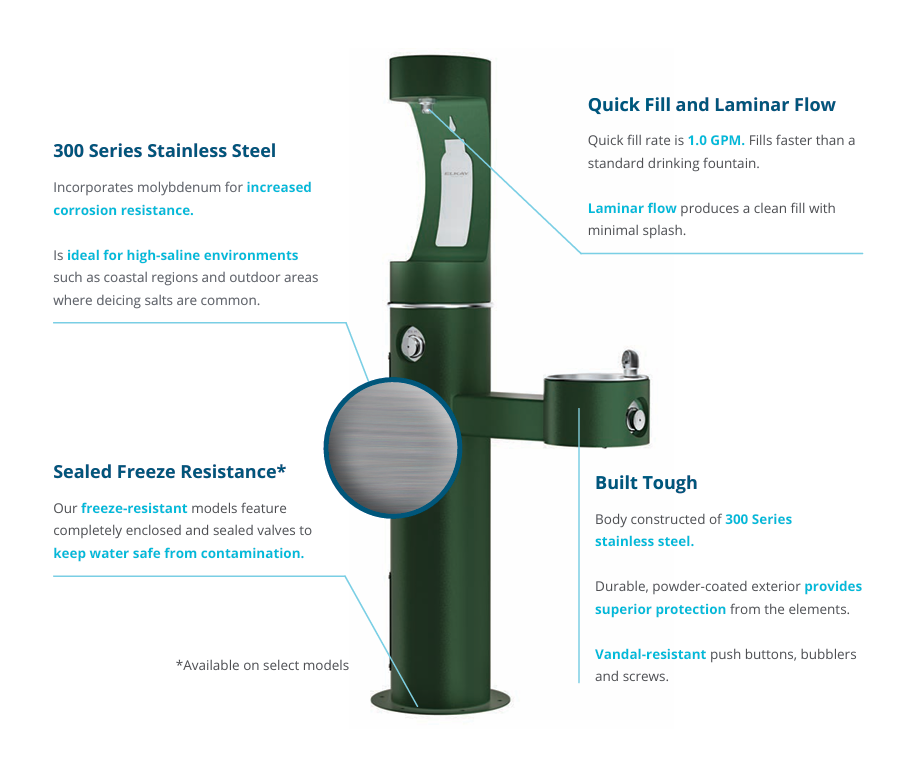

Features & Benefits:
- ADA Compliant: Ensures accessibility for all users, promoting inclusivity in public spaces.
- Vandal-Resistant Components: Vandal-resistant bubbler, push-button, and fountain basin withstand heavy use and tampering.
- Laminar Flow: Provides a clean, splash-free fill for a superior user experience.
- Corrosion Protection: E-Coat immersion process ensures long-lasting performance in outdoor environments.
- Durable Construction: 300 Series Stainless Steel with tamper-resistant screws for longevity.
What's Included:
- Elkay LK4420BF1U Outdoor Bottle Filler and Drinking Fountain unit
FAQ
Q: What colors are available for the Outdoor Bottle Filling Stations?
A: Outdoor Bottle Filling Stations come standard in Evergreen, with a lead time of 10–15 business days. Other color options (Black, Blue, Gray, plus additional finishes with MOQ 10) have a lead time of ~20–30 business days.
Q: What makes the Outdoor Freeze Resistant Bottle Filler freeze resistant?
A: The valve is designed to be installed 18” below the frost line. In addition, 60” of tubing is provided.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor ezH2O® Bottle Filling Stations, Outdoor Bottle Fillers don’t come with a filtered option. Inline filtration can be added by ordering and installing a separate WaterSentry® Plus Filter Kit. Contact us for custom orders.
Contact us at support@bottlefillingstations.com
Q: Are refrigerated versions of Outdoor Bottle Filling Stations available?
A: Outdoor Bottle Fillers do not include chillers due to exposure risks. However, a remote chiller can be connected if it is installed with proper shelter and temperature control — a useful feature in warmer climates. Contact us for details.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes. Elkay Outdoor Bottle Filling Stations are made with heavy-duty steel, textured powder-coat finish, and E-Coat immersion for year-round protection with minimal maintenance.
Q: Are accessories available for installation and operation?
A: Yes. Elkay offers several accessories for outdoor installations, including the 97890C Direct Bury Adaptor Kit for secure mounting, the 4481FP Foot Pedal Accessory for hands-free activation, and the Locking Hose Bib for controlled water access.
Detailed Features & Benefits
Versatile Bi-Level Design: The LK4420BF1U’s bi-level design includes an upper bottle filler for reusable bottles and a lower drinking fountain for children and individuals with disabilities. This inclusive design meets ADA requirements and supports sustainability by reducing plastic waste.
Durability Meets Aesthetics: Heavy-duty, vandal-resistant construction with 300 Series Stainless Steel ensures longevity in high-traffic outdoor areas. With multiple color options available (MOQ applies for some), the unit can be customized to complement any outdoor setting, from parks and campuses to sports facilities.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
