Elkay  |  SKU: EMASMB

Elkay EMASMB | Surface Mount Bottle Filler | Filterless, Non-refrigerated, Battery-powered (3 AAs)

$ 907.85
Shipping calculated at checkout.


Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:

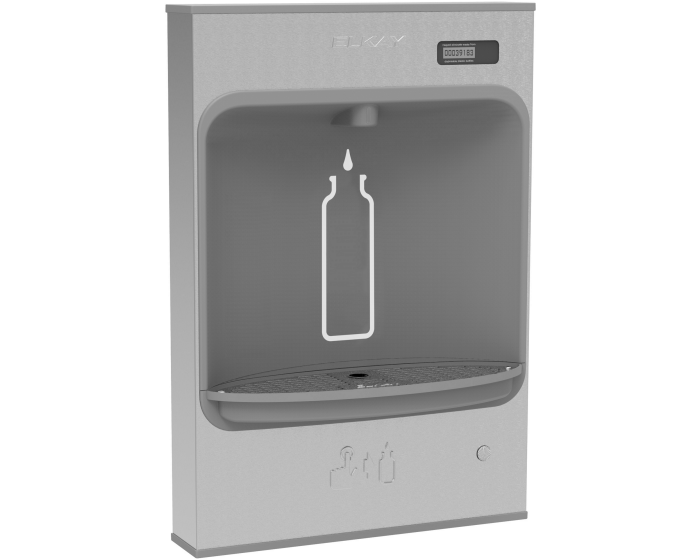

The Elkay EMASMB is a filterless push-button activated Surface-mount bottle filler with a stainless steel color finish. Ideal for setups with limited wall depth or without easy access to electricity, the Elkay EMASMB water bottle filler makes drinking water more practical, safe, and appealing than ever before.

The Elkay EMASMB is powered by three (3) AA batteries.

While no Surface Mount bottle filler comes directly refrigerated because of size constraints, these battery water fillers can be hooked to remote chillers located within 15 feet. Please contact us if you'd need more details!

  • Battery Powered (3 AA's)
  • Push-Button Activation
  • ADA compliant design
  • Sanitary bottle fill created from recessed spout.
  • Green Ticker™ tracks number of plastic bottles saved from waste.

Elkay EMASMB Spec Sheet HERE
Elkay EMASMB Installation Manual HERE

You may also be interested in Elkay's LIV built-in bottle fillers!

FILTERED?

No

COOLER CABINET FINISH

Stainless Steel

POWER

Battery Powered

BUBBLER OPTION

None

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

None

Elkay EMASMB

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

No fountain (bottle filler only)

DIMENSIONS

L: 17-7/8"

W: 6-1/4"

H: 25-7/8"

SHIPPING WEIGHT

22 lbs

Elkay EMASMB

PRODUCT COMPLIANCE

  • ADA Compliant
  • NSF 61
  • NSF 372, lead-free

Elkay EMASMB Includes

  • Bottle Filler

Warranty

Refrigeration System (IF APPLICABLE)

Elkay EMASMB refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay EMASMB warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Elkay EMASMB requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay EMASMB MANUAL.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: Does the Surface Mount Bottle Filler come with a chiller?

A: No. However, this system can utilize an existing or new remote chiller installed within 15 ft. Be sure to verify chiller’s GPH capacity.

Q: Does the Surface Mount Bottle Filling Station include drainage?

A: Yes, the Surface Mount comes with a drain system to eliminate standing water.

Q: Can someone without a bottle drink from the Surface Mount?

A: Unlike Water Bottle Filling Stations that contain a bubbler, like the LZS8WSLP, Surface Mount bottle fillers are only intended for users with reusable bottles, cups, or other personal liquid containers.



*MADE IN THE UNITED STATES.

Experience the benefits of the very popular Elkay EMASMB Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
