LZWS-EDFPBM114K
MSRP: $5,340.00
Requires a minimum of 12" of wall depth for installation.

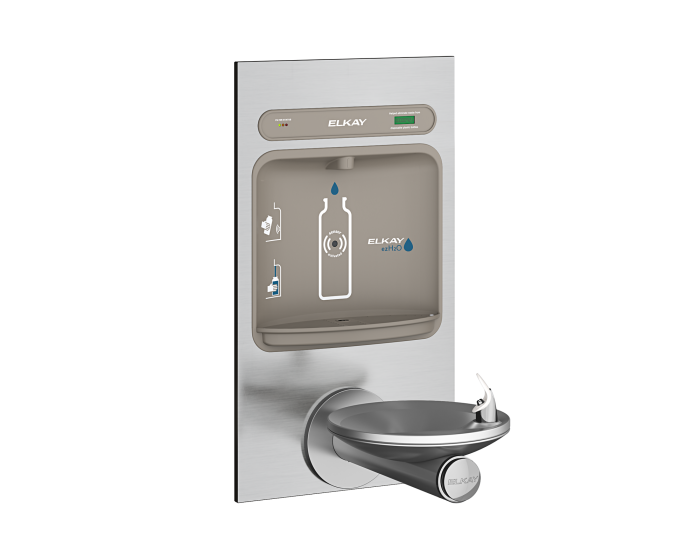

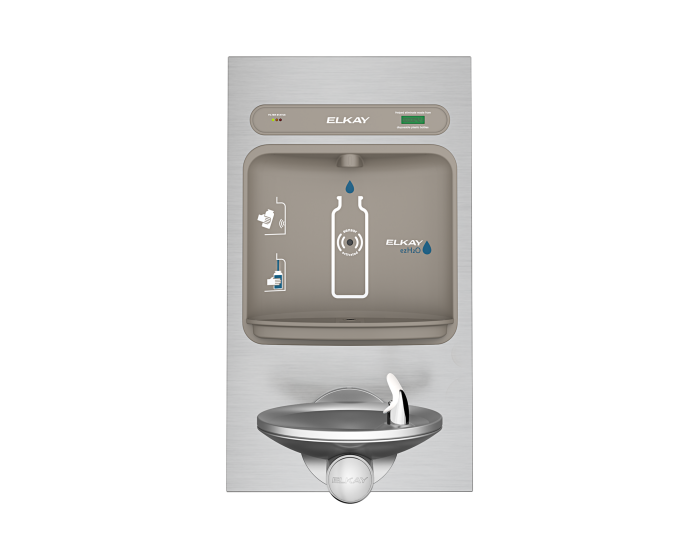

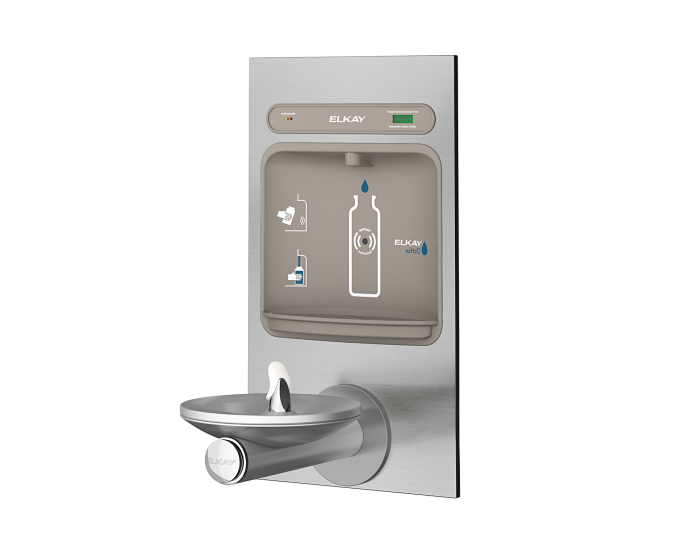

One of the most popular models, theElkay LZWS-EDFPBM114K In-Wall Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
VIEW SPEC SHEET HERE: Elkay LZWS-EDFPBM114K
Installation manual available HERE
|
FILTERED? |
Yes |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
FlexiGuard Safety |
|
MOUNTING DETAILS |
Wall Mount (In-Wall Frame/Plate) |
|
CHILLING DETAILS |
Non-refrigerated GPH |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF STATIONS |
Single Stations |
|
DIMENSIONS |
L: 19-3/4″ W: 19″ H: 34-5/8″ |
|
SHIPPING WEIGHT |
121 lbs |
|
Elkay LZWS-EDFPBM117K PRODUCT COMPLIANCE |
|
Refrigeration System (IF APPLICABLE)
Elkay LZWS-EDFPBM114K refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay LZWS-EDFPBM114K warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here.
Cleaning
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
Q: How do I access the filter status and bottle counter button?
A: To access the program button, the lower panel of the unit must be must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.
Q: Does this model come with a Mounting Frame?
A: Yes, this model comes with anMPW200 In-wall Carrier Mounting Frame.
*MADE IN THE UNITED STATES.
Experience the benefits of the very popular Elkay LZWS-EDFPBM114K Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices.CONTACT US NOW!
Water filters and hand dryers ship free regardless of order size.
All orders in Continental U.S. over $7,000 qualify for FREE Shipping.
Exceptions may apply to islands and other remote territories.
All orders shipped by the carrier of our choice.
Estimated Shipping Time
All in stock orders received before 3PM EST will ship the same day. Orders received after 3PM will ship the following business day.
Water filters, hand dryers and indoor bottle fillers are our most popular in stock items.
Outdoor Tubular Drinking Fountains. - Evergreen normally ships in 5-15 days. Black, Gray and Blue ship in 2-4 weeks.
Please contact support@bottlefillingstations.com to confirm delivery time for a specific product or quantity.
Standard shipping
Standard shipping rates DO NOT include inside delivery and/or lift gate services. By selecting Standard Shipping, you are hereby declining these extra services.
*Note: If you are a school, and you select Standard Shipping, you are hereby declaring that you either have a receiving dock for deliveries, or you are able to get the package off of the truck yourself. Appointment required for all school deliveries.
Premium shipping
Premium shipping rates DO include inside delivery and/or lift gate services. Premium shipping is only available for freight deliveries (those that have refrigerated units, or some very large orders without refrigerated units).
**Note: If Standard Shipping is selected at time of purchase, and inside delivery is requested of the carrier by the consignee at time of delivery, an additional fee will be charged, and the consignee will be responsible.
Rates
Shipping fees vary depending on the state and order size. Standard shipping rates are described below.
*Premium shipping is also available on freight deliveries (those with refrigerated units, or some very large non-refrigerated orders). Premium rates are an extra $65 in addition to the Standard rate, and include inside delivery and lift gate service.
Please note that shipping rates are subject to change at any time. We reserve the right to charge an additional fee in addition to the regularly advertised shipping fee for shipping to remote areas not easily accessible by typical freight carrier means (i.e. islands only accessible by ferry). If your order falls into this category, you will be notified upon receipt of your order, and have the option to complete the purchase with additional fee or to cancel the order. Please note, these instances are very rare, as most locations are reachable by regular freight. If you have any questions, please contact us!
Cleaning
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
