Hoshizaki KM-660MAJ | KMEdgeX Modular Crescent Cuber Ice Machine, A...

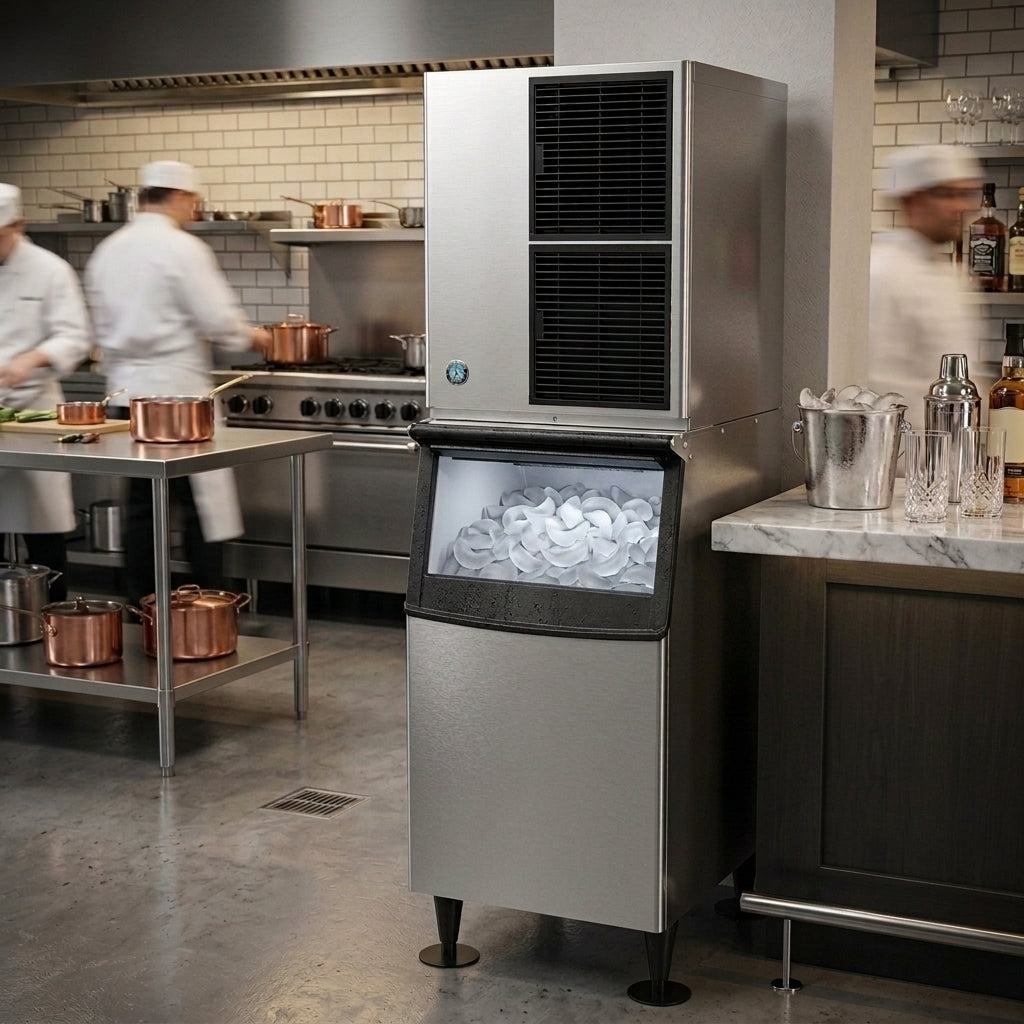

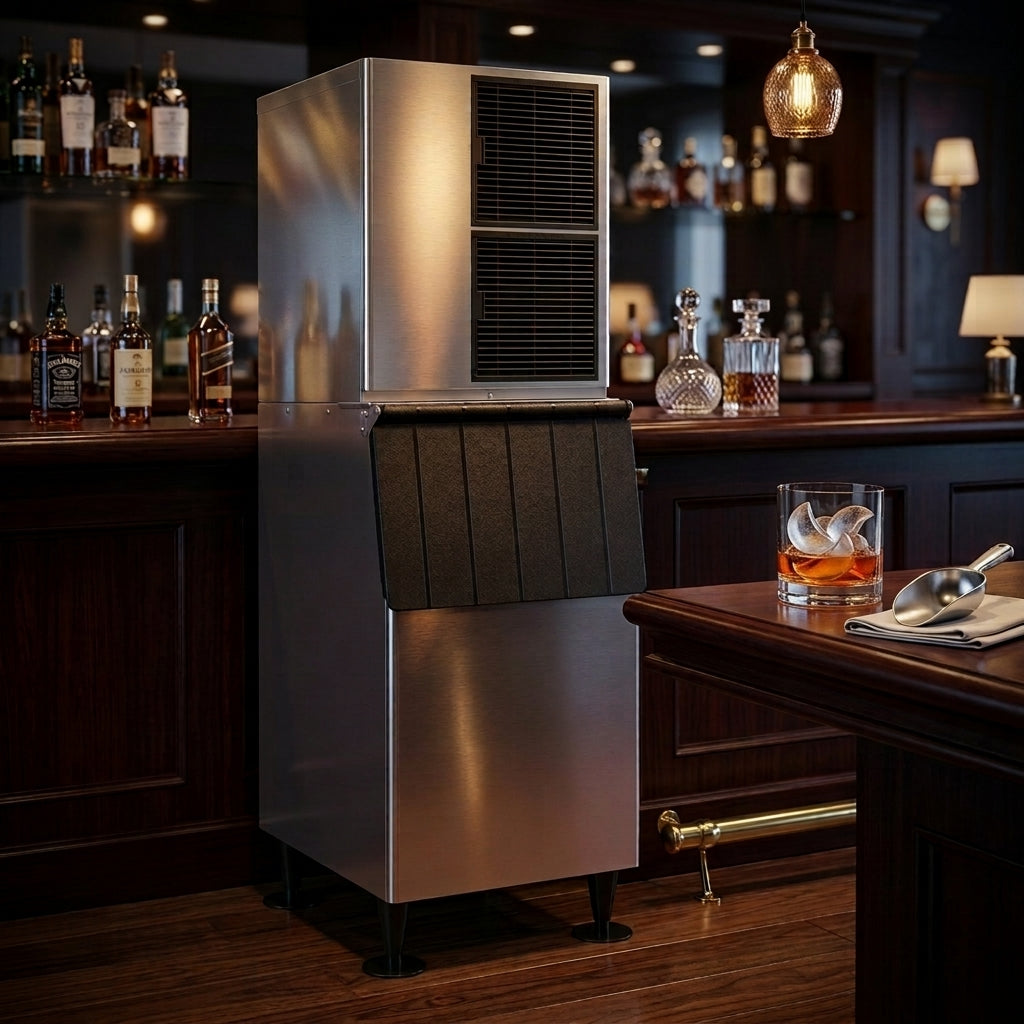

The Hoshizaki KM‑660MAJ is a high‑capacity, air‑cooled modular crescent cuber designed for large‑scale commercial operations. With up to 669 lbs of daily ice production, CycleSaver™ design, and EverCheck™ diagnostics, it delivers consistent, energy‑efficient performance for hotels, restaurants, and healthcare facilities.
Key Specifications:
- Ice Production Capacity: 650 lbs per 24 hours at 70°F air/50°F water; 560 lbs at 90°F air/70°F water
- Dimensions: 22" W × 27‑3/8" D × 28" H (slim‑line design)
- Electrical: 115V/60Hz/1 phase, 15.2A, max fuse size 20A
- Refrigerant: R‑404A, charge 1 lb. 9.8 oz
- Water Usage: 14.8 gallons per 100 lbs of ice at 90°F air/70°F water

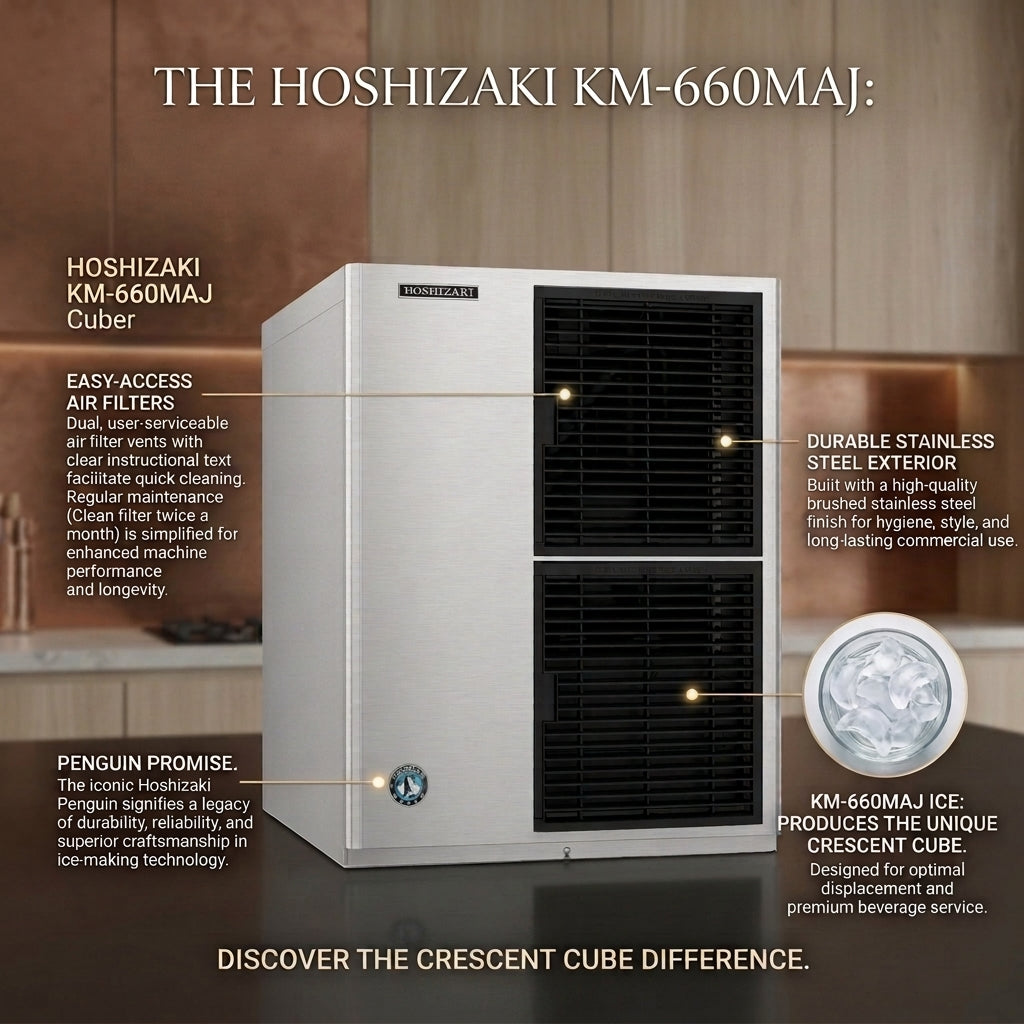

Features & Benefits:
- CycleSaver™ Design: Reduces harvest cycles, increasing efficiency and lowering component wear
- EverCheck™ Alert System: Provides real‑time diagnostics and alerts for proactive maintenance
- H‑GUARD Plus Antimicrobial Agent: Protects against bacterial growth for cleaner, safer ice
- Stainless Steel Double‑Sided Evaporator: Ensures durability and consistent ice production
- Energy Efficiency: Consumes only 5.3 kWh per 100 lbs of ice, balancing high output with energy conservation
Comparison With Other KM‑660 Variants:
| Model | Cooling Type | Ice Production (70°F/50°F) | Ice Production (90°F/70°F) | Water Usage |
|---|---|---|---|---|
| KM‑660MAJ | Air‑Cooled | 650 lbs/day | 560 lbs/day | 14.8 gal/100 lbs |
| KM‑660MAJ‑E | Air‑Cooled (50Hz) | Similar output (50Hz systems) | Performance varies by installation | 14.8 gal/100 lbs |
| KM‑660MWJ | Water‑Cooled | 669 lbs/day | 668 lbs/day | 16.1 gal/100 lbs + condenser water |
| KM‑660MRJZ | Remote‑Cooled | 642 lbs/day | 570 lbs/day | 15.0 gal/100 lbs |
What's Included:
- KM‑660MAJ Modular Crescent Cuber Unit
- Removable air filters (air‑cooled model)
- Factory‑installed ultrasonic bin control
- Installation and operation manual
- Warranty documentation
FAQ
Q: What Are the Plumbing Requirements for the KM‑660MAJ?
A: The KM‑660MAJ requires a minimum 1/4" Nominal ID copper water tubing for supply and a 3/4" Nominal ID hard pipe for drainage. Operating water pressure must be 10–113 PSIG, with water temperature between 45–90°F.
Q: Is This Ice Machine Compatible With Different Storage Bins?
A: Yes. It is compatible with Hoshizaki bins including B‑300SF, B‑500SF, B‑700SF, B‑900SF, and larger bins like B‑1150SS and B‑1300SS. A top kit may be required for certain bin models.
Q: Can the KM‑660MAJ Be Paired With a Filter System?
A: Yes. For enhanced water quality and ice clarity, the KM‑660MAJ can be paired with the H9320‑51 Single 4HC‑H Water Filter System.
Q: What Warranty Coverage Is Provided?
A: Hoshizaki offers a 3‑year parts and labor warranty on the entire machine, 5‑year parts and labor on the evaporator, and 5‑year parts warranty on the compressor and condenser coil.
Q: Are Other Cooling Options Available?
A: Yes. The KM‑660MAJ‑E is the 50Hz air‑cooled variant for international installations, the KM‑660MWJ is the water‑cooled variant, and the KM‑660MRJZ is the remote‑cooled variant paired with the URC‑5FZ condenser. These options provide flexibility depending on installation environment and cooling requirements.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Position the Hoshizaki KM‑350/420/520/660 modular cuber in a permanent indoor location with ambient temperature between 45°F–100°F and water temperature between 45°F–90°F.
- Allow proper clearance: 6" at rear, sides, and top for air‑cooled and water‑cooled models; 12" clearance at right side for certain air‑cooled units. Remote condenser units require 24" clearance front and rear.
- Unpack the ice storage bin or dispenser unit; attach adjustable legs if applicable and place in location. Level the bin or dispenser front‑to‑rear and side‑to‑side.
- Place the icemaker on top of the bin or dispenser; secure using mounting brackets and bolts provided. Ensure bin opening matches icemaker drop zone.
- Electrical connection must be hard‑wired to a dedicated 115V/60Hz/1‑phase circuit with proper breaker size (15–20A depending on model). Connect black wire to HOT, white to neutral, and ground to ground screw. Unit must be properly grounded.
- Connect potable water supply to the 1/2" FPT inlet using minimum 1/4" ID copper tubing; install shut‑off valve and drain valve.
- Connect icemaker drain to 3/4" FPT outlet using minimum 3/4" ID hard pipe; maintain 2" vertical air gap to floor drain and slope horizontal runs 1/4" per foot.
- For water‑cooled models, connect condenser water inlet (1/2" FPT) and outlet (3/8" FPT) separately; install shut‑off and drain valves as required.
- For remote models, connect refrigerant line set to approved Hoshizaki remote condenser (URC‑5FZ); follow line set sizing, refrigerant charge, and electrical connection instructions.
- Check refrigerant lines and compressor mounting pads; ensure fan blade turns freely.
- Open water supply, purge air from lines, and check all connections for leaks.
- For detailed steps, refer to the Hoshizaki KM‑350/420/520/660 installation manual or contact a licensed plumber/electrician.
- Inspect air filters bi‑weekly; wash with warm water and neutral cleaner if dirty.
- Check external water filters monthly; replace if pressure drops. Wipe down exterior panels with soft cloth and neutral cleaner.
- Clean and sanitize icemaker and bin at least yearly using Hoshizaki “Scale Away” cleaner followed by sanitizing solution.
- Inspect condenser fins and cabinet louvers yearly; clean with brush or vacuum. More frequent cleaning may be required depending on environment.
- Check water hoses and inlet screens yearly; clean or replace as needed.
- Verify bin control operation during startup; ensure proper shut‑down when actuator paddle is pressed.
- Disconnect power before servicing internal components; lockout/tagout to prevent accidental energizing.
- For service or repairs, consult the manual or a certified Hoshizaki service representative.
