Hoshizaki DCM-271BAH | Cubelet Ice and Water Dispenser, Air-cooled, 10 lbs capacity
Hoshizaki DCM-271BAH | Cubelet Ice and Water Dispenser, Air-cooled, 10 lbs capacity is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
Hoshizaki DCM-271BAH | Cubelet Ice and Water Dispenser, Air-cooled,...

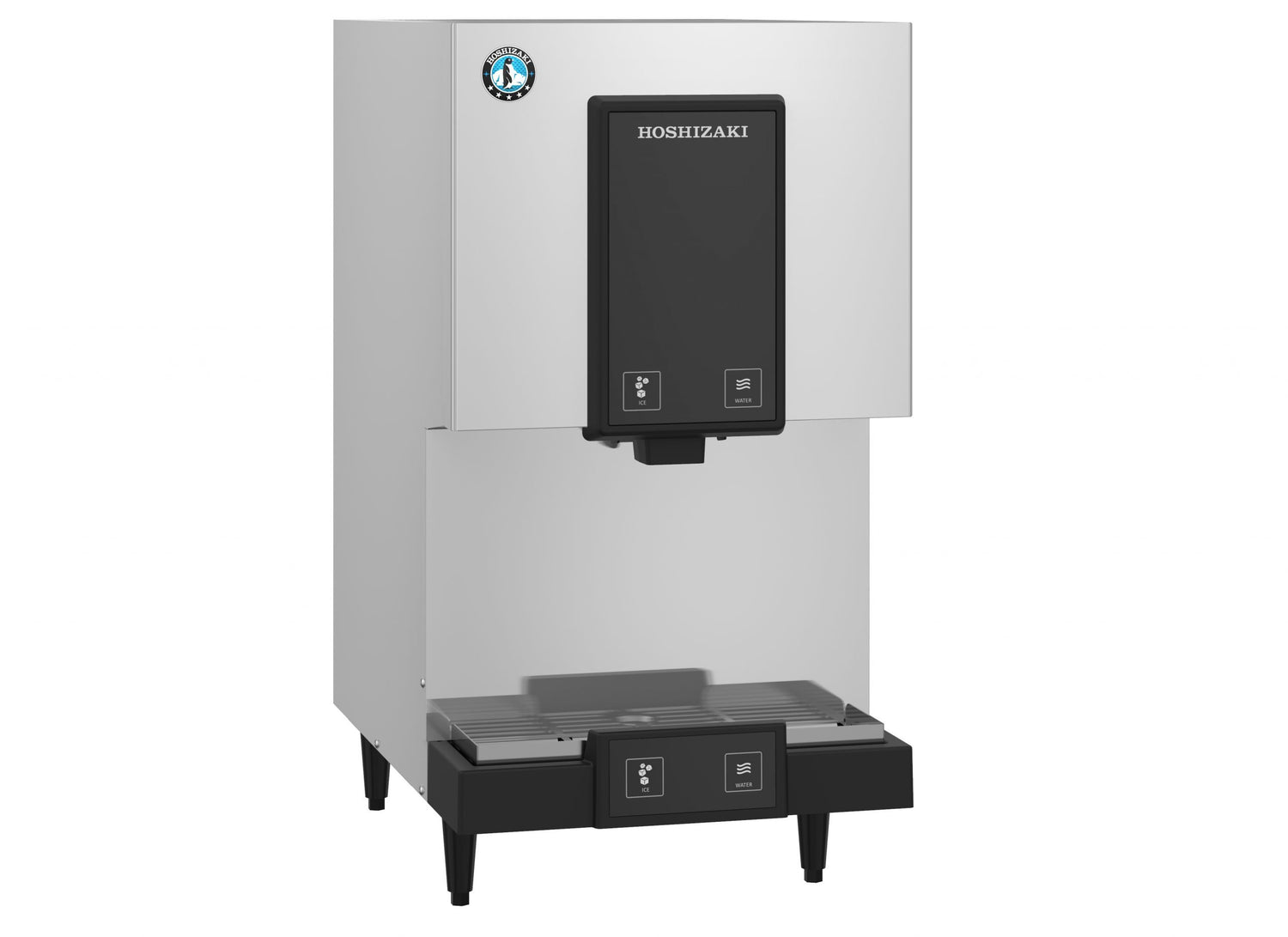

The DCM-271BAH by Hoshizaki is a high-capacity cubelet ice machine and water dispenser designed for commercial use. This versatile unit combines impressive ice production of up to 257 lbs per day with built-in storage and dispensing capabilities, making it ideal for healthcare facilities, offices, and self-serve environments. Its modern design, easy-to-chew cubelet ice, and ADA compliance set it apart in the ice machine market, offering both functionality and accessibility.
Key Specifications:
- Ice Production Capacity: Up to 257 lbs of cubelet ice production per 24 hours at 70°F air/50°F water.
- Storage Capacity: Built-in storage capacity of 0.3 ft³/10 lbs of ice.
- Dimensions: Compact size of 16⅝" W x 24¼" D x 31¾" H (including 4" legs), suitable for various commercial settings.
- Dispensing Clearance: 10¼" cup clearance for easy filling of various container sizes.
- Electrical: Operates on 115V/60/1 with a 6 ft cord and NEMA 5-15 plug, drawing 8.5A under normal conditions.
Features & Benefits:
- Easy-to-Chew Cubelet Ice: Provides a comfortable chewing experience, ideal for healthcare settings and general hydration.
- ADA Compliant Design: Features lower buttons for easy wheelchair access, ensuring inclusivity in various environments.
- Advanced CleanCycle24™: Incorporates a 2-second flush cycle every hour and a comprehensive cleaning system for improved hygiene and maintenance.
- Energy Efficiency: Uses 6.9 kWh per 100 lbs of ice production, balancing high output with energy conservation.
- Durable Construction: Stainless steel drain pan grate and removable spout ensure longevity and ease of cleaning.
What's Included:
- DCM-271BAH Cubelet Ice Machine and Water Dispenser unit
- 6 ft power cord with NEMA 5-15 plug
- Installation and operation manual
- Warranty documentation
FAQ
Q: What are the plumbing requirements for the DCM-271BAH?
A: The DCM-271BAH requires a minimum 1/4" Nominal ID Copper Water Tubing or equivalent for the icemaker water supply line. For drainage, it needs a minimum 3/4" Nominal ID Hard Pipe or equivalent, with a 3/4" MPT drain connection. The unit operates with a water pressure range of 10-113 PSIG and a water temperature range of 45°F to 90°F.
Q: What is the warranty coverage for this ice machine?
A: Hoshizaki provides a 3-year parts and labor warranty on the entire machine. Additionally, there's a 5-year parts warranty on the compressor and air-cooled condenser coil. This warranty is valid in the United States, Canada, Puerto Rico, and U.S. Territories.
Q: Is this ice machine suitable for outdoor installation?
A: No, the DCM-271BAH is not intended for outdoor use. It's designed for indoor environments and should avoid placement in direct sunlight. The unit operates within an ambient temperature range of 45°F to 100°F, which is typical for indoor settings.
Detailed Features & Benefits
Cubelet Ice Production and Dispensing: The DCM-271BAH's ability to produce up to 257 lbs of cubelet ice per day with built-in storage and dispensing capabilities offers significant advantages for high-traffic commercial environments. Cubelet ice, known for its easy-to-chew texture, is particularly beneficial in healthcare settings and for general hydration purposes. The machine's 10¼" cup clearance accommodates a wide range of container sizes, enhancing its versatility. The combination of high production capacity and convenient dispensing makes it an ideal solution for self-serve areas, reducing the need for staff intervention and ensuring a constant supply of ice for users.
Hygiene and Maintenance Features: The DCM-271BAH incorporates several features designed to maintain cleanliness and ease maintenance. The Advanced CleanCycle24™ design includes a 2-second flush cycle every hour, which helps prevent the buildup of minerals and contaminants in the dispensing system. The easily removable spout and durable stainless steel drain pan grate facilitate regular cleaning, ensuring that the ice and water dispensed remain hygienic. These features not only contribute to the machine's longevity but also help maintain the quality and safety of the ice produced, which is crucial in environments where sanitation is paramount, such as healthcare facilities and food service areas.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
