Hoshizaki DCM-271BAH-OS | OptiServe Hands Free Cubelet Ice and Wate...

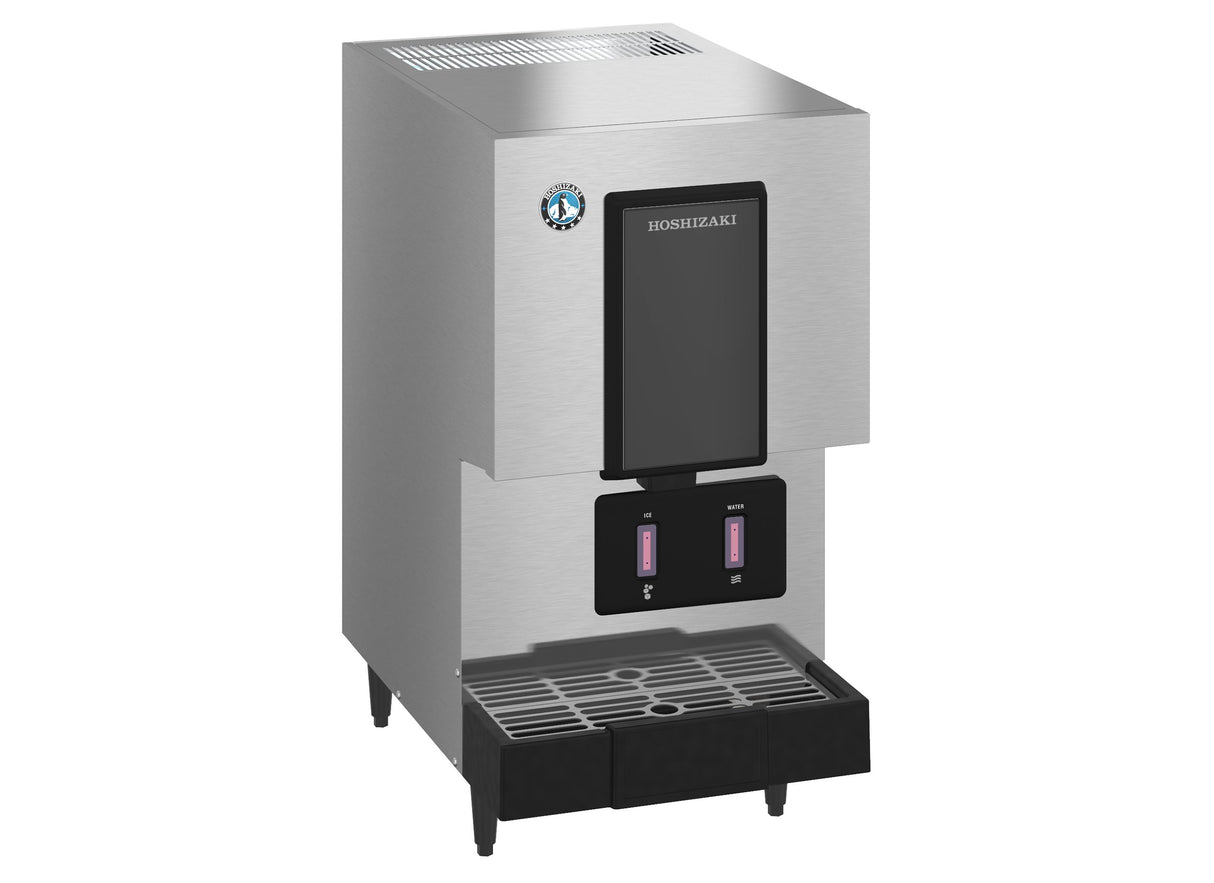

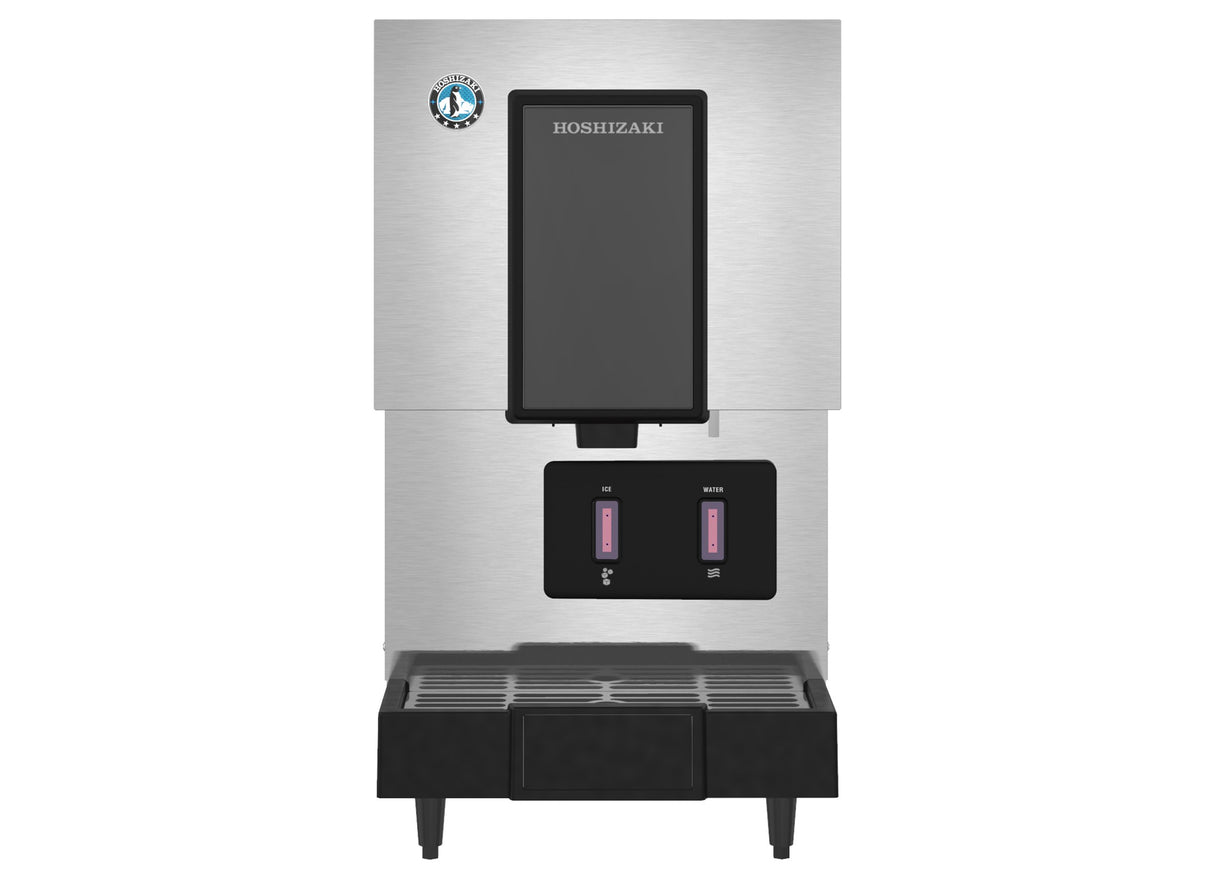

The Hoshizaki DCM-271BAH-OS Opti-Serve Series is a compact, sanitary cubelet ice machine and water dispenser designed for healthcare, foodservice, and self-serve environments. Featuring hands-free sensor activation, this unit delivers up to 257 lbs of chewable cubelet ice per day with built-in storage capacity. Its advanced CleanCycle24™ design, ADA compliance, and modern stainless steel construction make it a reliable and hygienic choice for facilities prioritizing safety and convenience.
Key Specifications:
- Ice Production Capacity: Up to 257 lbs per 24 hours at 70°F air/50°F water; 196 lbs at 90°F air/70°F water.
- Storage Capacity: Built-in storage of 0.3 ft³ (10 lbs of ice).
- Dimensions: 16-5/8" W x 24-1/4" D x 31-3/4" H (including 4" legs).
- Electrical: 115V/60/1 operation, 15A max fuse size, 8.5A draw.
- Refrigerant: R-404A refrigerant, 14.8 oz charge.
Features & Benefits:
- Opti-Serve Touchless Dispensing: Hands-free sensor activation for ice and water, reducing cross-contamination risks.
- CleanCycle24™ Technology: Automatic 2-second flush cycle every hour for improved hygiene.
- ADA Compliant: Designed for accessibility with 10-1/4" cup clearance.

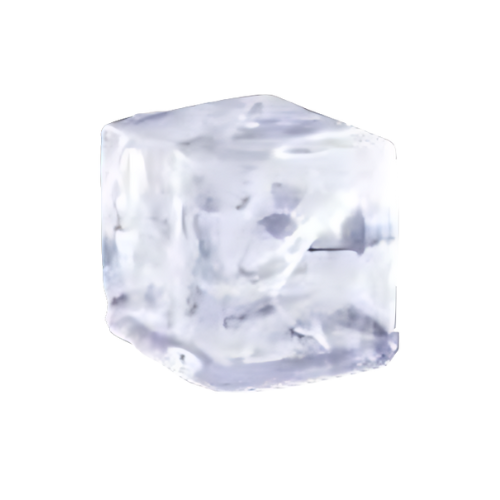

- Cubelet Ice: Produces chewable cubelet ice, ideal for healthcare patients and beverage service.
- Durable Construction: Stainless steel drain pan grate and removable spout for easy cleaning.
What's Included:
- DCM-271BAH-OS Opti-Serve Cubelet Ice Machine and Water Dispenser
- Stainless steel auger and drain pan grate
- Installation and operation manual
- Warranty documentation
Options Available:
- DCM-271BAH: Push-button air-cooled cubelet ice and water dispenser with 10 lbs storage capacity.
FAQ
Q: What are the plumbing requirements for the DCM-271BAH-OS?
A: Requires minimum 1/4" Nominal ID copper water tubing for supply and 3/4" Nominal ID hard pipe for drains. Operates with water pressure between 10–113 PSIG and water temperature between 45°F–90°F.
Q: Is this ice machine suitable for outdoor installation?
A: No, the DCM-271BAH-OS is designed for indoor use only. It operates within an ambient temperature range of 45°F–100°F.
Q: What is the warranty coverage for this ice machine?
A: Hoshizaki provides a 3-year parts and labor warranty on the entire machine, plus a 5-year parts warranty on the compressor and air-cooled condenser coil. Valid in the United States, Canada, Puerto Rico, and U.S. Territories.
Q: Can the DCM-271BAH-OS be installed on a stand?
A: Yes, it is compatible with the SD-271 stand, which provides a secure base for installation.
Detailed Features & Benefits
Opti-Serve Touchless Dispensing: The DCM-271BAH-OS uses advanced sensors to dispense ice and water without physical contact. This reduces the risk of cross-contamination, making it ideal for healthcare and foodservice environments where hygiene is critical.
CleanCycle24™ Technology: A built-in 2-second flush cycle every hour helps maintain sanitary conditions inside the machine. This feature minimizes mineral buildup and ensures consistently clean ice and water output.
Compact and ADA Compliant Design: With a footprint of just 16-5/8" wide, the DCM-271BAH-OS fits easily into tight spaces. Its ADA-compliant design provides accessible cup clearance, making it suitable for a wide range of users.
Durable Stainless Steel Construction: The stainless steel drain pan grate and removable spout simplify cleaning and enhance durability. This ensures the unit can withstand heavy daily use in commercial environments.
Efficient Performance: Produces up to 257 lbs of chewable cubelet ice daily with 10 lbs of built-in storage. Its energy-efficient design balances high output with reliable operation, making it cost-effective for continuous use.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
