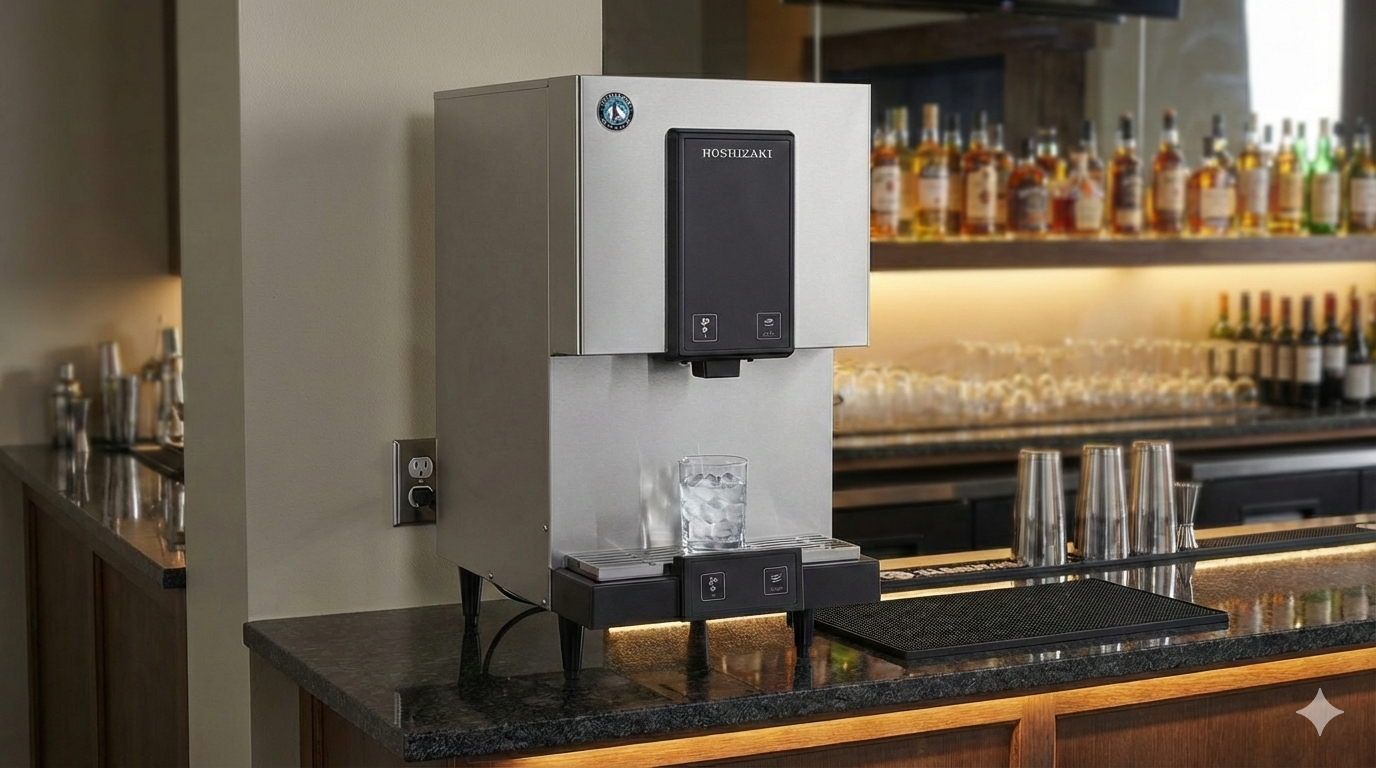

Hoshizaki DCM-271BAH | Cubelet Ice and Water Dispenser, Air-cooled | Replaced by DCM-271BAK

Notice: This product is discontinued and is now replaced with the Hoshizaki DCM-271BAK, which includes upgraded refrigeration features. Shop here.

The Hoshizaki DCM-271BAH is a high-capacity cubelet ice machine and water dispenser designed for commercial environments. With up to 257 lbs of daily ice production and built-in storage, it's ideal for healthcare facilities, offices, and self-serve stations. Its chewable ice format, and advanced hygiene features make it a standout solution for accessible hydration. Its replacement, the DCM-271BAK, keeps this same design while producing more ice, drawing less power, and running on environmentally friendly R-290 refrigerant.

Key Specifications:

• Ice Production: Up to 286 lbs per 24 hours at 70°F air / 50°F water.
• Storage Capacity: 10 lbs (0.3 ft³) built-in bin.
• Dimensions: 16⅝" W × 24¼" D × 31¾" H (includes 4" legs).
• Electrical: 115V / 60Hz / 1 phase, 6.4A, NEMA 5-15 plug.

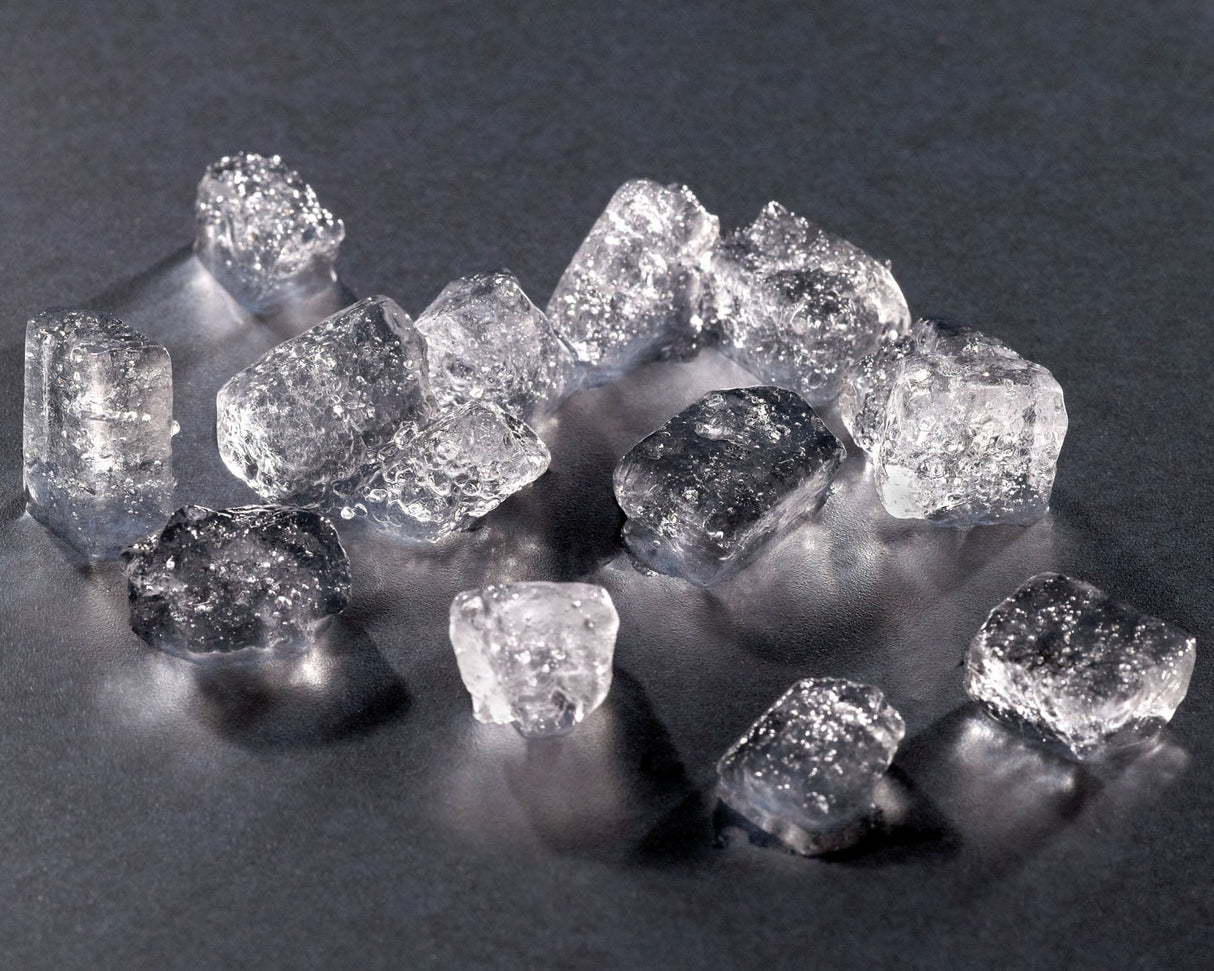

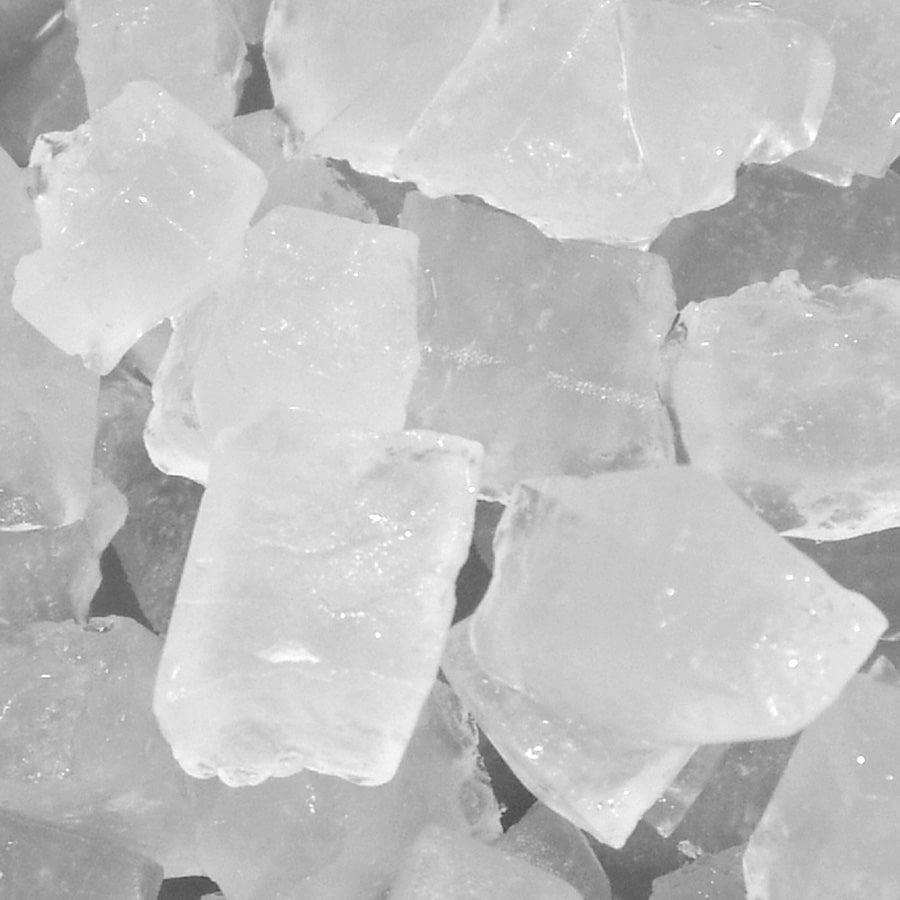

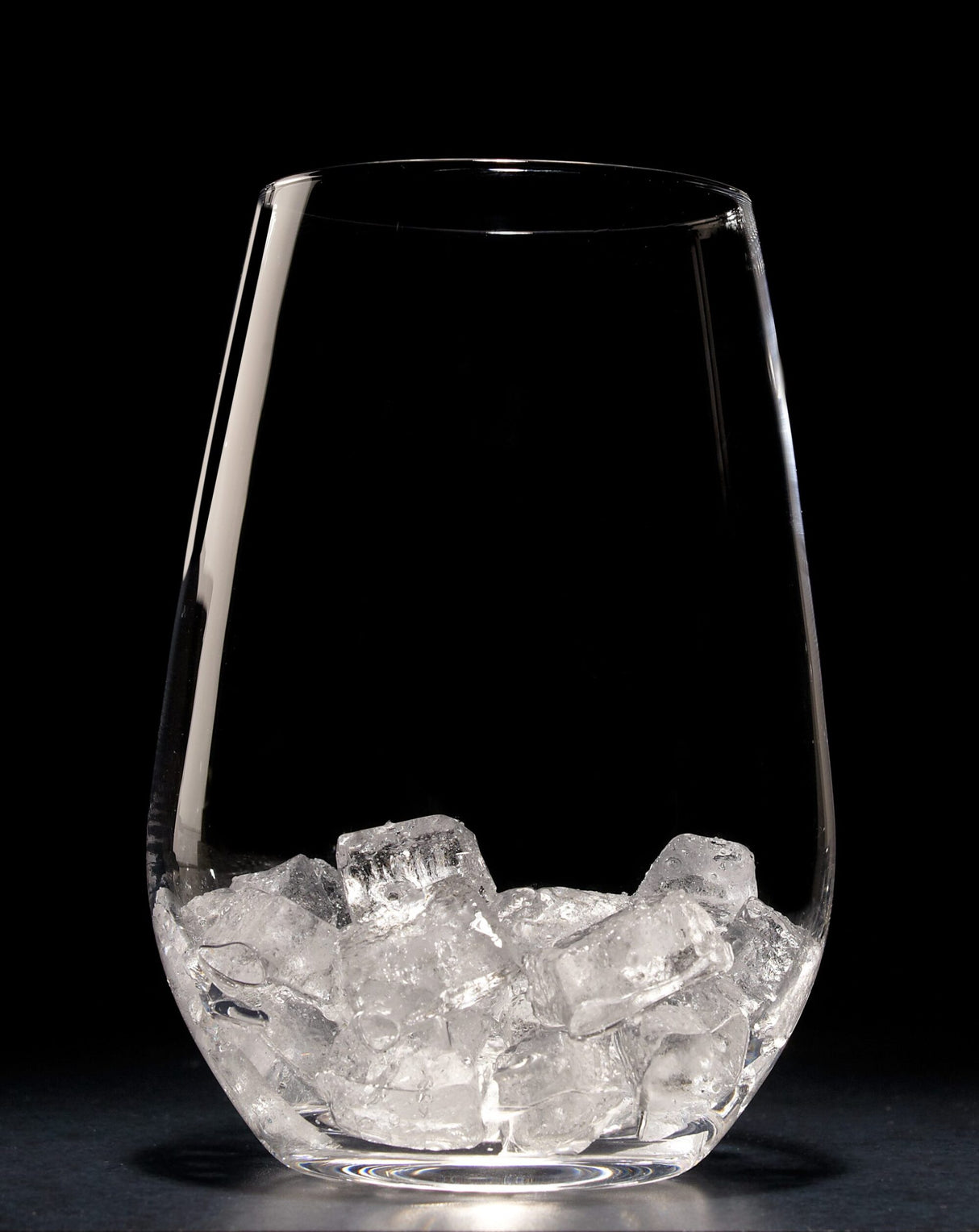

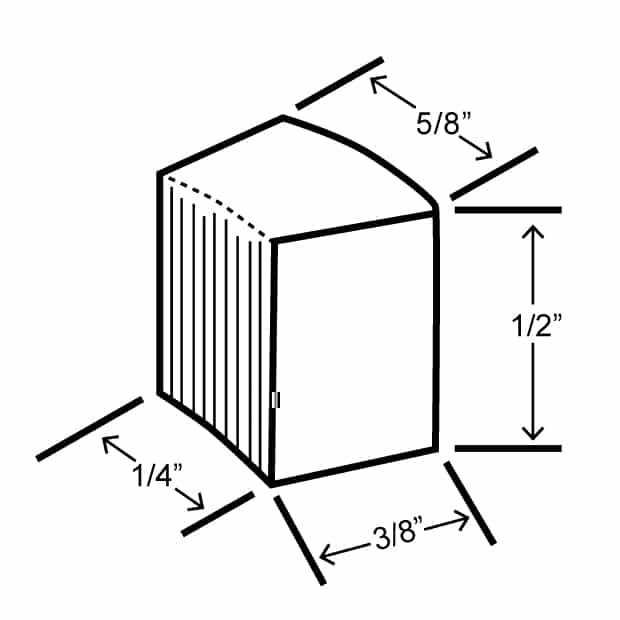

• Type of Ice: Easy to chew, cubelet ice.

Comparison Table:

Features & Benefits:

• ADA Accessibility: Lower button placement for wheelchair-friendly operation.
• CleanCycle24™: Hourly 2-second flush cycle enhances hygiene and reduces buildup.
• Energy Efficient: Consumes only 6.9 kWh per 100 lbs of ice produced. The DCM-271BAK is even more efficient, using just 5.3 kWh per 100 lbs.
• Durable Build: Stainless steel drain pan grate and removable spout for easy cleaning.
• DCM-271BAK Replacement: Keeps all of the above features and switches to R-290 refrigerant for a lower environmental footprint, with a smaller refrigerant charge (5.3 oz vs. 14.8 oz) and quieter operation.

What's Included:

• Ice and water dispenser unit
• 6 ft power cord with NEMA 5-15 plug
• Installation and operation manual
• Warranty documentation

Options Available:

• DCM-271BAH-OS: OptiServe hands-free model with air-cooled 10 lb capacity
• DCM-271BAK: The current replacement model, same footprint and storage capacity, with higher ice output, lower amperage draw, and R-290 refrigerant. No electrical upgrade required — still runs on a 15A circuit.

FAQ

Q: What are the plumbing requirements for the DCM-271BAH?

A: Requires 1/4" Nominal ID copper water tubing or equivalent for supply, and 3/4" Nominal ID hard pipe or equivalent for drainage. Operates with water pressure between 10–113 PSIG and water temperature between 45°F–90°F. The DCM-271BAK shares these same plumbing requirements.

Q: What is the warranty coverage for this ice machine?

A: 3-year parts and labor warranty on the entire machine, plus 5-year parts warranty on the compressor and air-cooled condenser coil. Valid in the U.S., Canada, Puerto Rico, and U.S. Territories. The DCM-271BAK carries the same warranty terms.

Q: Is this ice machine suitable for outdoor installation?

A: No. The unit is designed for indoor use only and should be kept out of direct sunlight. Operates within an ambient temperature range of 45°F–100°F. The DCM-271BAK shares the same operating limits.

Q: Is the DCM-271BAH ADA compliant?

A: Yes. It features lower button placement and 10¼" cup clearance, making it wheelchair accessible and ADA compliant. The DCM-271BAK is equally ADA compliant.

Q: Can this unit be installed on a stand?

A: Yes. The DCM-271BAH is compatible with the SD-271 stand for freestanding installation. If mounting flat to a counter, ensure proper sealing around the base with approved caulk. The DCM-271BAK pairs with the same SD-271 stand.

Q: Why was the DCM-271BAH replaced by the DCM-271BAK?

A: Mainly due to a refrigerant change — from R-404A to environmentally friendly R-290 (propane). Unlike some other model transitions, this change came with no trade-offs: the DCM-271BAK produces more ice, draws less amperage, uses less energy per 100 lbs, and still runs on the same 15A circuit and footprint as the DCM-271BAH.
