Haws 1109PCH | Child-Height Vandal-Resistant Fountain & Bottle ...

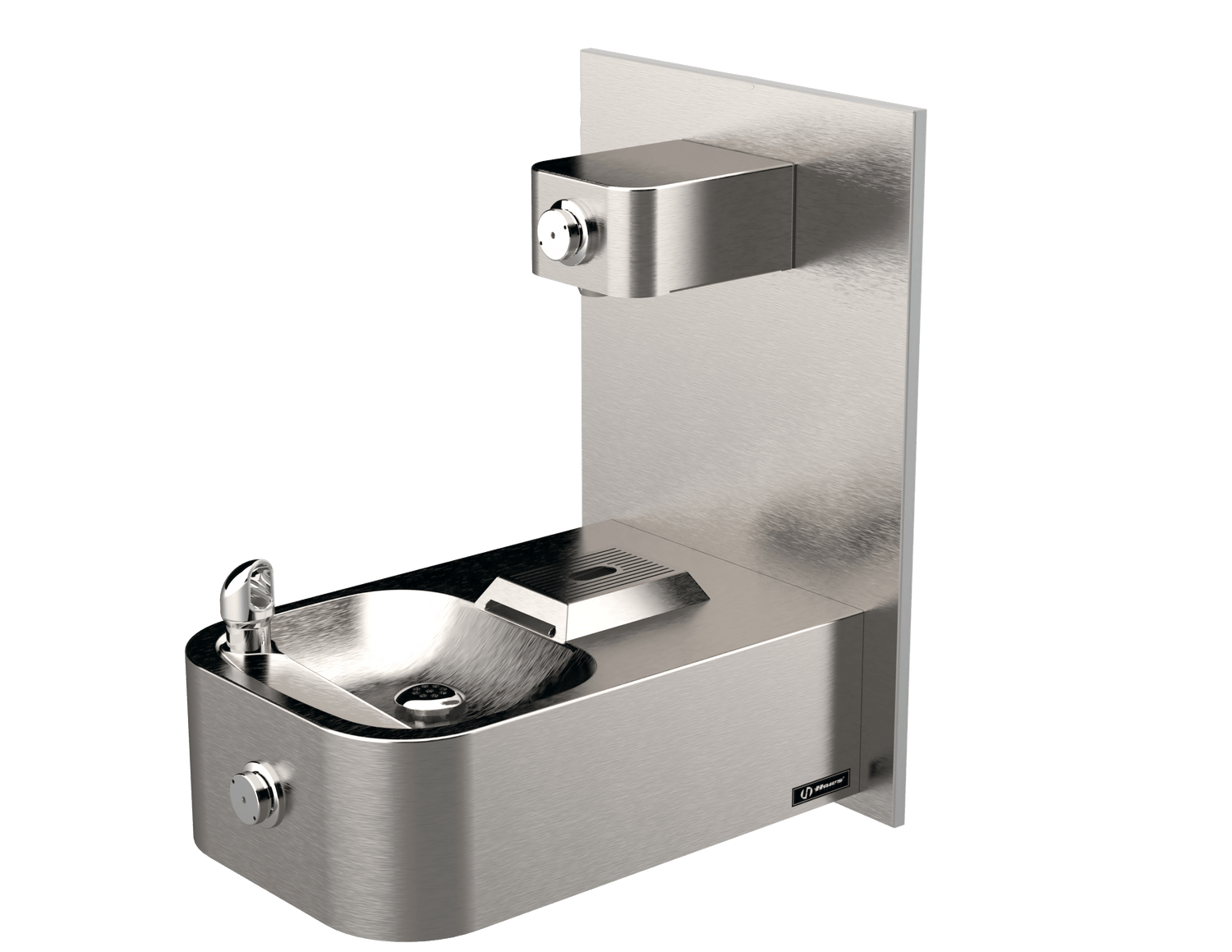

The Haws 1109PCH is a wall-mounted, child-height vandal-resistant drinking fountain and bottle filler bundle built with 18-gauge Type 304 Stainless Steel for durability in demanding public environments.
Key Specifications:
- Finish: Satin Stainless Steel
- Bottle Filler Flow Rate: 1 GPM (3.78 L) laminar flow
- Filtration: Non-Filtered. Optional Model 6480 (3,000-Gallon Carbon Block Filter) Can be Added for Filtered Option
- Refrigeration: Not Included. Refers to 1109.8P for Refrigerated/Chilled Option
- Operating Pressure: 30 to 90 PSI (2.1 to 6.2 bar)
Other Related Variants:
- 1109P: 18-gauge barrier-free stainless steel fountain with bottle filler bundle (standard adult height)
- 1109B: 18-gauge barrier-free stainless steel fountain with in-wall mounting plate bundle
- 1109.8P: Vandal-resistant chilled drinking fountain and bottle filler bundle
- 1109.14P: Vandal-resistant 14-gauge fountain and bottle filler bundle
- 1109FRP: Bundle with pneumatic freeze-resistant valve system and 1920FR bottle filler
Features & Benefits:
- Vandal-Resistant Construction: The 1109PCH features locked-in-place bubbler heads, push buttons, drain strainers, and bottom plates — significantly discouraging tampering in high-traffic public spaces such as schools and office buildings.
- 100% Lead-Free Waterways: Compliant with NSF/ANSI/CAN 61-2020 (Q ≤ 1), NSF/ANSI/CAN 372, and California AB 1953, ensuring safe, clean drinking water for children and users of all ages.
- Dual Hydration Access: The 1109PCH combines a traditional drinking fountain with a 1 GPM laminar flow bottle filler, offering users a convenient and hygienic way to drink or refill reusable bottles — reducing single-use plastic waste.
- Easy Front-Access Maintenance: The all stainless-steel valve body features a front-accessible cartridge and flow adjustment, allowing service and maintenance without removing the bottom plate — saving time and reducing downtime.
FAQ
Q: What components are included in the 1109PCH bundle?
A: The bundle includes the 1109 Fountain, 1920 Bottle Filler, BP15C Child-Height Back Panel, 6469 Drip Tray, and two 6700 In-Wall Mounting Plates.
Q: Can a water filter be added to the 1109PCH?
A: Yes. The optional Model 6480 filter kit includes a 3,000-gallon carbon block filter, filter head, and mounting bracket that can be added for filtered water output.
Q: Is the 1109PCH suitable for outdoor installation?
A: The 1109PCH is designed for indoor or outdoor use in locations where temperatures remain above freezing. For freeze-resistant outdoor applications, refer to the 1109FRP variant which includes a pneumatic freeze-resistant valve system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
